Non disponibile
€856.03
Tax included

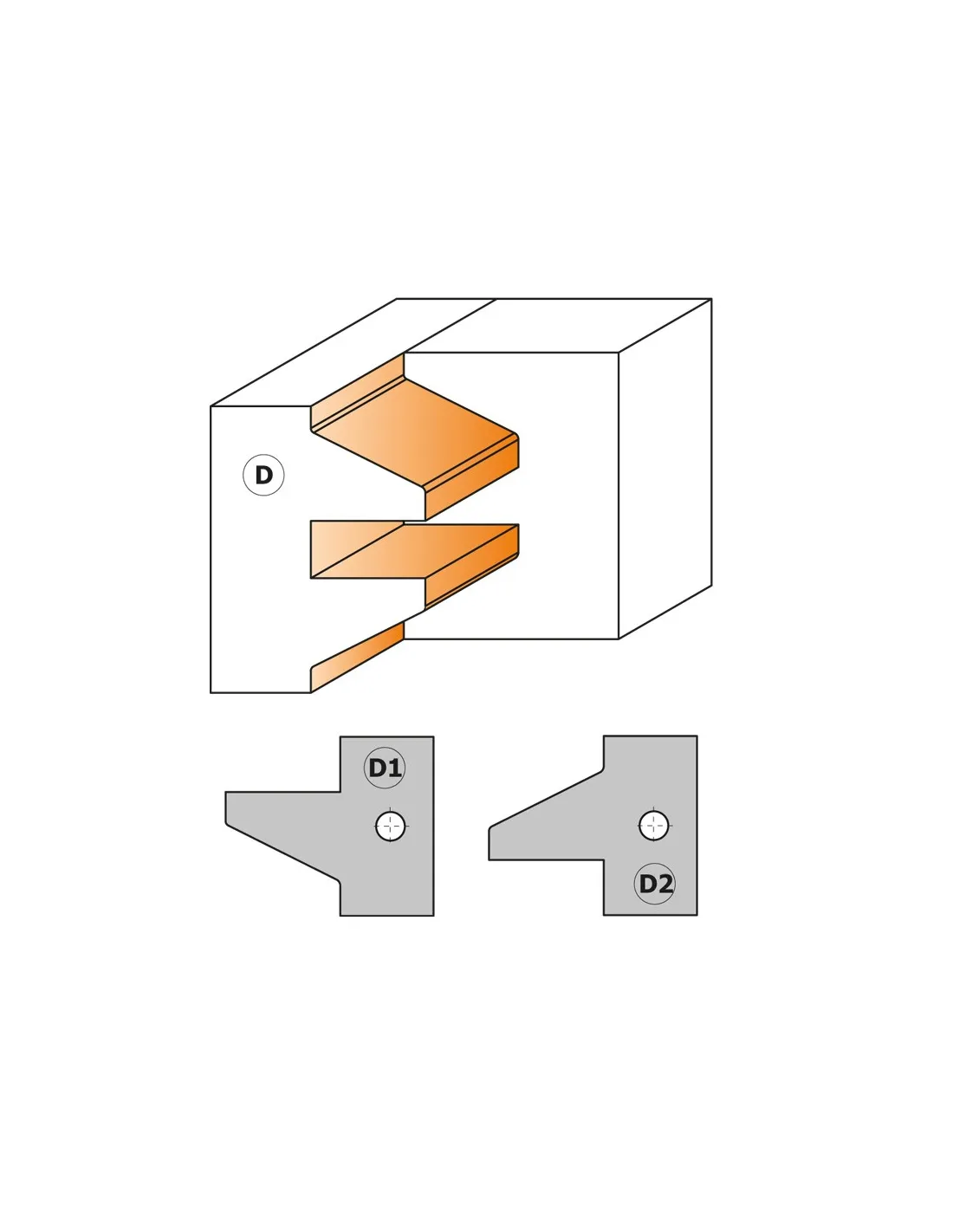

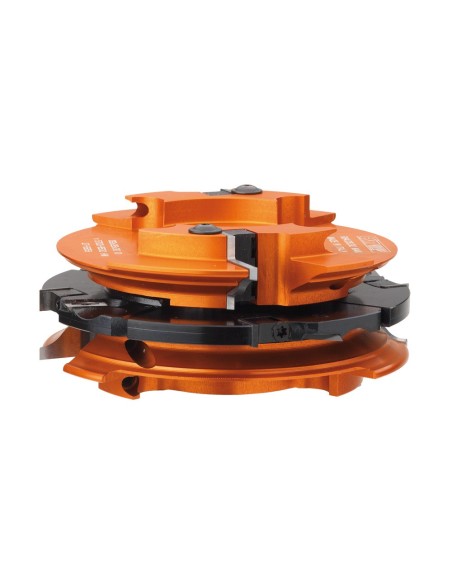

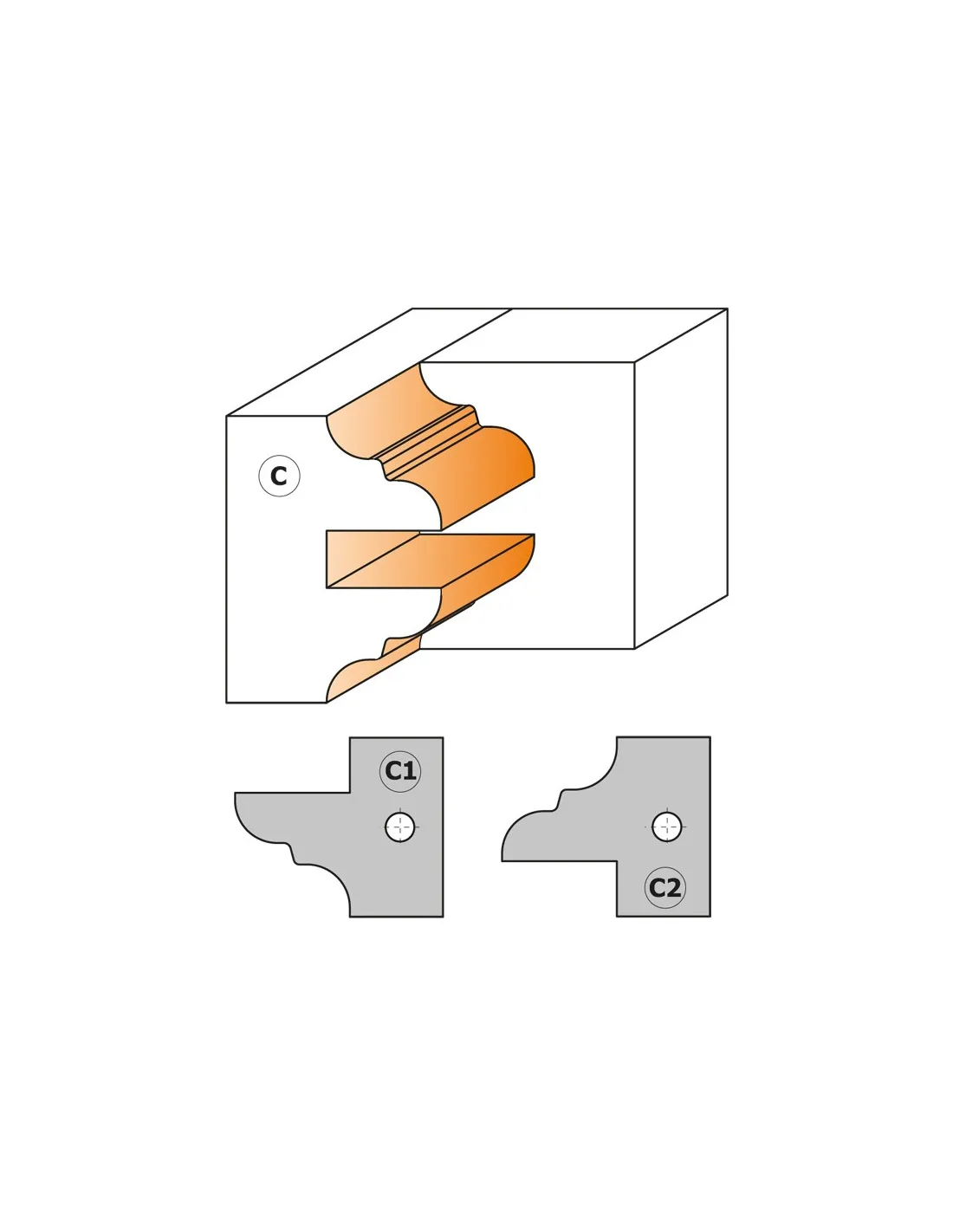

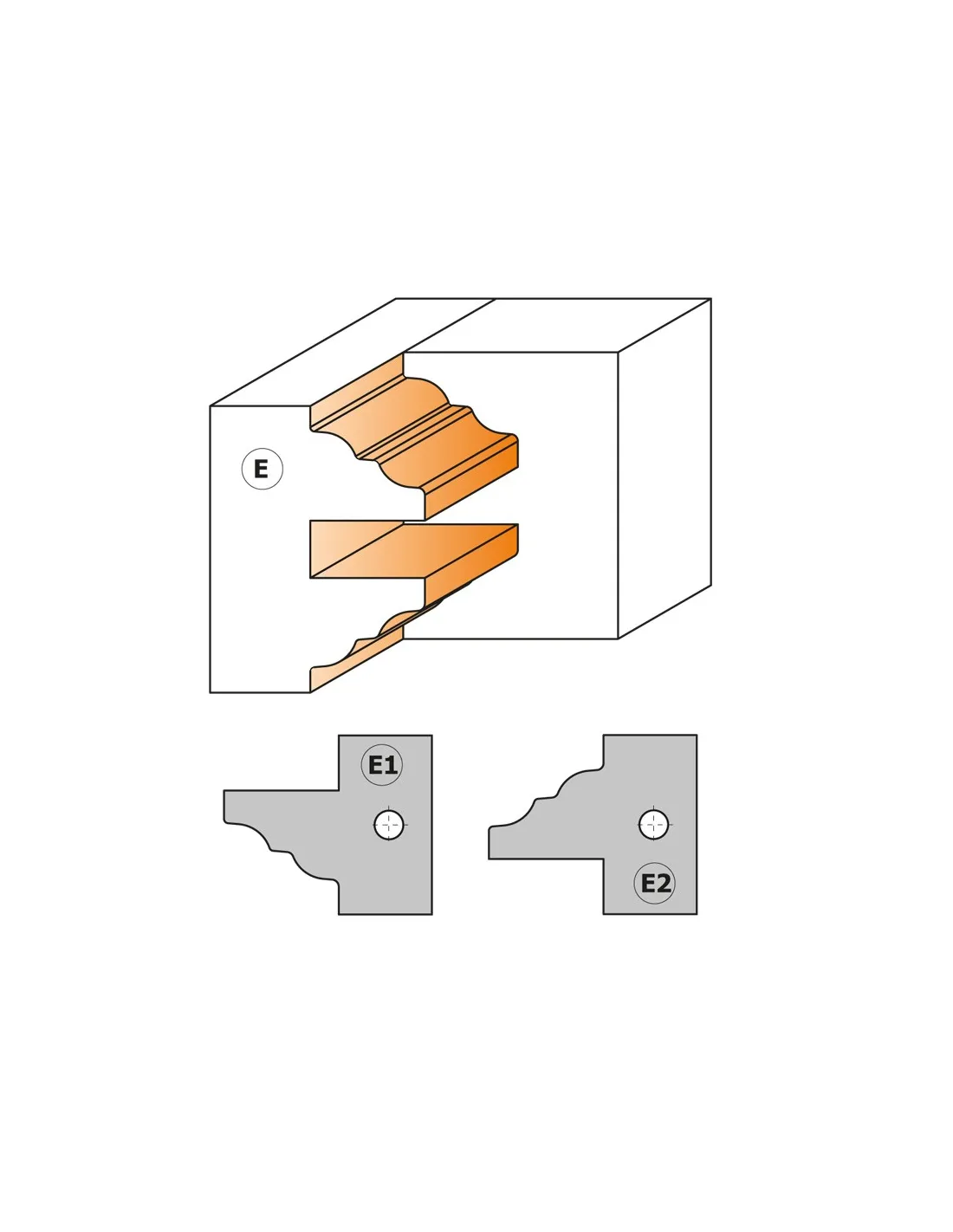

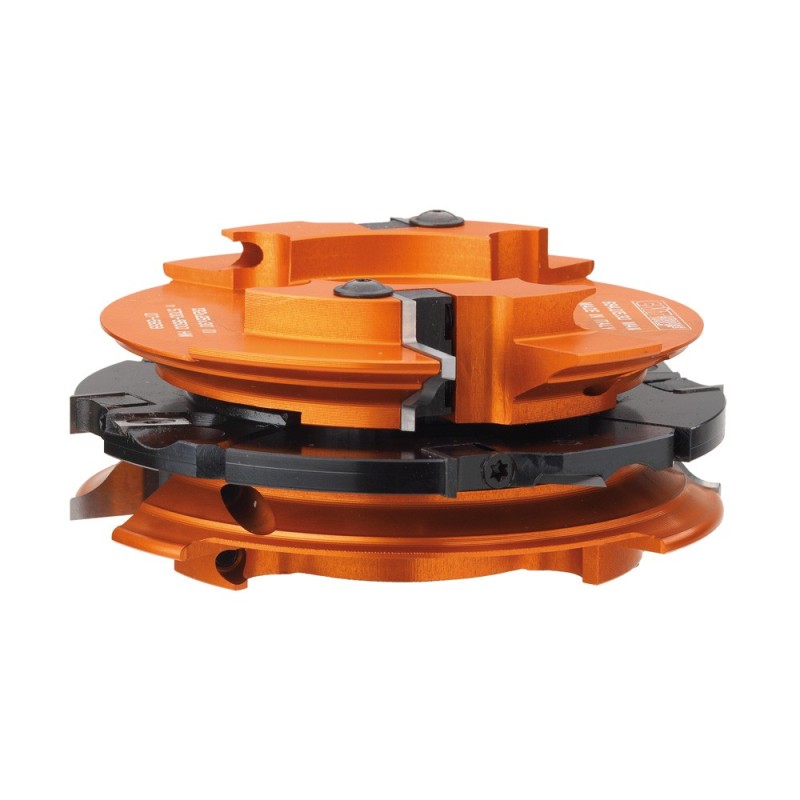

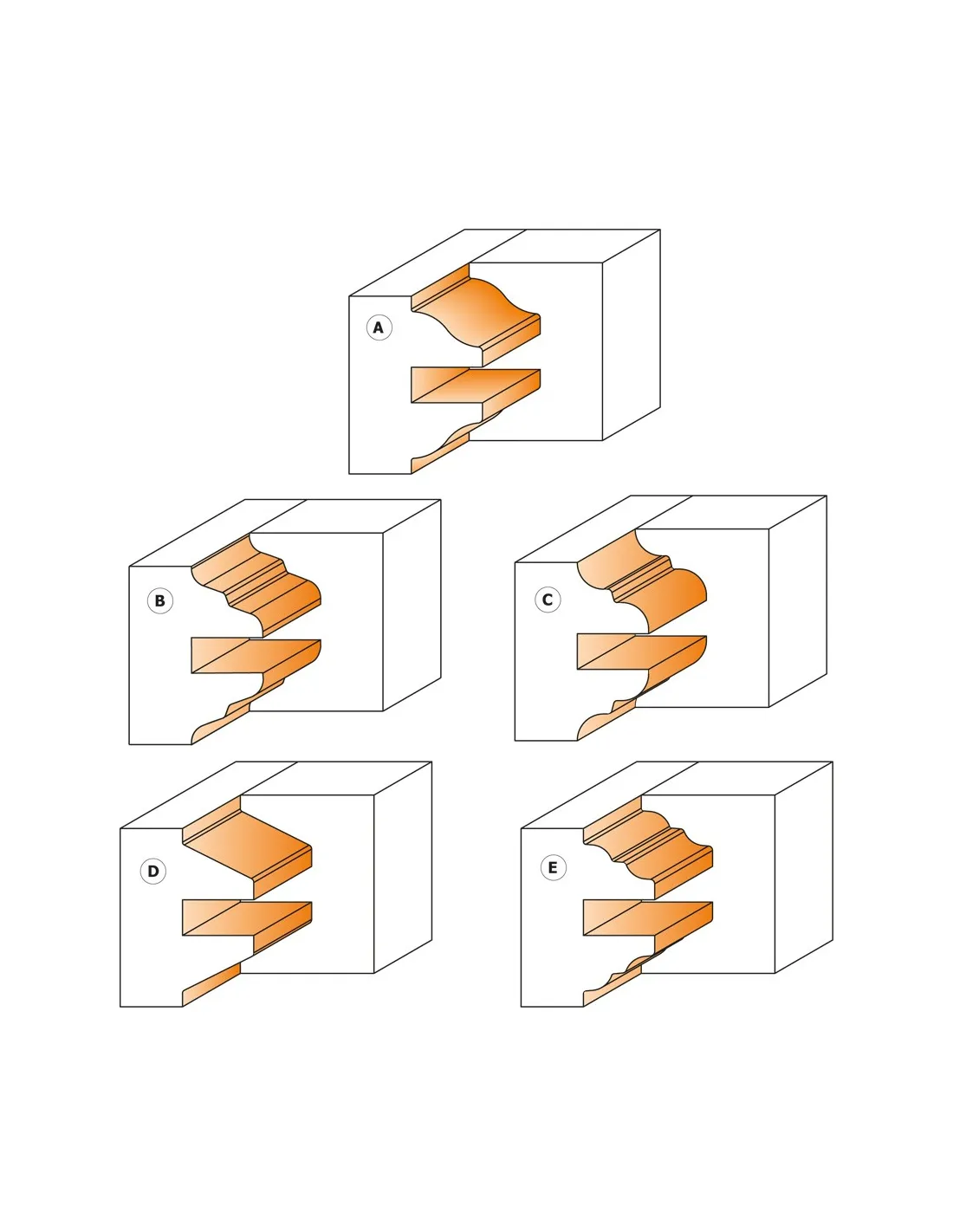

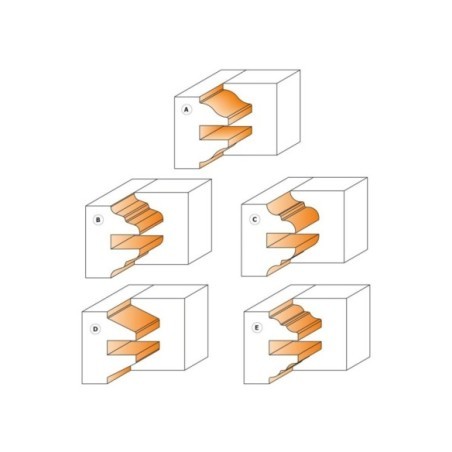

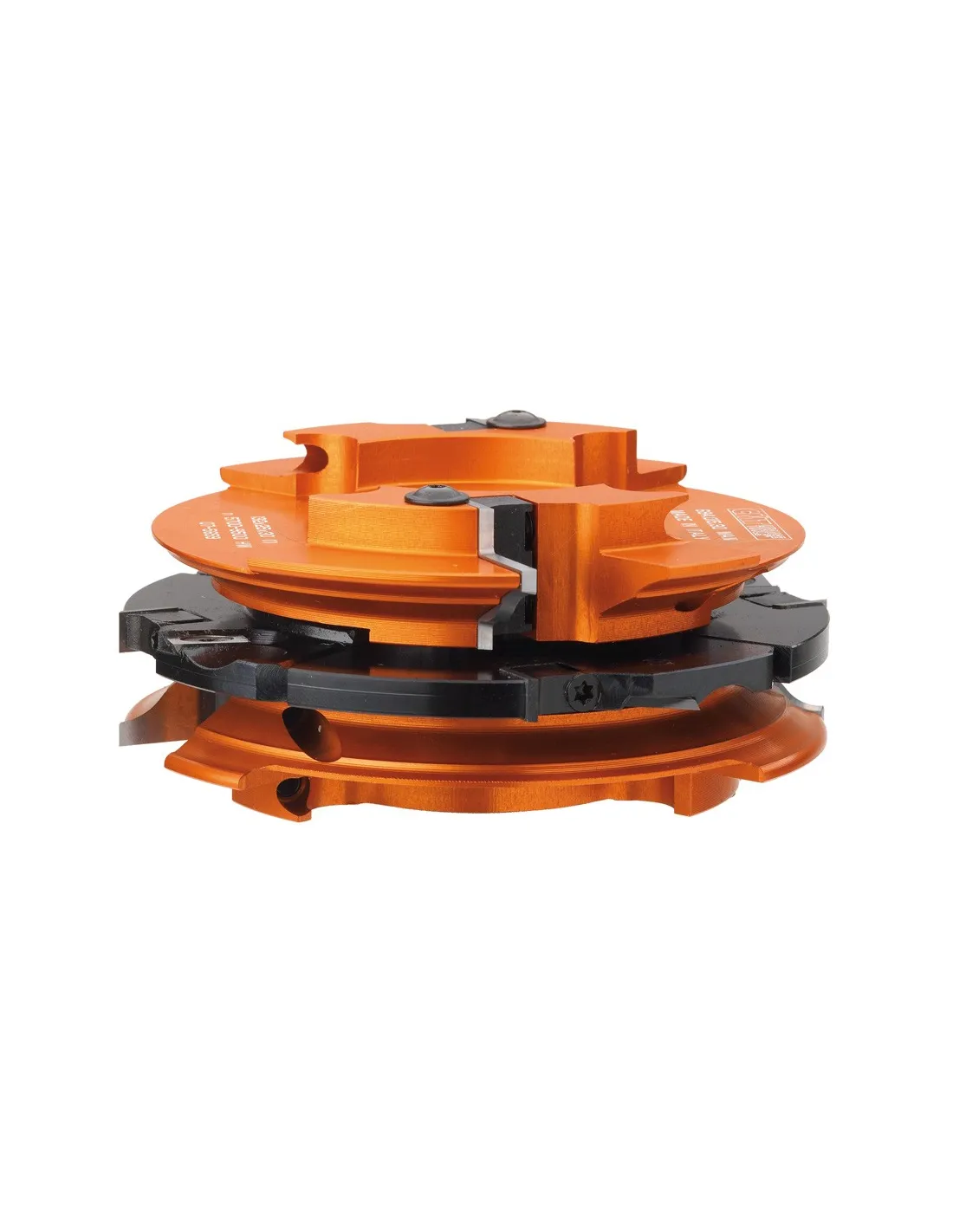

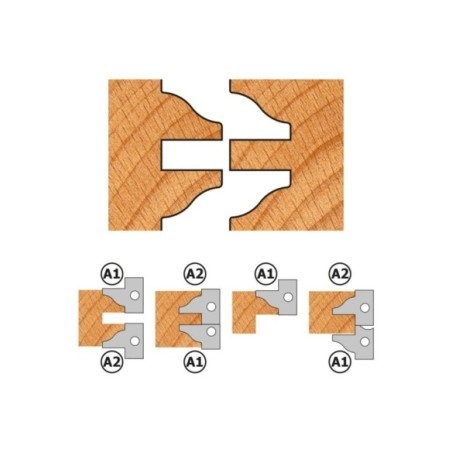

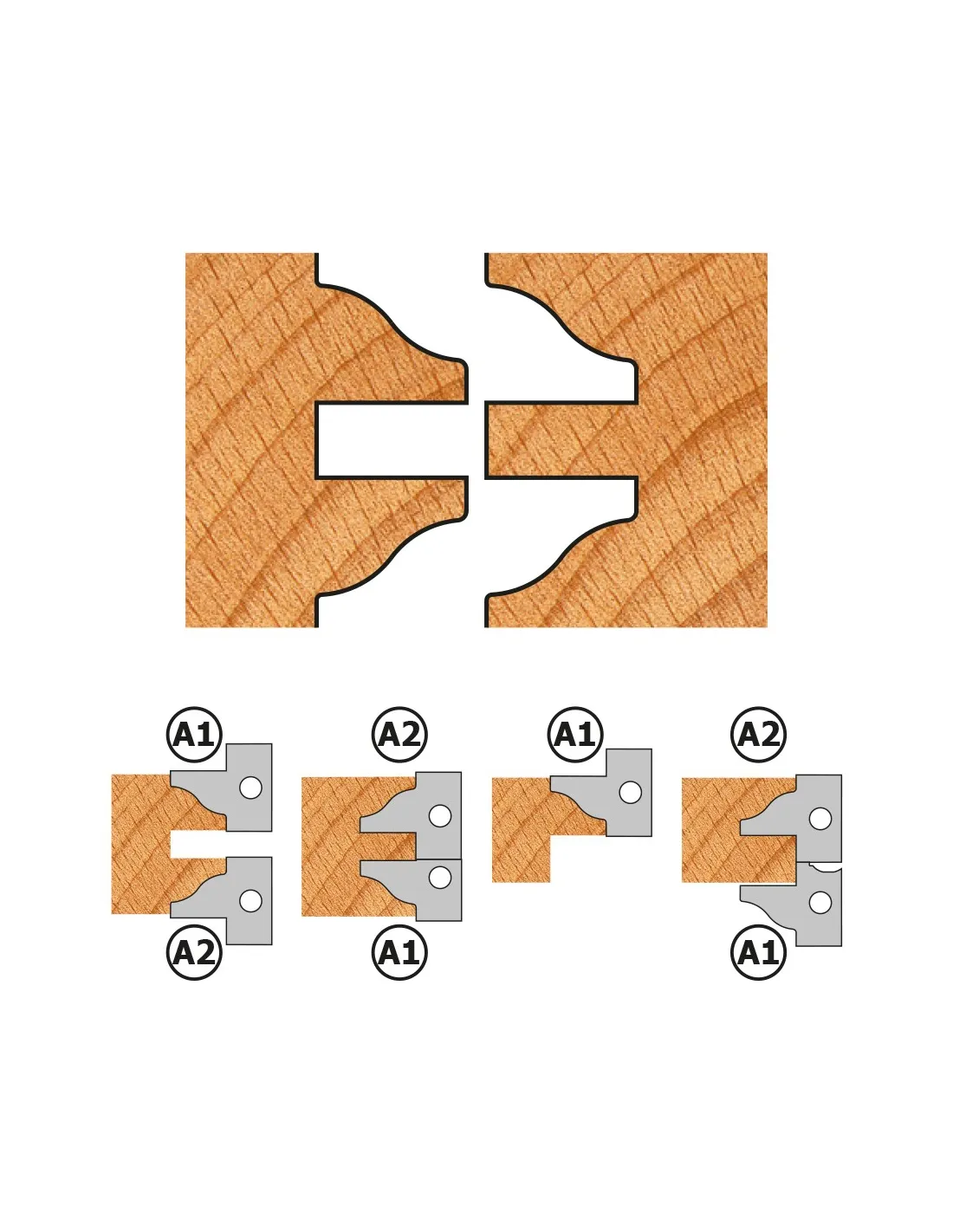

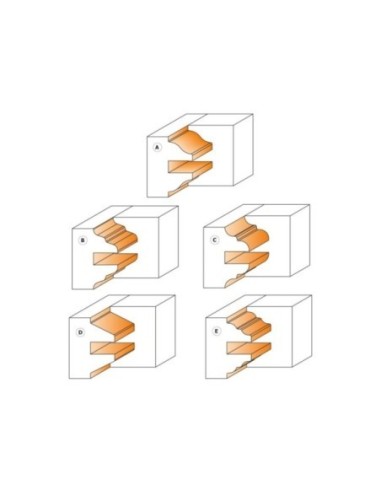

These versatile sets were designed to make furniture and doors on soft and hardwood. It allows the insertion of five different knives to produce the most popular and classical profiles.

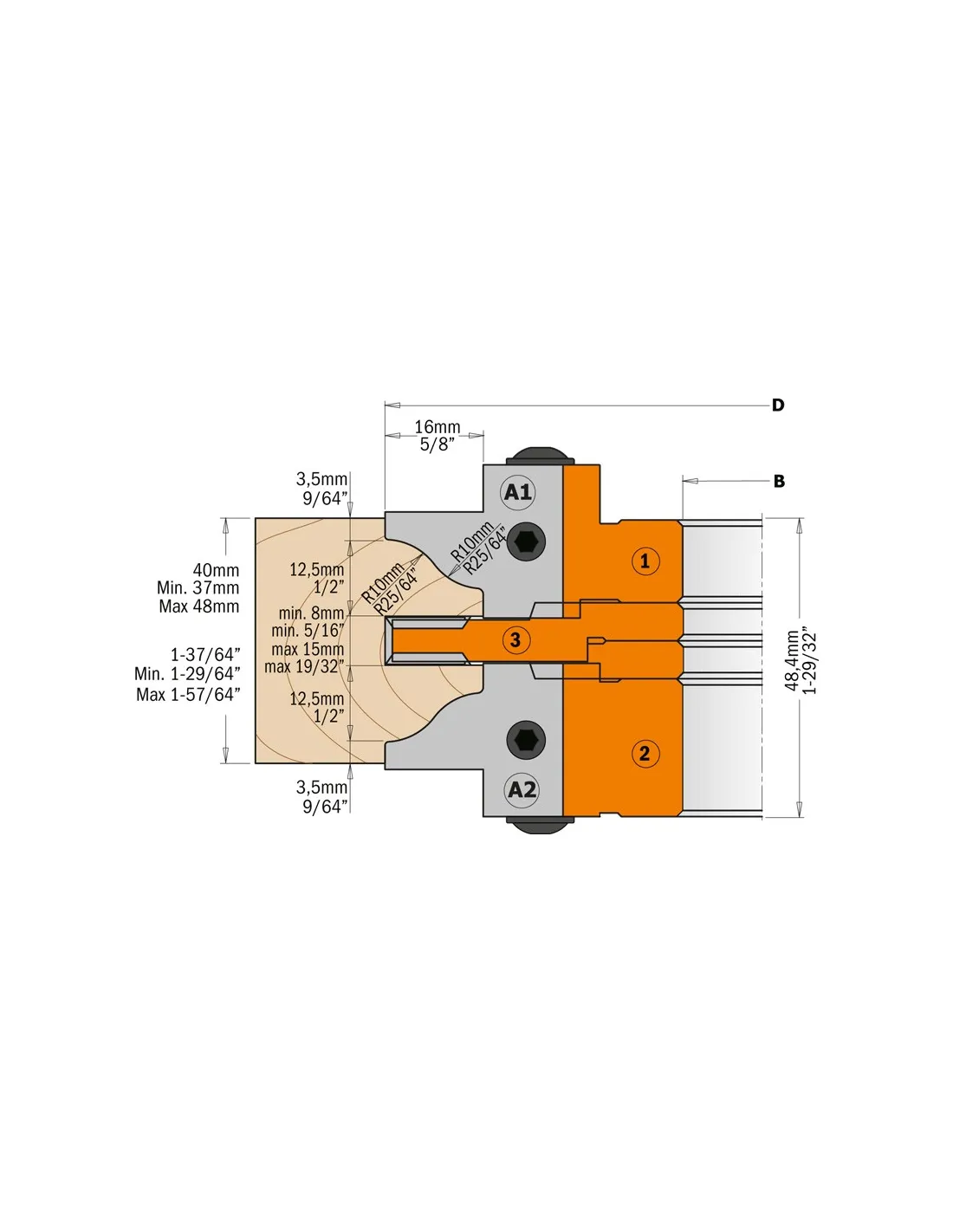

The adjustable cutter, included in the set, can also be used individually to carry out grooves between 8mm 15mm.

For use on spindle moulders and moulder machines.
Perfect on hard wood and panels maximum 22 - 25mm in thickness.

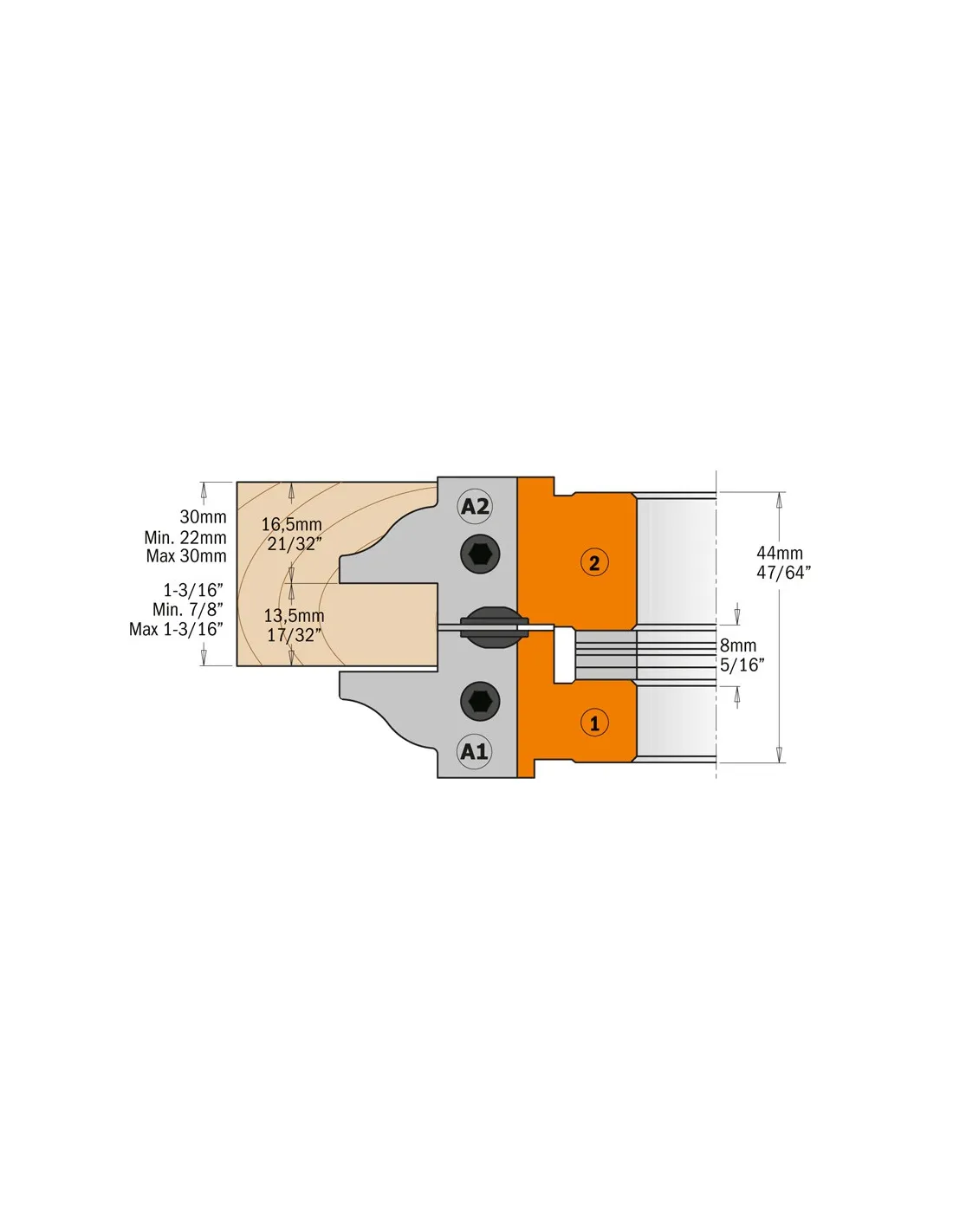

Technical details:

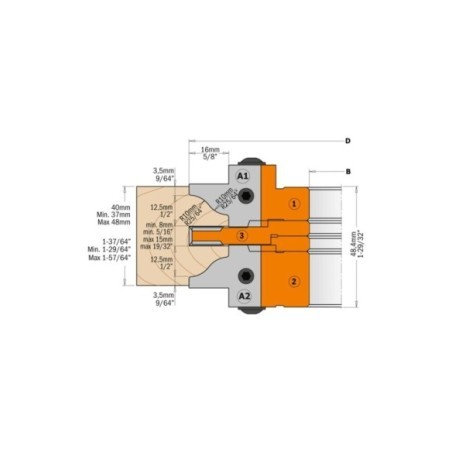

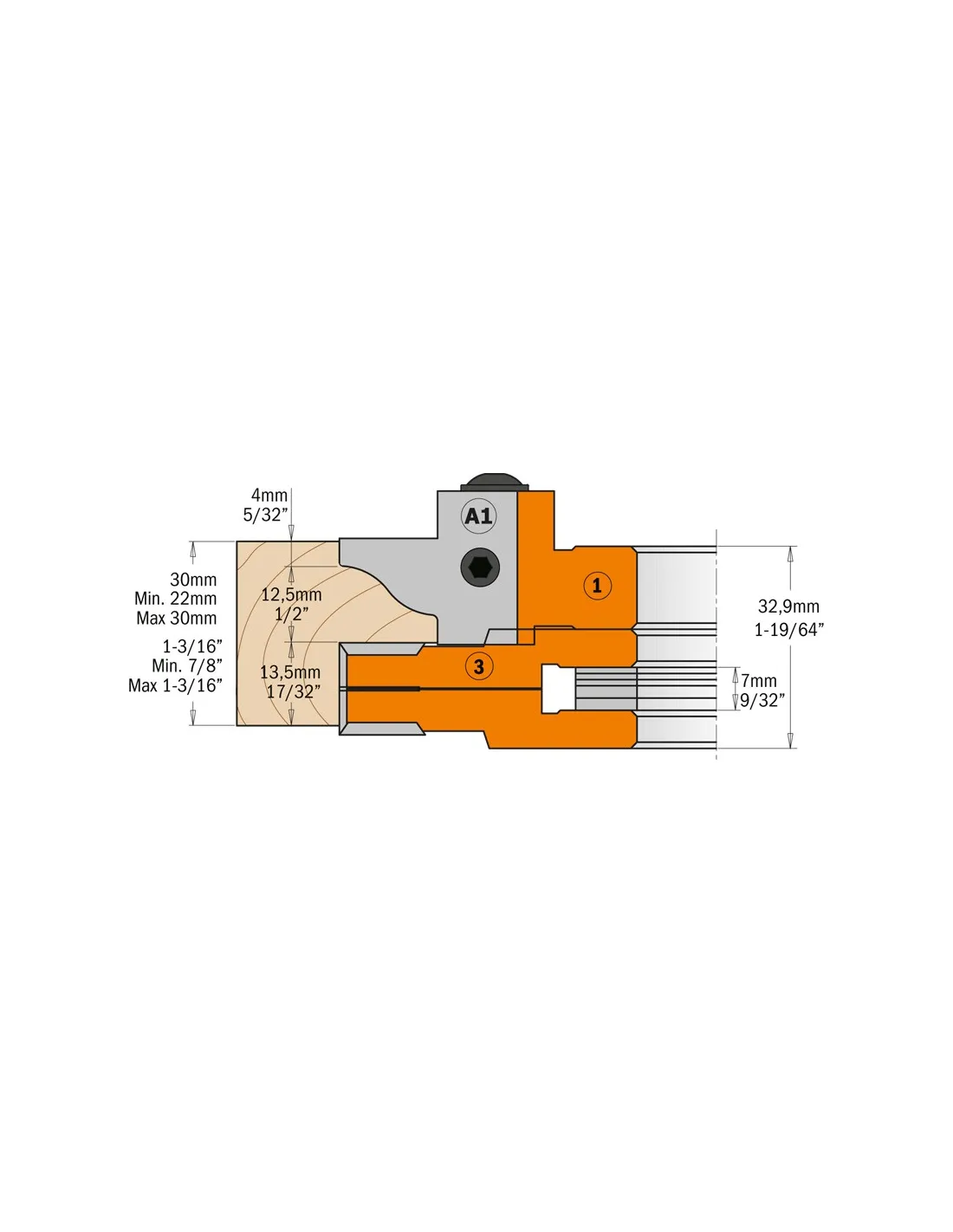

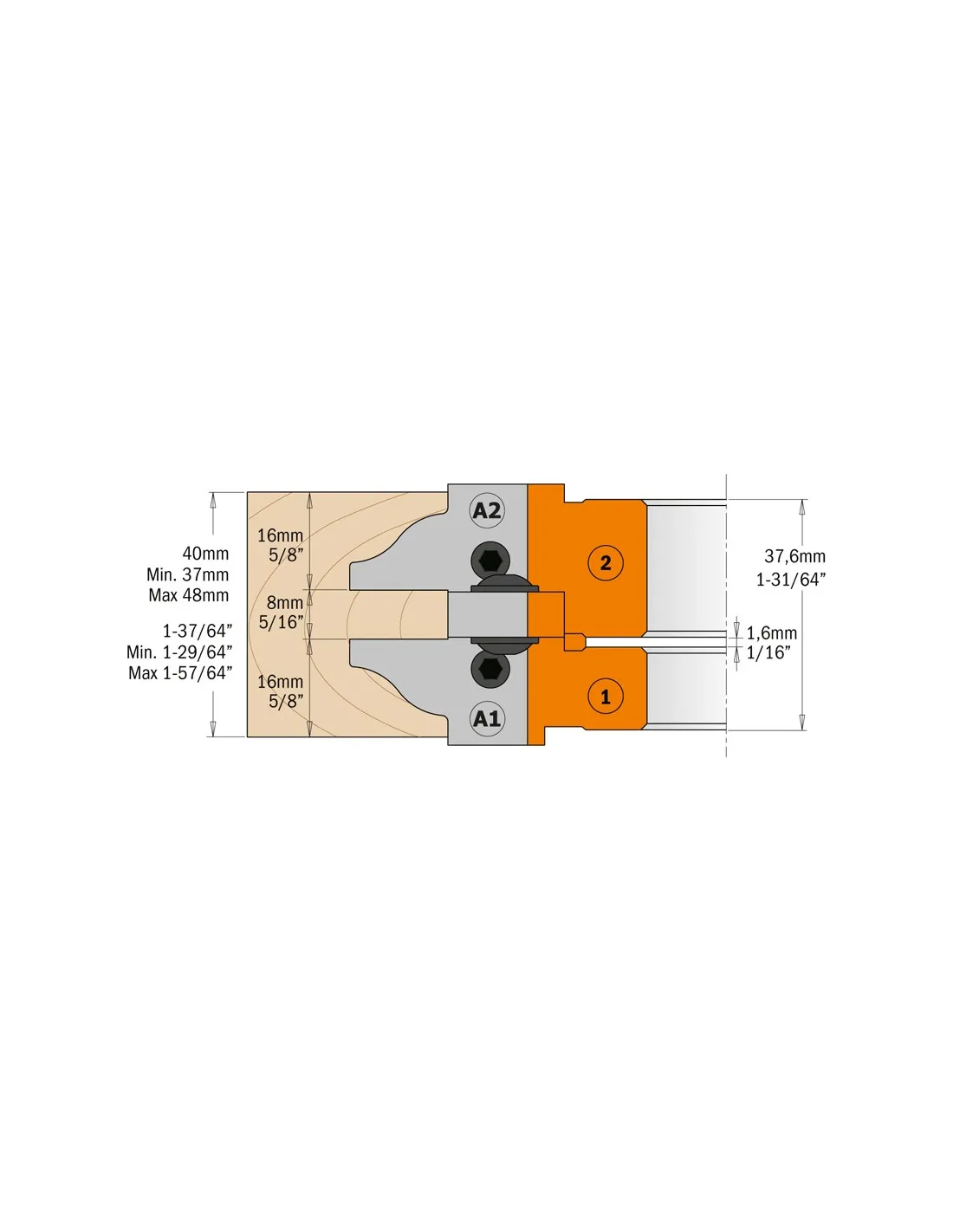

  • Hard aluminium alloy body with high resistance to tensile and yield stress for cutter heads (1 & 2);
  • Super-strength steel body for cutter head (3);

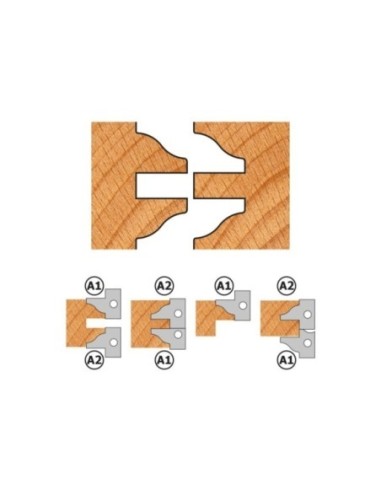

  • 2 HWM knives type (A1) 25x29,8x2mm [Z2];
  • 2 HWM knives type (A2) 25x29,8x2mm [Z2];
  • 4 HWM knives 7,65x12x1,5mm [Z4];
  • 4 HWM knives 14x14x2m for heads type (1 & 2);
  • 12 spacer rings from 0,1 to 3mm for heads type (1 & 2);
  • 12 spacer rings from 0,1 to 2mm for heads type (3);
  • Tools for manual feed (MAN);
  • Pins for the automatic positioning of the knives.

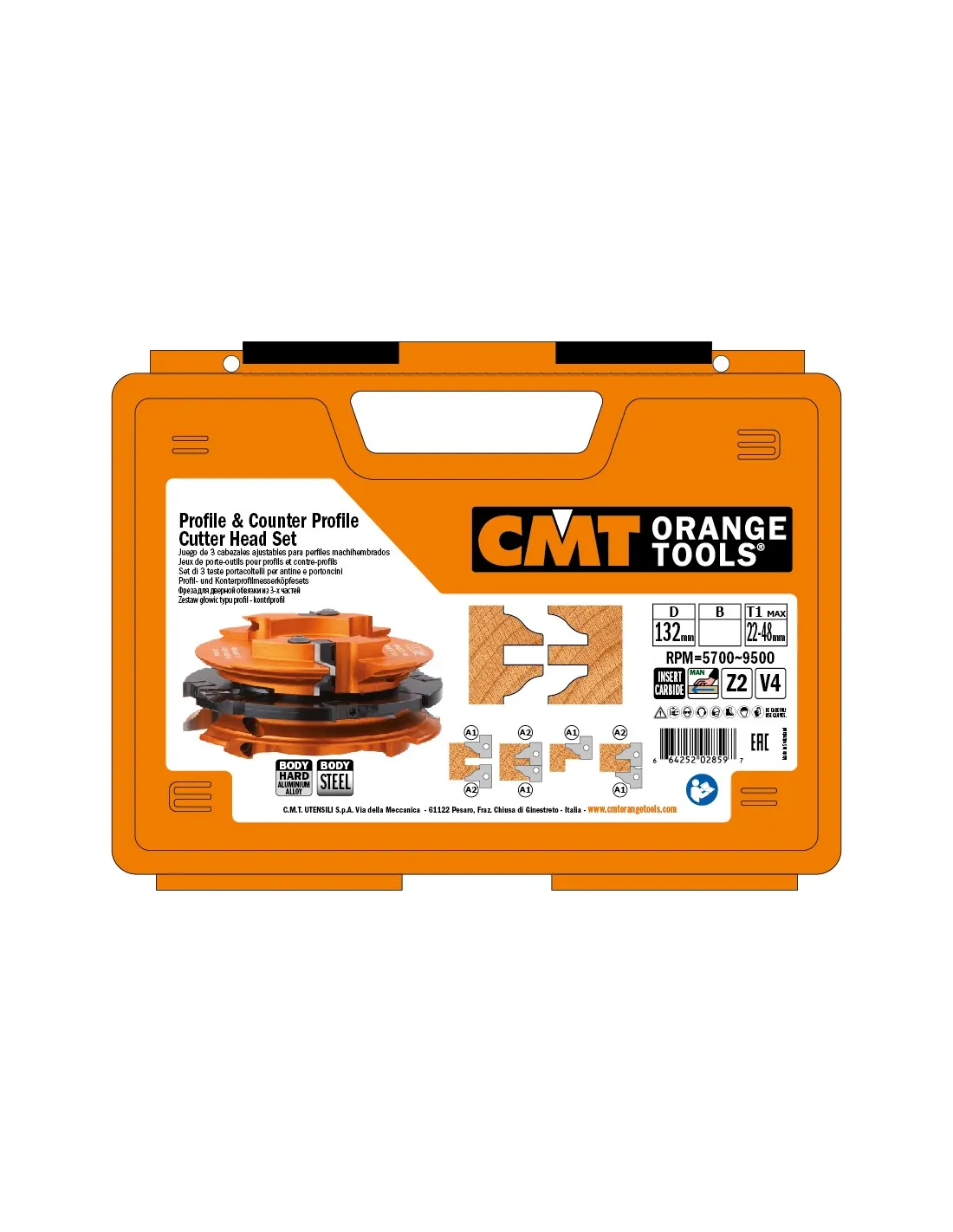

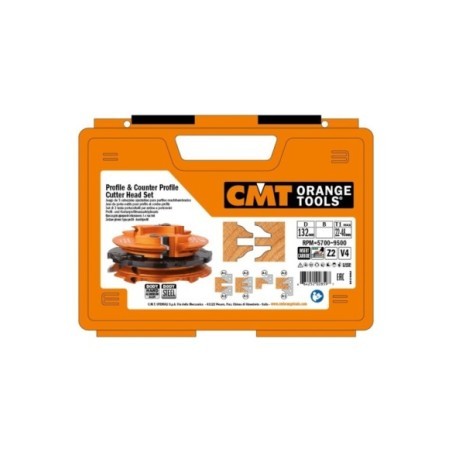

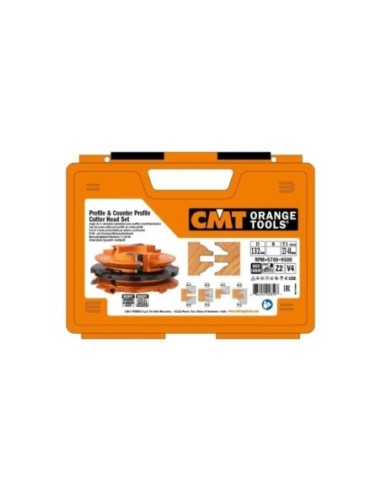

Supplied in a sturdy plastic carry case.





790.076.00 and 790.140.00
are supplied in 10-piece pack or multiple.


Safety Tips:
The TW-006 Torque Screwdriver is recommended
for the proper fastening of screws.



Diameter
Cutting height
Number of cutting edges
Material
Bore diameter
RPM
V


Payments and Security

security

payment methods

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via paypal

carrier

Delivery time: 3 working days

48
HW
132 147
2
30 35 40 50 31.75
5700~9500 5100~8500
4

Filters

48
HW
132 147
2
30 35 40 50 31.75
5700~9500 5100~8500
4
Reference D I Z MAT F RPM V Quantity Availability Price Add to cart
