€303.87
Tax included

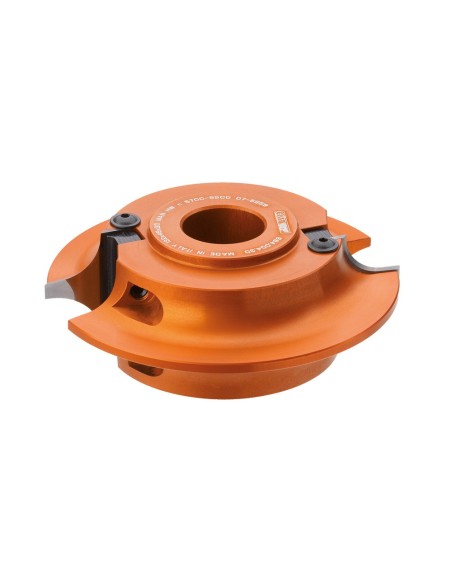

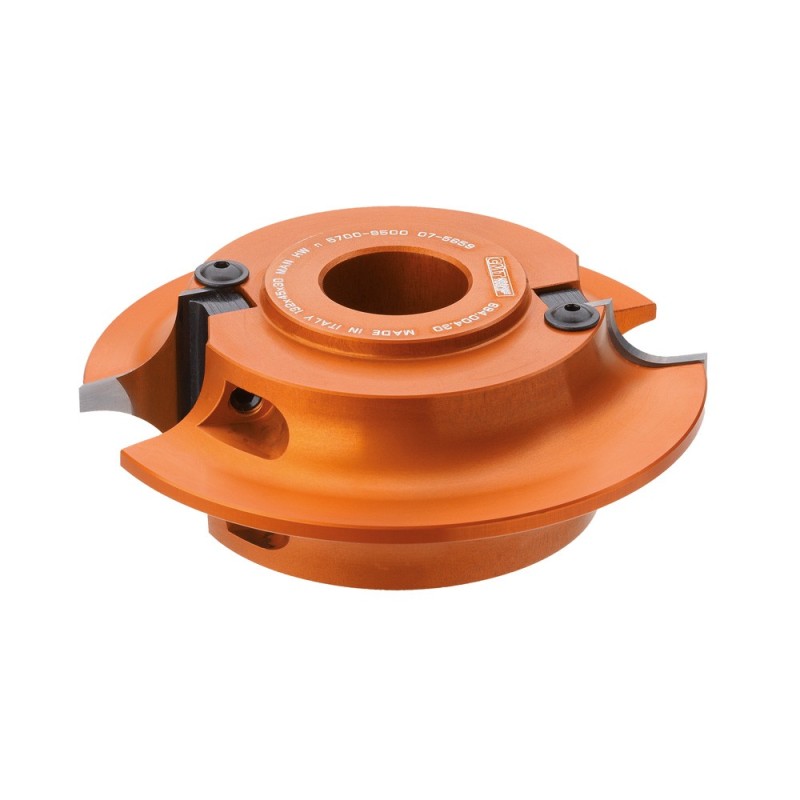

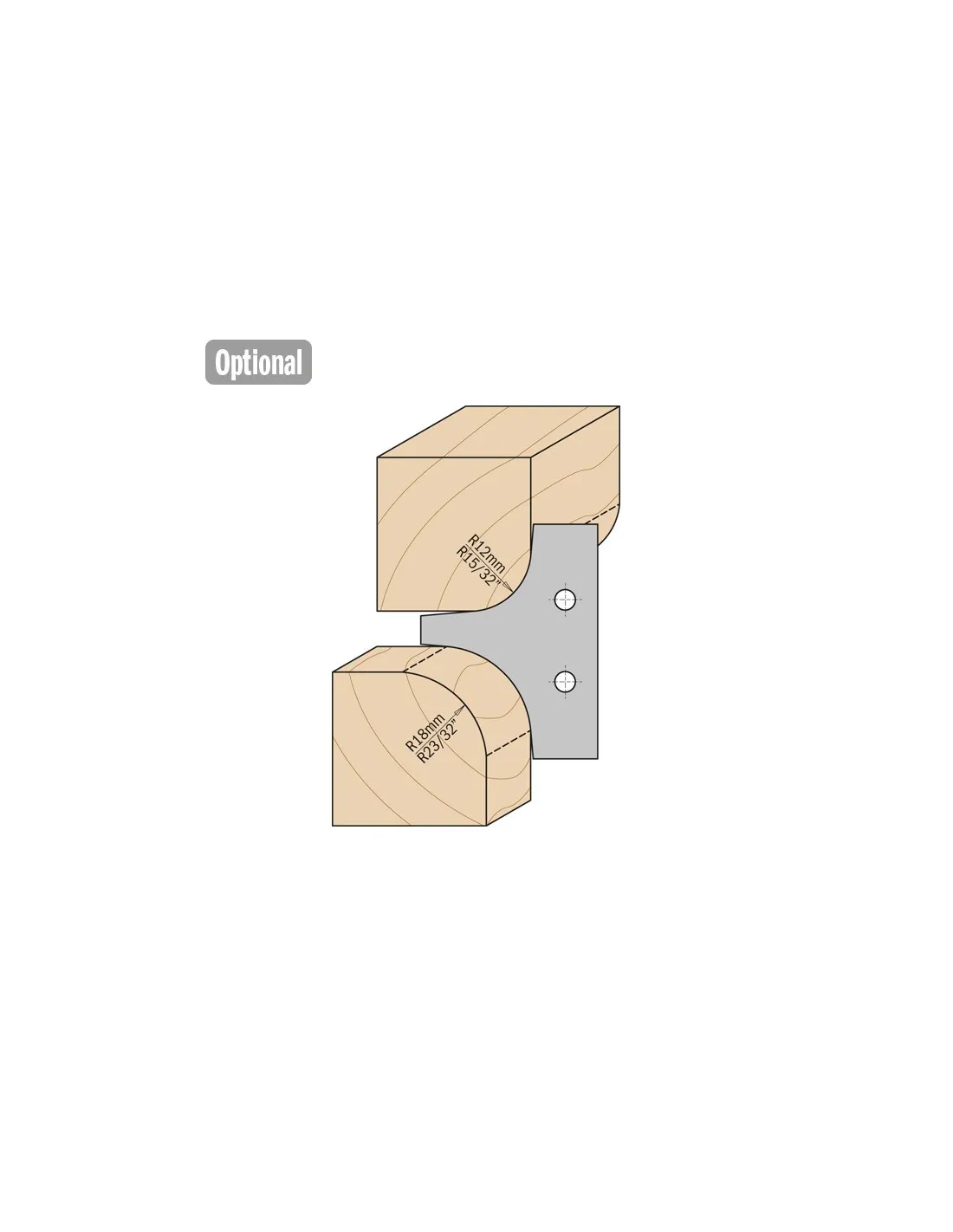

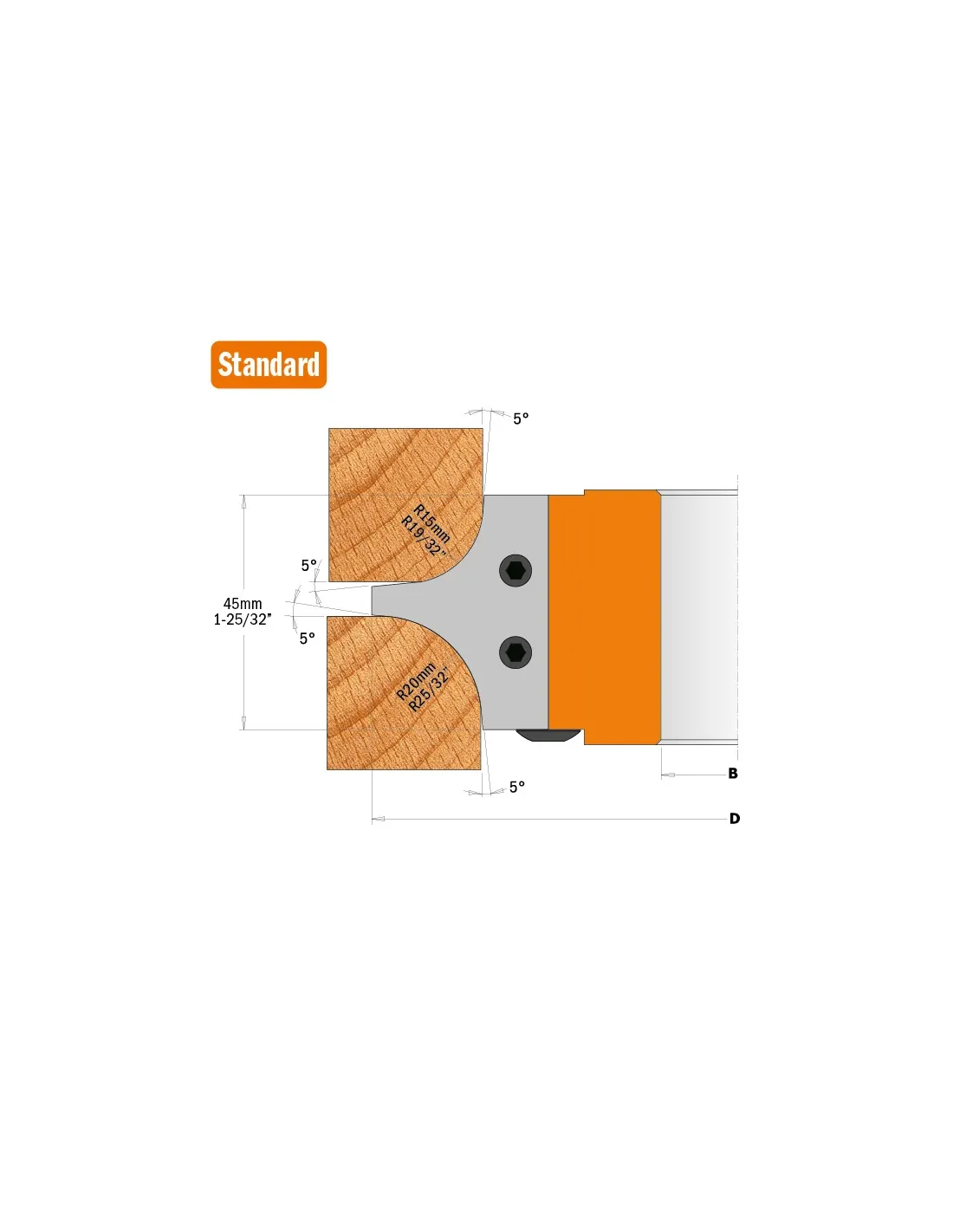

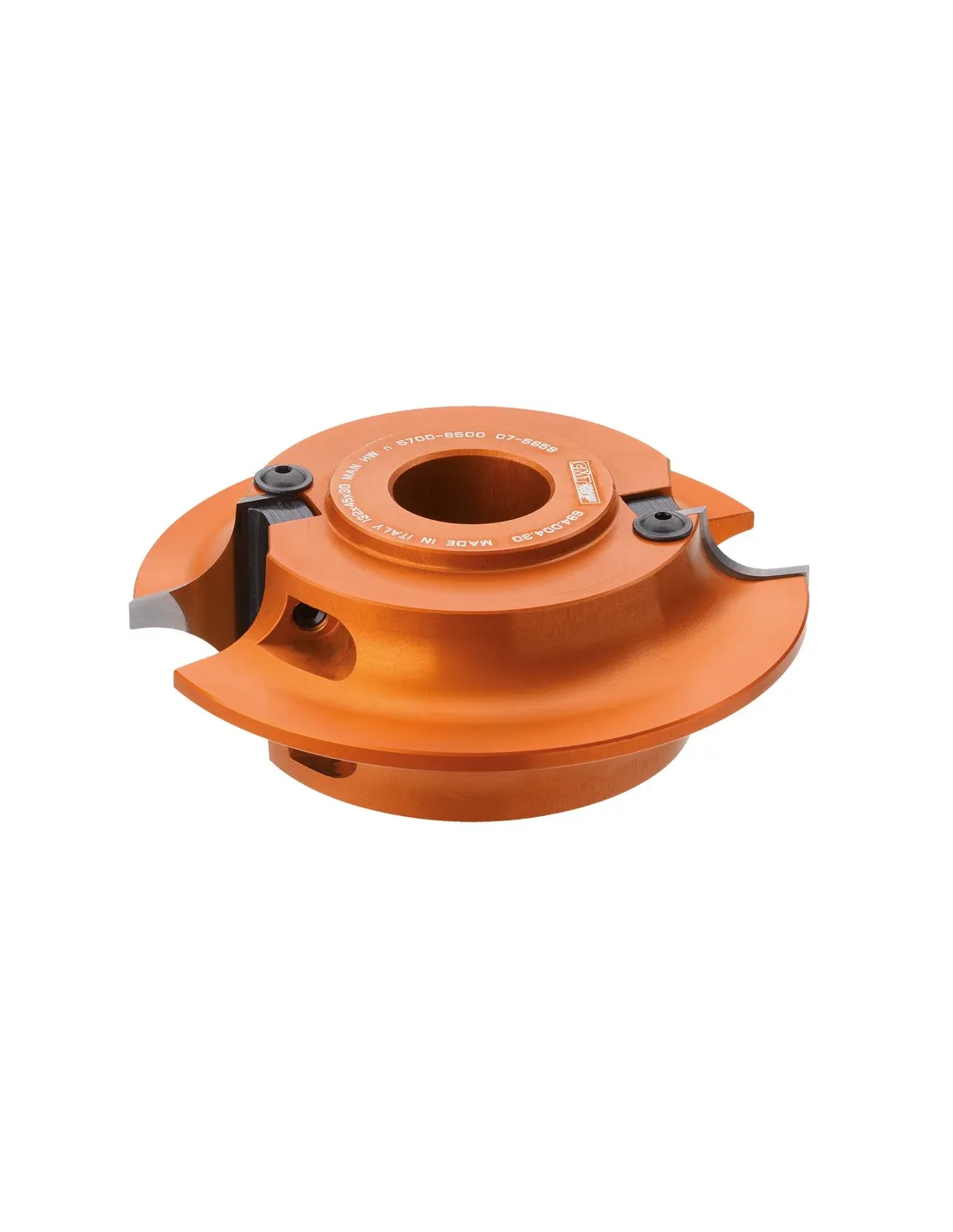

Innovative cutter heads supporting two different knives for making four radius roundover profiles. Standard cutter heads are sold with knives featuring radii 15 and 20mm; one more knife set is available for radii 12-18mm.
For use on spindle moulder machines, double-end tenorer and shaper machines.
Suitable for all materials, but ideal on solid wood and panel materials.


Technical details:
  • Hard aluminium alloy body with high resistance to tensile and yield stress.

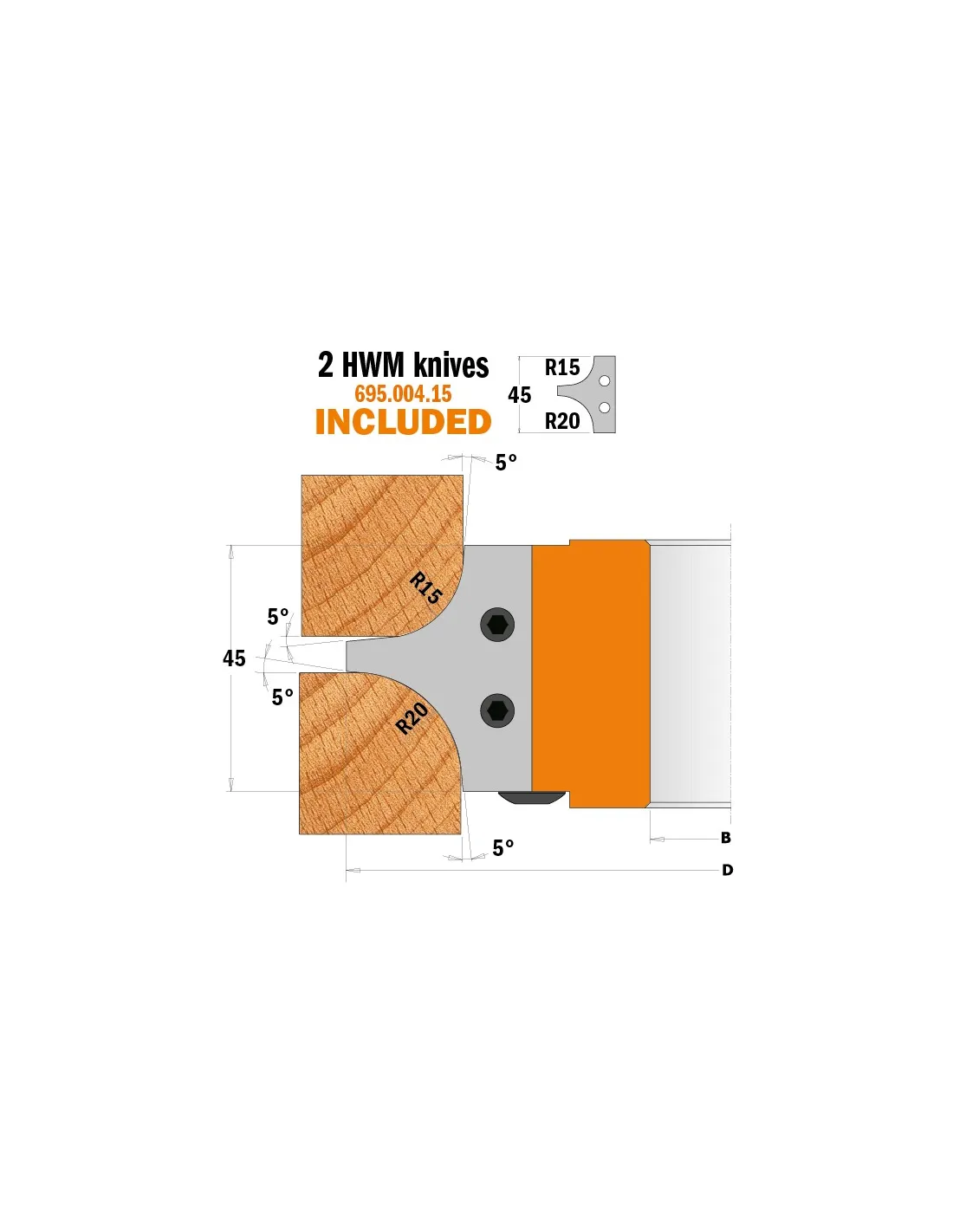

  • 2 HWM knives radius 15/20mm (45x34,5x2mm) [Z2].
  • Tools for manual feed (MAN).
  • Pins for the automatic positioning of the knives.


Supplied in a solid plastic box.

Safety Tips:
The TW-006 Torque Screwdriver is recommended
for the proper fastening of screws.



Diameter
Cutting height
Number of cutting edges
Material
Radius
Bore diameter
RPM

Payments and Security

security

payment methods

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via paypal

carrier

Delivery time: 3 working days

45
HW
132 147
2
15 - 20
30 35 40 50 31.75
5700~9500 5100~8500

Filters

45
HW
132 147
2
15 - 20
30 35 40 50 31.75
5700~9500 5100~8500
Reference D I Z MAT R F RPM Quantity Availability Price Add to cart
