€167.25
Tax included

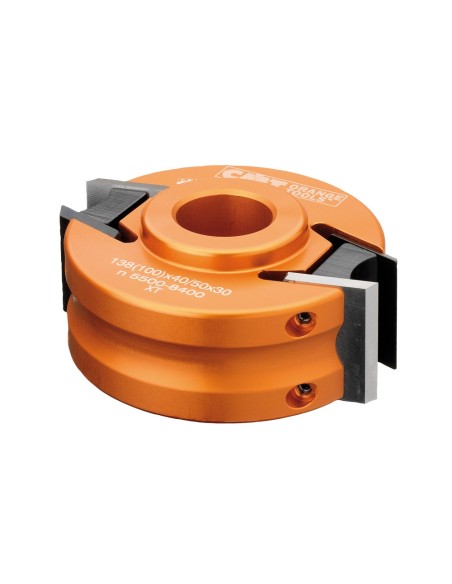

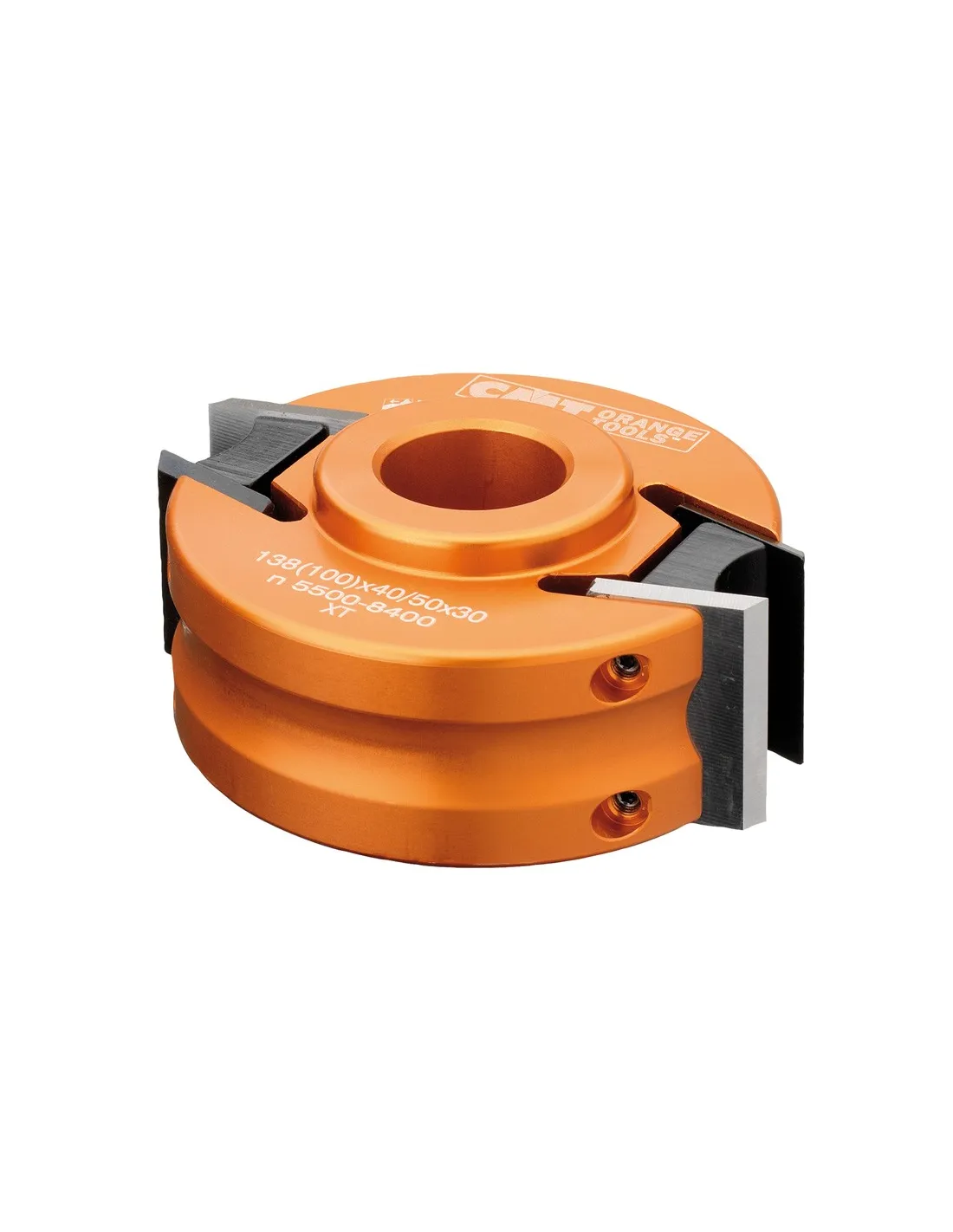

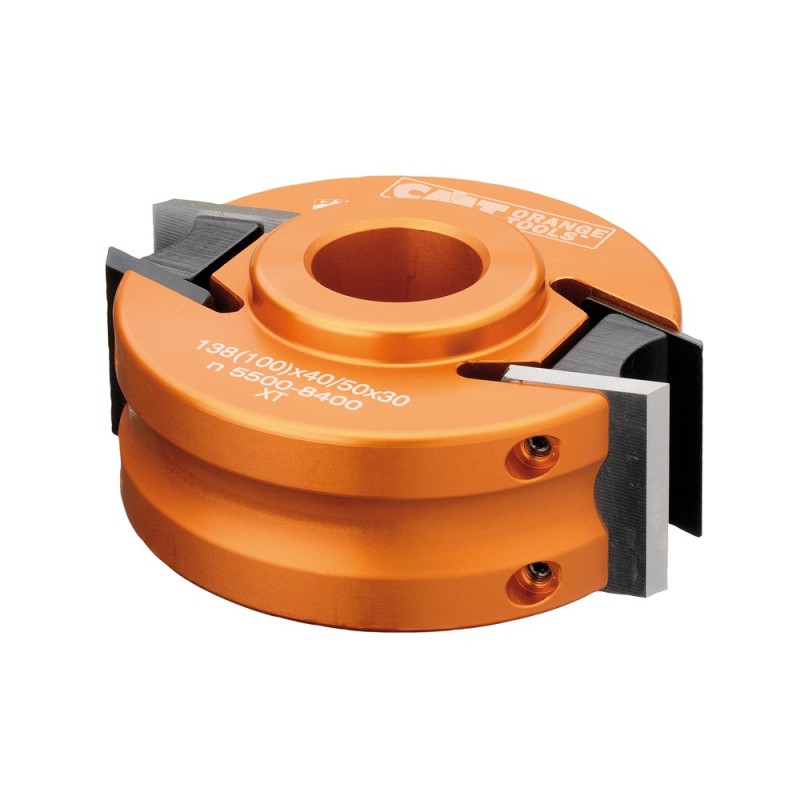

CMT cutter heads guarantee excellent performance for all your projects. For use on all types of moulder and spindle moulder machines.


Technical details:
  • Hard aluminium or steel alloy cutter head with limiters, highly resistant to tensile and yield stress.
  • Pair of universal straight knives and limiters included.
  • Tools for manual feed (MAN).
  • Pins for the automatic positioning of the knives.

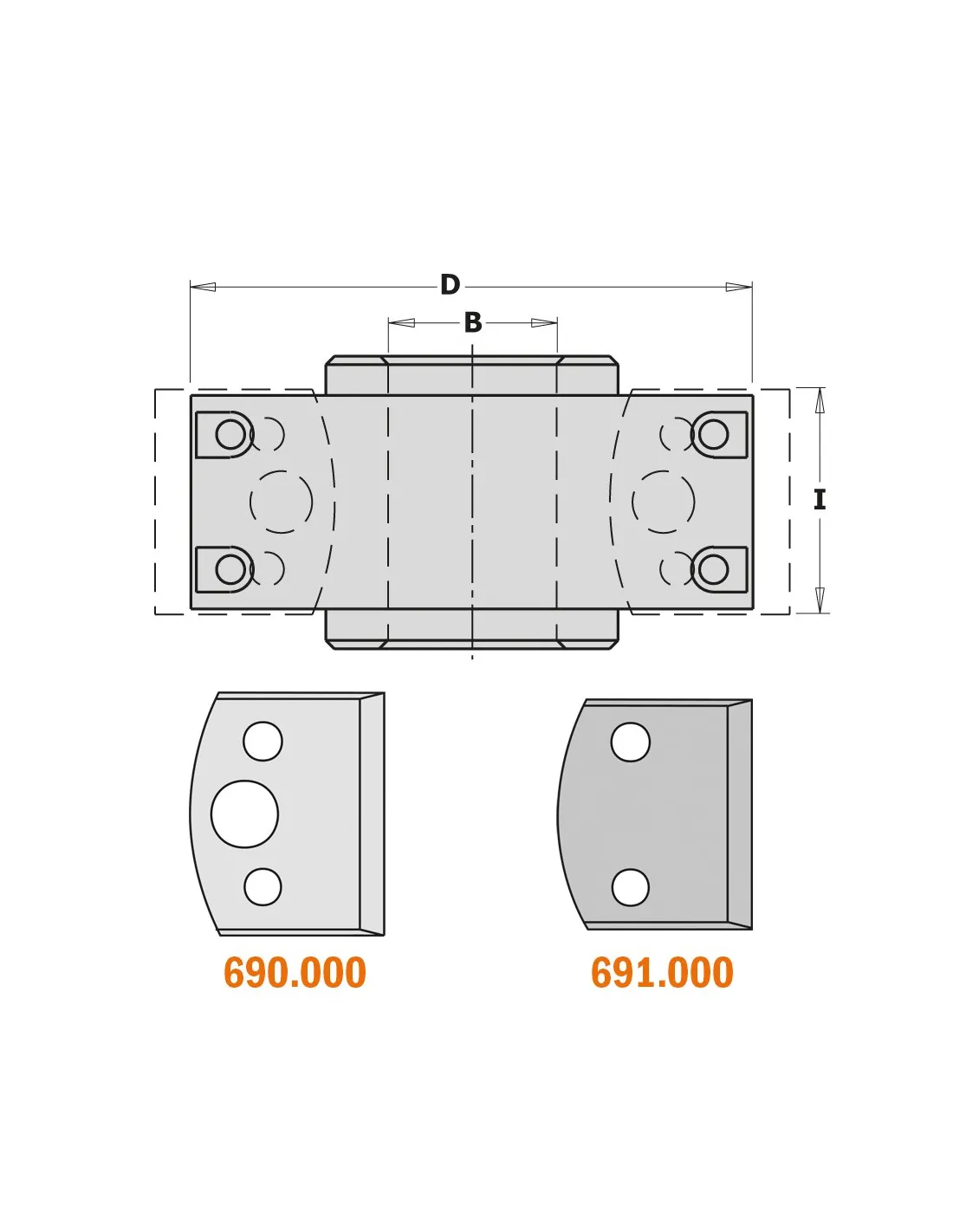

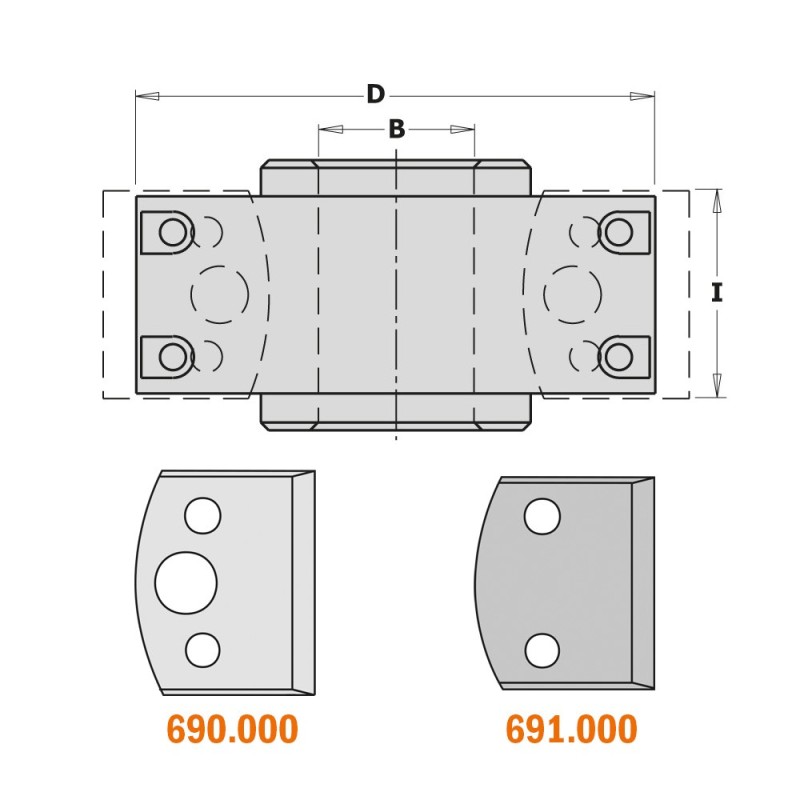

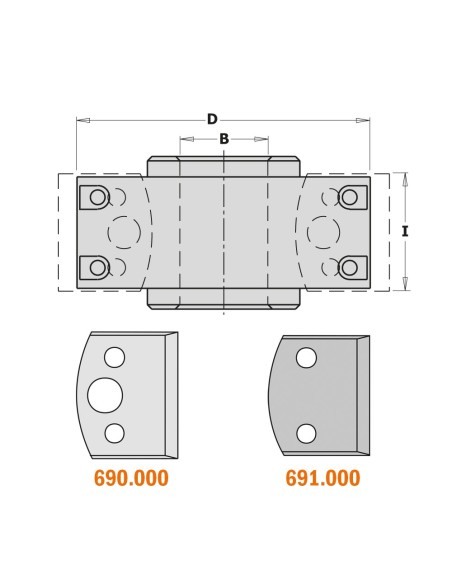

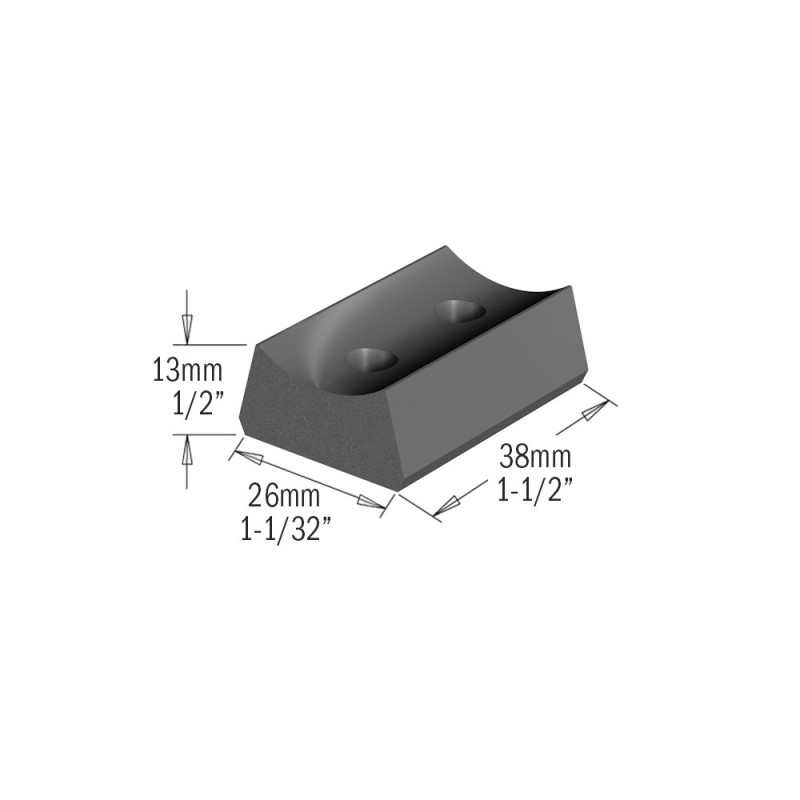

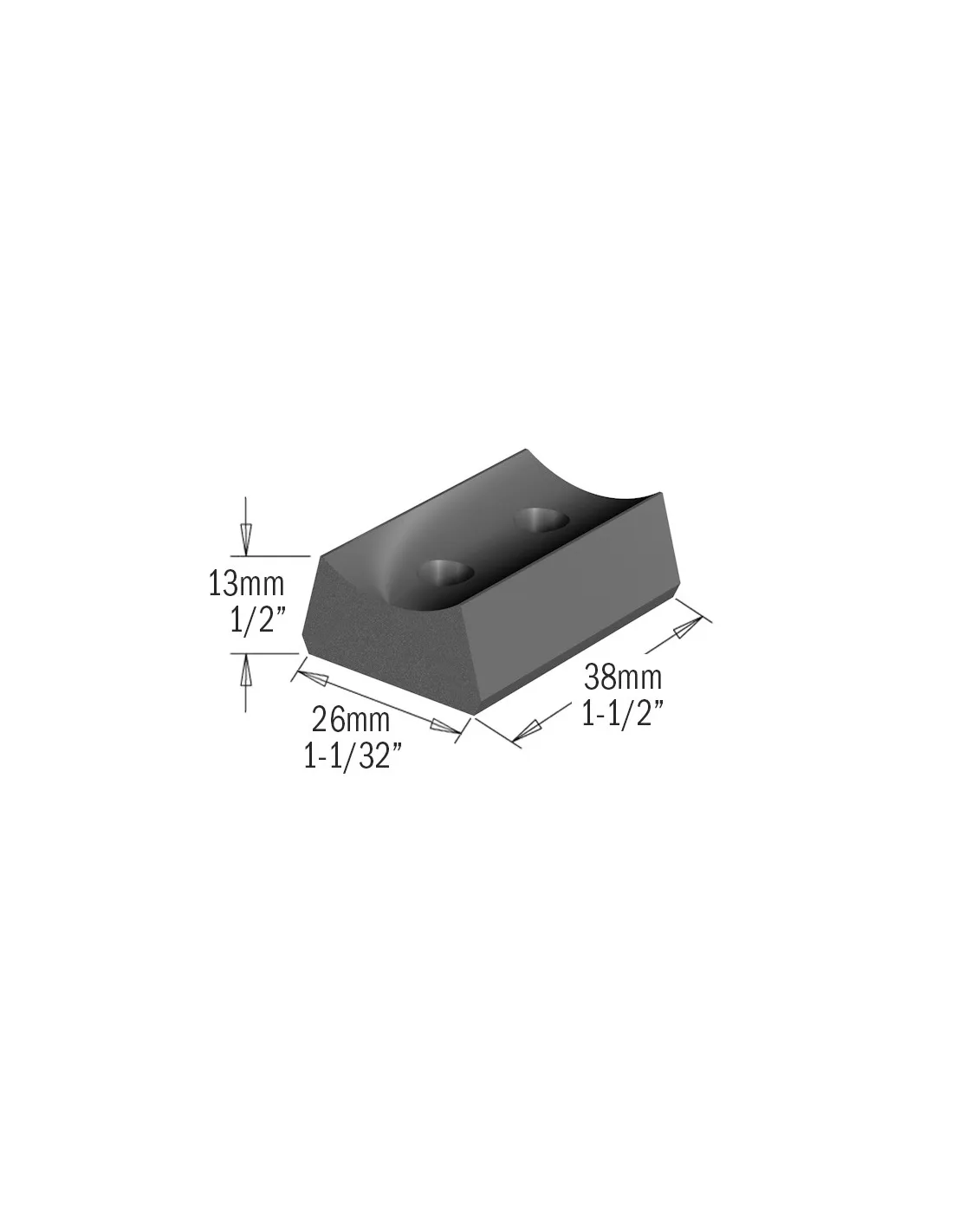

  • Possibility to use knives with a height of 40mm or 50mm (order no. 690) and limiters (order no. 691).


Supplied in a solid plastic box to contain up to 12 couples of knives.

Made in compliance with EU Directive EN 847-1.


Safety Tips:
The TW-006 Torque Screwdriver is recommended for the proper fastening of screws.

Diameter
Cutting height
Number of cutting edges
Material
Bore diameter
RPM

Payments and Security

security

payment methods

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via paypal

carrier

Delivery time: 3 working days

Attachments

40 40 - 50
SP
120 100 78
2
30 35 50 31.75
5500 ~ 8400 4800 ~ 7400 7000 - 9000

Filters

40 40 - 50
SP
120 100 78
2
30 35 50 31.75
5500 ~ 8400 4800 ~ 7400 7000 - 9000
Reference D I Z MAT F RPM Quantity Availability Price Add to cart
