Adjustable Chamfer Cutter Head ±45°

€423.71
Tax included

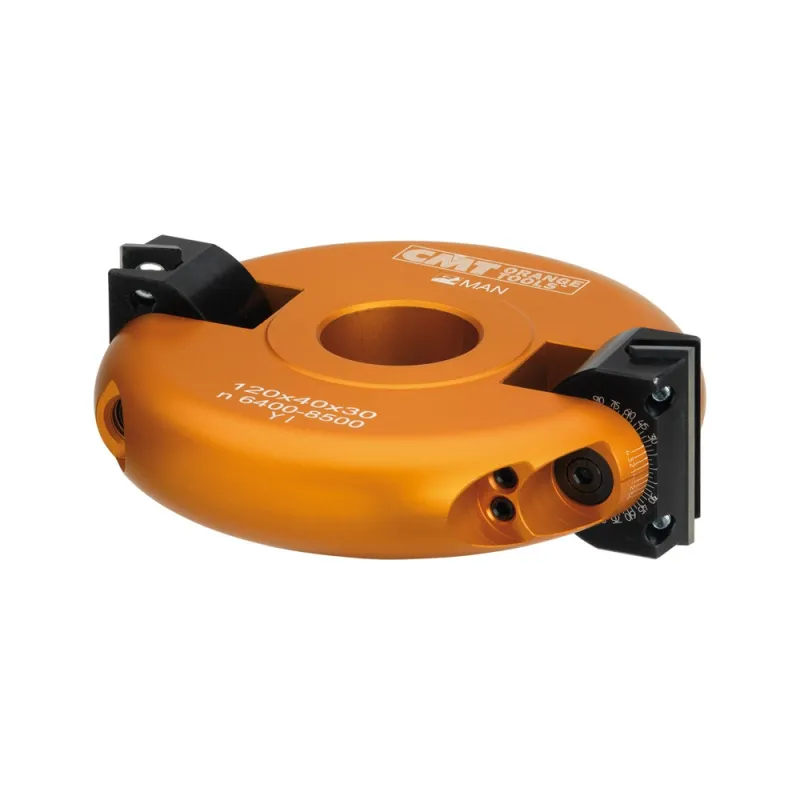

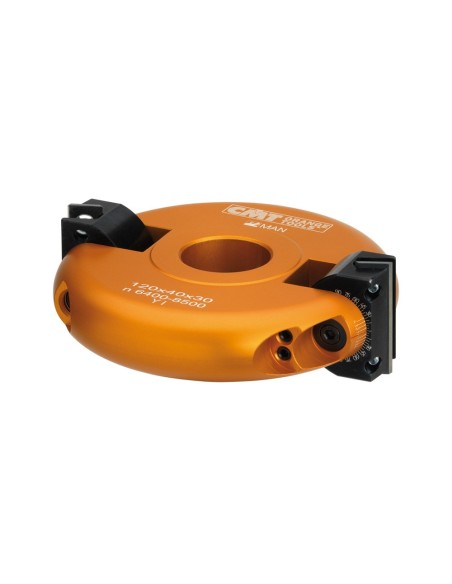

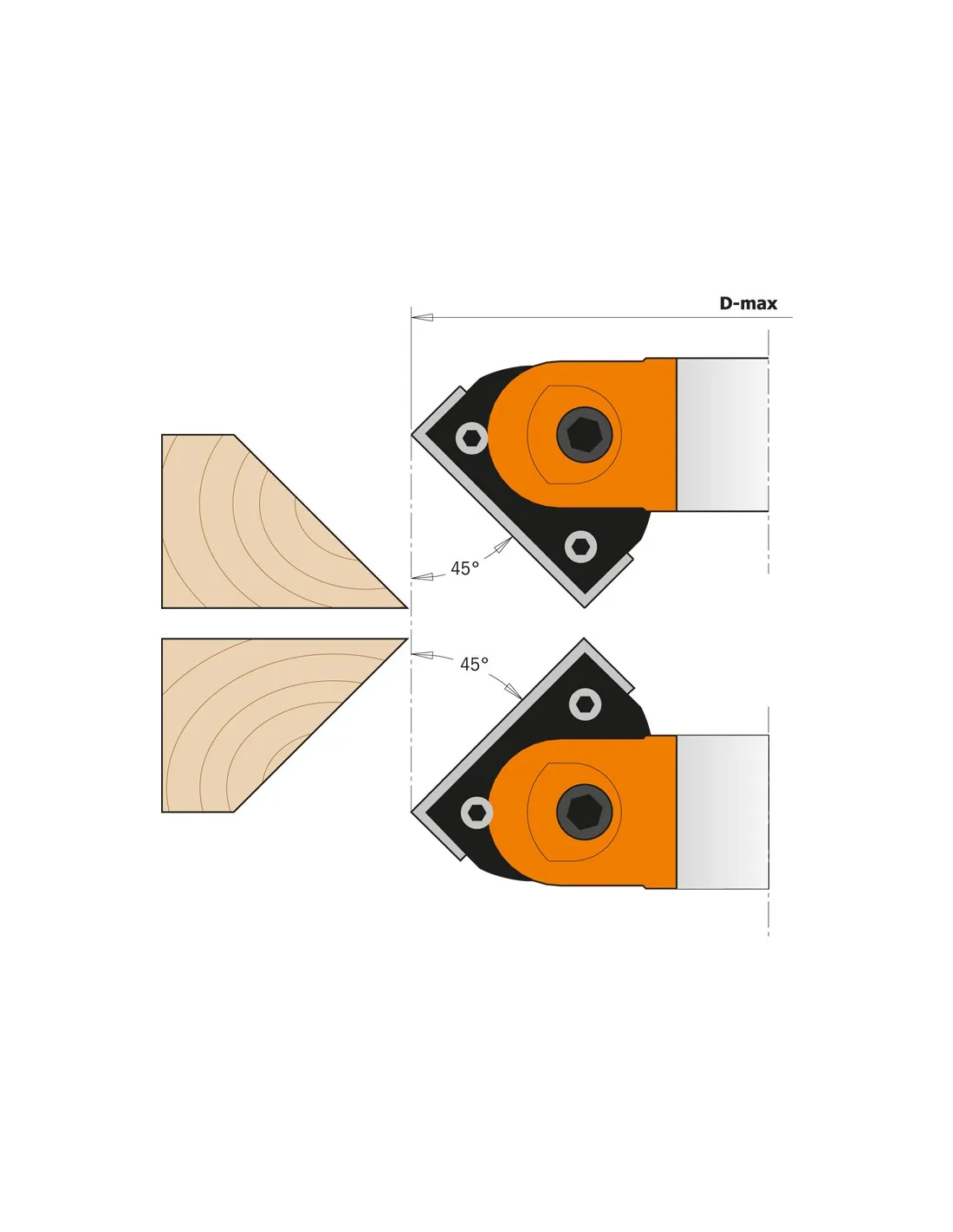

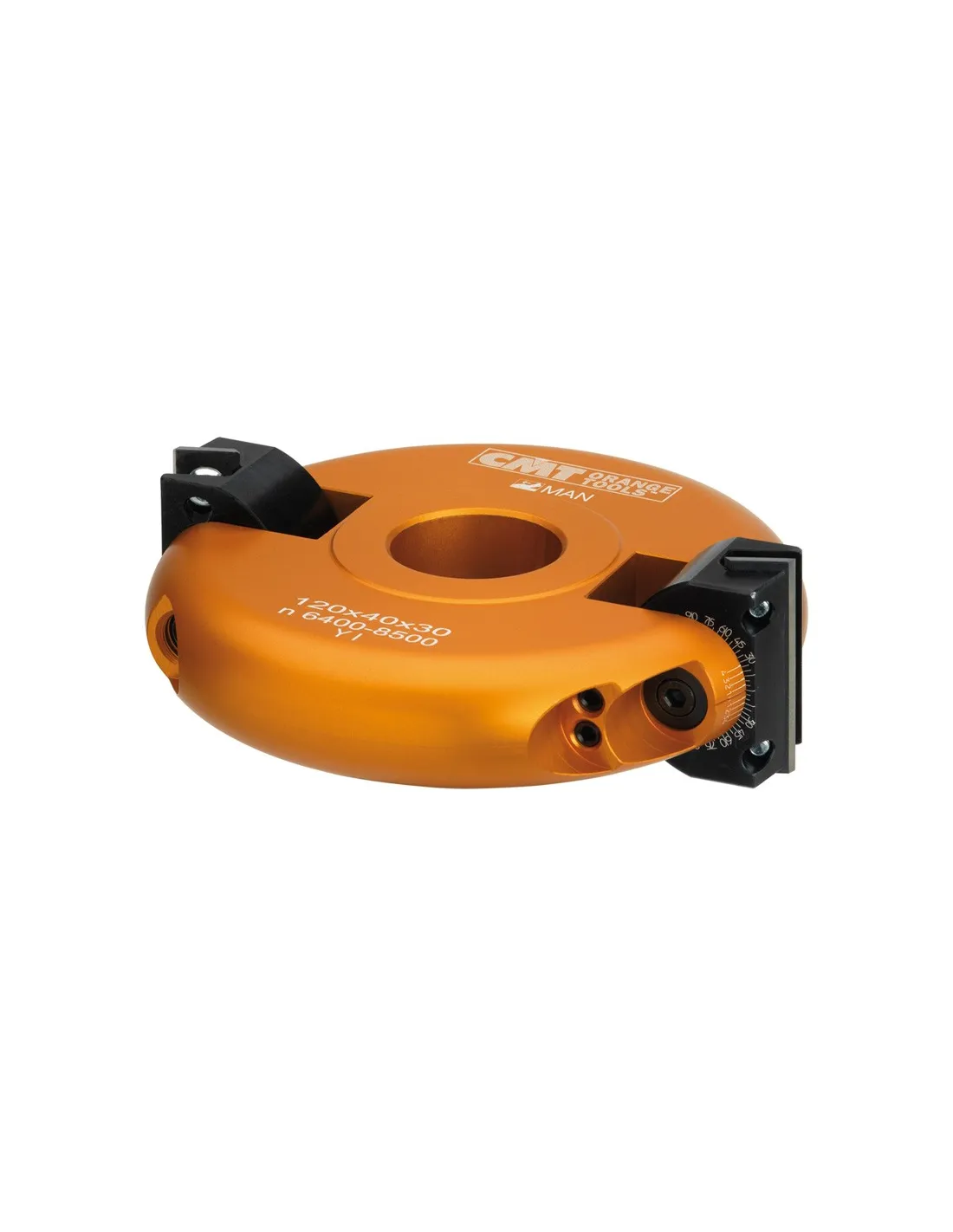

This chamfer cutter head carries out very precise cuts on wooden boards and solid timber. It also crafts gap-free bevel joints and is the perfect tool for a variety of joinery projects. For use on spindle moulding machines, double-end tenoners and shaper machines.


Technical details
  • Tool body made from high strength aluminum alloy extremely resistant to tensile and yield stress
  • Manual feed tool (MAN)

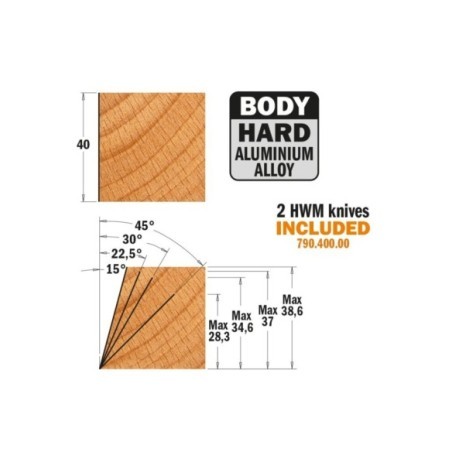

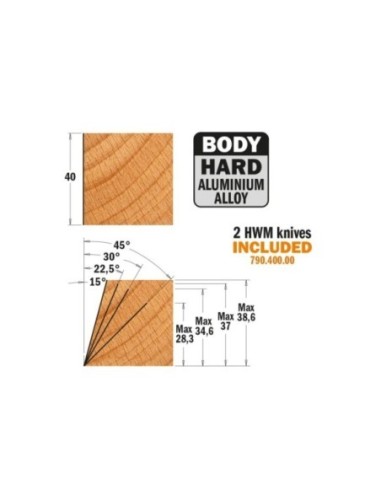

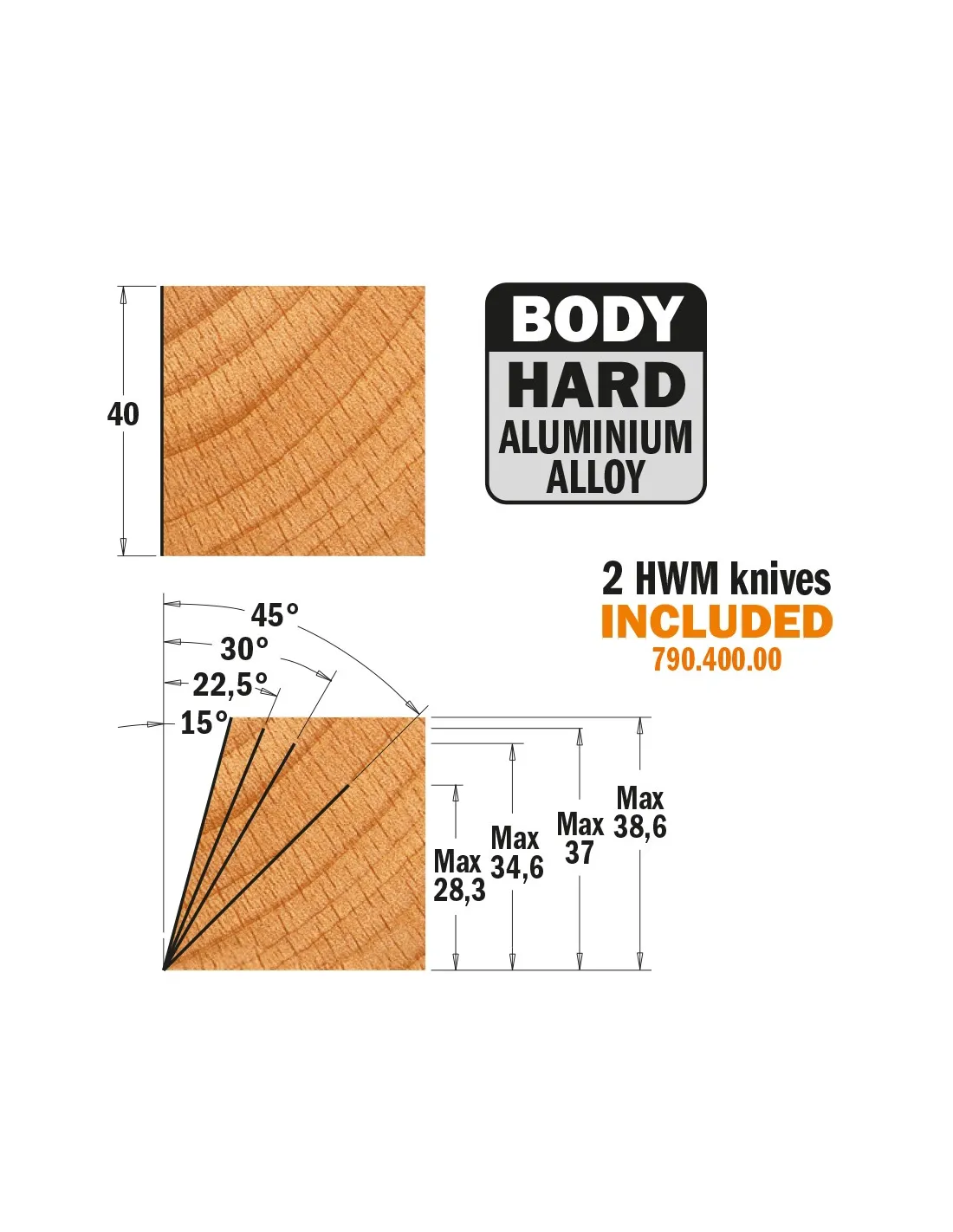

  • 2 HWM knives 40x12x1,5mm[Z2]
  • Adjustable swivelling blades

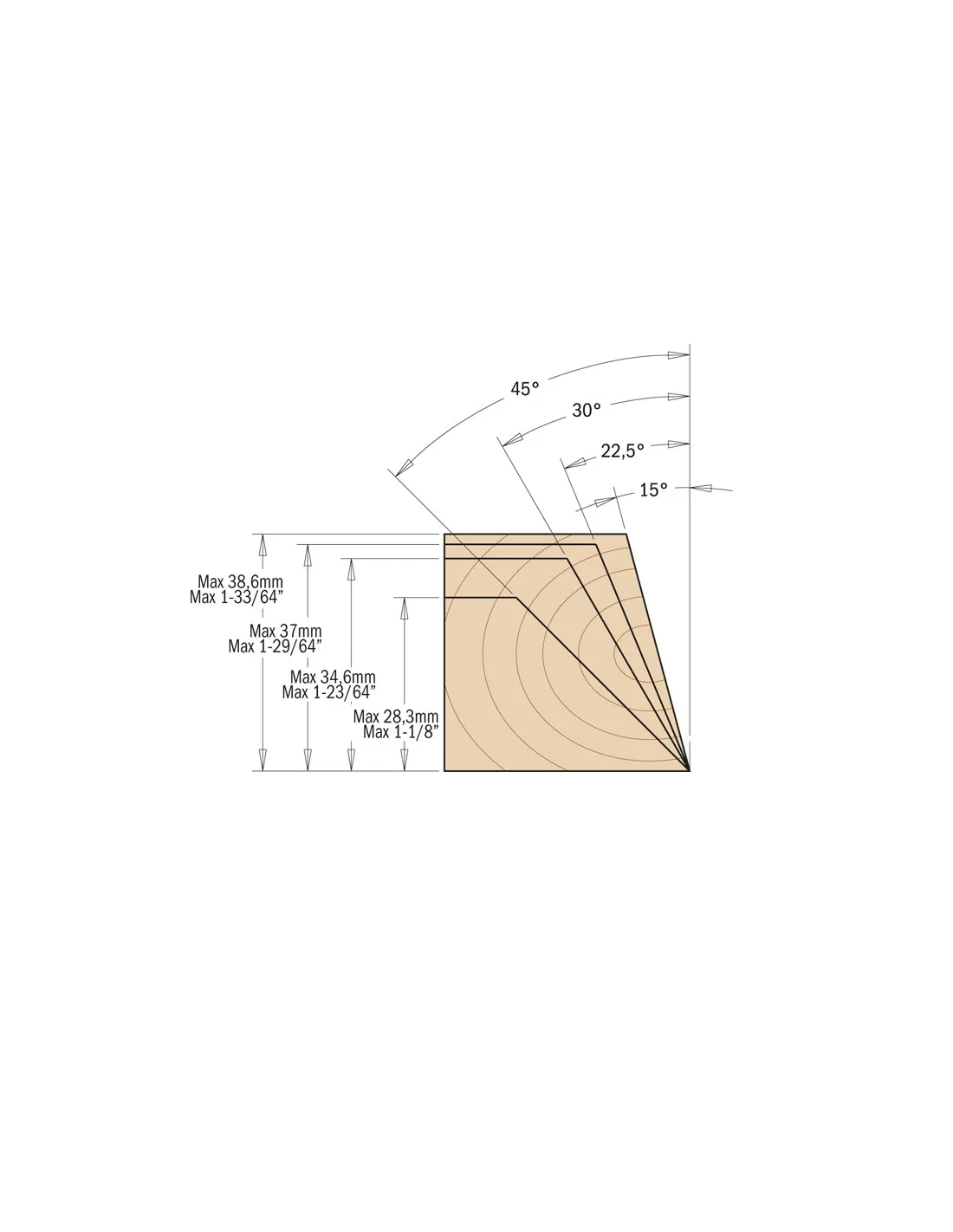

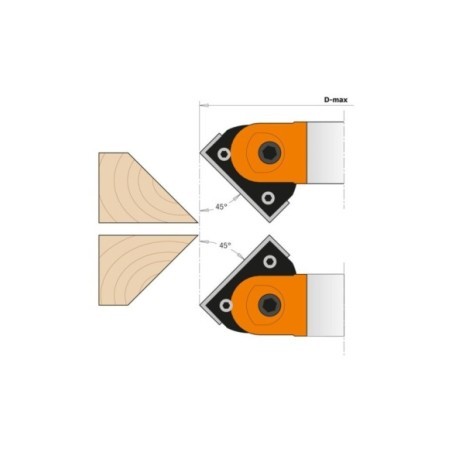

  • Range: ± 45° (Rotates at 7,5° intervals; Precision= 7,5°).


Supplied in a solid plastic box.

Spare parts
991.065.00 5mm hex key.

790.400.00
are supplied in 10-piece pack or multiple.


Safety Tips:
The TW-006 Torque Screwdriver is recommended
for the proper fastening of screws.

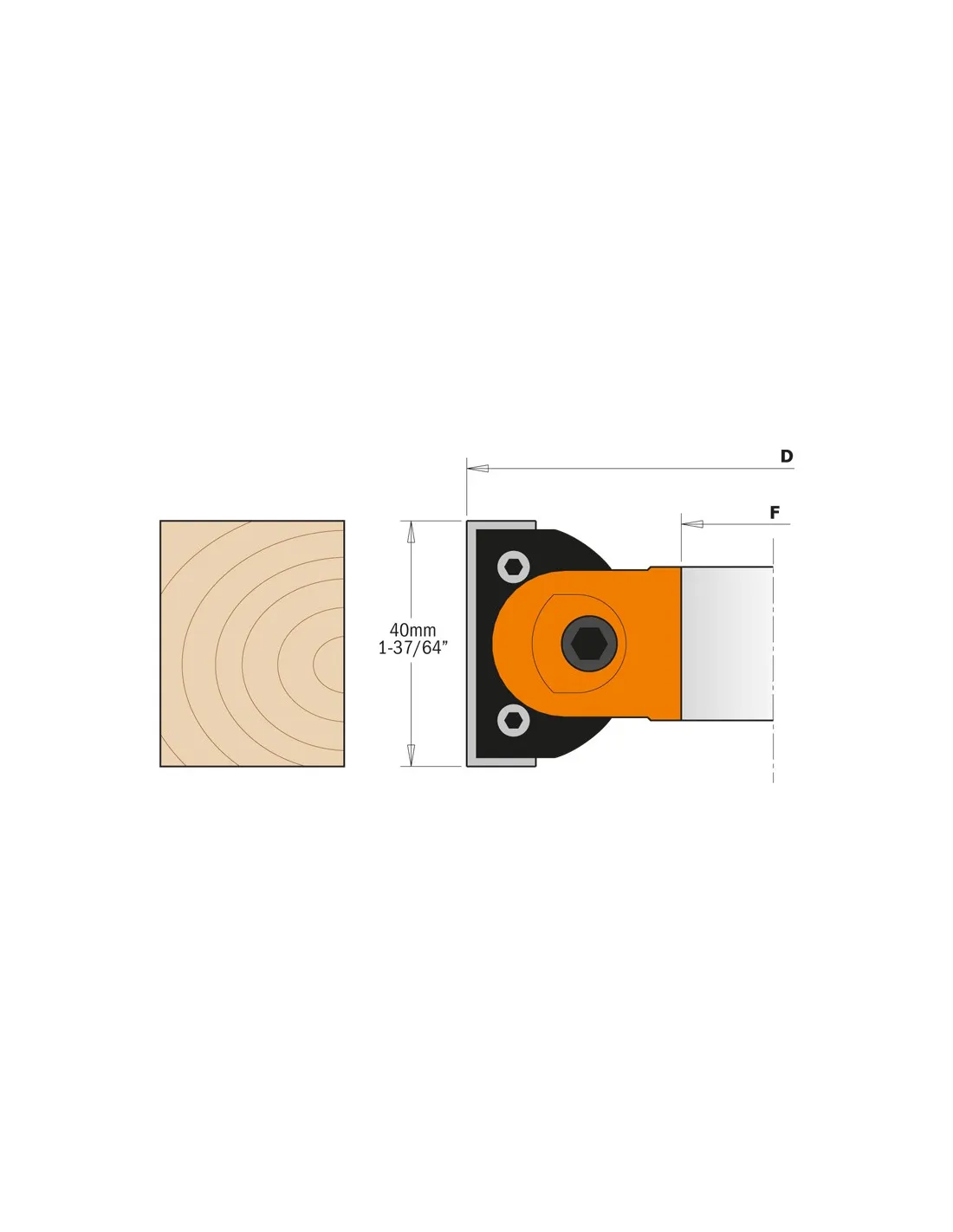

Diameter
Cutting height
Number of cutting edges
Material
Right-hand or left-hand rotation
Bore diameter
RPM
DIM

Payments and Security

security

payment methods

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via paypal

carrier

Delivery time: 3 working days

40
HW
120 145
RH
2
30 35 40 50
6400~8500 5900~7400
Max(45°) 140mm Max(45°) 165mm

Filters

40
HW
120 145
RH
2
30 35 40 50
6400~8500 5900~7400
Max(45°) 140mm Max(45°) 165mm
Reference D I Z MAT RHLH F RPM DIM Quantity Availability Price Add to cart
