€194.37
Tax included

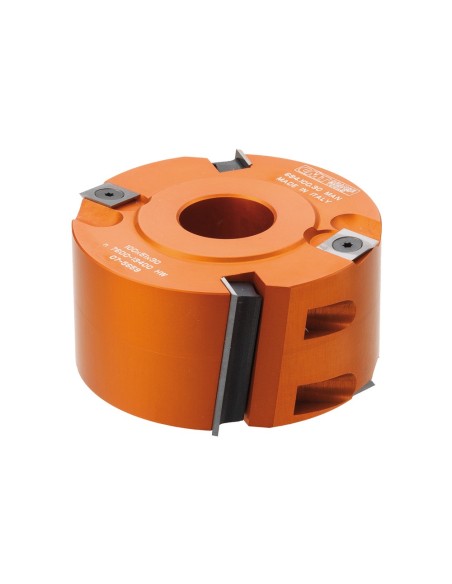

These cutter heads have been designed for:

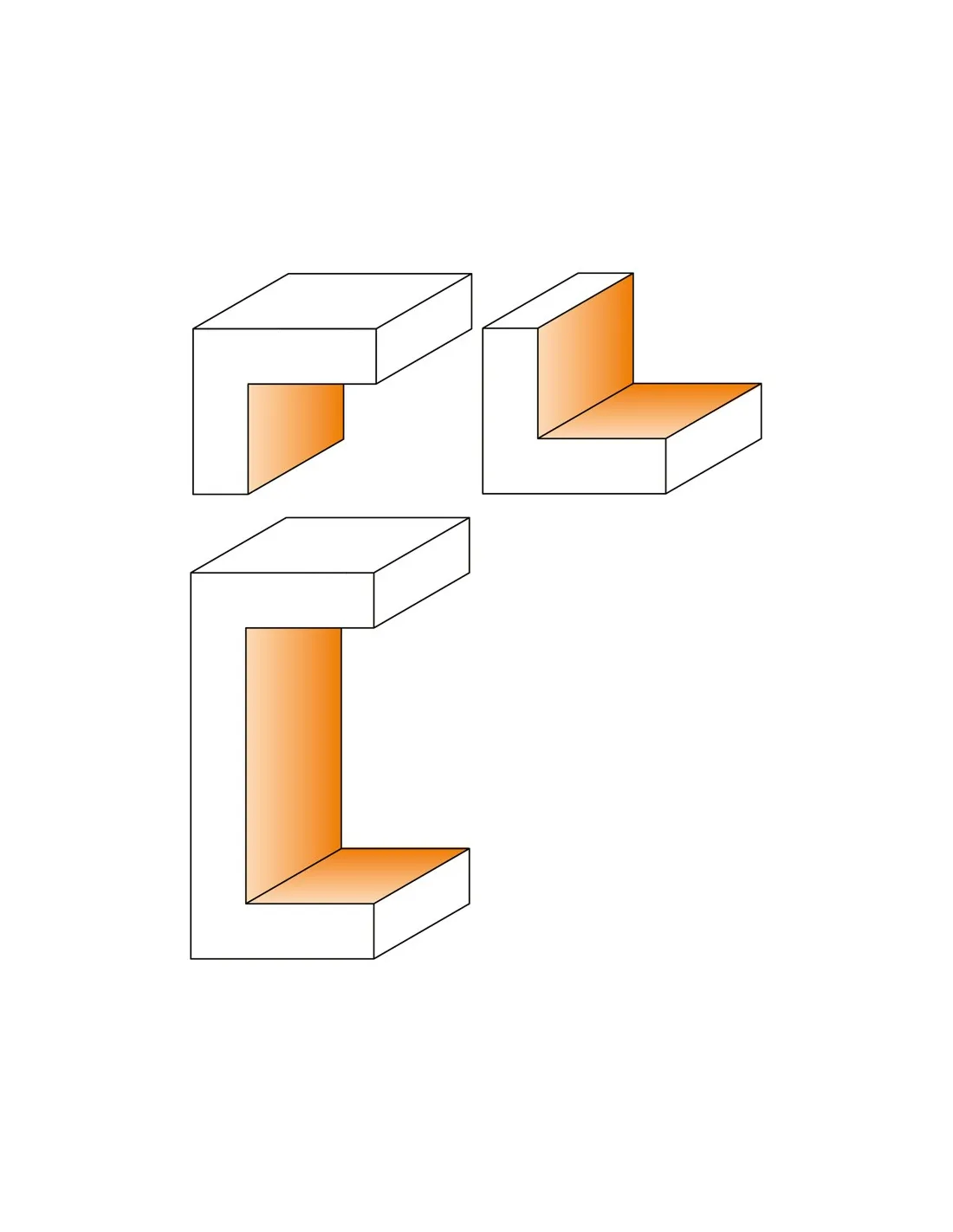

  • rabbeting from either top or bottom;
  • jointing
  • grooving
For use on spindle moulder machines, double-end tenoner and edging machines.

Suitable for all materials, but best on chipboard, MDF, wood composites, plastic materials and laminates.
Improved design with shear angle.


Technical details

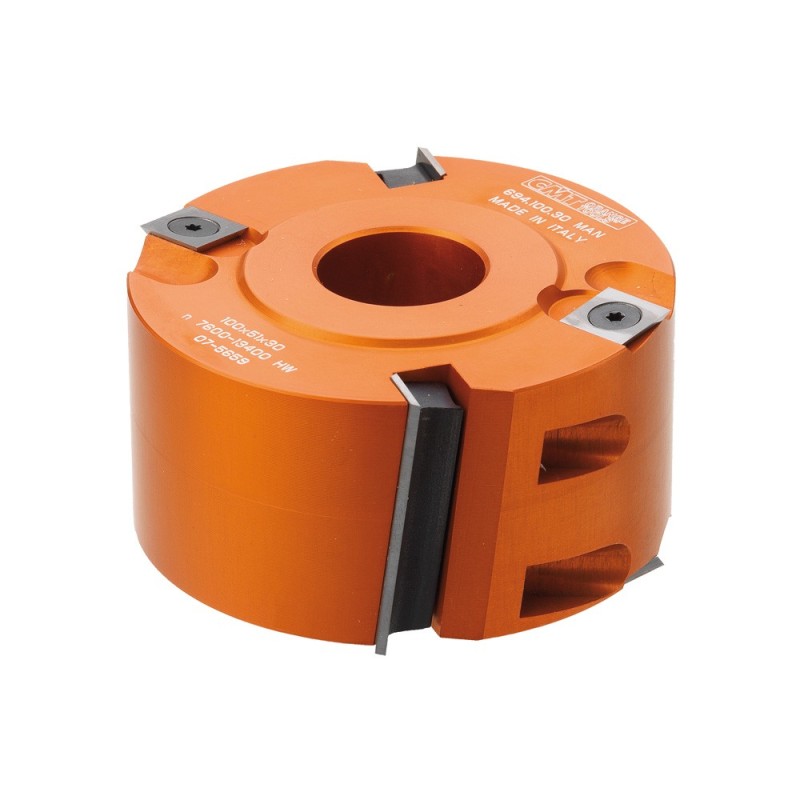

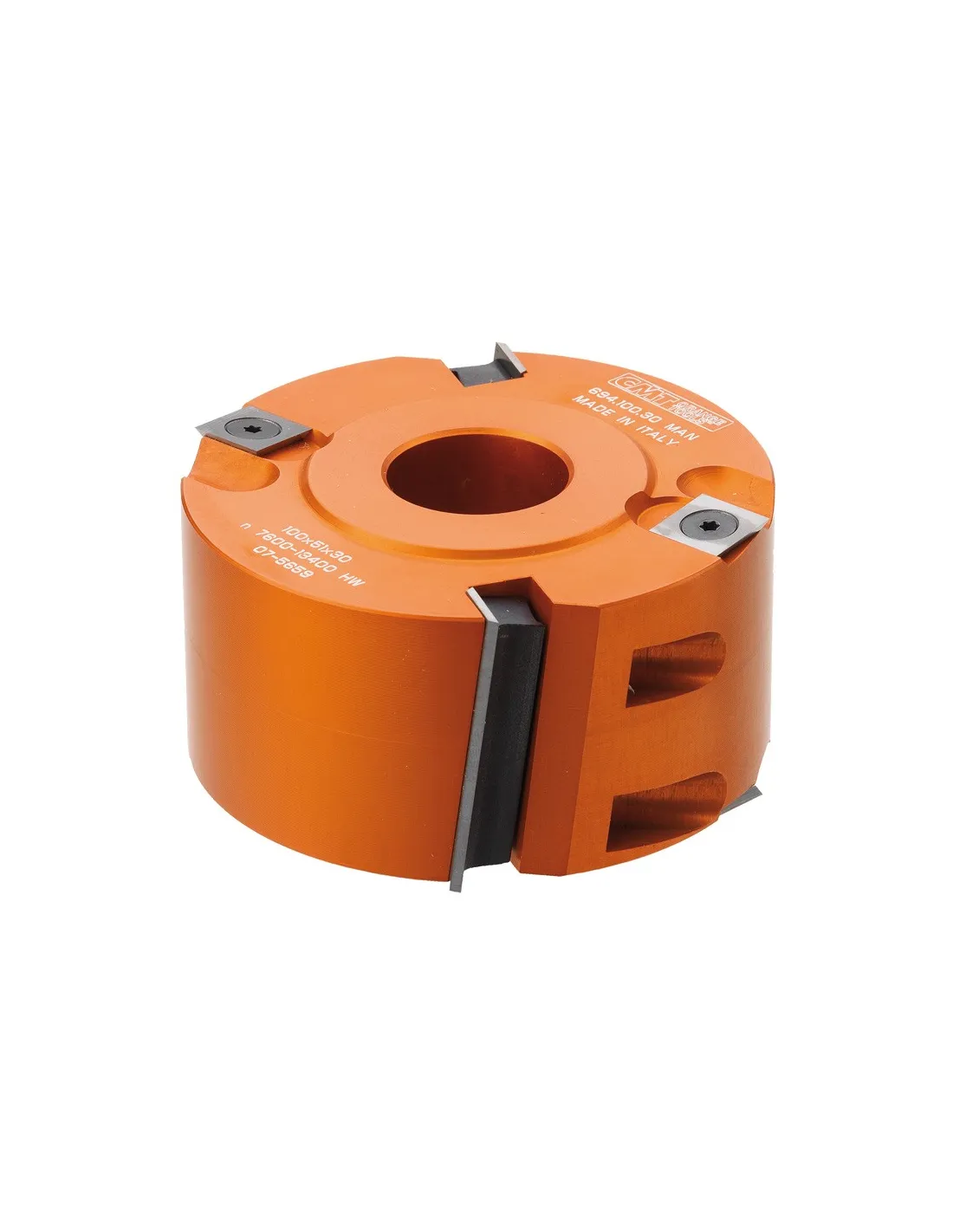

  • Hard aluminium alloy body with high resistance to tensile and yield stress.
  • 2 universal HWM straight knives 50x12x1,5mm [Z2], 1 up cut - 1 down cut.
  • 4 universal HWM scoring knives 14x14x2mm [V4].
  • Tools for manual feed (MAN).
  • Pins for automatic positioning of the knives.

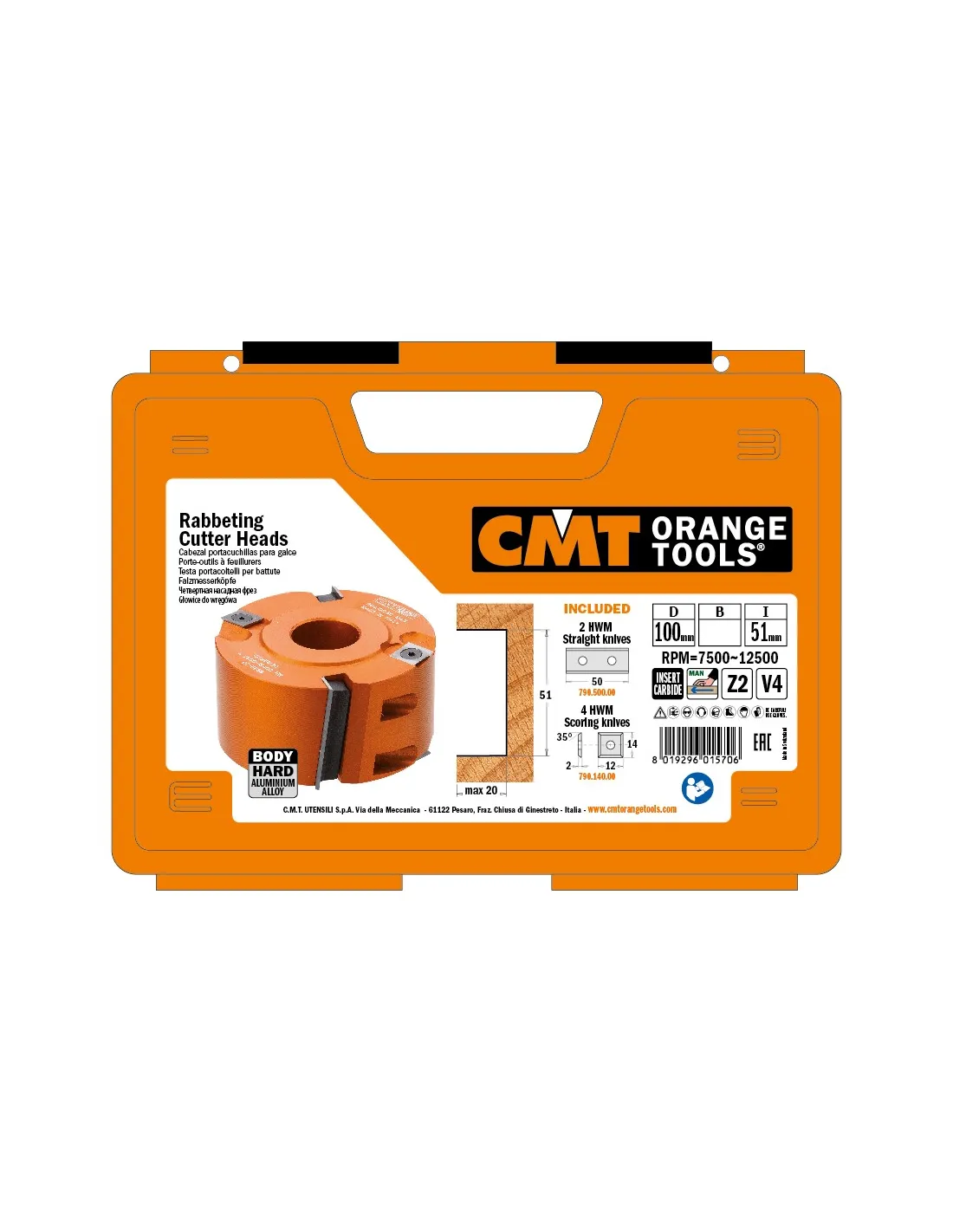

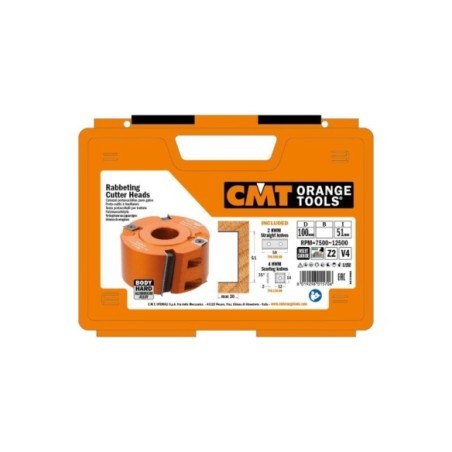

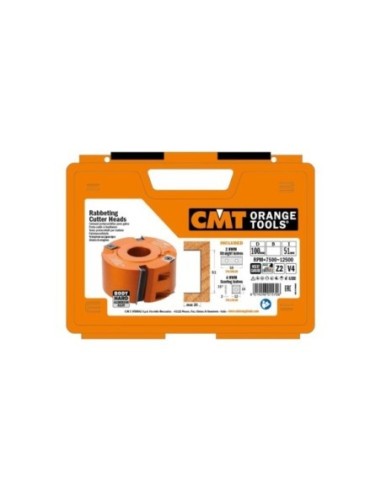

Supplied in a solid plastic box.

790.140.00 and 790.500.00
are supplied in 10-piece pack or multiple.


Safety Tips:
The TW-006 Torque Screwdriver is recommended
for the proper fastening of screws.

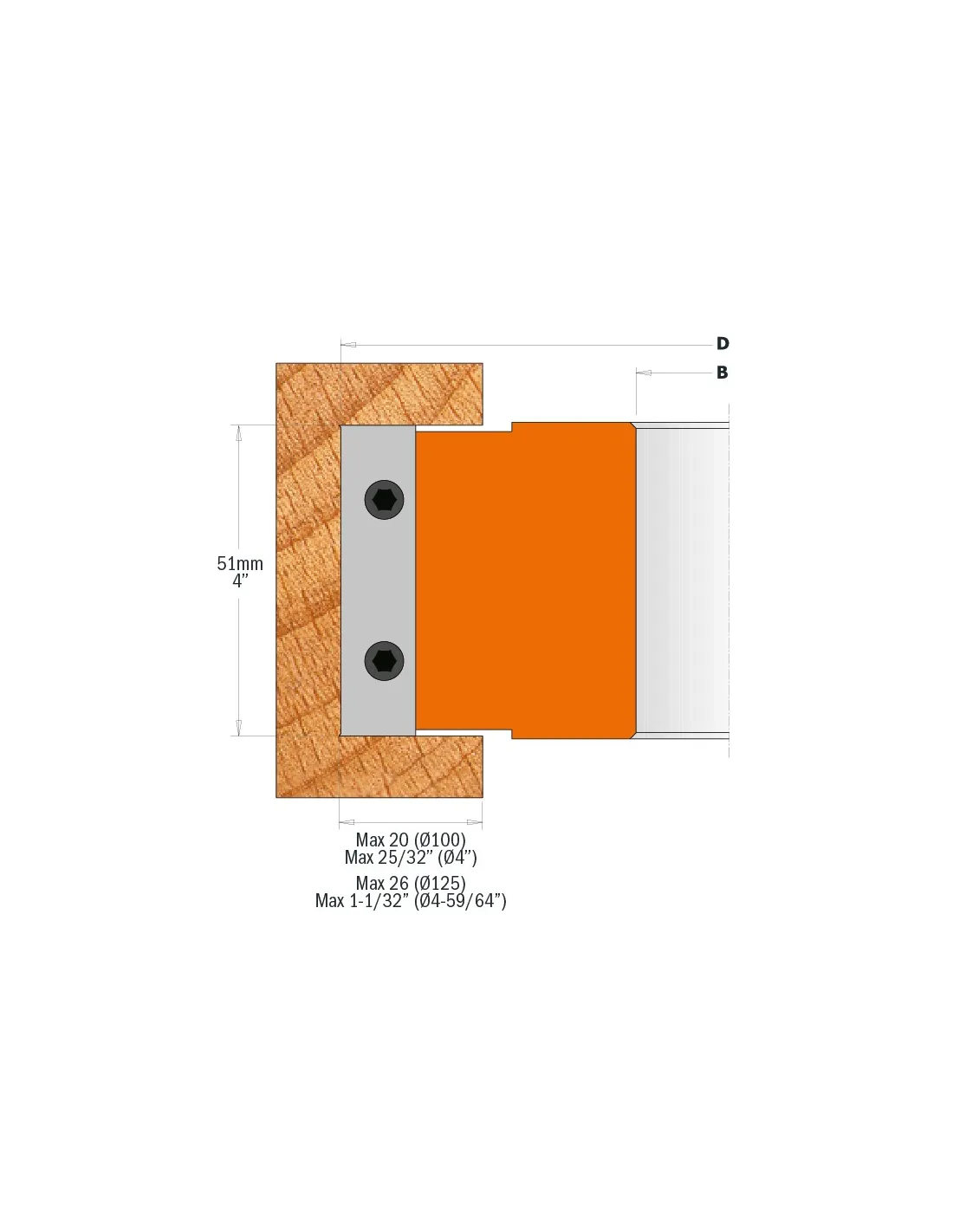

Diameter
Cutting height
Number of cutting edges
Material
Bore diameter
RPM
V

Payments and Security

security

payment methods

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via paypal

carrier

Delivery time: 3 working days

51
HW
125 100
2
30 35 19.05 40 50 31.75
7500~12500 6100 ~ 10000
4

Filters

51
HW
125 100
2
30 35 19.05 40 50 31.75
7500~12500 6100 ~ 10000
4
Reference D I Z MAT F RPM V Quantity Availability Price Add to cart
