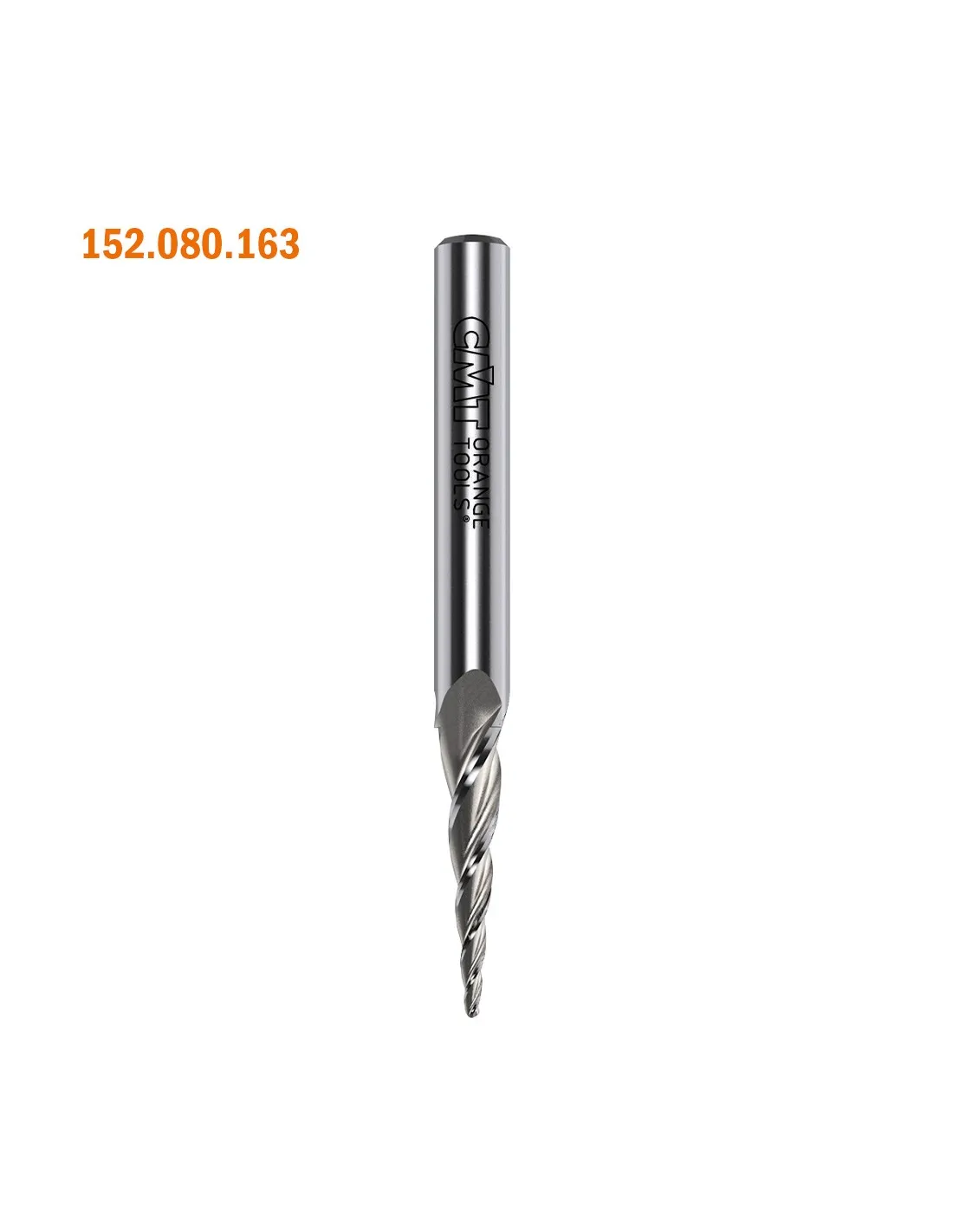

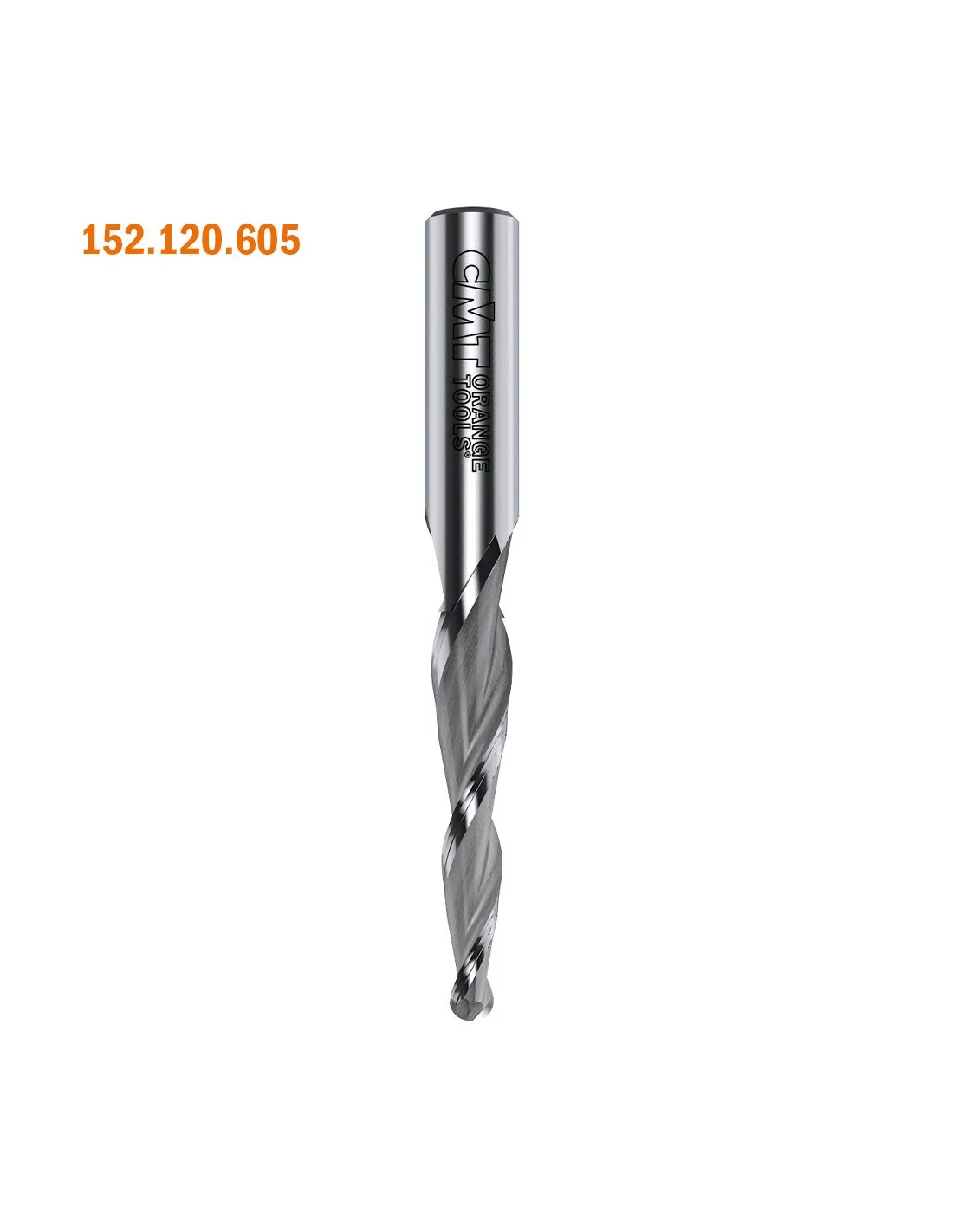

Solid Carbide Upcut 2D/3D Carving Tapered Ball Nose Spiral Bits
Solid Carbide Upcut 2D/3D Carving Tapered Ball Nose Spiral Bits
Solid Carbide Upcut 2D/3D Carving Tapered Ball Nose Spiral Bits
Solid Carbide Upcut 2D/3D Carving Tapered Ball Nose Spiral Bits
Solid Carbide Upcut 2D/3D Carving Tapered Ball Nose Spiral Bits
Solid Carbide Upcut 2D/3D Carving Tapered Ball Nose Spiral Bits
Solid Carbide Upcut 2D/3D Carving Tapered Ball Nose Spiral Bits
Solid Carbide Upcut 2D/3D Carving Tapered Ball Nose Spiral Bits
Solid Carbide Upcut 2D/3D Carving Tapered Ball Nose Spiral Bits
Solid Carbide Upcut 2D/3D Carving Tapered Ball Nose Spiral Bits

Solid Carbide Upcut 2D/3D Carving Tapered Ball Nose Spiral Bits

€50.52
Tax included
Technical details:
  • Premium quality HWM.
  • Upcut spiral cutting edges [Z2/Z3].
  • Excellent finish on the lower side of the work piece.
  • Upward chip ejection.

APPLICATION:
specially designed for 2D and 3D CNC profiling and carving in plastic, aluminum & wood for several uses like:
• A perfect bit for 3D carving
• Precision 2D and 3D large scale carving
• Great for deep profiling
• Dimensional signage
• 3D millwork
• 2D and 3D contouring, profiling, modeling and pattern making for cabinetry, sign making, furniture making and jewelry mold making
• Perfect for model-makers on large 3D milling profiles in abrasive EPS foam and other materials.
• Ideal on aluminum, plastic and wood-based materials.

EXCELLENT FOR CUTTING:
• Acrylonitrile-Butadiene-Styrene (ABS)
• Acrylic
• Acrylic Stone
• Aluminum
• Brass
• Bronze
• Composite
• Copper
• Ethylene-vinyl Acetate Foam (EVA)
• Expanded Polypropylene (EPP)
• Expanded Polystyrene Foam (EPS)
• Extruded Polystyrene Foam (XPS)
• Fiberglass
• Fiberglass PCB Board
• Foam Board
• Graphite
• HDPE
• HDU
• 20lbs High Density Urethane
• MDF/HDF
• Phenolics
• Phenolic Composites
• Plastics
• Poly (methyl methacrylate) (PMMA)
• Polyethylene Foam
• Polyurethane Foam
• PVC
• PVC Foam Board
• Sign Board
• Sign Foam
• Titanium
• Tooling Board
• Wood
• XPE (Cross Linked Polyethylene) Foam.

ALSO EXCELLENT FOR:
• CORIAN®
• COROPLAST®
• DIBOND®
• ETHAFOAM®
• LEXAN®
• PALFOAM®
• POLYLAM®

TIPS FOR MILLING PLASTICS:
• pay attention to heat input.
• pay attention to chip-loads when using small diameters.
• use air-blast to keep chip away and cooling the tool.

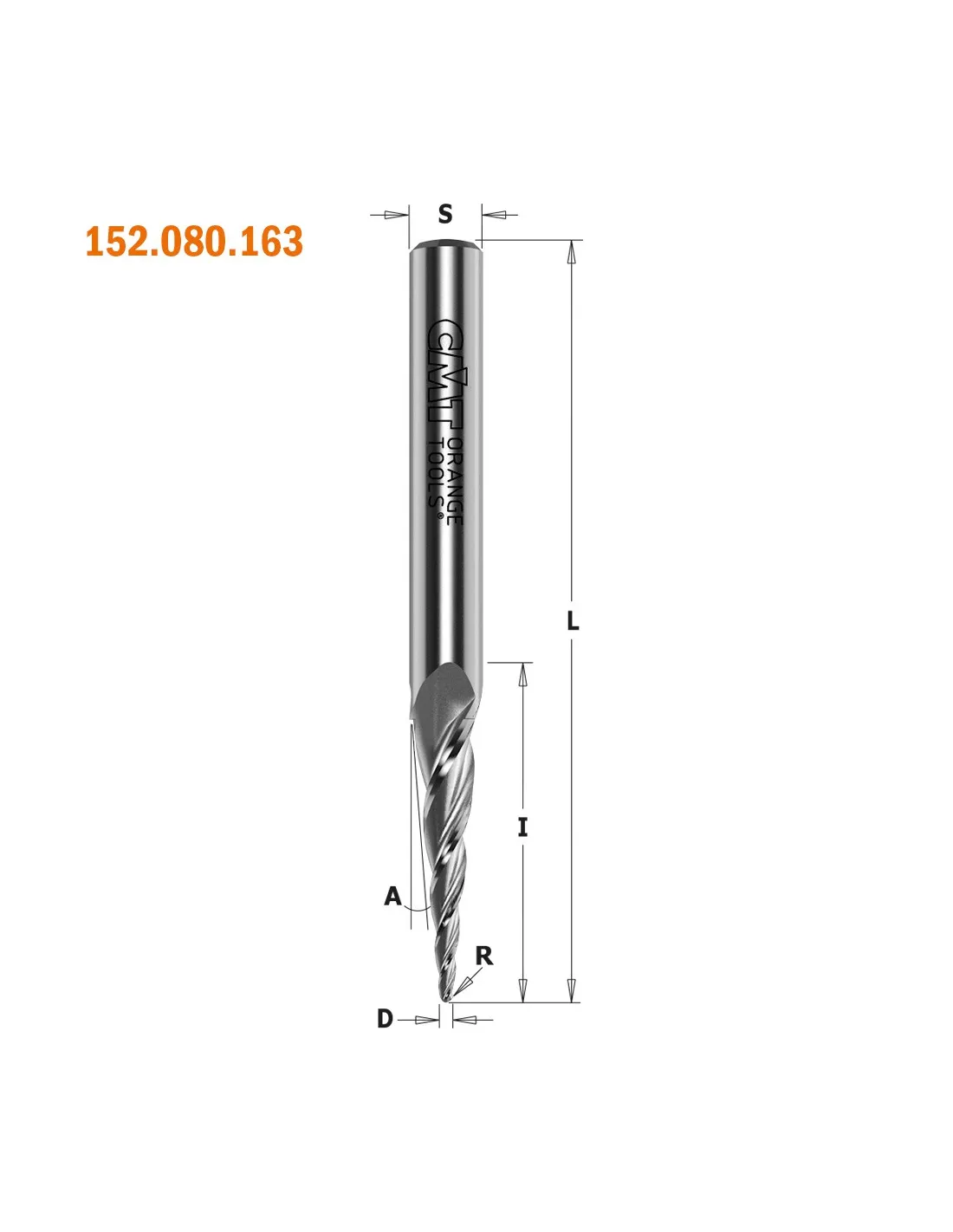

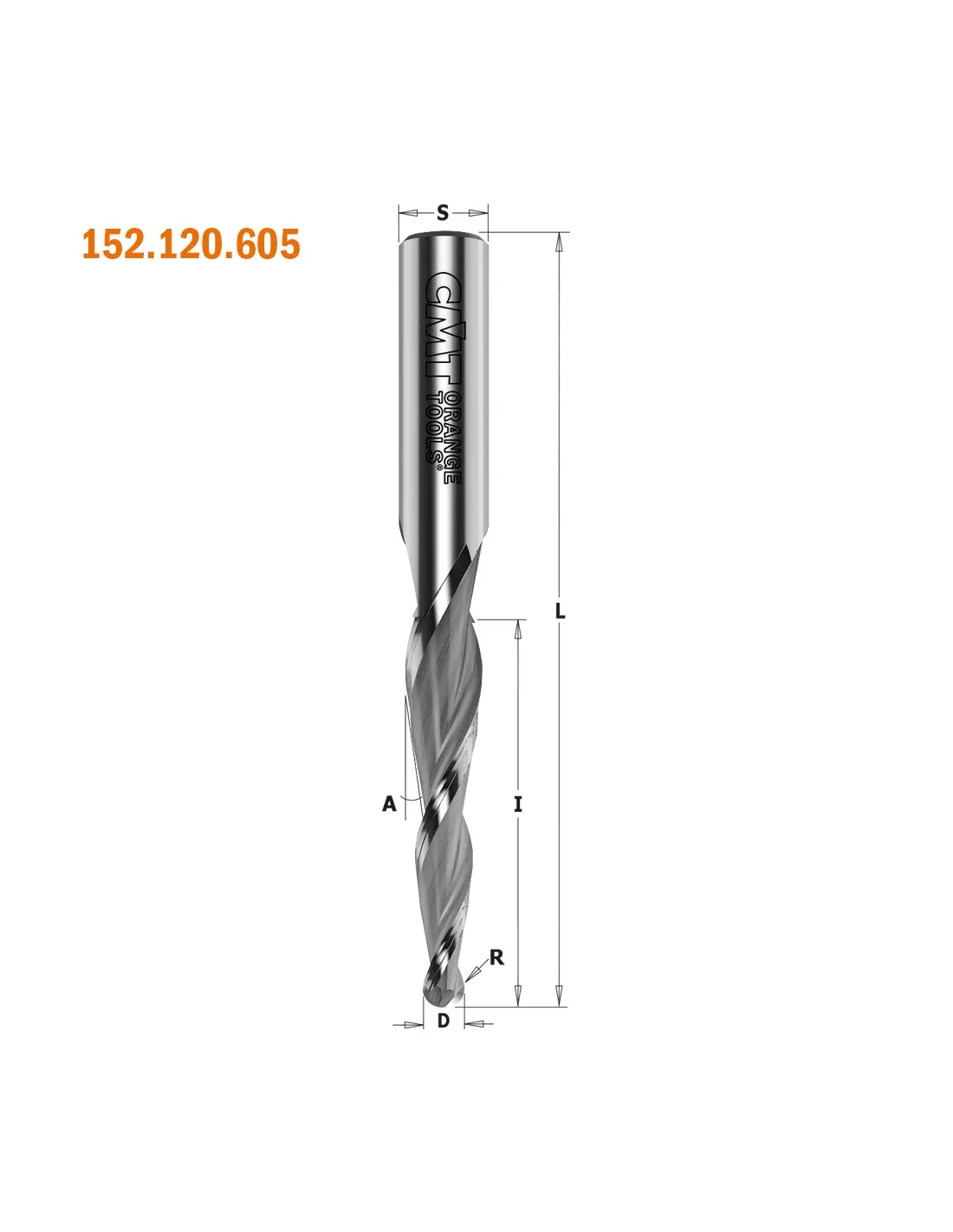

Diameter
Cutting height
Totale length
Shank diameter
Number of cutting edges
Material
Right-hand or left-hand rotation
A
Radius

Payments and Security

security

payment methods

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via paypal

carrier

Delivery time: 3 working days

25.4 50.8 50 25 30 80
HWM
6 6.35 0.8 1.6 3.2 2
70 76.2 80 90 100 120 101.6
RH
6 6.35 12.7 8 12
2 3
5.5 4.5 2.5 6.2 5.4 3.6 3
0.4 0.8 1.6 1 3 3.2

Filters

25.4 50.8 50 25 30 80
HWM
6 6.35 0.8 1.6 3.2 2
70 76.2 80 90 100 120 101.6
RH
6 6.35 12.7 8 12
2 3
5.5 4.5 2.5 6.2 5.4 3.6 3
0.4 0.8 1.6 1 3 3.2
Reference D I L S Z MAT RHLH A R Quantity Availability Price Add to cart
