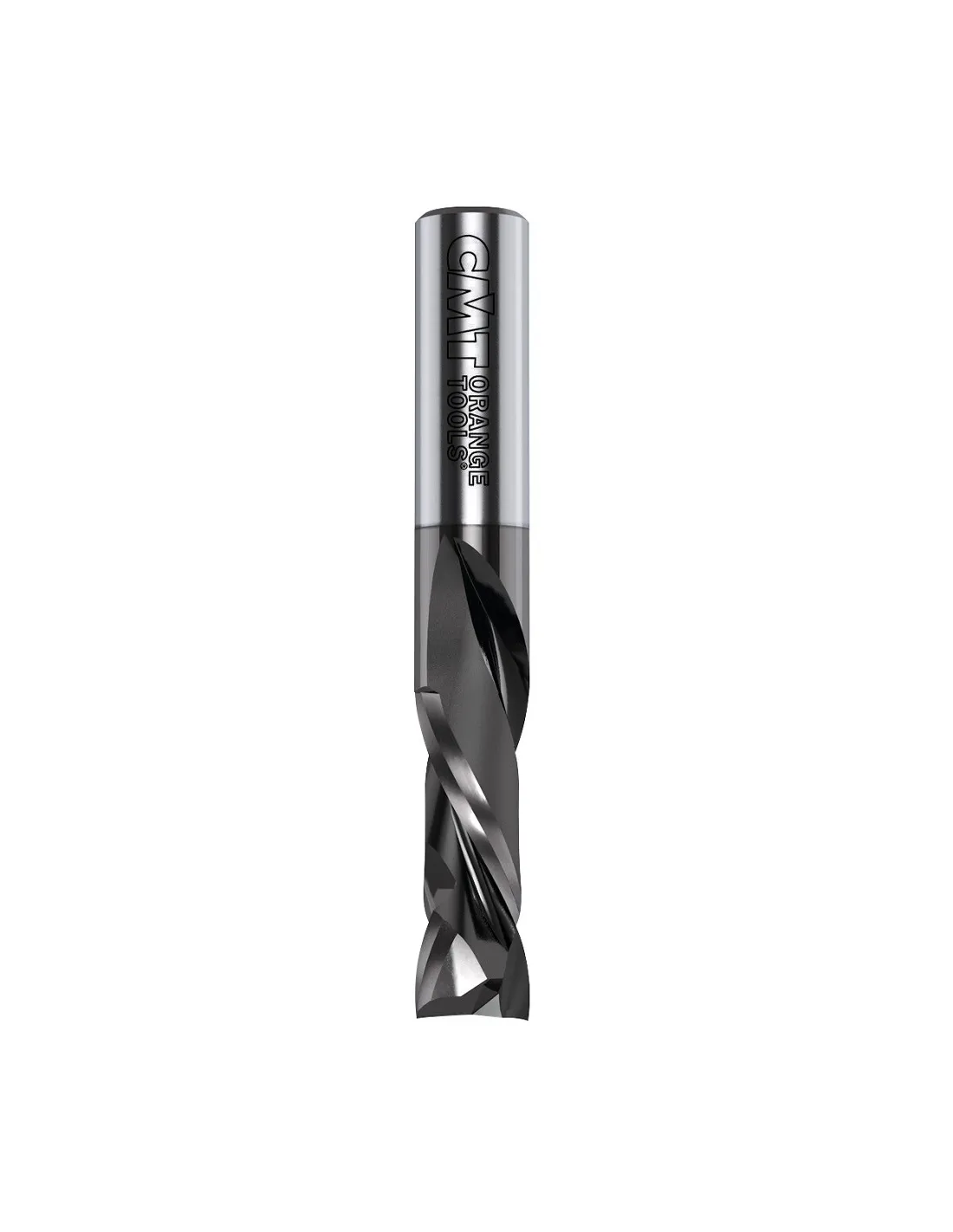

Name: Solid carbide up & downcut spiral bits - DLCS Chrome Coating- Long Life
Brand: CMT Orange Tools
SKU: CMT190.41
Price: 70.97 EUR
Availability: InStock

€70.97

Tax included

THE ULTIMATE TECHNOLOGY FOR INDUSTRIAL CNC TOOLS

DLCS is a modified diamond-like carbon coating with enhanced load bearing capacity. A hard, durable metal-based layer (chromium nitride) provides an higher hardness surface and increases the resilience of the superposed, tribologically effective carbon coating. Coating prevents high heats which is detrimental to cutting tool performance and will remain fully effective after use.

DLCS CHROME COATING
Provides 3 times longer life than uncoated tools!

Extreme Coating Hardness >HV 2.500
Offers impressive hardness on cutting areas of the tool and superb protection against abrasive wear and stress resistance.

Minimal coating thickness mm 0,002-0,004

The minimal micron coating guaranteed perfect sharpen edges for high cutting quality.

The lowest coefficient of friction 0,1-0,2
Very good running-in and low friction losses. Reduction of sticking. Ideal for high speeds in Nesting applications.

High Working Temperature
Less overheating! The coating guarantees working temperature up to 400° preserving the cutting edges from wear.

Technical details:
• Premium quality HWM.
• 2+2 spiral cutting edges [Z2+2].
• 3+3 spiral cutting edges [Z3+3].

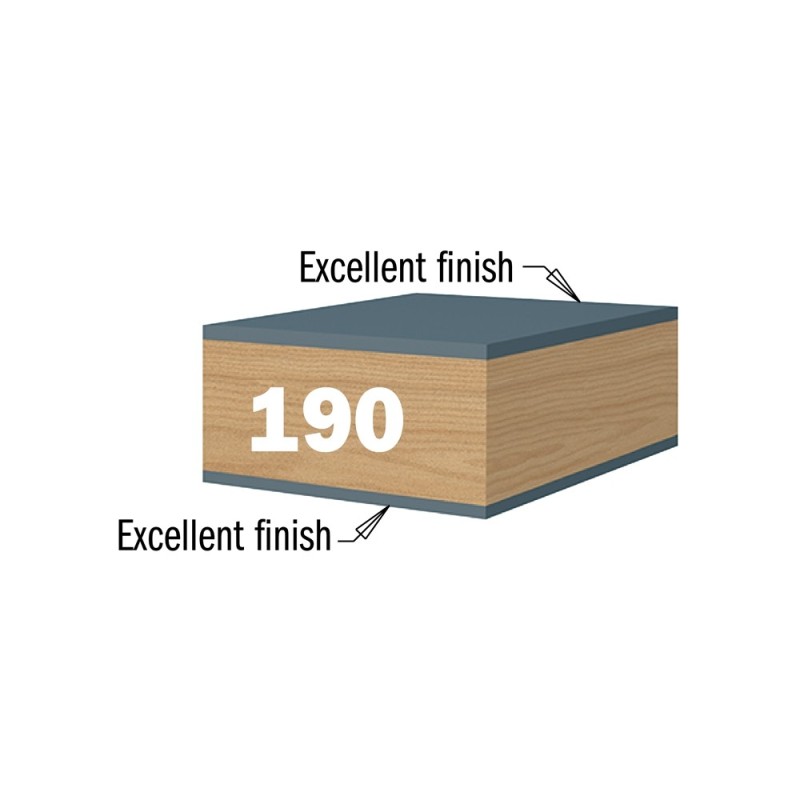

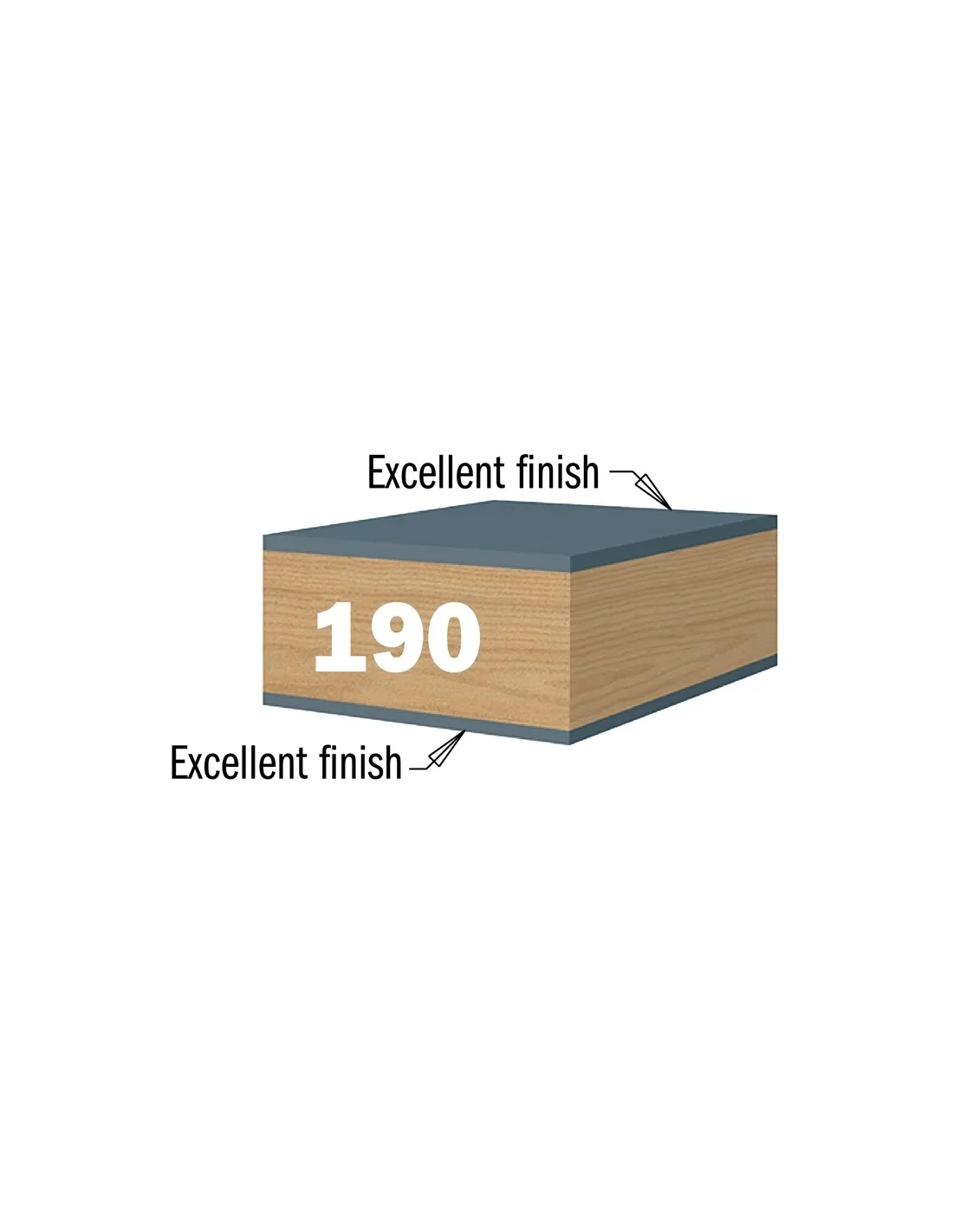

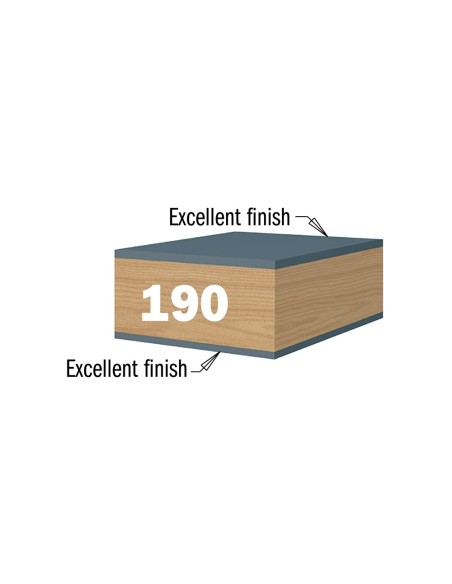

• Provide an excellent finish on both the upper and the lower side of the workpiece.

Test performed in U.S. with ½” solid carbide compression spiral bit
Machine: Felder Profit H10 Nested Base/Overhead CNC Router

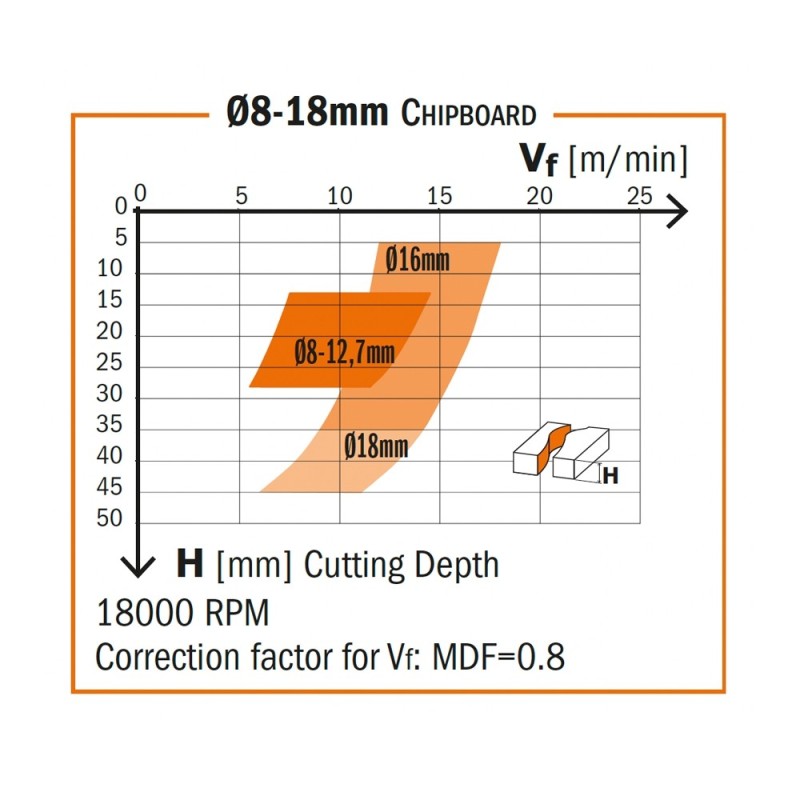

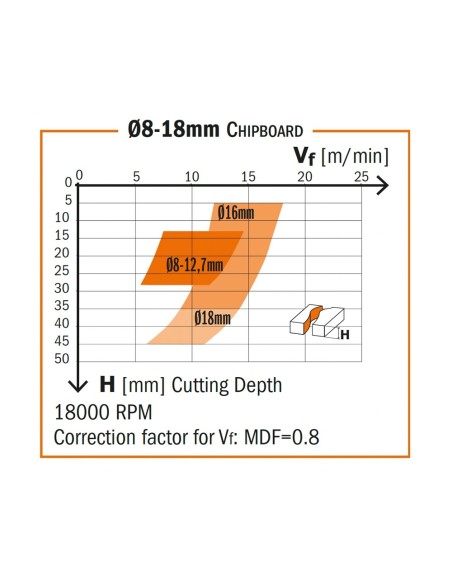

Working Parameters: RPM = 18,000 - Feed = 20 mts/minute
Material: 19mm Melamine Chipboard
Application: Nesting Full Dimensioning
Performance: DLCS coated bit cut 165 melamine panels. Uncoated bit cut 56 melamine panels.

Used for efficient contour cutting, end-trimming and

panel sizing on solid wood, wood composites, plastic

materials and laminates at high feed speed. Ensure

to properly clamp workpieces. Can be used on

machining centres, point-to-point boring machines,

CNC routers and hand-held routers equipped with

chucks or adaptors.

Diameter

Cutting height

Totale length

Shank diameter

Number of cutting edges

Material

Right-hand or left-hand rotation

Payments and Security

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via

Delivery time: 3 working days

Reference	D	I	L	S	Z	MAT	RHLH	I1	Quantity	Price
190.080.41 Details	8	32	80	8	2 + 2	HWM	RH	7	173	€70.97
190.100.41 Details	10	32	80	10	2 + 2	HWM	RH	7	145	€99.25
190.101.41 Details	10	42	90	10	2 + 2	HWM	RH	7	81	€111.14
190.120.41 Details	12	42	90	12	2 + 2	HWM	RH	7	90	€160.10
190.121.41 Details	12	52	100	12	2 + 2	HWM	RH	7	86	€171.36
190.320.41 Details	12	25	83	12	3 + 3	HWM	RH	5.2	42	€142.23
190.504.41 Details	9.52	28.5	76.2	9.52	2 + 2	HWM	RH	7	26	€114.88
190.505.41 Details	12.7	25.4	76.2	12.7	2 + 2	HWM	RH	12	8	€134.07
190.506.41 Details	12.7	28.5	76.2	12.7	2 + 2	HWM	RH	12	46	€131.74
190.507.41 Details	12.7	35	89	12.7	2 + 2	HWM	RH	12	17	€179.77
190.508.41 Details	12.7	41.3	101.6	12.7	2 + 2	HWM	RH	12	28	€200.12
190.513.41 Details	9.52	22	76.2	9.52	2 + 2	HWM	RH	4.8	60	€114.88
190.515.41 Details	12.7	22	76.2	12.7	2 + 2	HWM	RH	5.2	99	€134.07
190.517.41 Details	12.7	35	89	12.7	2 + 2	HWM	RH	5.2	30	€179.77
190.813.41 Details	9.52	25.4	76.2	9.52	3 + 3	HWM	RH	5.2	16	€125.37
190.815.41 Details	12.7	28.5	76.2	12.7	3 + 3	HWM	RH	6	18	€141.45
