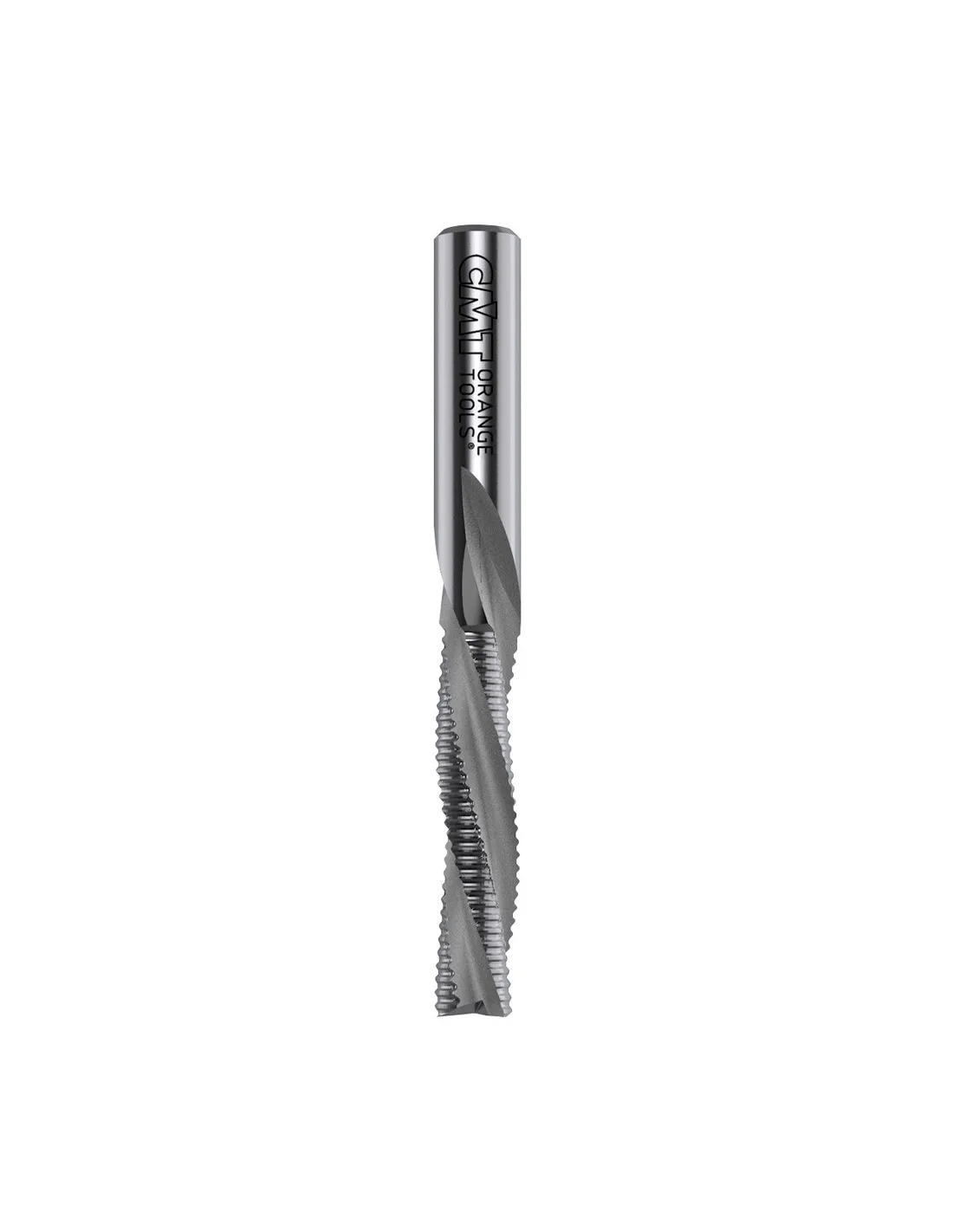

Solid carbide downcut spiral bits with chipbreaker
Solid carbide downcut spiral bits with chipbreaker
Solid carbide downcut spiral bits with chipbreaker
Solid carbide downcut spiral bits with chipbreaker
Solid carbide downcut spiral bits with chipbreaker
Solid carbide downcut spiral bits with chipbreaker
Solid carbide downcut spiral bits with chipbreaker
Solid carbide downcut spiral bits with chipbreaker
Solid carbide downcut spiral bits with chipbreaker
Solid carbide downcut spiral bits with chipbreaker
Solid carbide downcut spiral bits with chipbreaker
Solid carbide downcut spiral bits with chipbreaker

Solid carbide downcut spiral bits with chipbreaker

€62.17
Tax included
Sharp technology with a new twist

A special super-micrograin carbide formulation was created to produce and hold a keen cutting edge. The new low-angle spiral is designed specifically to shear wood cleanly and provide efficient chip ejection. The tools run cooler and the edges last longer.

Increased feed rate and improved cutting quality for enhanced productivity with CMT!

TECHNICAL FEATURES:
• Premium quality HWM.
• 3 spiral cutting edges (Z3R).
• Max tooth depth: 0.3mm.
• Provide excellent finish on the upper side of the workpiece.
• Downward chip ejection.


Used for efficient contour cutting, end-trimming and
panel sizing on solid wood, wood composites, plastic
materials and laminates at high feed speed. Ensure
to properly clamp workpieces.
Can be used on machining centres, point-to-point
boring machines, CNC routers and hand-held routers
equipped with chucks or adaptors.

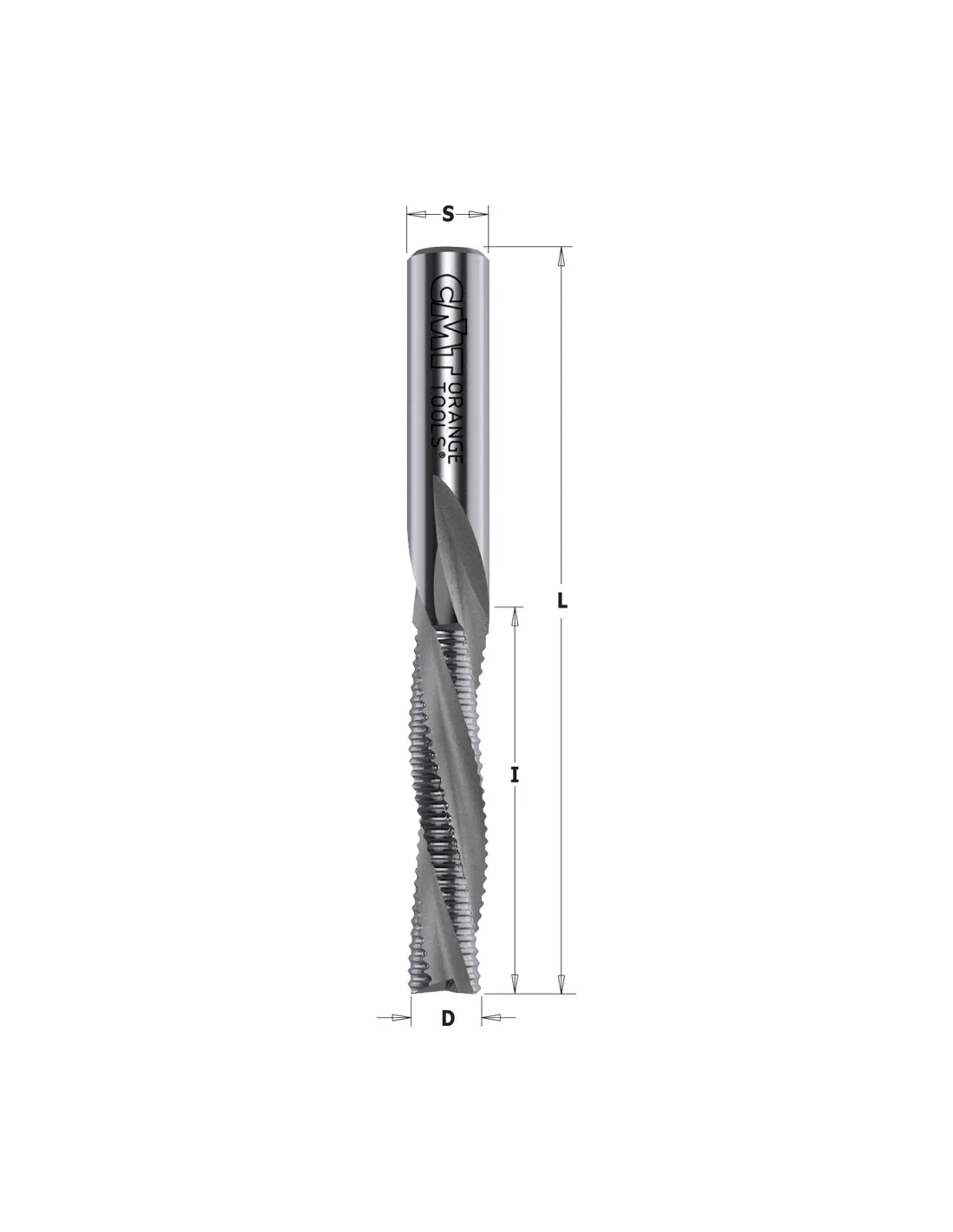

Diameter
Cutting height
Totale length
Shank diameter
Number of cutting edges
Material
Right-hand or left-hand rotation

Payments and Security

security

payment methods

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via paypal

carrier

Delivery time: 3 working days

38.1 32 35 50 60 55 42 52 72
HWM
8 10 12 14 16 12.7 18 20
110 80 90 100 120 140 83 88.9
RH LH
12.7 8 12 10 16 20 14 18
3R

Filters

38.1 32 35 50 60 55 42 52 72
HWM
8 10 12 14 16 12.7 18 20
110 80 90 100 120 140 83 88.9
RH LH
12.7 8 12 10 16 20 14 18
3R
Reference D I L S Z MAT RHLH Quantity Availability Price Add to cart
