€251.88
Tax included

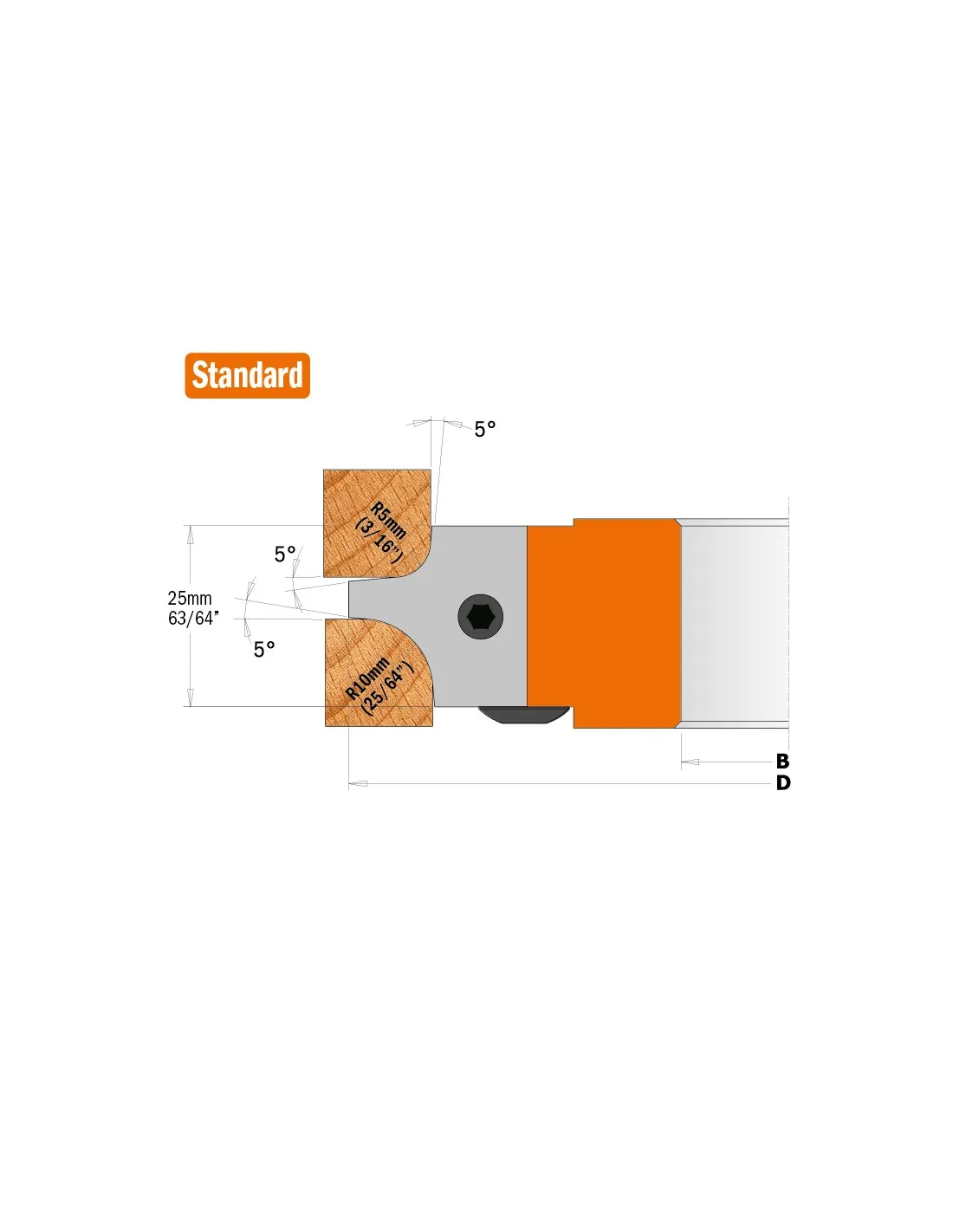

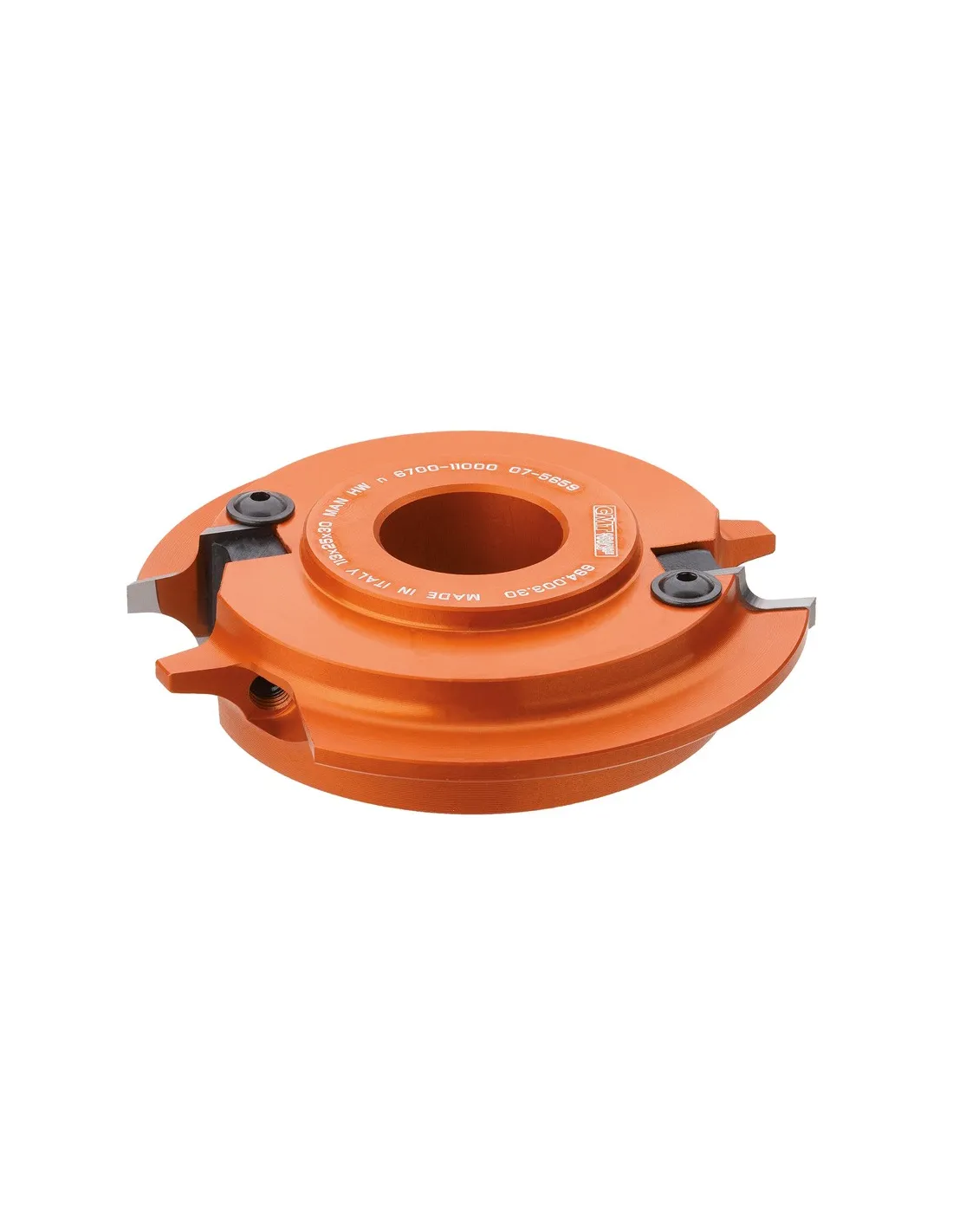

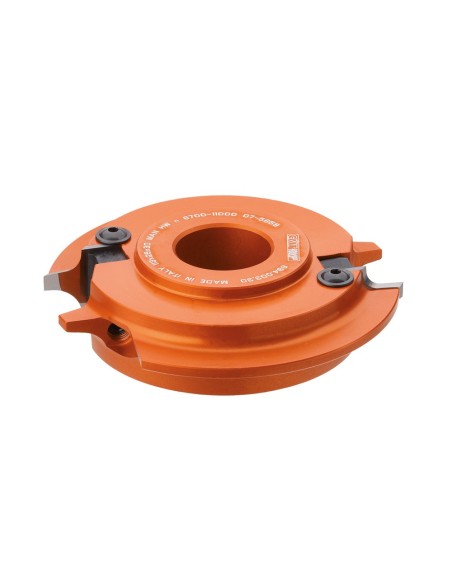

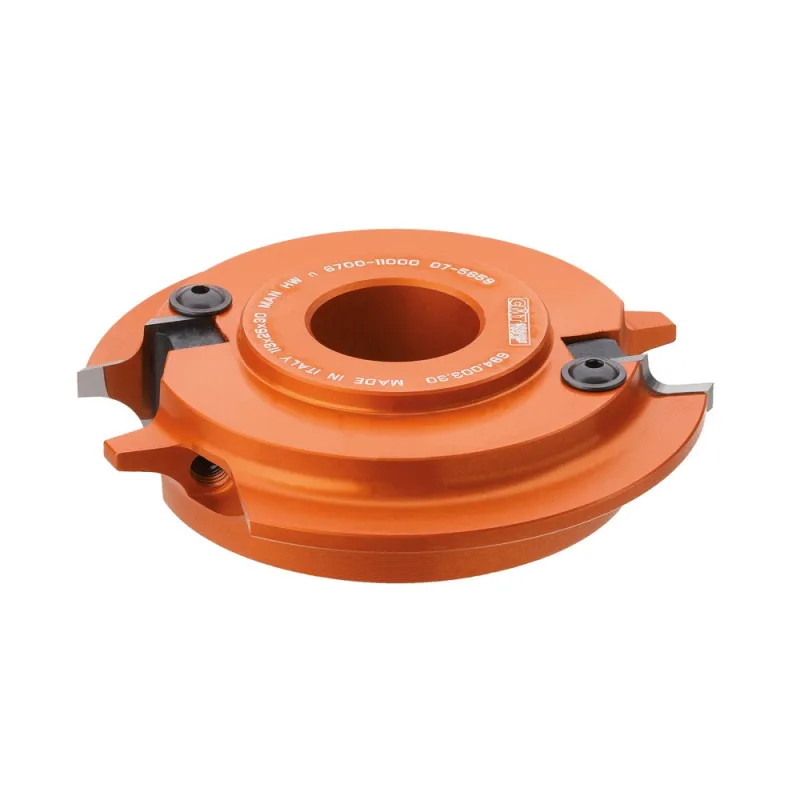

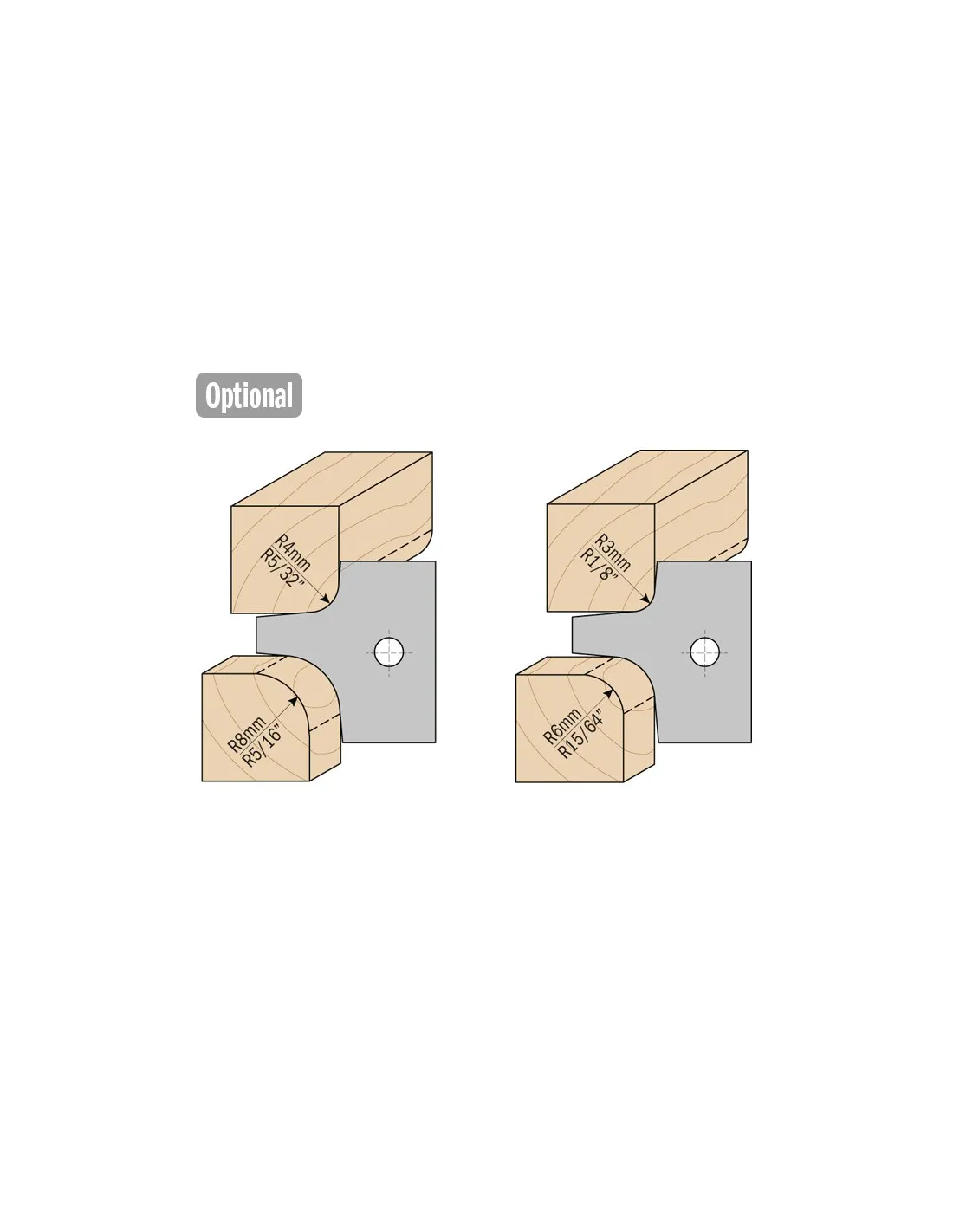

Innovative cutter heads supporting three different knives for making six radius roundover profiles. Standard cutter heads are sold with knives featuring 5 and 10mm radii; two more knife sets are available for radii 4-8mm and 3-6mm.

For use on spindle moulder machines, double-end tenoner and shaper machines.

Suitable for all materials, but ideal on solid wood and panel materials.


Technical details
  • Hard aluminium alloy body with high resistance to tensile and yield stress.

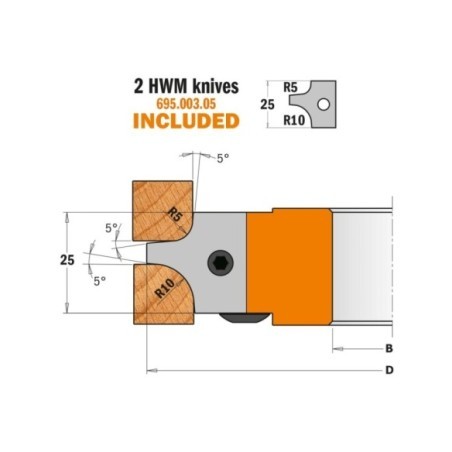

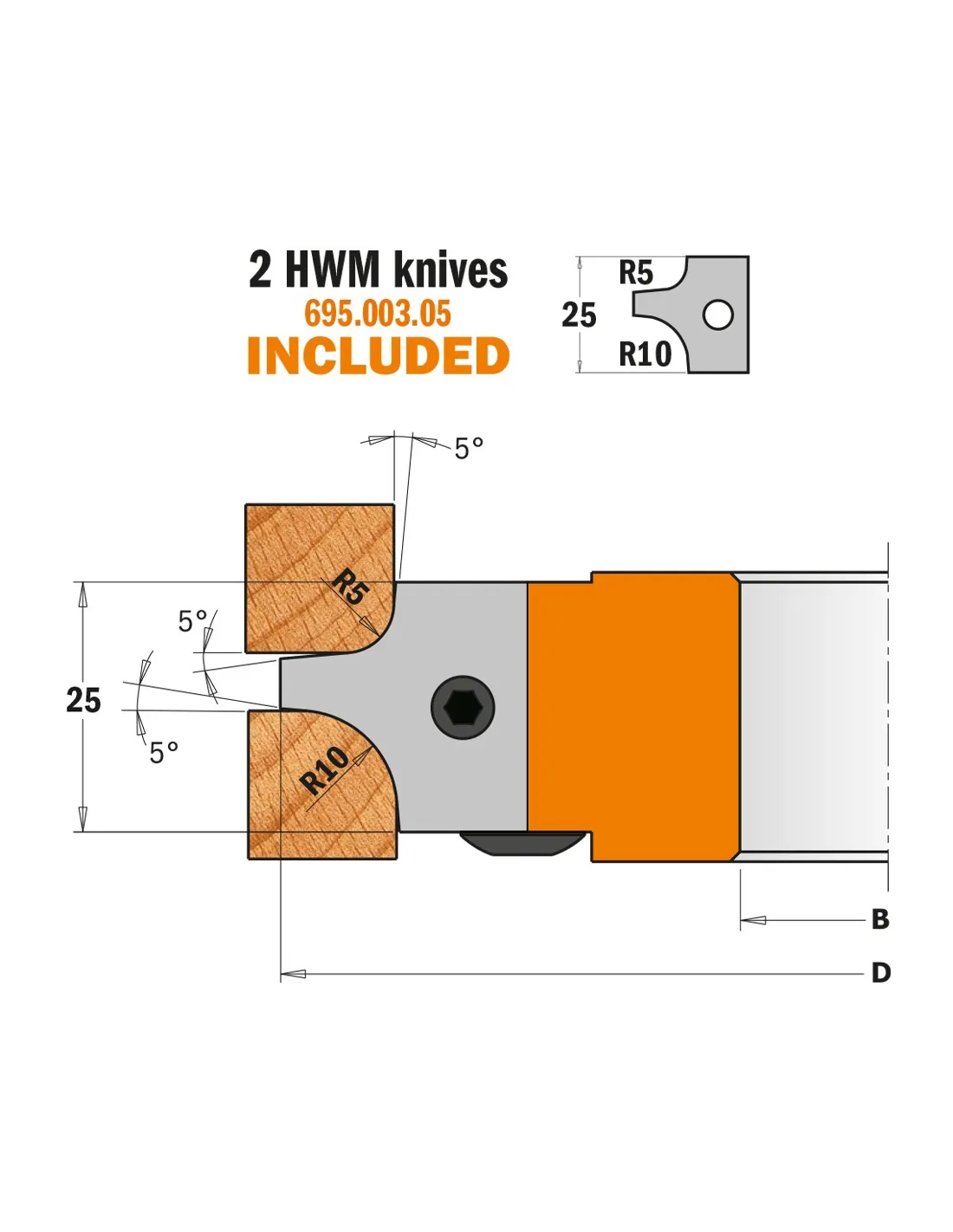

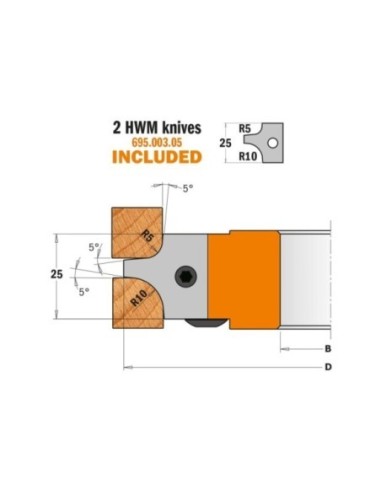

  • 2 HWM knives radius 5/10mm (25x24,8x2mm) [Z2].
  • Tools for manual feed (MAN).
  • Pins for the automatic positioning of the knives.


Supplied in a solid plastic box.

Safety Tips:
The TW-006 Torque Screwdriver is recommended
for the proper fastening of screws.



Diameter
Cutting height
Number of cutting edges
Material
Radius
Bore diameter
RPM

Payments and Security

security

payment methods

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via paypal

carrier

Delivery time: 3 working days

25
HW
113 128
2
5 - 10
30 35 40 50 31.75
6700~11000 5900~9700

Filters

25
HW
113 128
2
5 - 10
30 35 40 50 31.75
6700~11000 5900~9700
Reference D I Z MAT R F RPM Quantity Availability Price Add to cart
