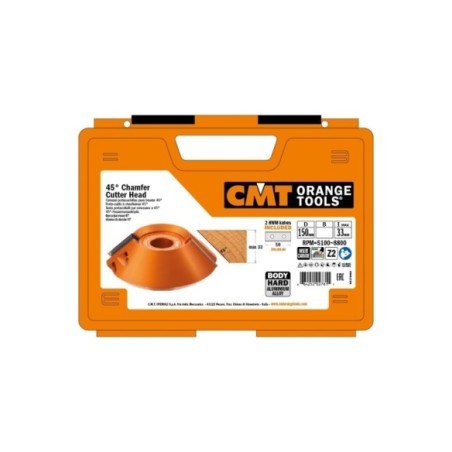

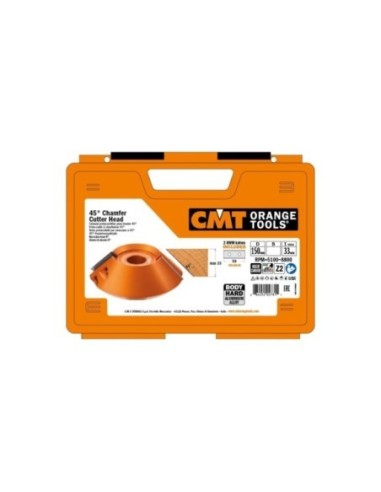

45° Chamfer Cutter Heads
45° Chamfer Cutter Heads
45° Chamfer Cutter Heads
45° Chamfer Cutter Heads
45° Chamfer Cutter Heads
45° Chamfer Cutter Heads
45° Chamfer Cutter Heads
45° Chamfer Cutter Heads
45° Chamfer Cutter Heads
45° Chamfer Cutter Heads
45° Chamfer Cutter Heads
45° Chamfer Cutter Heads

45° Chamfer Cutter Heads

€245.59
Tax included

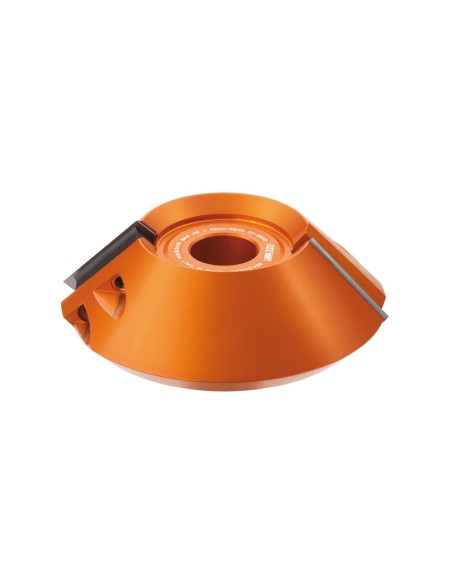

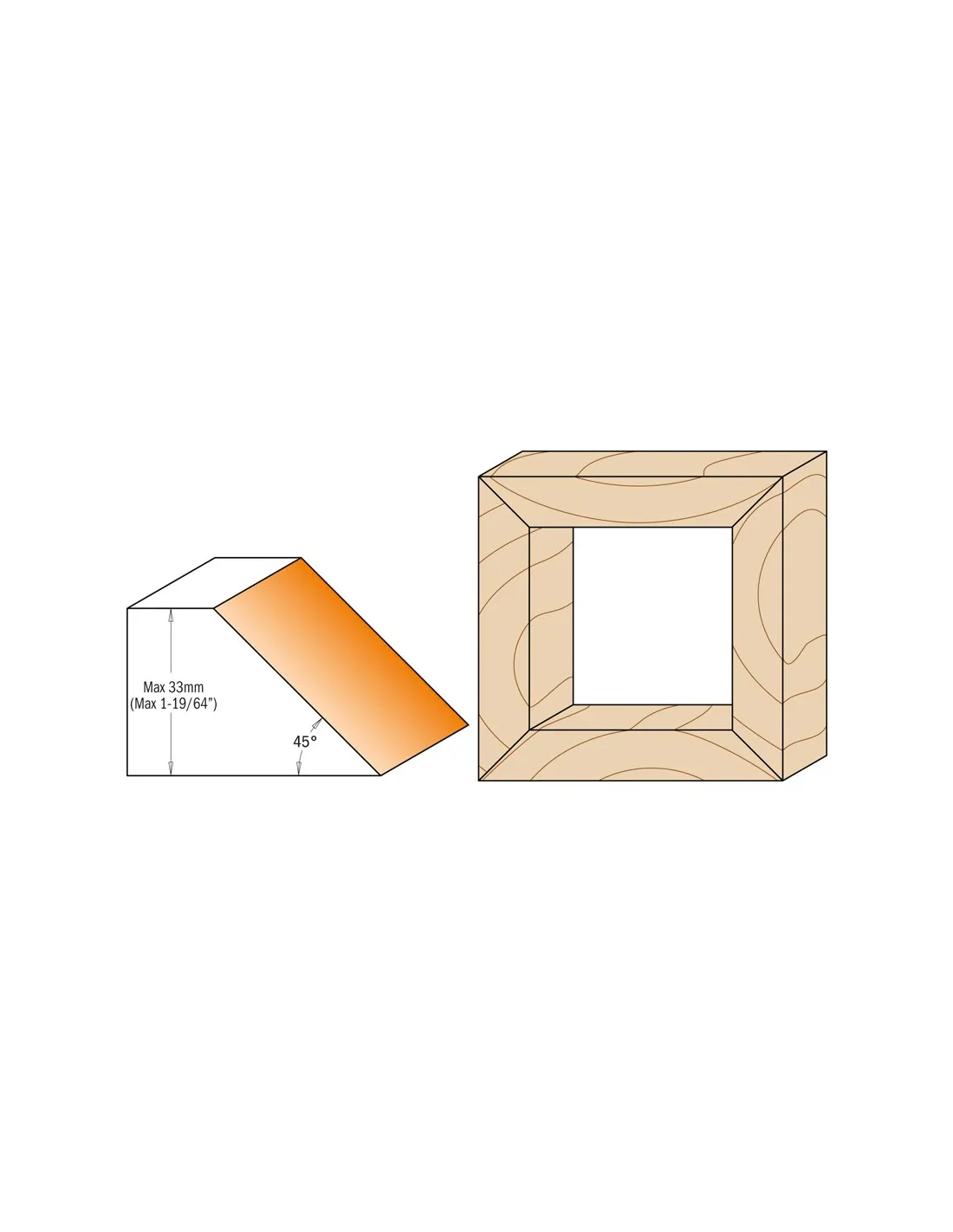

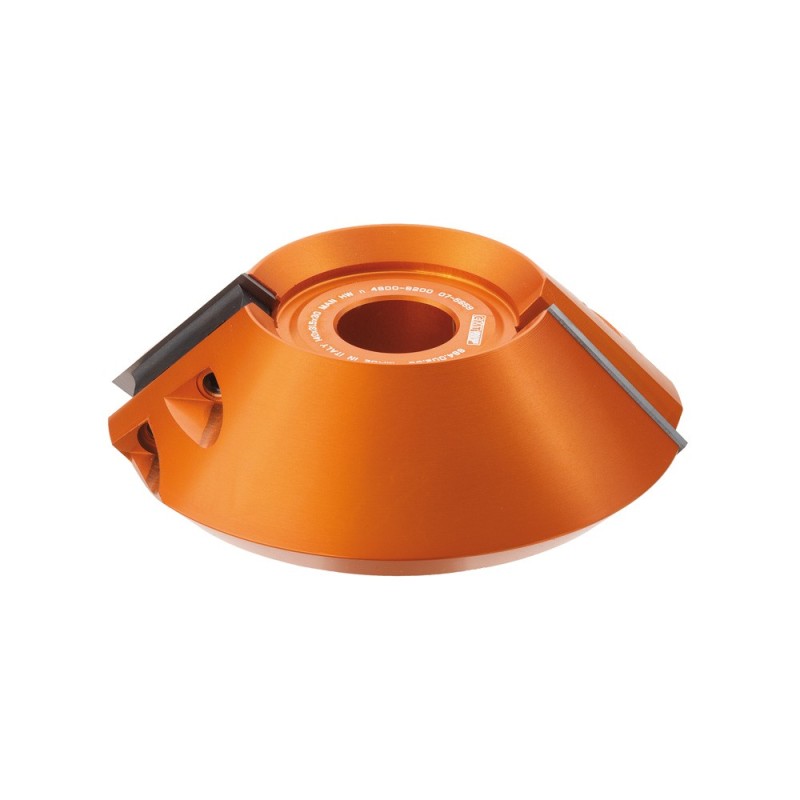

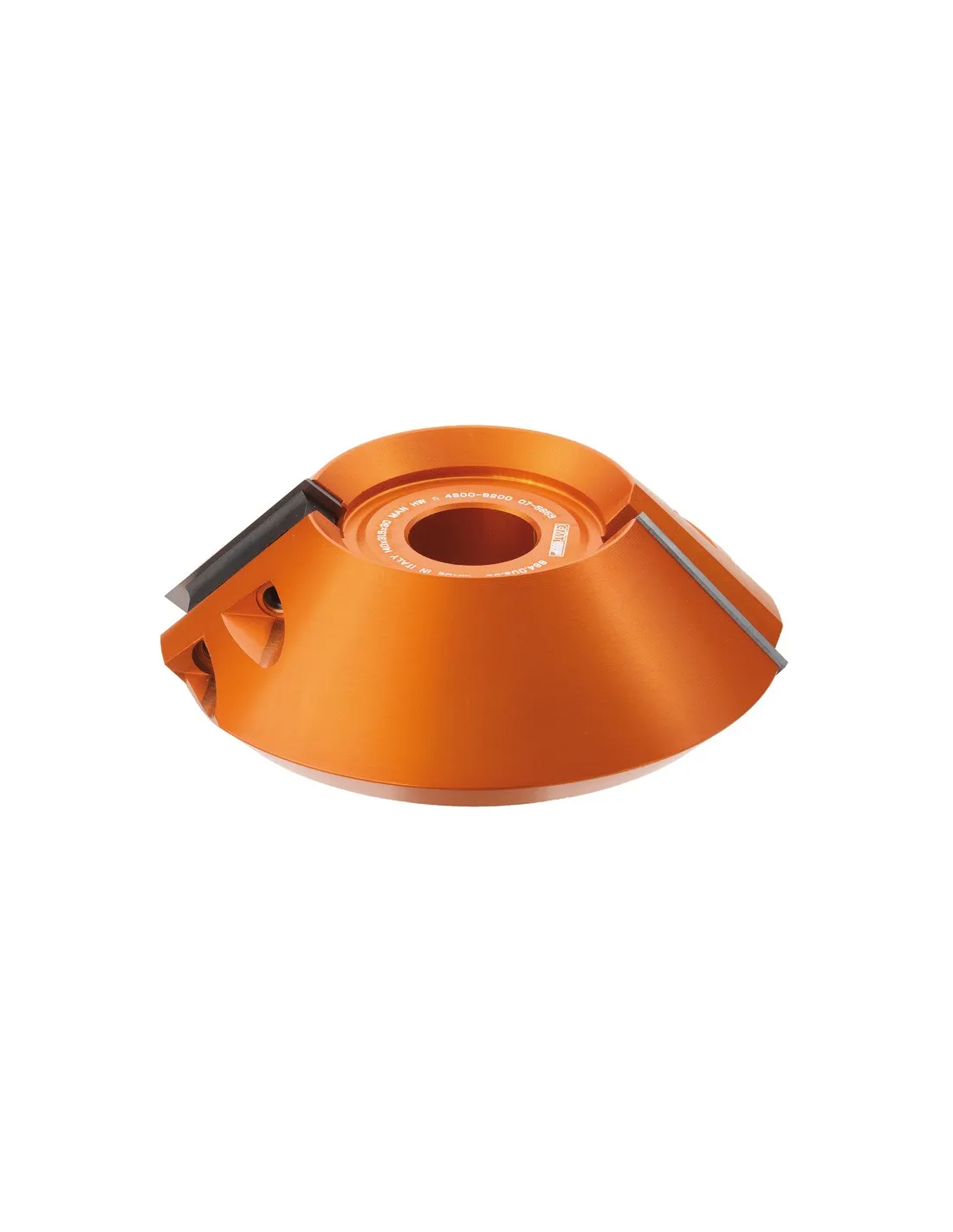

CMT chamfer cutter heads carry out clean accurate bevels and joints for excellent edge work.
For use on spindle moulder machines, double-end tenoner and shaper machines.
Suitable for all materials, but ideal on solid wood, veneer, plywood and laminated materials.


Technical details
  • Hard aluminium alloy body with high resistance to tensile and yield stress.

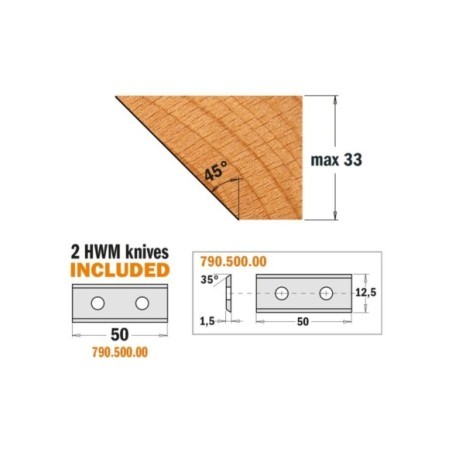

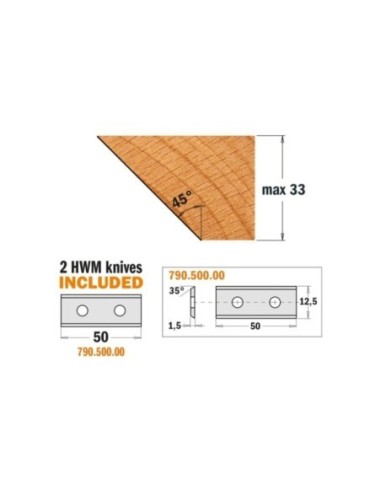

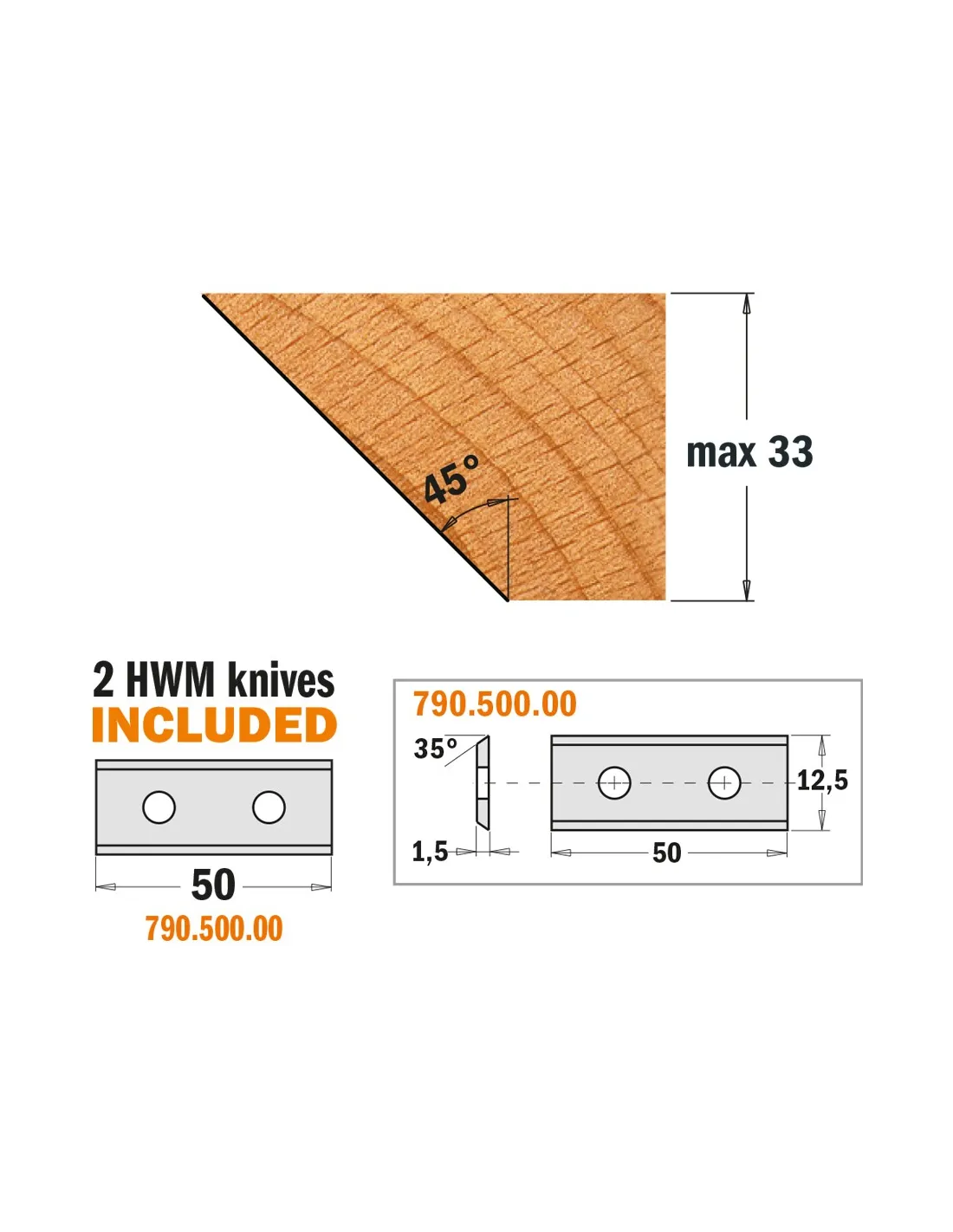

  • 2 HWM Knives 50x12x1,5mm [Z2].
  • Tools for manual feed (MAN).
  • Pins for the automatic positioning of the knives.

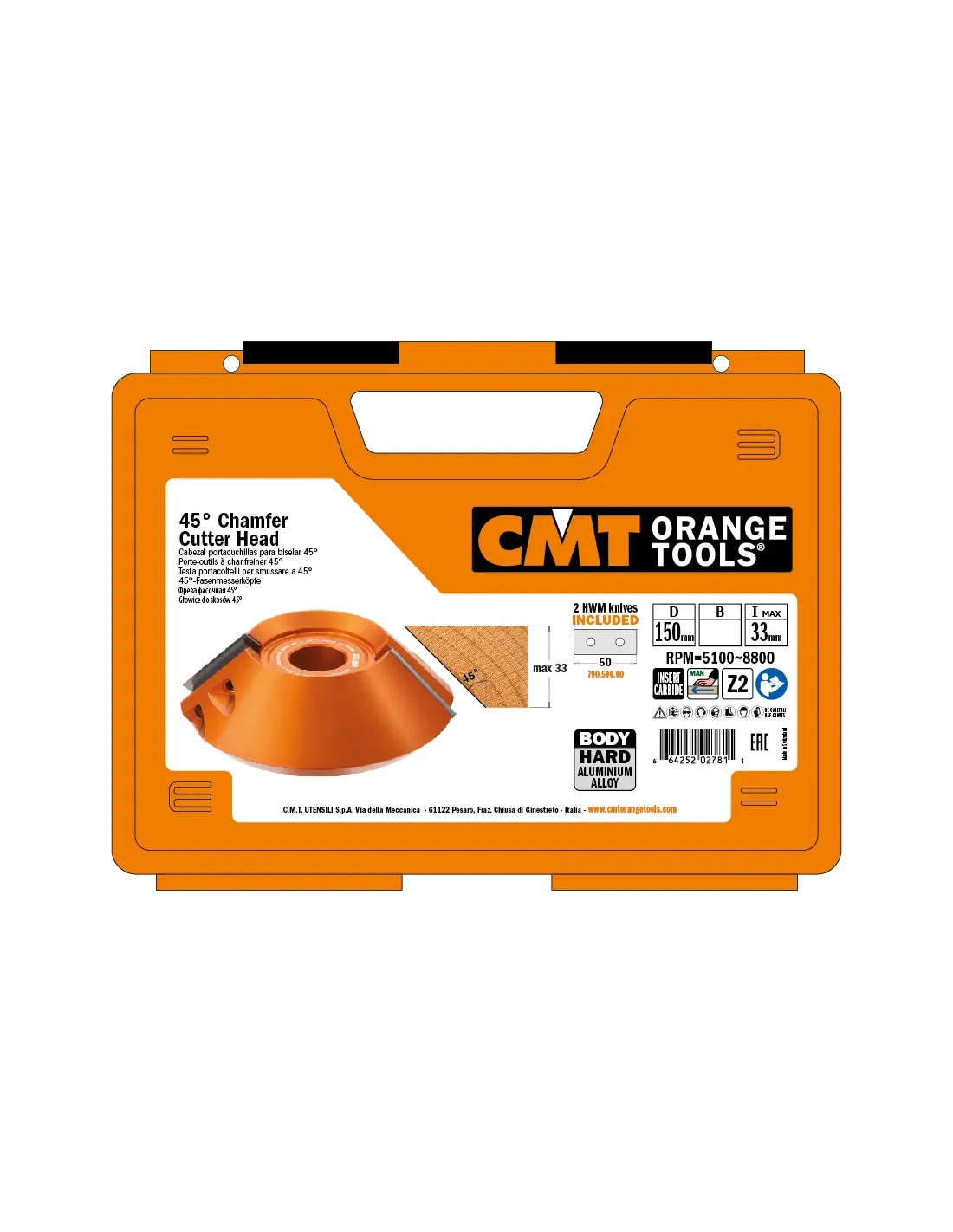

Supplied in a solid plastic box.

790.500.00 are supplied in 10-piece pack or multiple.






Safety Tips:
The TW-006 Torque Screwdriver is recommended
for the proper fastening of screws.

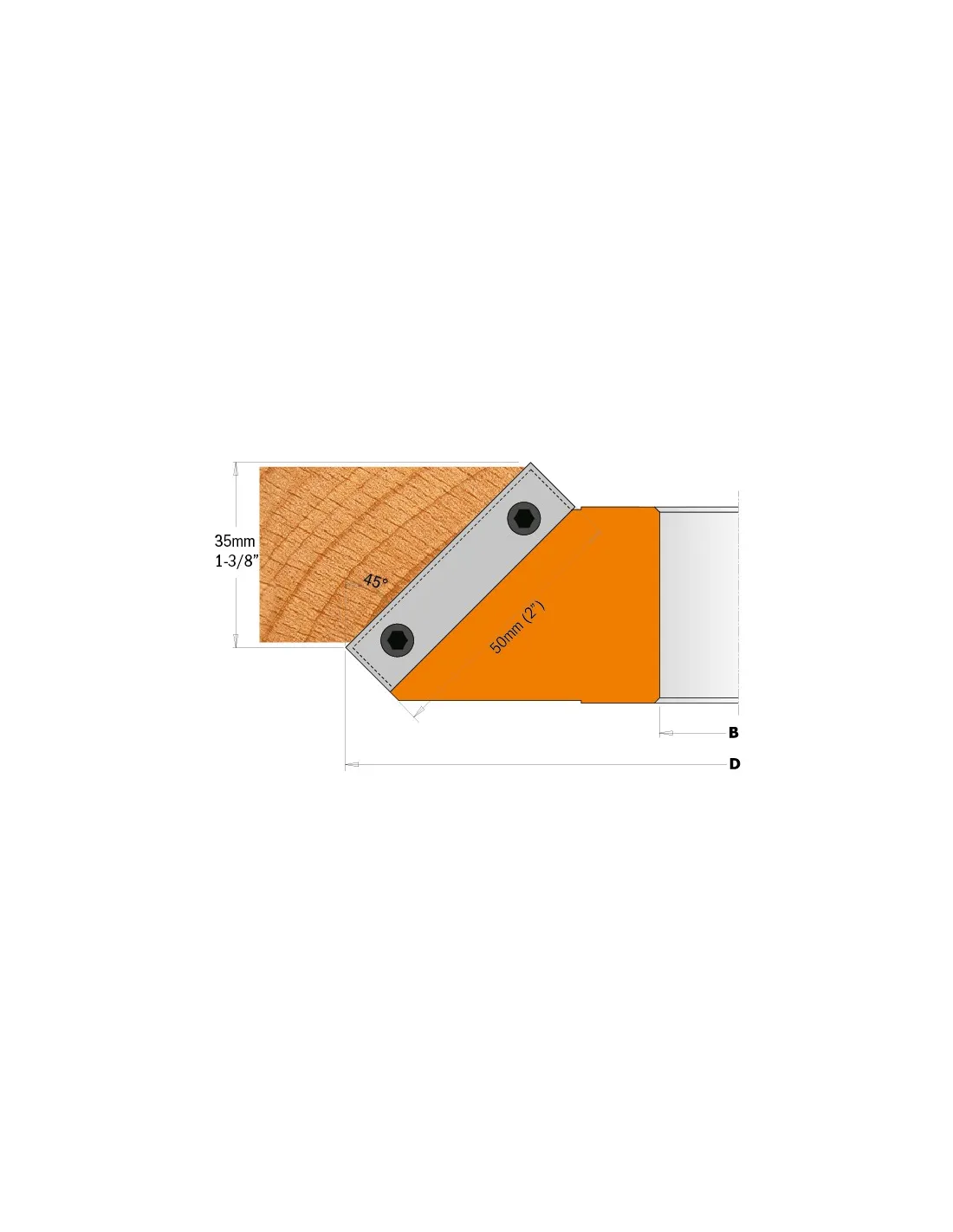

Diameter
Cutting height
Number of cutting edges
Material
A
Bore diameter
RPM

Payments and Security

security

payment methods

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via paypal

carrier

Delivery time: 3 working days

35
HW
160 150
2
45°
30 35 40 50 31.75
5100~8800

Filters

35
HW
160 150
2
45°
30 35 40 50 31.75
5100~8800
Reference D I Z MAT A F RPM Quantity Availability Price Add to cart
