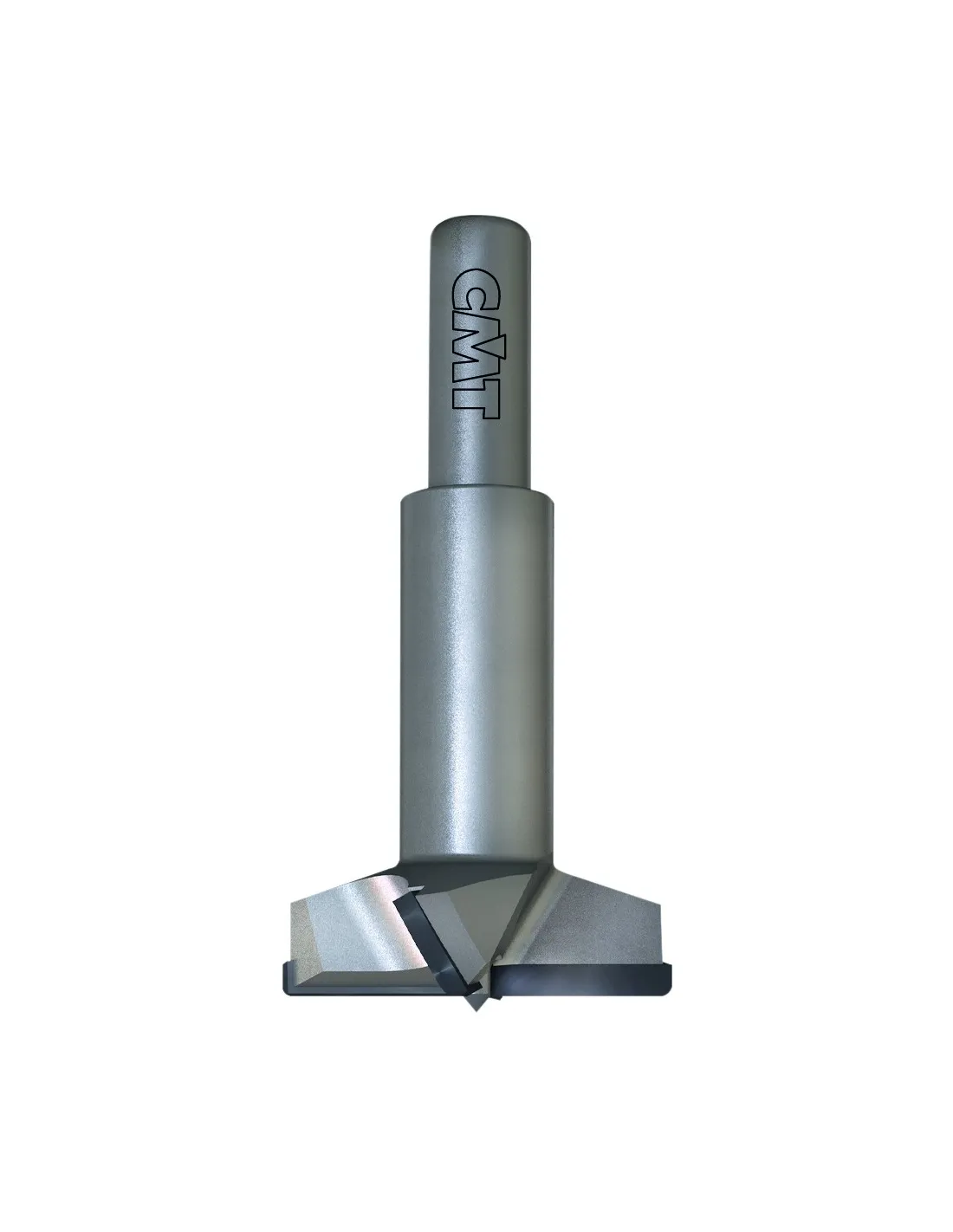

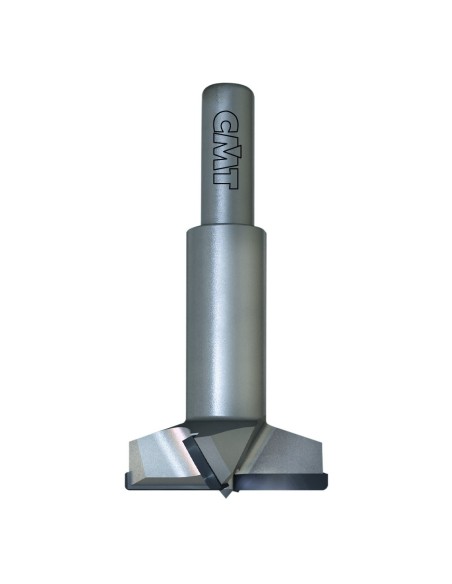

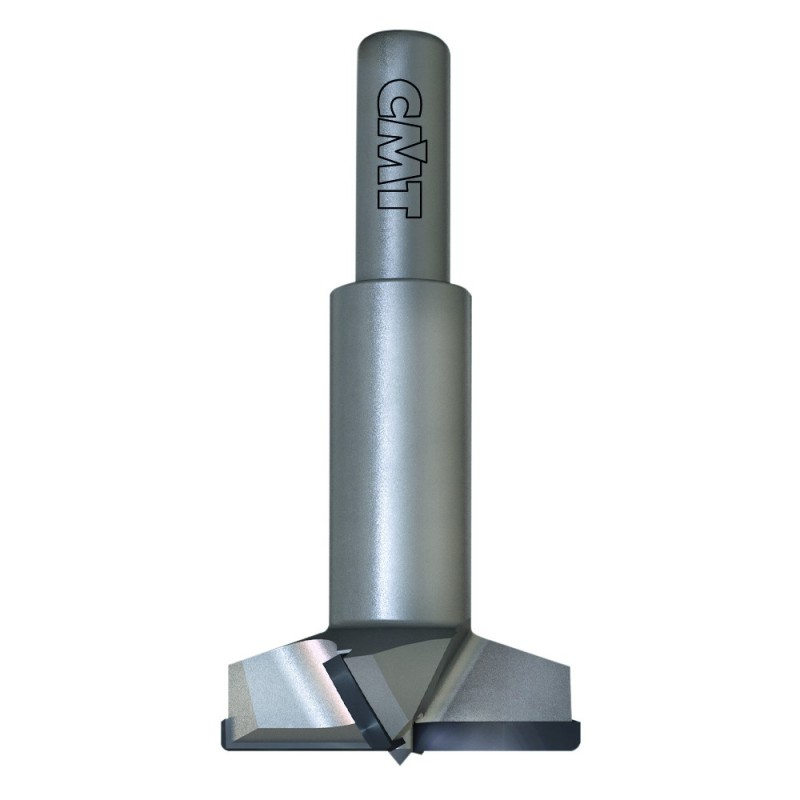

DP - Hinge Boring Bits - LONG LIFE, S10mm - L70mm
DP - Hinge Boring Bits - LONG LIFE, S10mm - L70mm
DP - Hinge Boring Bits - LONG LIFE, S10mm - L70mm
DP - Hinge Boring Bits - LONG LIFE, S10mm - L70mm
DP - Hinge Boring Bits - LONG LIFE, S10mm - L70mm
DP - Hinge Boring Bits - LONG LIFE, S10mm - L70mm
DP - Hinge Boring Bits - LONG LIFE, S10mm - L70mm
DP - Hinge Boring Bits - LONG LIFE, S10mm - L70mm

DP - Hinge Boring Bits - LONG LIFE, S10mm - L70mm

€188.08
Tax included
TECHNICAL DETAILS:
• Super-strength steel.
• DP head with precision balanced centre point.
• 2 DP precision ground cutting edges with chipbreaker [Z2R].
• 2 DP negatively ground spurs [V2].
• Parallel shank with driving flat and length adjusting screw.

REMARK: special diameter available on request.

Ideal for hinges.
Use on boring machines equipped with adaptors or chucks.
Use for drilling accurate and clean-cut blind holes in wood composites, plastic and laminated materials.
Boring performance 20 times longer than HW materials.

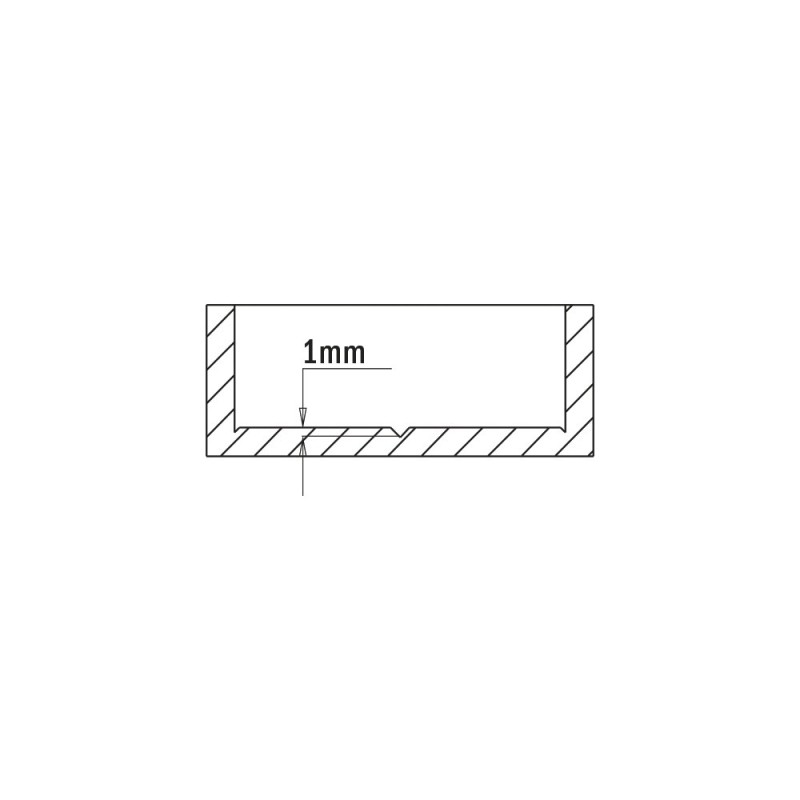

New construction with 1mm centre point.

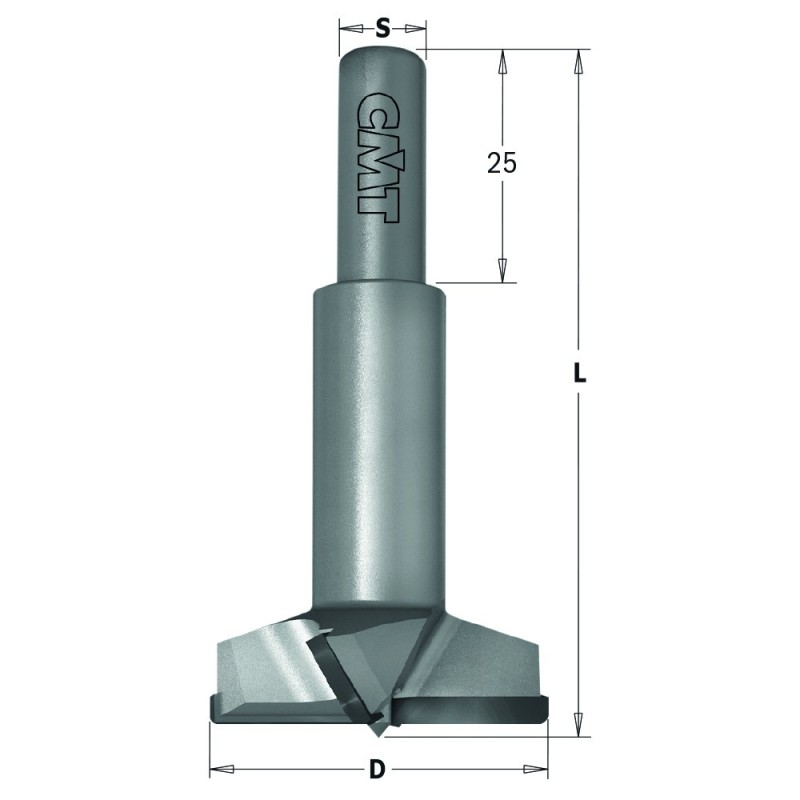

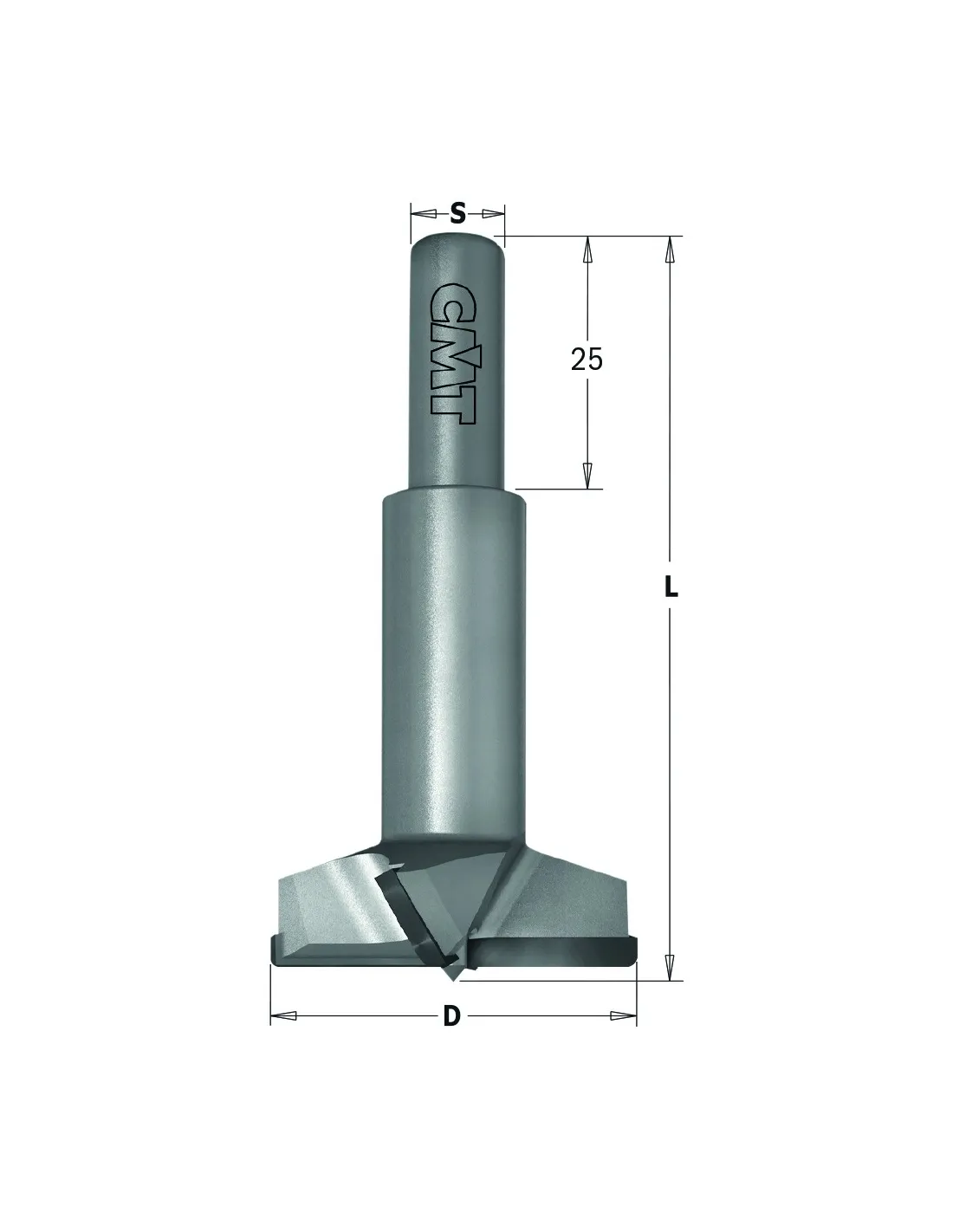

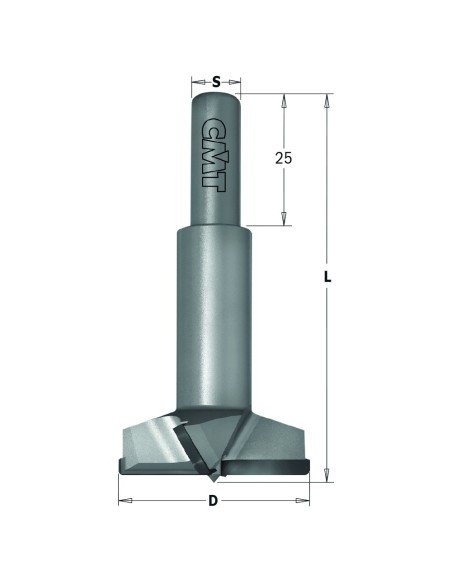

Diameter
Totale length
Shank diameter
Number of cutting edges
Material
Right-hand or left-hand rotation
b
V

Payments and Security

security

payment methods

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via paypal

carrier

Delivery time: 3 working days

DP
15 16 20 25 26 35
70
RH LH
10x25
2
Negatively ground spurs
2

Filters

DP
15 16 20 25 26 35
70
RH LH
10x25
2
Negatively ground spurs
2
Reference D L S Z MAT RHLH b V Quantity Availability Price Add to cart
