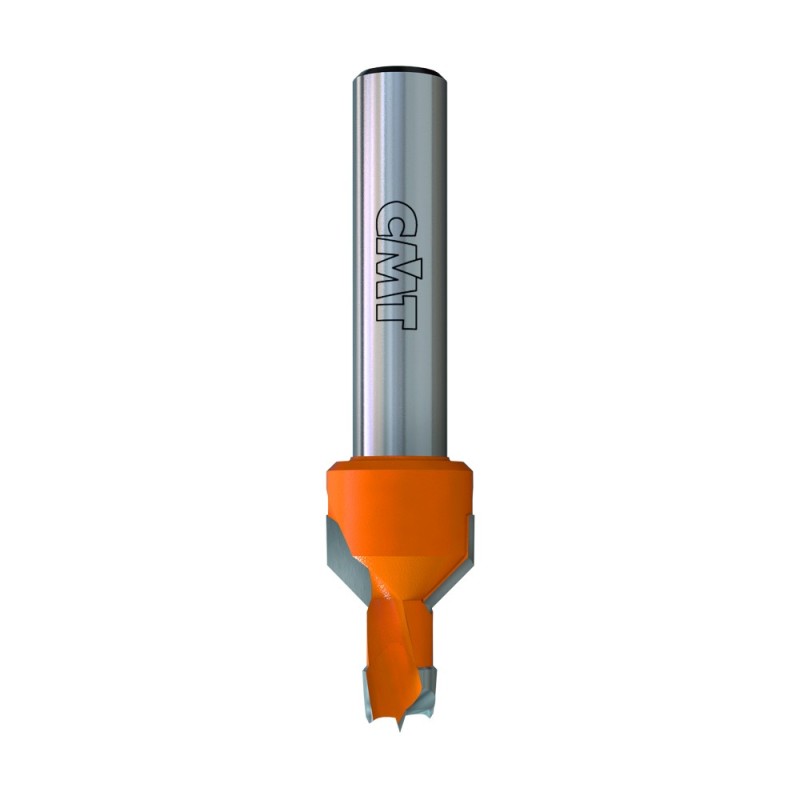

Dowel Drills with Countersink, S10mm - L70mm
Dowel Drills with Countersink, S10mm - L70mm
Dowel Drills with Countersink, S10mm - L70mm
Dowel Drills with Countersink, S10mm - L70mm
Dowel Drills with Countersink, S10mm - L70mm
Dowel Drills with Countersink, S10mm - L70mm
Dowel Drills with Countersink, S10mm - L70mm
Dowel Drills with Countersink, S10mm - L70mm

Dowel Drills with Countersink, S10mm - L70mm

€35.99
Tax included
TECHNICAL DETAILS:
• Super-strength steel.
• Spiral portion coated with orange or black P.T.F.E.
• HW head with precision balanced centre point.
• 2 precision ground cutting edges (Z2).
• 2 ground spurs (V2).
• 2 spiral flutes.
• Parallel shank with driving flat and length adjusting screw.

Used for drilling and countersinking in solid wood, wood composites, plastic and laminated materials.
Suitable for high performance speed on boring machines equipped with adaptors or chucks.

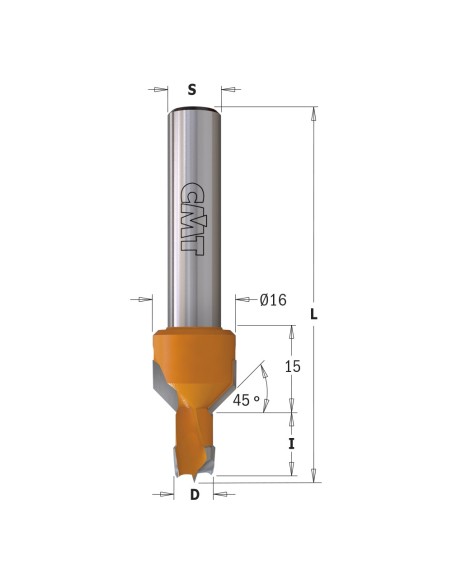

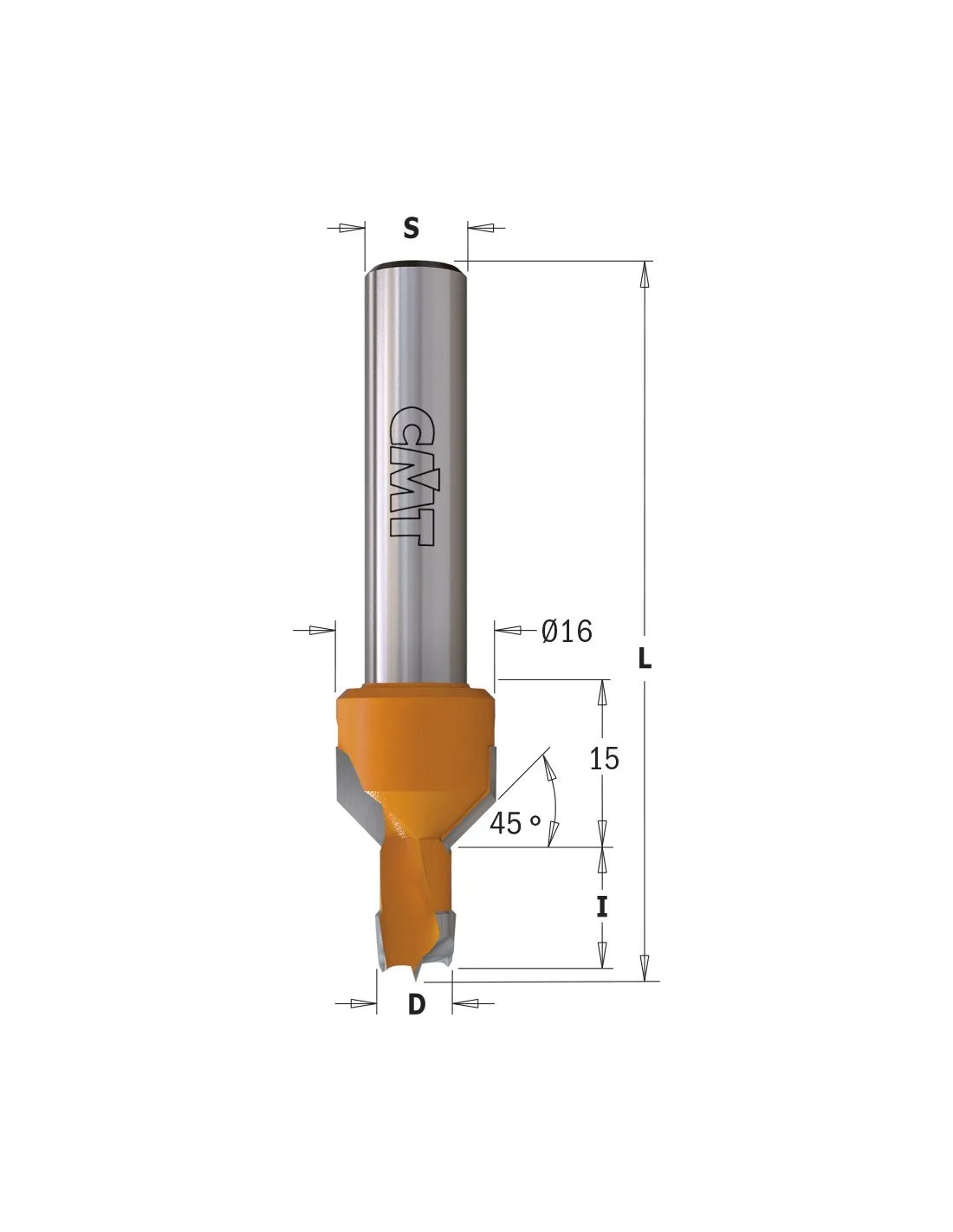

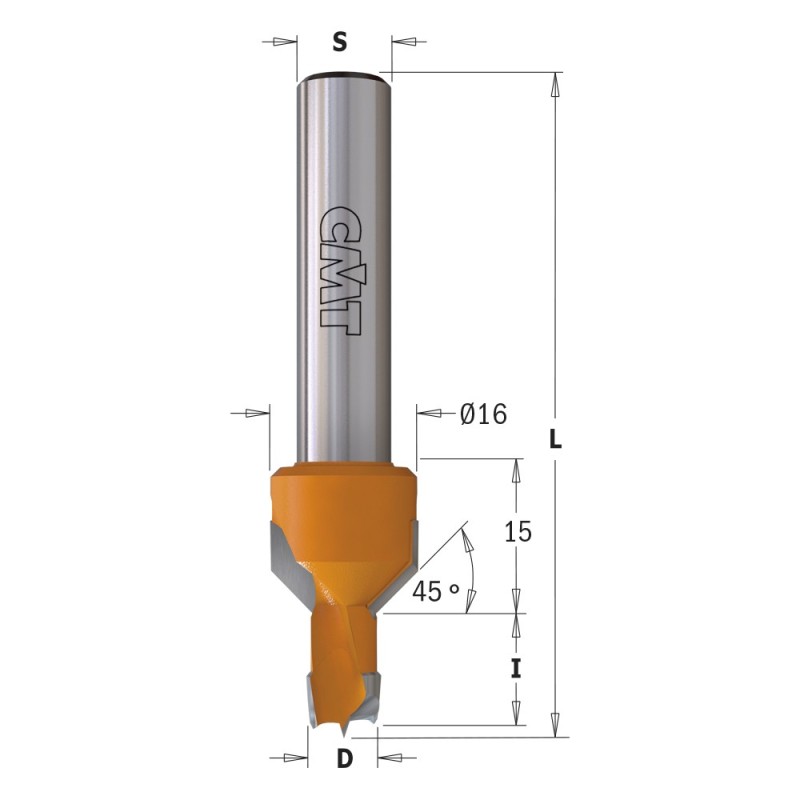

Diameter
Cutting height
Totale length
Shank diameter
Number of cutting edges
Material

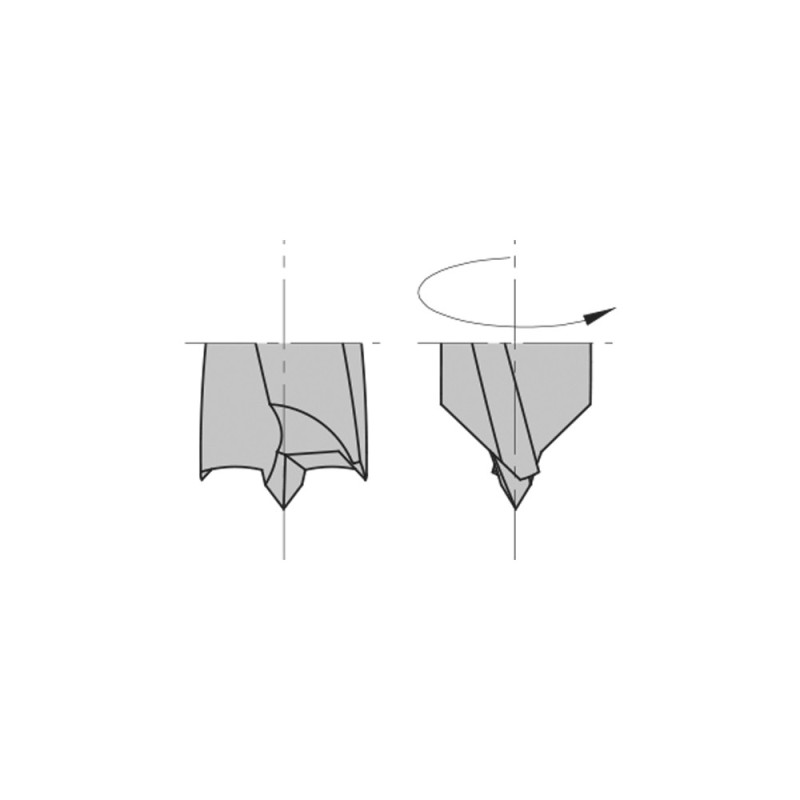

Right-hand or left-hand rotation
b
V

Payments and Security

security

payment methods

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via paypal

carrier

Delivery time: 3 working days

12 20 15 13
HW
8 10
70
RH LH
10x40 10x41 10x38 10x33
2
Negatively ground spurs
2

Filters

12 20 15 13
HW
8 10
70
RH LH
10x40 10x41 10x38 10x33
2
Negatively ground spurs
2
Reference D I L S Z MAT RHLH b V Quantity Availability Price Add to cart
