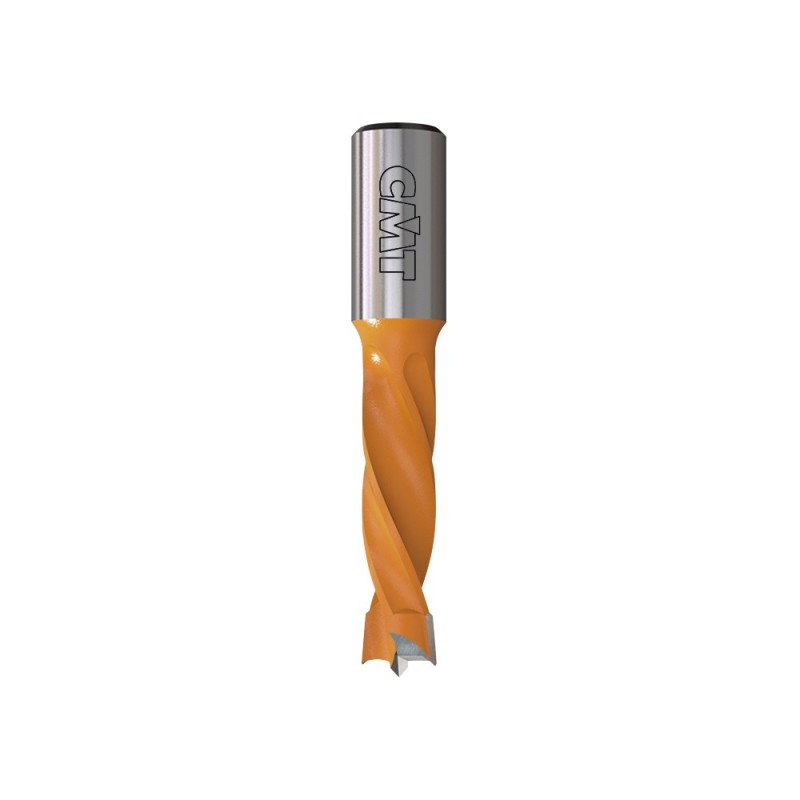

4 Flute Dowel Drills, S10mm - L57.5mm
4 Flute Dowel Drills, S10mm - L57.5mm
4 Flute Dowel Drills, S10mm - L57.5mm
4 Flute Dowel Drills, S10mm - L57.5mm
4 Flute Dowel Drills, S10mm - L57.5mm
4 Flute Dowel Drills, S10mm - L57.5mm
4 Flute Dowel Drills, S10mm - L57.5mm
4 Flute Dowel Drills, S10mm - L57.5mm

4 Flute Dowel Drills, S10mm - L57.5mm

€20.84
Tax included
TECHNICAL DETAILS:
• Super-strength steel.
• Cutter portion coated with black or orange P.T.F.E.

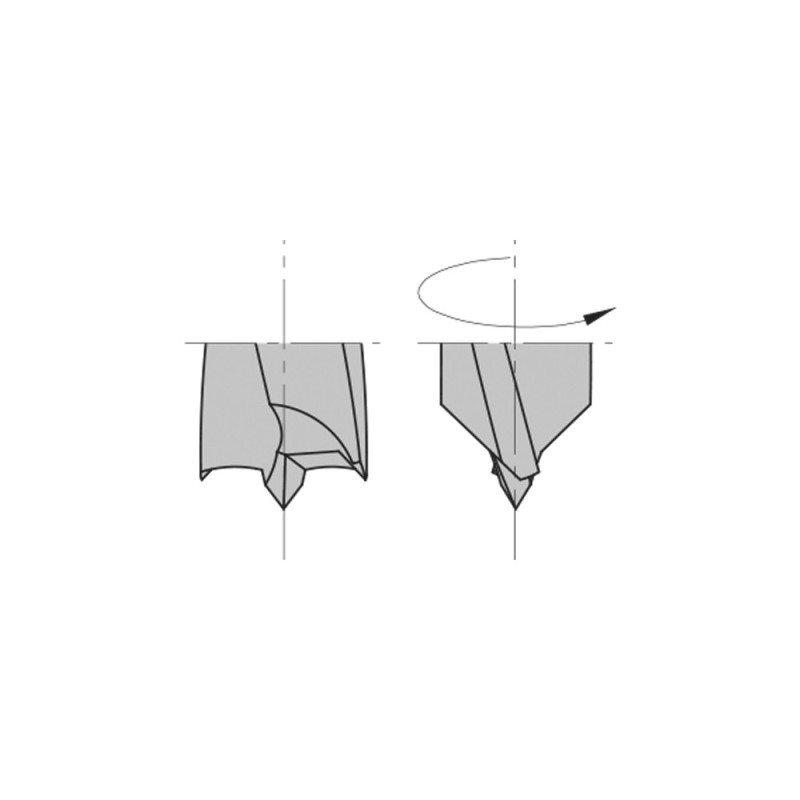

• HW head with precision balanced centre point.
• 2 HW precision ground cutting edges (Z2).
• 2 negatively ground spurs (V2).
• 4 spiral flutes.
• Parallel shank with driving flat and length adjusting screw.

Used on boring machines equipped with adaptors or chucks. Used to drill blind holes in solid wood, wood composites, plastic and laminated materials.

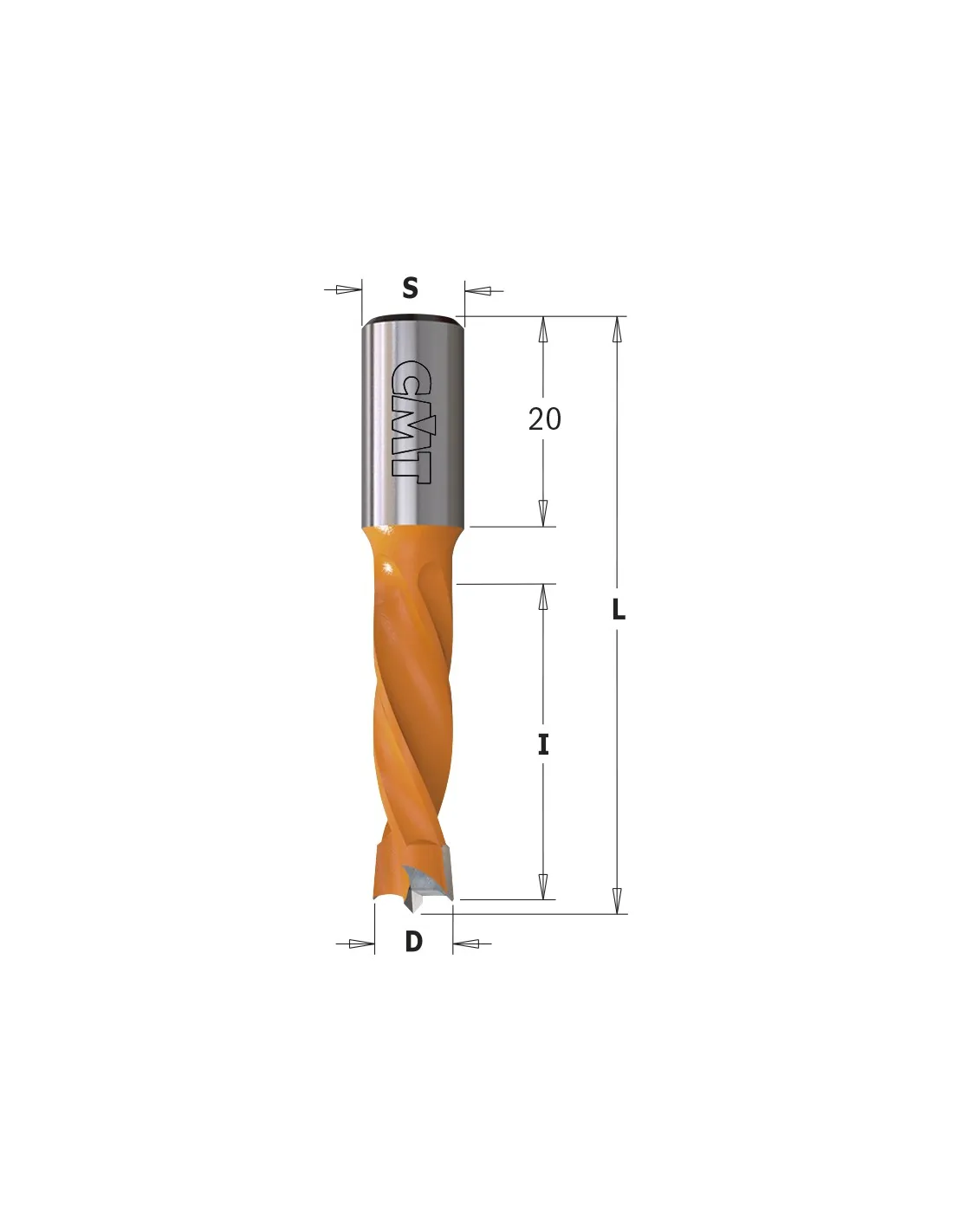

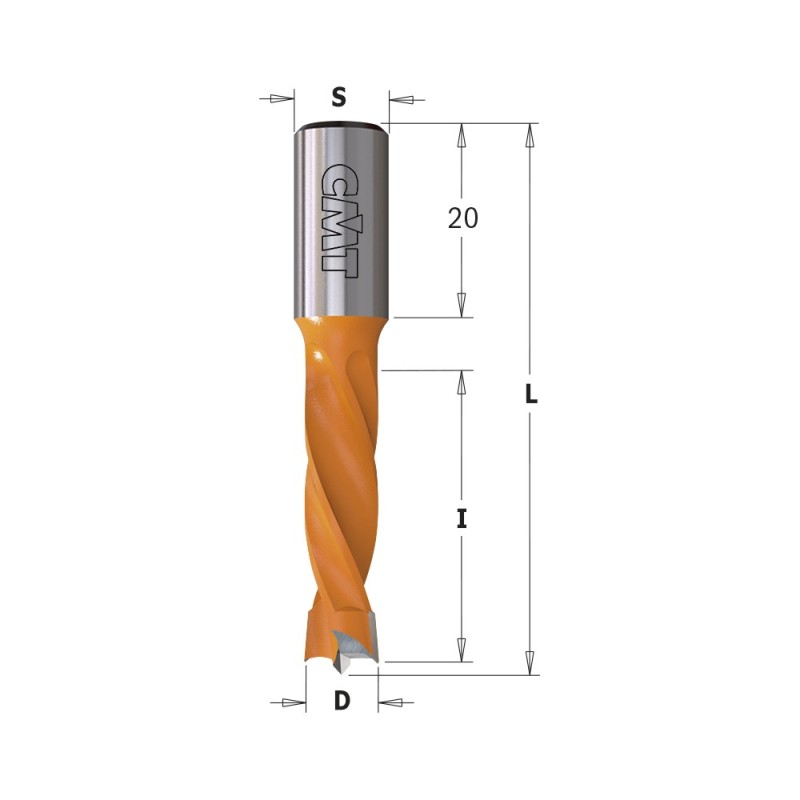

Diameter
Cutting height
Totale length
Shank diameter
Number of cutting edges
Material
Right-hand or left-hand rotation
b
V

Payments and Security

security

payment methods

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via paypal

carrier

Delivery time: 3 working days

26 30
HW
5 6 8 10 12 14 15 16 6.35 9.5 12.7 9 7 11 13 4
57.5
RH LH
10x20
2
Negatively ground spurs
2

Filters

26 30
HW
5 6 8 10 12 14 15 16 6.35 9.5 12.7 9 7 11 13 4
57.5
RH LH
10x20
2
Negatively ground spurs
2
Reference D I L S Z MAT RHLH b V Quantity Availability Price Add to cart
