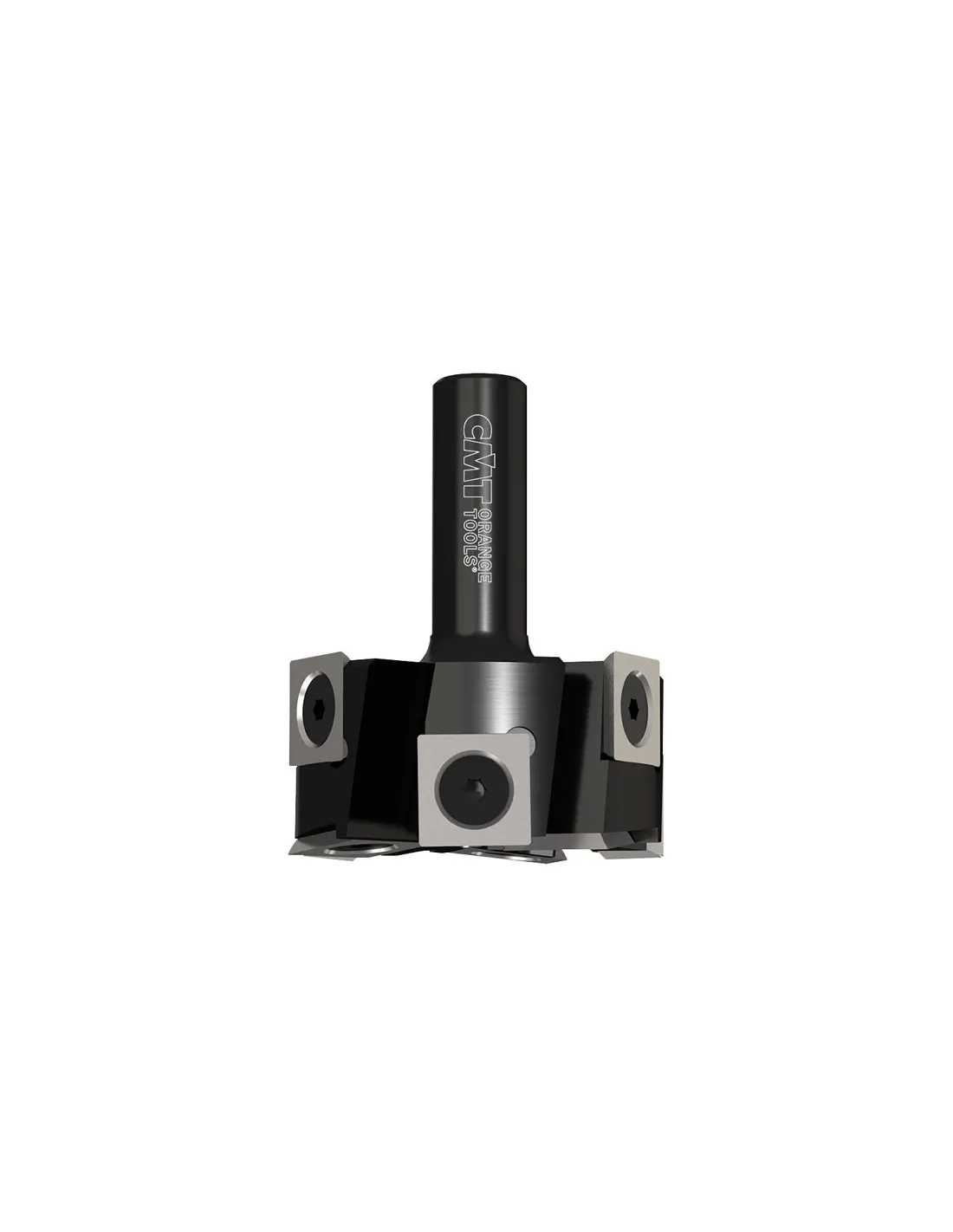

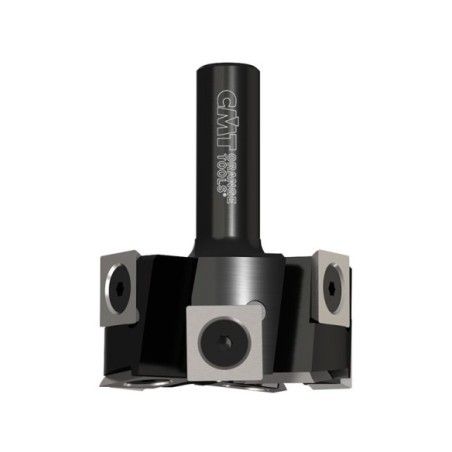

XTREME SPOILBOARD SURFACING ROUTER CUTTER WITH INSERT KNIVES
XTREME SPOILBOARD SURFACING ROUTER CUTTER WITH INSERT KNIVES
XTREME SPOILBOARD SURFACING ROUTER CUTTER WITH INSERT KNIVES
XTREME SPOILBOARD SURFACING ROUTER CUTTER WITH INSERT KNIVES
XTREME SPOILBOARD SURFACING ROUTER CUTTER WITH INSERT KNIVES
XTREME SPOILBOARD SURFACING ROUTER CUTTER WITH INSERT KNIVES
XTREME SPOILBOARD SURFACING ROUTER CUTTER WITH INSERT KNIVES
XTREME SPOILBOARD SURFACING ROUTER CUTTER WITH INSERT KNIVES
XTREME SPOILBOARD SURFACING ROUTER CUTTER WITH INSERT KNIVES
XTREME SPOILBOARD SURFACING ROUTER CUTTER WITH INSERT KNIVES

XTREME SPOILBOARD SURFACING ROUTER CUTTER WITH INSERT KNIVES

€190.26
Tax included
Features:
  • Super strength steel
  • 6 + 3 cutting edges [Z6+V3].

This new router bit designed for CNC router machines and stationary router machine work centers are ideal for rabbeting joints and for quick chip removal on large surface areas and leaves a good finish at the bottom of the cut.
Ideal for soft and hard wood, particle board and MDF. ​​​​​​

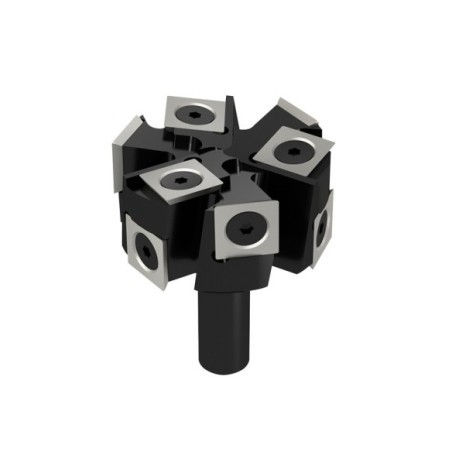

This bit is equipped with 4 sided insert knives in super micrograin carbide – an economical solution for brazed and solid carbide spiral bits.

Safety Tips:

The TW-006 Torque Screwdriver is recommended for the proper fastening of screws.


Note:

for optimum finish, radius inserts 790.140.20 are recommended.
790.140.20: sold in packages of10 pcs. multiple.

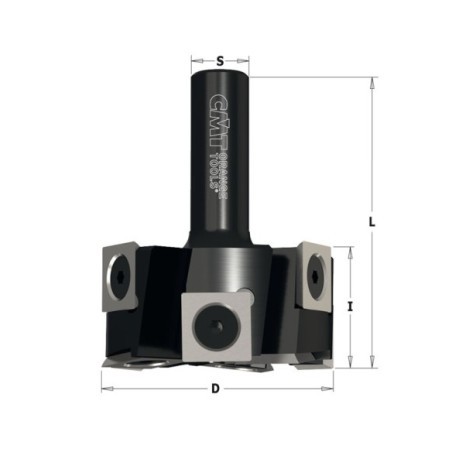

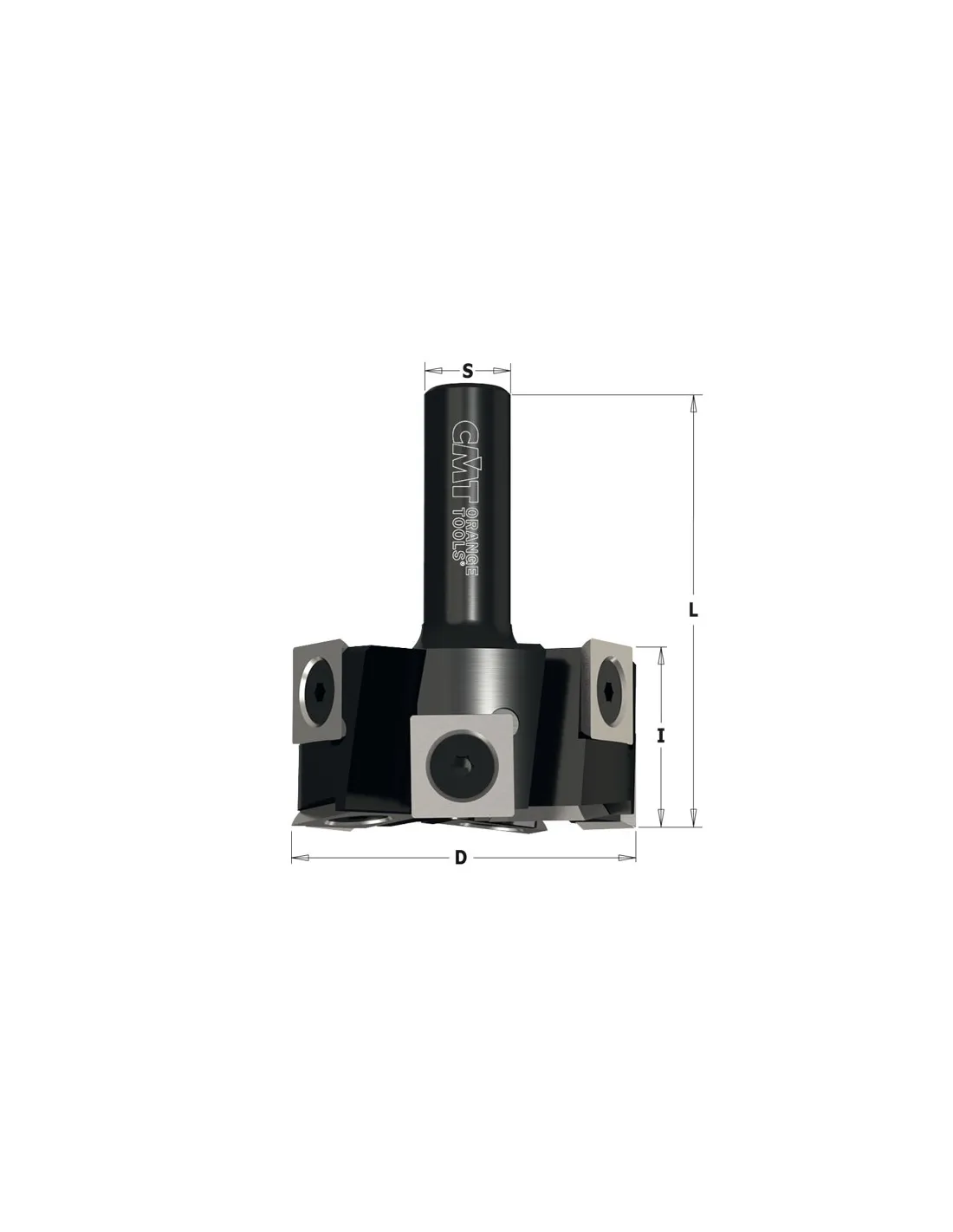

Diameter
Cutting height
Totale length
Shank diameter
Number of cutting edges
Material
Right-hand or left-hand rotation

Payments and Security

security

payment methods

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via paypal

carrier

Delivery time: 3 working days

25.4
HW
50.8
63.5
RH
12.7 12
6 + 3

Filters

25.4
HW
50.8
63.5
RH
12.7 12
6 + 3
Reference D I L S Z MAT RHLH Quantity Availability Price Add to cart
