€101.42
Tax included

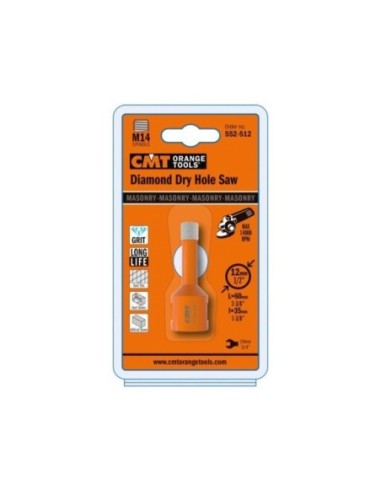

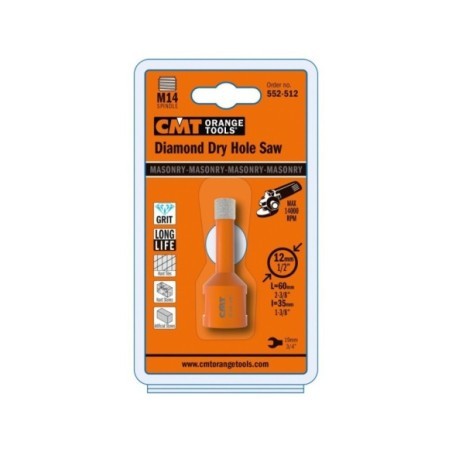

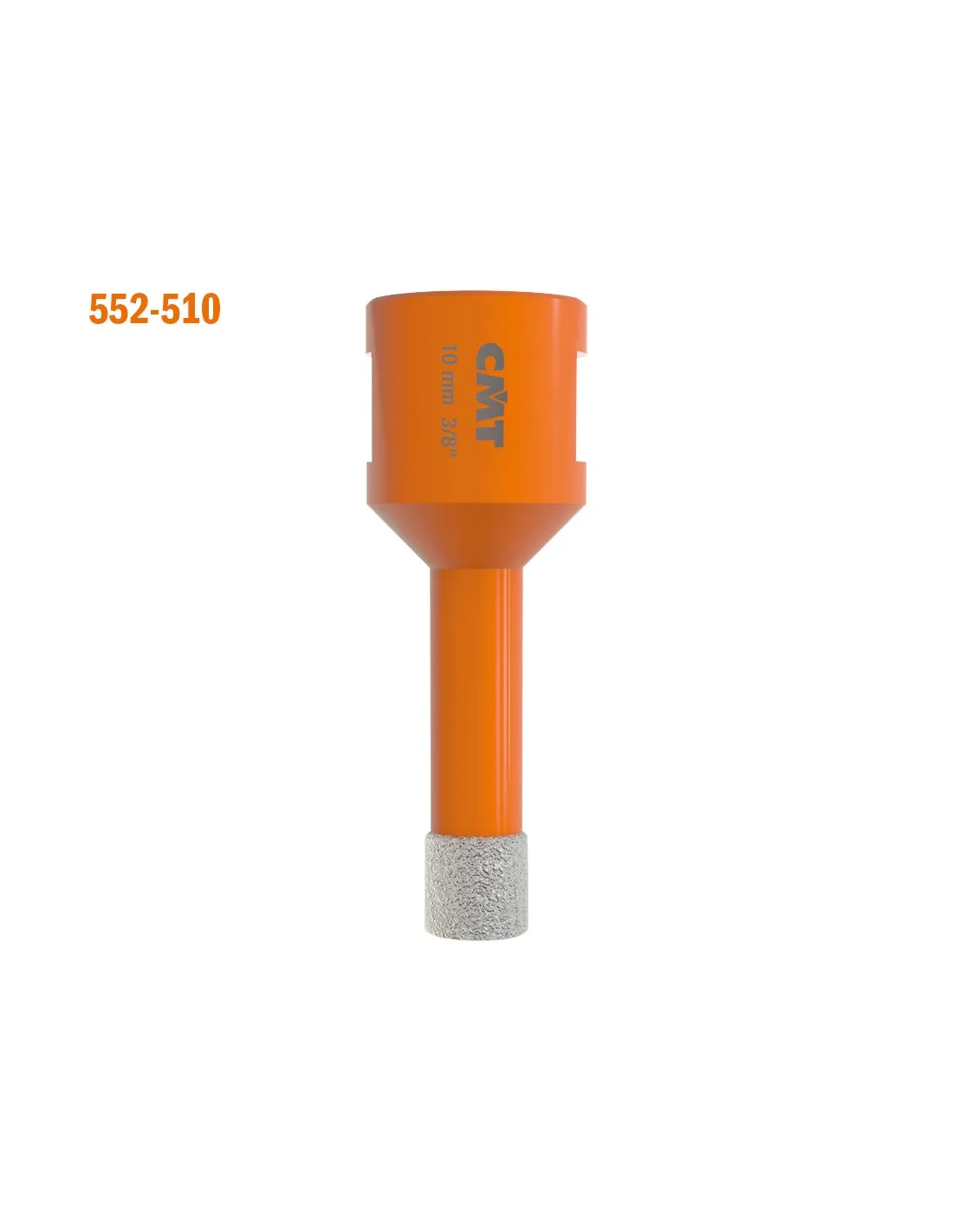

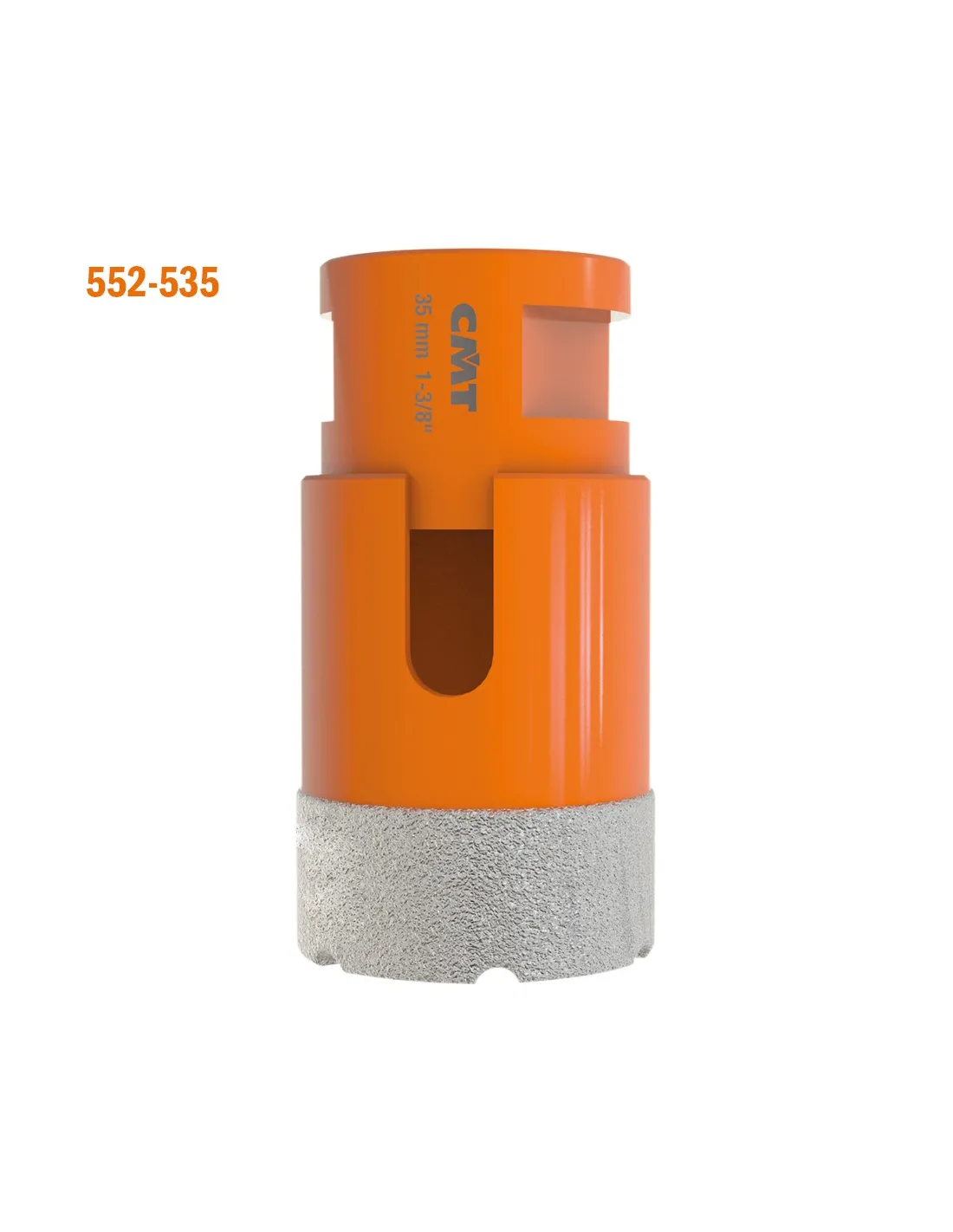

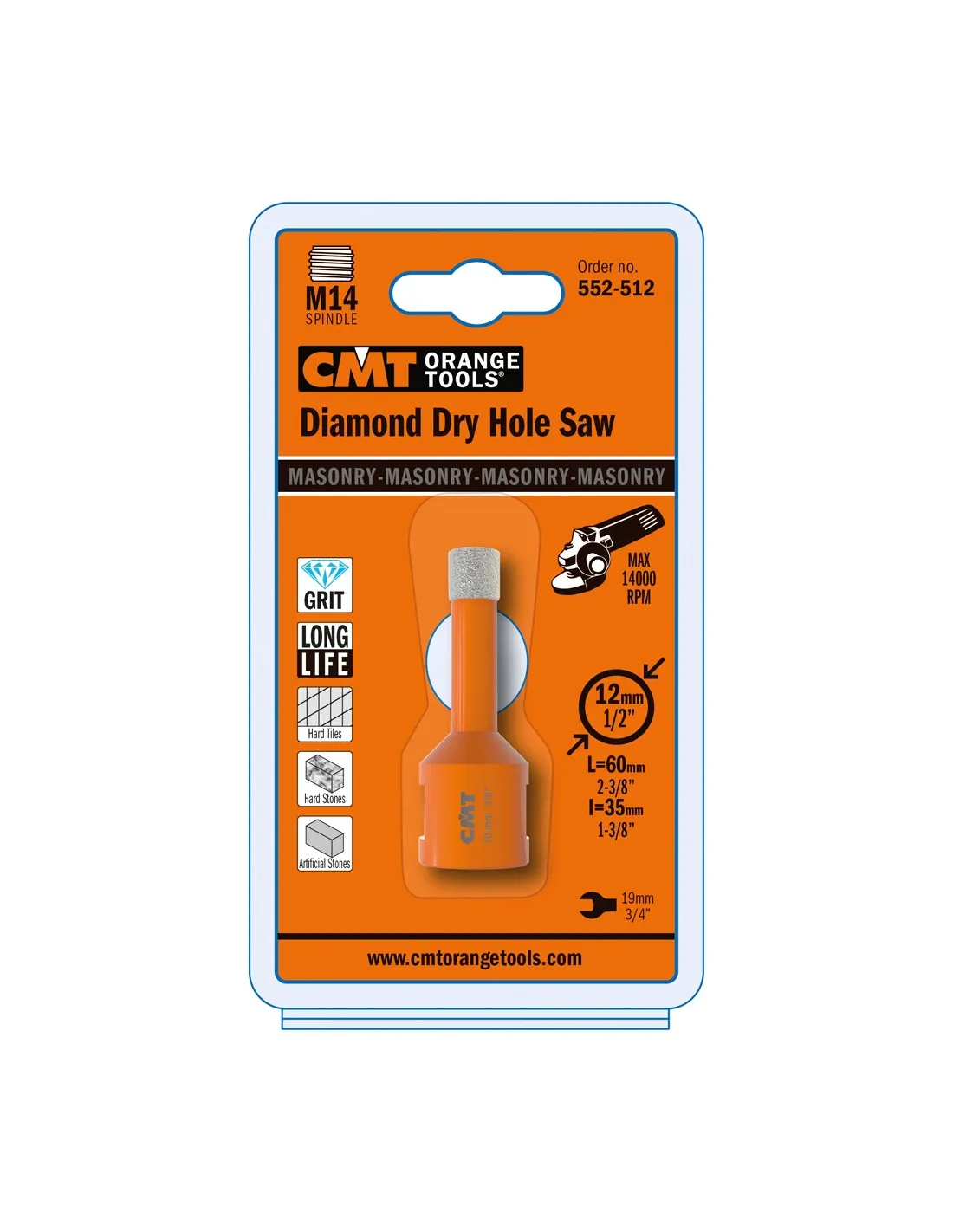

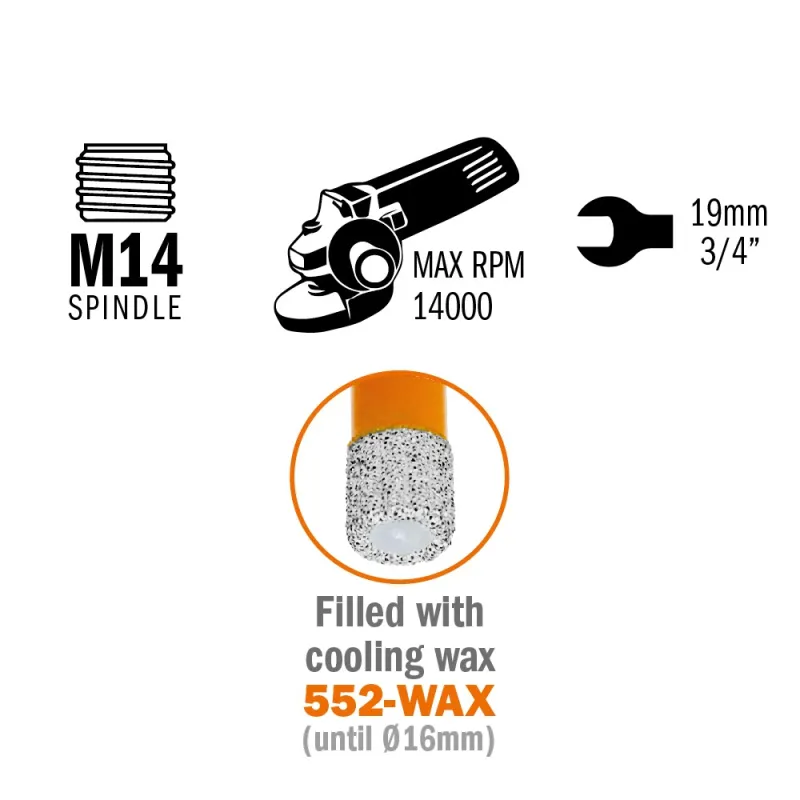

Diamond hole saws 552-5, for grinder RPM 14000 max.

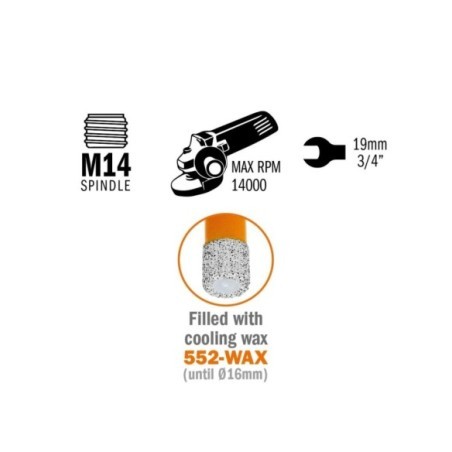

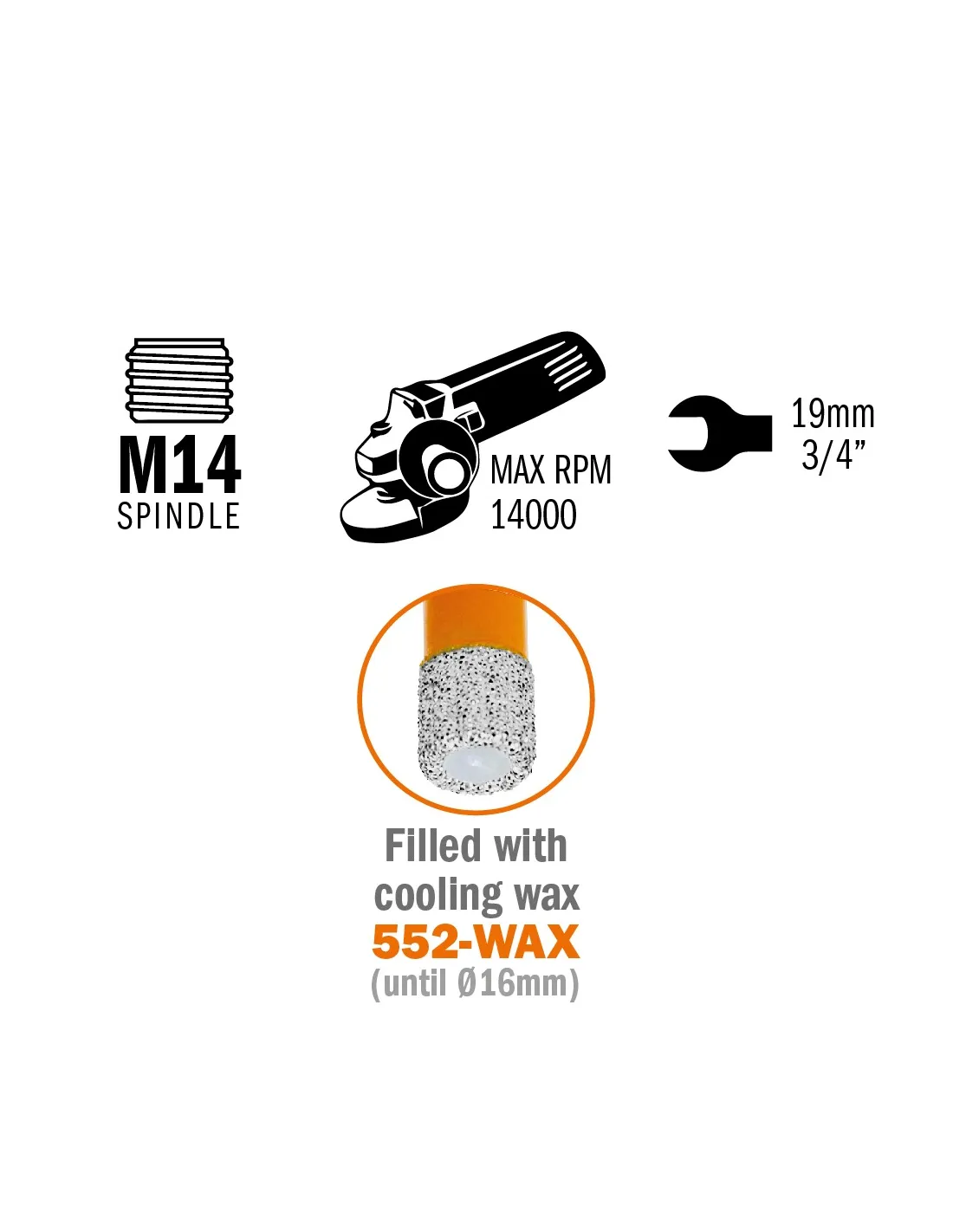

Available with M14 connection.

Ideal for drilling materials such as:
  • Hard tiles (ceramics, stoneware, ...)
  • Hard stones (granite, marble, ...)
  • Artificial stones (OKITE®, SILESTONE®, ...)

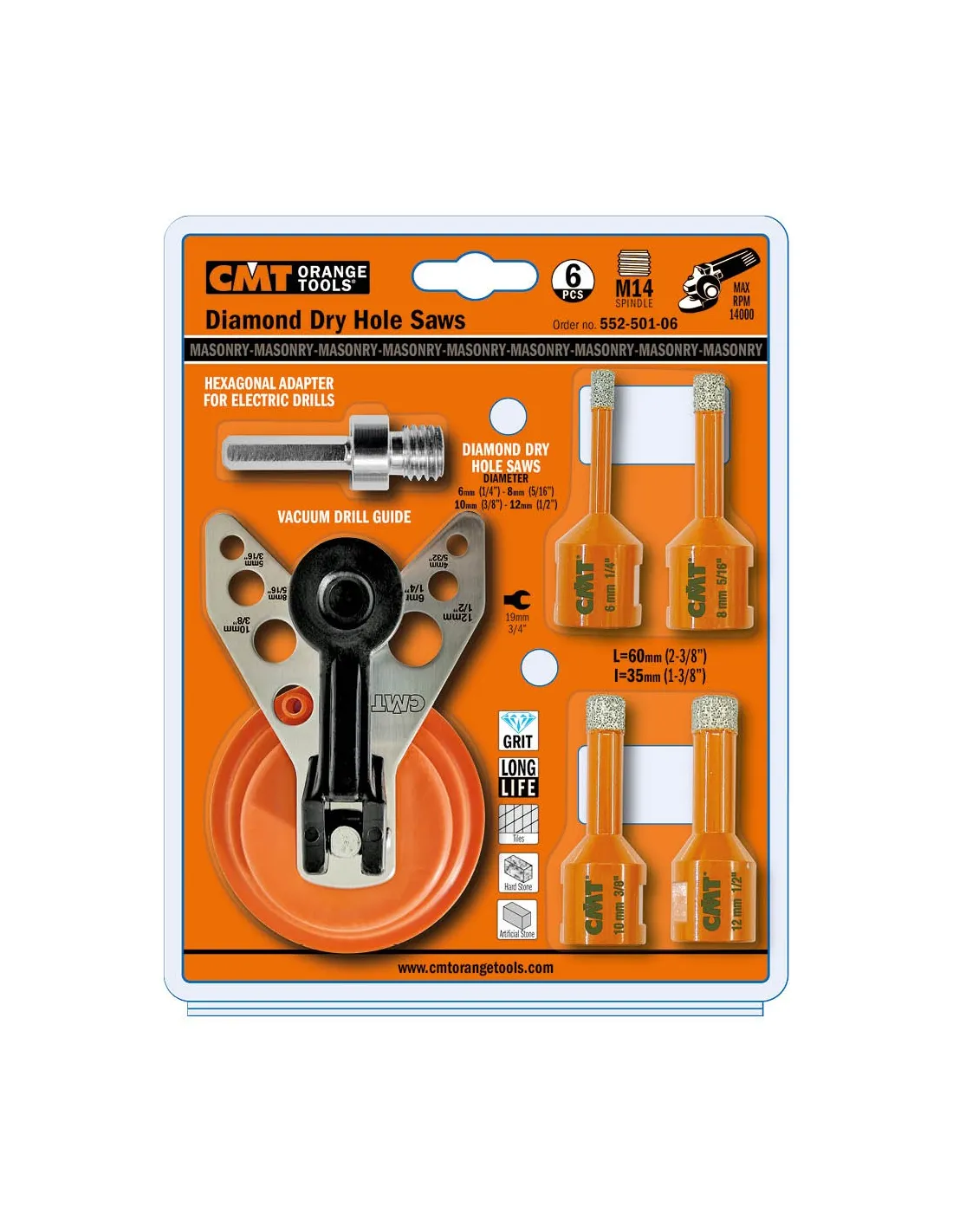

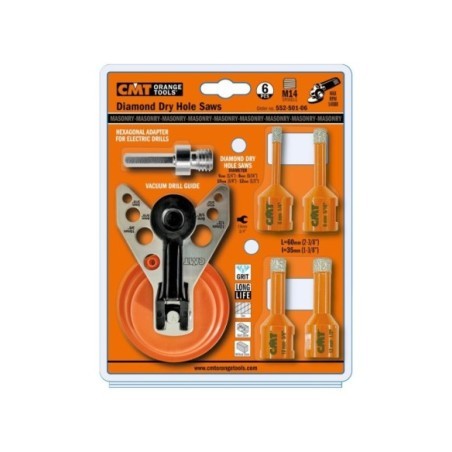

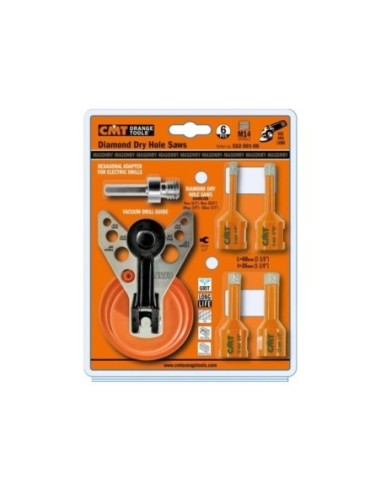

Also available Set 552-501-06 with 6 components:
  • 552-006 Ø6mm (1/4")
  • 552-008 Ø8mm (5/16")
  • 552-010 Ø10mm (3/8")
  • 552-012 Ø12mm (1/2")
  • 552-GUIDE with 7 holes
  • 552-EX14

Suggestions for use:

Turn on the drilling machine to start tool rotation. Begin drilling approximately at a 30° angle – this is the angle measured between the hole saw and the working surface. Cutting at an angle will prevent tool slippage, allow for perfect centering and increase cutting precision. To gain improved stability through the drilling process, it is advised to rest the drilling machine on the working surface.

Continue the cut vertically, accompanying the tool in an orbital motion. This will favor better cooling and chip evacuation.  (If you are using a guide, begin the cut vertically, then lift the guide and continue cutting in an orbital motion).

Remember that the tool you are using is not a drill bit. This means that attempting to bore holes perfectly perpendicular to the work surface on a frequent basis will drastically reduce the life of your hole saw.

Using water as a cooling agent may help extend the life of the hole saw.

The percussion/hammer action mode must be turned off when using these hole saws.

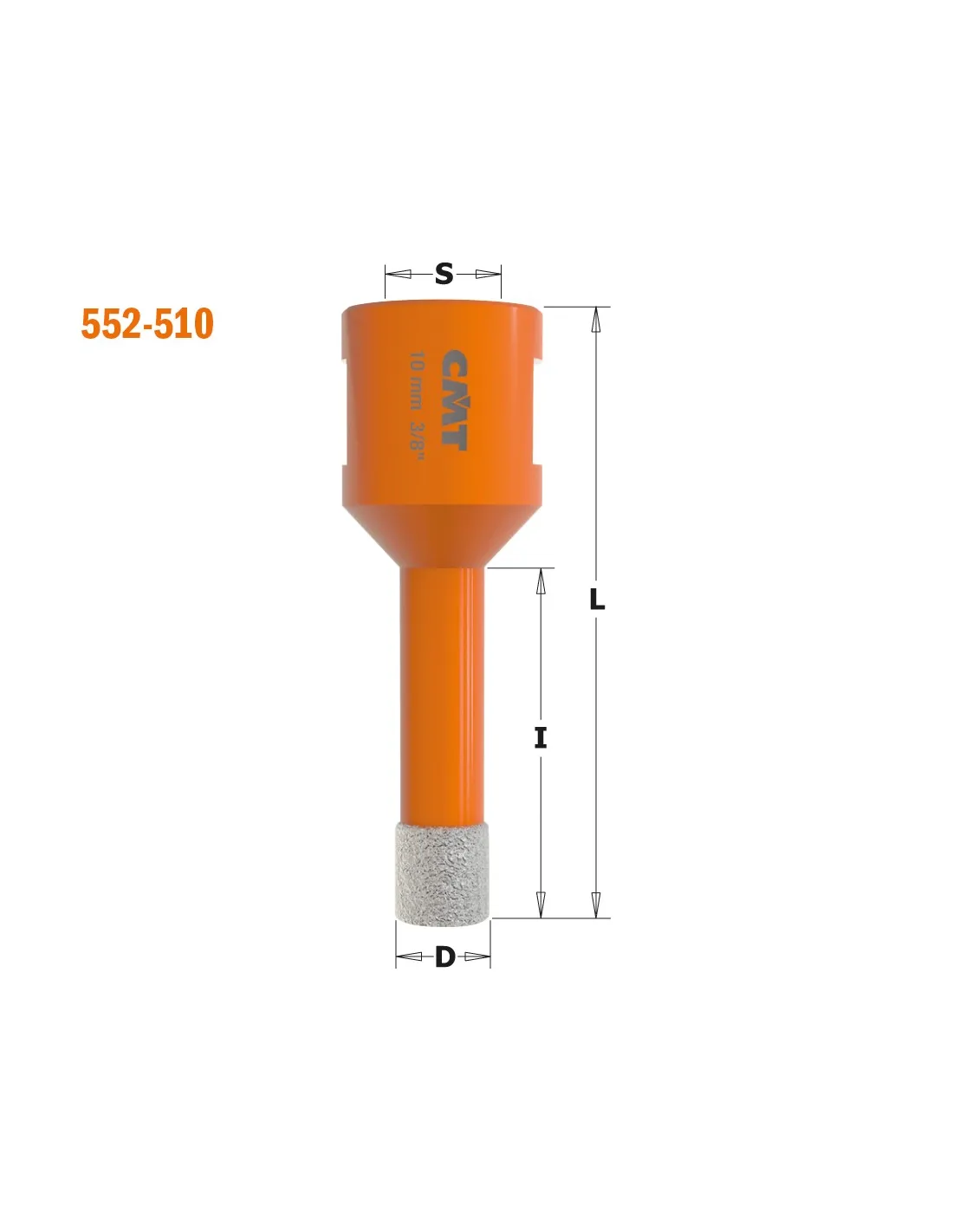

Diameter
Cutting height
Totale length
Shank diameter
Material
QT
RPM
H

Payments and Security

security

payment methods

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via paypal

carrier

Delivery time: 3 working days

40 35
DP
10 5
5 6 8 10 12 14 16 18 20 25 28 30 35 40 51 60 68 43 6 - 8 - 10 - 12 55
60
M14
14000
35
RH

Filters

40 35
DP
10 5
5 6 8 10 12 14 16 18 20 25 28 30 35 40 51 60 68 43 6 - 8 - 10 - 12 55
60
M14
14000
35
RH
Reference D I L S MAT QT RHLH RPM H Quantity Availability Price Add to cart
