90° solid carbide countersink with parallel shank

90° solid carbide countersink with parallel shank

Name: 90° solid carbide countersink with parallel shank
Brand: CMT Orange Tools
SKU: CMT521.002.11
Price: 70.72 EUR
Availability: InStock

€70.72

Tax included

TECHNICAL DETAILS:

Premium quality strength steel body.

- High quality HW tip.

- 3 cutting edges [Z3] at 90°.

- Parallel shank.

APPLICATIONS:

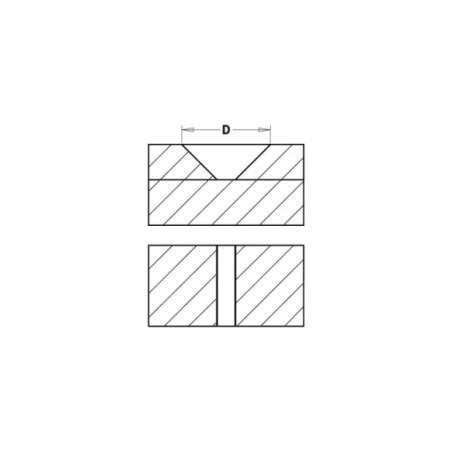

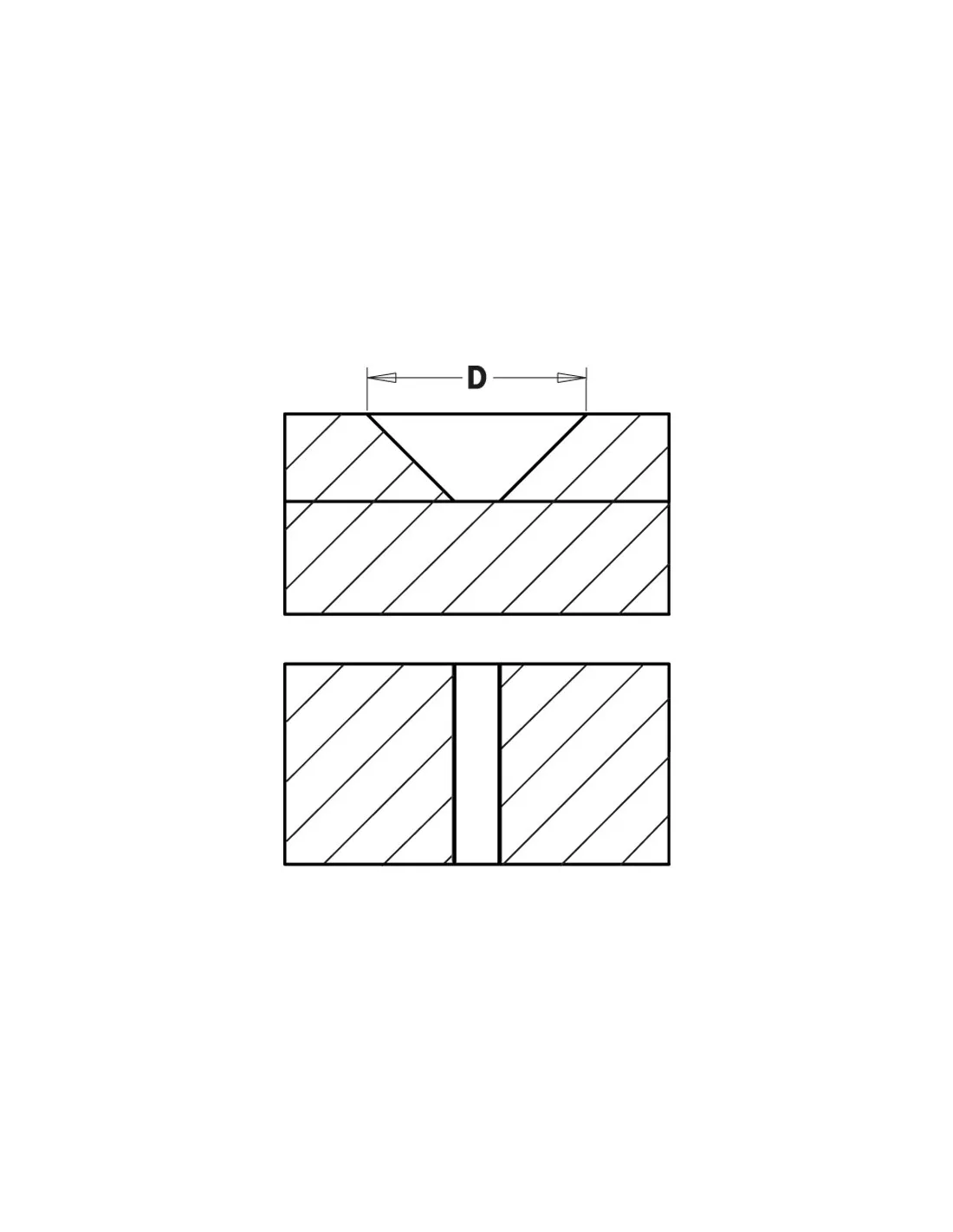

For making 90° countersunk blind holes accepting flat-head fasteners that sit flush with the surface.
3 wear-resistant precision ground cutting edges providing a smooth finish on hardened materials.
Solid carbide tool that is harder than cobalt steel, providing a longer tool life at higher speeds.
Parallel shank to accommodate most drill chucks.
Suitable for wood, wood-based, non-ferrous materials and metal.

For drilling use bits serie 516 or 517.

Diameter

Cutting height

Totale length

Shank diameter

Number of cutting edges

Material

Right-hand or left-hand rotation

Payments and Security

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via

Delivery time: 3 working days

Reference	D	I	L	S	Z	MAT	RHLH	A	Quantity	Availability	Price	Add to cart
521.002.11 Details	19.5	9	70	10x48	3	HWM	RH	90°	157		€70.72
