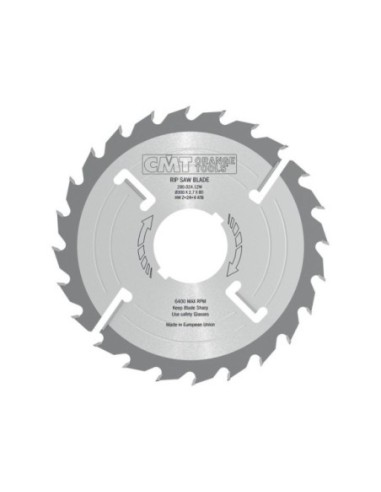

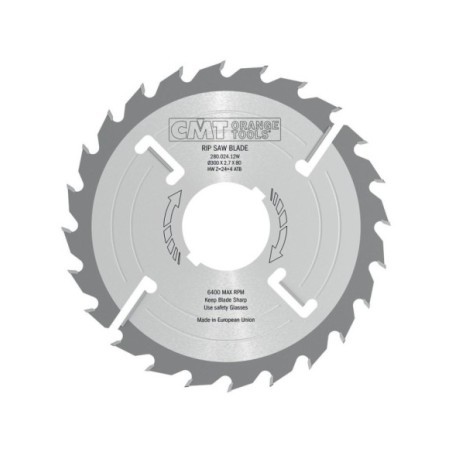

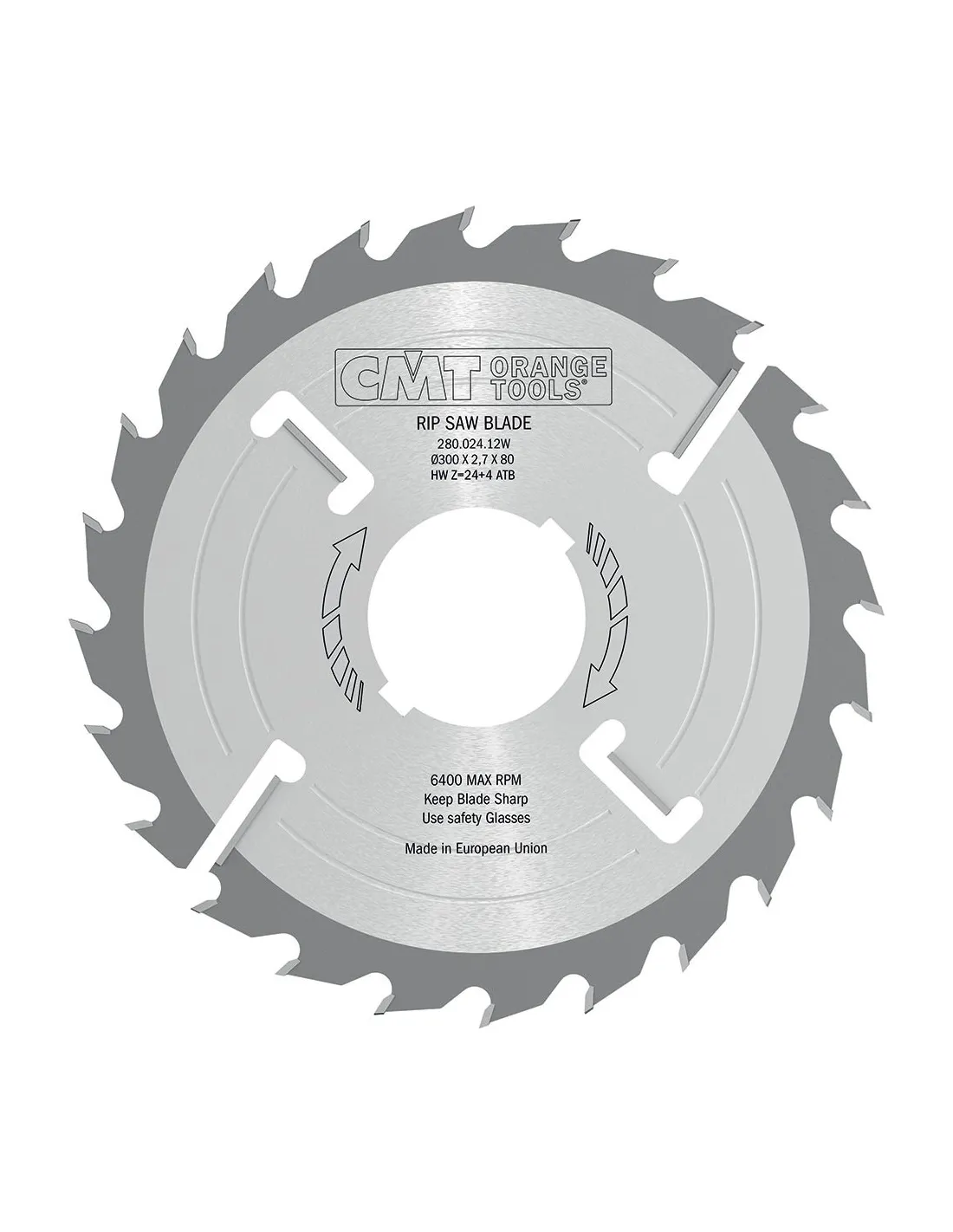

Multi-Rip with Rakers - Thin Kerf
Multi-Rip with Rakers - Thin Kerf
Multi-Rip with Rakers - Thin Kerf
Multi-Rip with Rakers - Thin Kerf
Multi-Rip with Rakers - Thin Kerf
Multi-Rip with Rakers - Thin Kerf
Multi-Rip with Rakers - Thin Kerf
Multi-Rip with Rakers - Thin Kerf

Multi-Rip with Rakers - Thin Kerf

€103.69
Tax included
LASER-CUT HIGH QUALITY STEEL PLATE BODY
Made with 44 HRC high quality steel and laser-cut to ensure longer life and precision cutting.

LASER-CUT SOUND DAMPENING SLOTS
Slots reduce vibrations and noise by 10% compared to blades without it.
This feature improves cut quality and extends blade life.
In full compliance with National Noise Emission Standards and Regulations.

TENSIONING RING (∅250mm and above)
A visible tensioning ring on blade body provides stability
during the cut and perfect concentricity during rotation.
For improved performance, tensioning is fine-tuned according to machine/application.

SILVER BRAZING
Silver Alloy Brazing prevents carbide from breaking during the cooling process
and allows teeth to withstand high stress and impact especially
when cutting harder woods and composite materials.

INDUSTRIAL SINTERHIP HI-DENSITY CARBIDE
The SINTERHIP sintering process (Hot Isostatic Pressing) uses high temperature (up to 3500°F)
and high pressure (up to 1500 psi) to fully consolidate carbide thereby resulting
in a porosity-free product ensuring longer cutting life over traditional carbide and less risk of breakages.
PRECISION SHARPENING
Each tooth is precision ground on a multi-axis CNC machine creating perfect edge angles
that provide extra-clean cutting performance and extended life.
Featuring less than 0.35 μm Rmax in edge roughness.
ORANGE SHIELD® NON-STICK PTFE COATING
- Protects against corrosion and rust.
- Reduces resin and residue build-up.
- Reduces overheating and blade drag.
- Improves performance and cutting life.



TECHNICAL DETAILS:
The rakers prevent contact between the steel plate body and the material in use.
Thin Kerf minimises materials wastes.

0
Diameter
Number of cutting edges
Maximum stock thickne
Material
Kerf thickness
Cutting depth
Bore diameter
a
b
H
KW

Payments and Security

security

payment methods

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via paypal

carrier

Delivery time: 3 working days

Attachments

50 30 35 60
HW
300 250 200 180
24+4 20+4 21+3
2.5 2.7
1.8
80 70 40
18°
10° ATB FLAT
50 30 35 60
21x5 13x5

Filters

50 30 35 60
HW
300 250 200 180
24+4 20+4 21+3
2.5 2.7
1.8
80 70 40
18°
10° ATB FLAT
50 30 35 60
21x5 13x5
Reference D Z T MAT K P F a b H KW Quantity Availability Price Add to cart
