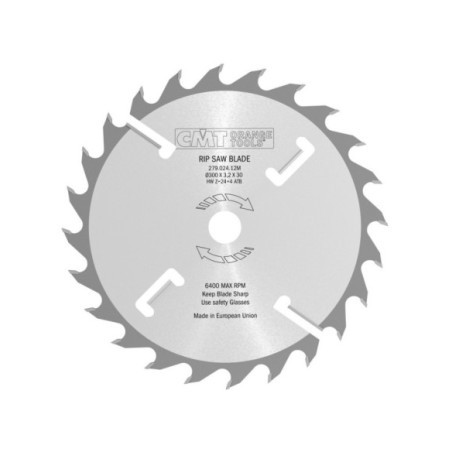

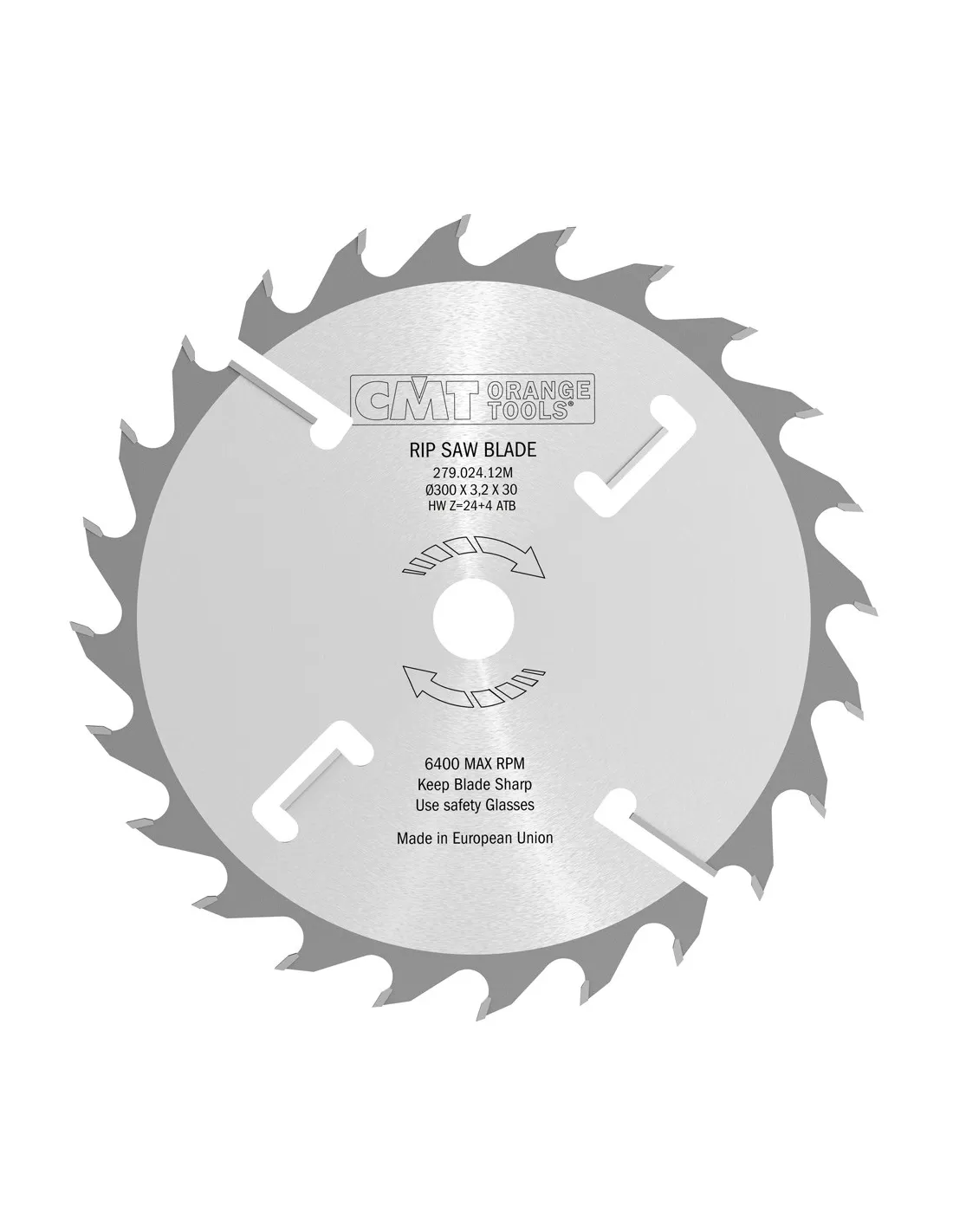

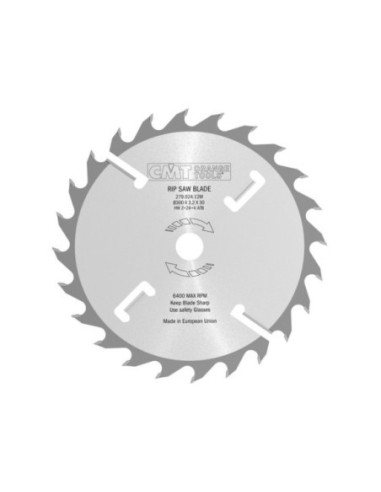

Multi-Rip with Rakers

€107.25

Tax included

	LASER-CUT HIGH QUALITY STEEL PLATE BODY Made with 44 HRC high quality steel and laser-cut to ensure longer life and precision cutting.
	LASER-CUT SOUND DAMPENING SLOTS Slots reduce vibrations and noise by 10% compared to blades without it. This feature improves cut quality and extends blade life. In full compliance with National Noise Emission Standards and Regulations.
	TENSIONING RING (∅250mm and above) A visible tensioning ring on blade body provides stability during the cut and perfect concentricity during rotation. For improved performance, tensioning is fine-tuned according to machine/application.
	SILVER BRAZING Silver Alloy Brazing prevents carbide from breaking during the cooling process and allows teeth to withstand high stress and impact especially when cutting harder woods and composite materials.
	INDUSTRIAL SINTERHIP HI-DENSITY CARBIDE The SINTERHIP sintering process (Hot Isostatic Pressing) uses high temperature (up to 3500°F) and high pressure (up to 1500 psi) to fully consolidate carbide thereby resulting in a porosity-free product ensuring longer cutting life over traditional carbide and less risk of breakages.
	PRECISION SHARPENING Each tooth is precision ground on a multi-axis CNC machine creating perfect edge angles that provide extra-clean cutting performance and extended life. Featuring less than 0.35 μm Rmax in edge roughness.
	ORANGE SHIELD® NON-STICK PTFE COATING - Protects against corrosion and rust. - Reduces resin and residue build-up. - Reduces overheating and blade drag. - Improves performance and cutting life.

TECHNICAL DETAILS:

The rakers prevent contact between the steel plate body and the material in use.

Diameter

Number of cutting edges

Maximum stock thickne

Material

Kerf thickness

Cutting depth

Bore diameter

Pin hole

Payments and Security

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via

Delivery time: 3 working days

Reference	D	Z	T	MAT	K	P	F	FT	a	b	H	KW	Quantity	Price
279.020.10M Details	250	20+4	65	HW	3.2	2.2	30	COMBI3	18°	10° ATB	65	-	34	€107.25
279.020.10V Details	250	20+4	65	HW	3.2	2.2	70	-	18°	10° ATB	65	21x5	107	€107.25
279.020.10W Details	250	20+4	65	HW	3.2	2.2	80	-	18°	10° ATB	65	13x5	102	€107.25
279.024.12M Details	300	24+4	80	HW	3.2	2.2	30	COMBI3	18°	10° ATB	80	-	381	€117.99
279.024.12U Details	300	24+4	80	HW	3.2	2.2	60	-	18°	10° ATB	80	21x5	76	€117.99
279.024.12V Details	300	24+4	80	HW	3.2	2.2	70	-	18°	10° ATB	80	21x5	494	€117.99
279.024.12W Details	300	24+4	80	HW	3.2	2.2	80	-	18°	10° ATB	80	13x5	118	€117.99
279.028.14M Details	350	28+4	105	HW	3.5	2.5	30	COMBI3	18°	10° ATB	105	-	269	€153.73
279.028.14U Details	350	28+4	105	HW	3.5	2.5	60	-	18°	10° ATB	105	21x5	39	€153.73
279.028.14V Details	350	28+4	105	HW	3.5	2.5	70	-	18°	10° ATB	105	21x5	304	€153.73
279.028.14W Details	350	28+4	105	HW	3.5	2.5	80	-	18°	10° ATB	105	14x5	78	€153.73
279.028.16M Details	400	28+6	120	HW	4.0	2.8	30	COMBI3	18°	10° ATB	120	-	39	€221.65
279.028.16V Details	400	28+6	120	HW	4.0	2.8	70	-	18°	10° ATB	120	21X5	10	€221.65
