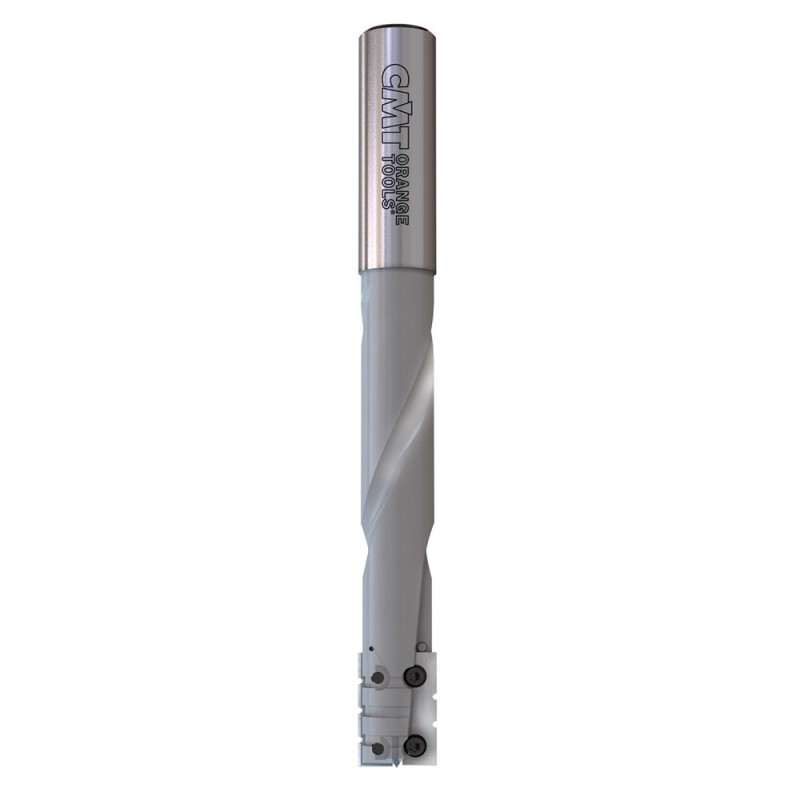

Spiral bit with insert knives and chipbreaker for locksets
Spiral bit with insert knives and chipbreaker for locksets
Spiral bit with insert knives and chipbreaker for locksets
Spiral bit with insert knives and chipbreaker for locksets
Spiral bit with insert knives and chipbreaker for locksets
Spiral bit with insert knives and chipbreaker for locksets
Spiral bit with insert knives and chipbreaker for locksets
Spiral bit with insert knives and chipbreaker for locksets

Spiral bit with insert knives and chipbreaker for locksets

€777.08
Tax included
Technical details:
  • Densimet® high density tungsten alloy for low-vibration
  • 2 cutting edges [Z2R].
I = The 95mm length is achieved in 4-5 passes.

Used for efficient contour cutting, end-trimming and panel sizing on solid wood, wood composites, plastic
materials and laminates at high feed speed. Ensure to properly clamp workpieces. Can be used on machin-
ing centres, point-to-point boring machines, CNC routers and hand-held routers equipped with chucks
or adaptors. Cost-effective solution with respect to brazed and spiral in tungsten carbide.

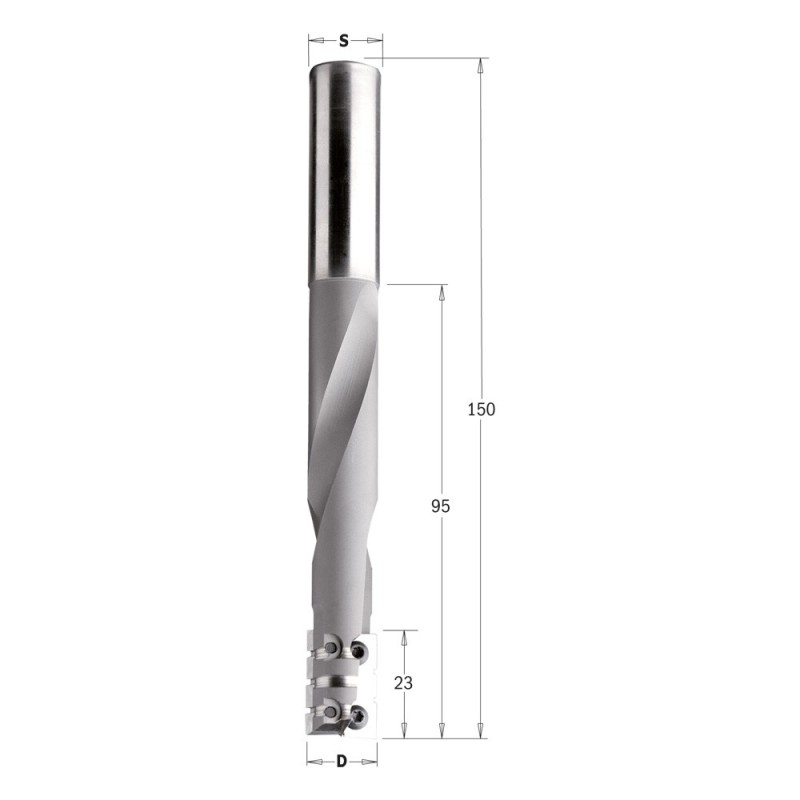

Diameter
Cutting height
Totale length
Shank diameter
Number of cutting edges
Material
Right-hand or left-hand rotation
I1

Payments and Security

security

payment methods

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via paypal

carrier

Delivery time: 3 working days

95
HW
16
150
RH
16
2R
23

Filters

95
HW
16
150
RH
16
2R
23
Reference D I L S Z MAT RHLH I1 Quantity Availability Price Add to cart
