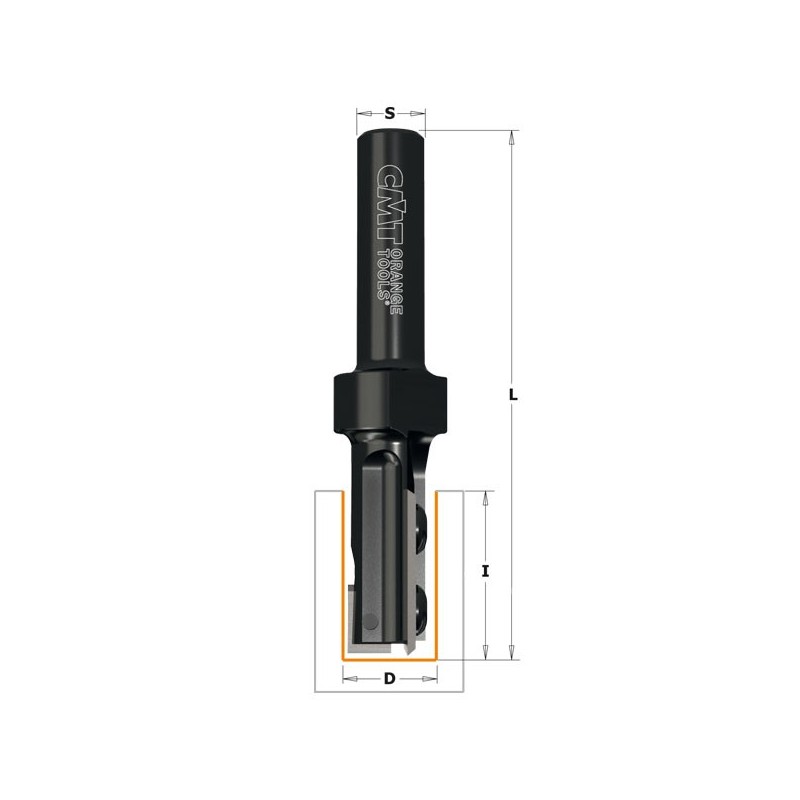

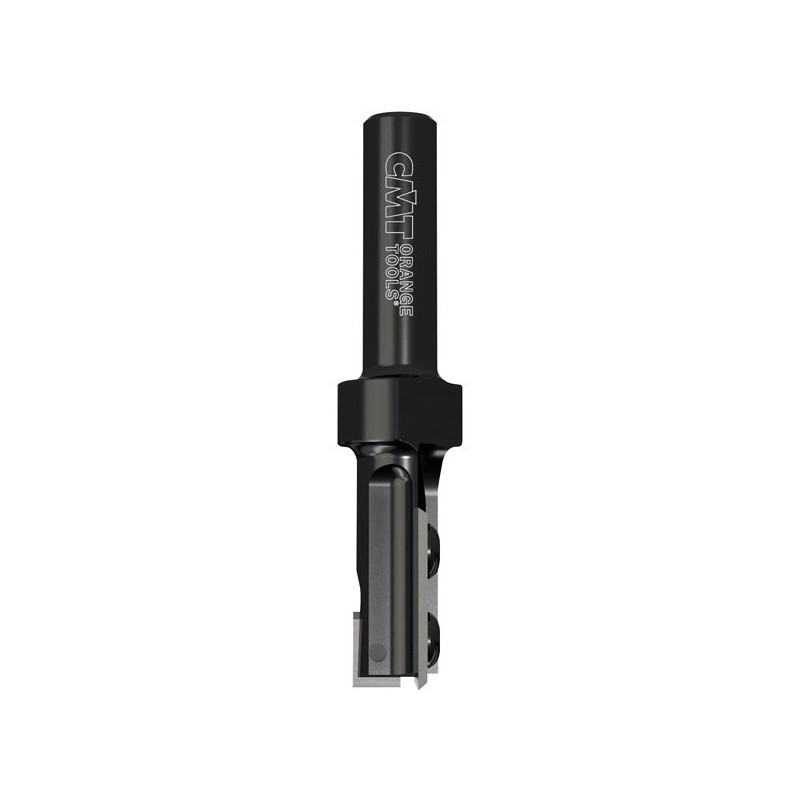

Straight router bits with insert knives

Name: Straight router bits with insert knives
Brand: CMT Orange Tools
SKU: CMT653
Price: 85.11 EUR
Availability: InStock

€85.11

Tax included

Straight router bits with on replaceable plunging knife and side knife fixed by a special Torx® screw. The tool bodies are precisely balanced.

For finishing, routing, plunging and grooving on board materials (laminated chipboards and MDF) and hardwood.

For use on portable routers or CNC machining centres.

Safety Tips:

The TW-006 Torque Screwdriver is recommended for the proper fastening of screws.

Diameter

Cutting height

Totale length

Shank diameter

Number of cutting edges

Material

Right-hand or left-hand rotation

Payments and Security

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via

Delivery time: 3 working days

Reference	D	I	L	S	Z	MAT	RHLH	Quantity	Price
653.160.11 Details	16	28.3	82	8	1 + 1	HW	RH	101	€85.11
653.161.11 Details	16	28.3	92	12	1 + 1	HW	RH	47	€85.11
653.162.11 Details	16	48.3	111	12	1 + 1	HW	RH	46	€106.32
653.661.11 Details	16	28.3	91	20	1 + 1	HW	RH	49	€76.95
653.662.11 Details	16	48.3	111	20	1 + 1	HW	RH	65	€92.49
653.681.11 Details	18	48.3	111	20	1 + 1	HW	RH	112	€93.73
653.701.11 Details	20	48.3	111	20	1 + 1	HW	RH	4	€97.54
