Dowel Drills - LONG LIFE SHARPENING, S10mm - L70mm
Dowel Drills - LONG LIFE SHARPENING, S10mm - L70mm
Dowel Drills - LONG LIFE SHARPENING, S10mm - L70mm
Dowel Drills - LONG LIFE SHARPENING, S10mm - L70mm
Dowel Drills - LONG LIFE SHARPENING, S10mm - L70mm
Dowel Drills - LONG LIFE SHARPENING, S10mm - L70mm
Dowel Drills - LONG LIFE SHARPENING, S10mm - L70mm
Dowel Drills - LONG LIFE SHARPENING, S10mm - L70mm

Dowel Drills - LONG LIFE SHARPENING, S10mm - L70mm

€19.67
Tax included

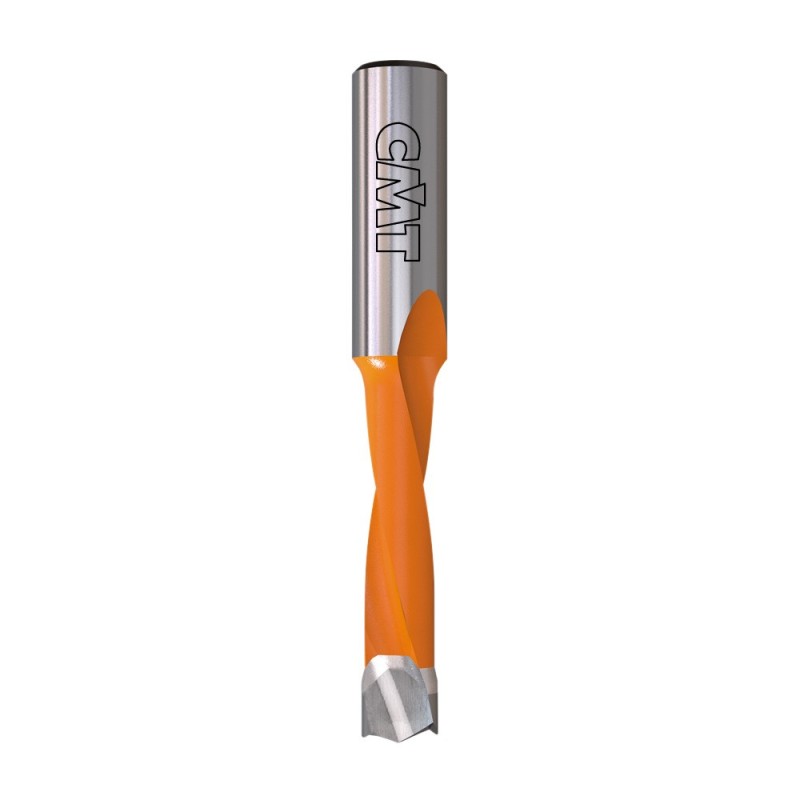

The 311.41/42 series of solid carbide boring bits is made of premium quality super micrograin carbide from Luxemburg.

MAIN FEATURES:
  • The unique tip has curved, negatively ground spurs to produce exceptionally clear bores with no rough-edges. Centre point balanced.
  • The cylindrical head is bigger than traditional tips and is extremely resistant to prolonged use.
  • The plunge edge runs all the way to the centre of the bit to reduce drilling resistance and increase production speed. It lasts longer between sharpenings.
  • The solid carbide construction guarantees an almost infinite number of resharpenings, and since it is a solid unit of carbide, it offers extra safety features.
  • Ideal for hardwood and difficult composites such as particle boards, MDF and veneered wood.
  • Excellent performance on high-speed boring units and CNC routers.

TECHNICAL FEATURES:
  • Premium quality super-strength steel.
  • Spiral portion coated with orange or black P.T.F.E.
  • Extra-fine micrograin carbide spiral portion with centre point.
  • 2 cutting edges (Z2).
  • 2 spiral flutes.
  • 2 curved, negatively ground spurs (V2).
  • Parallel shank with driving flat and adjustable screw length.

Used on boring machines separately or with chucks for drilling blind holes in solid wood, wood composites, plastic and laminated materials.

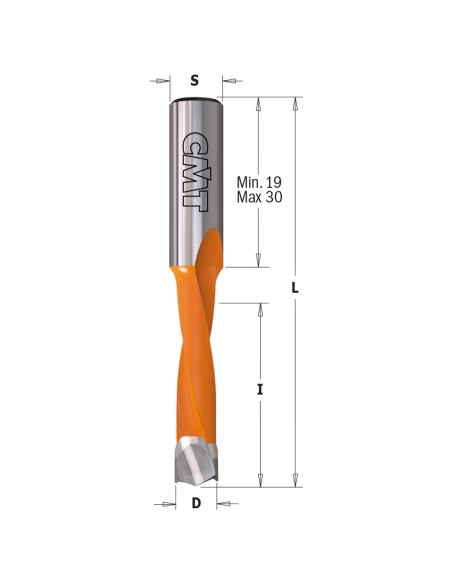

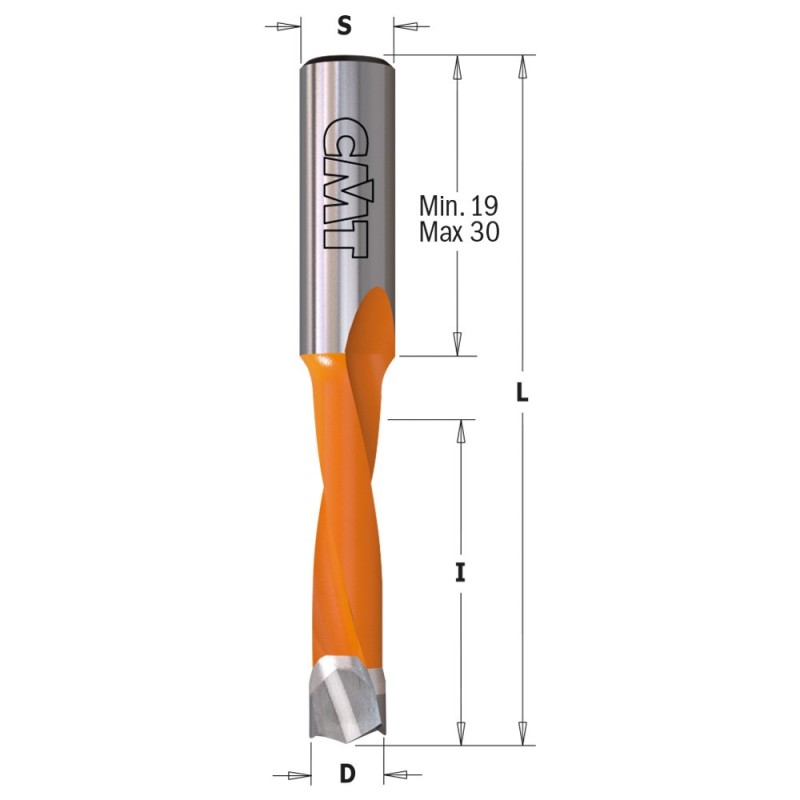

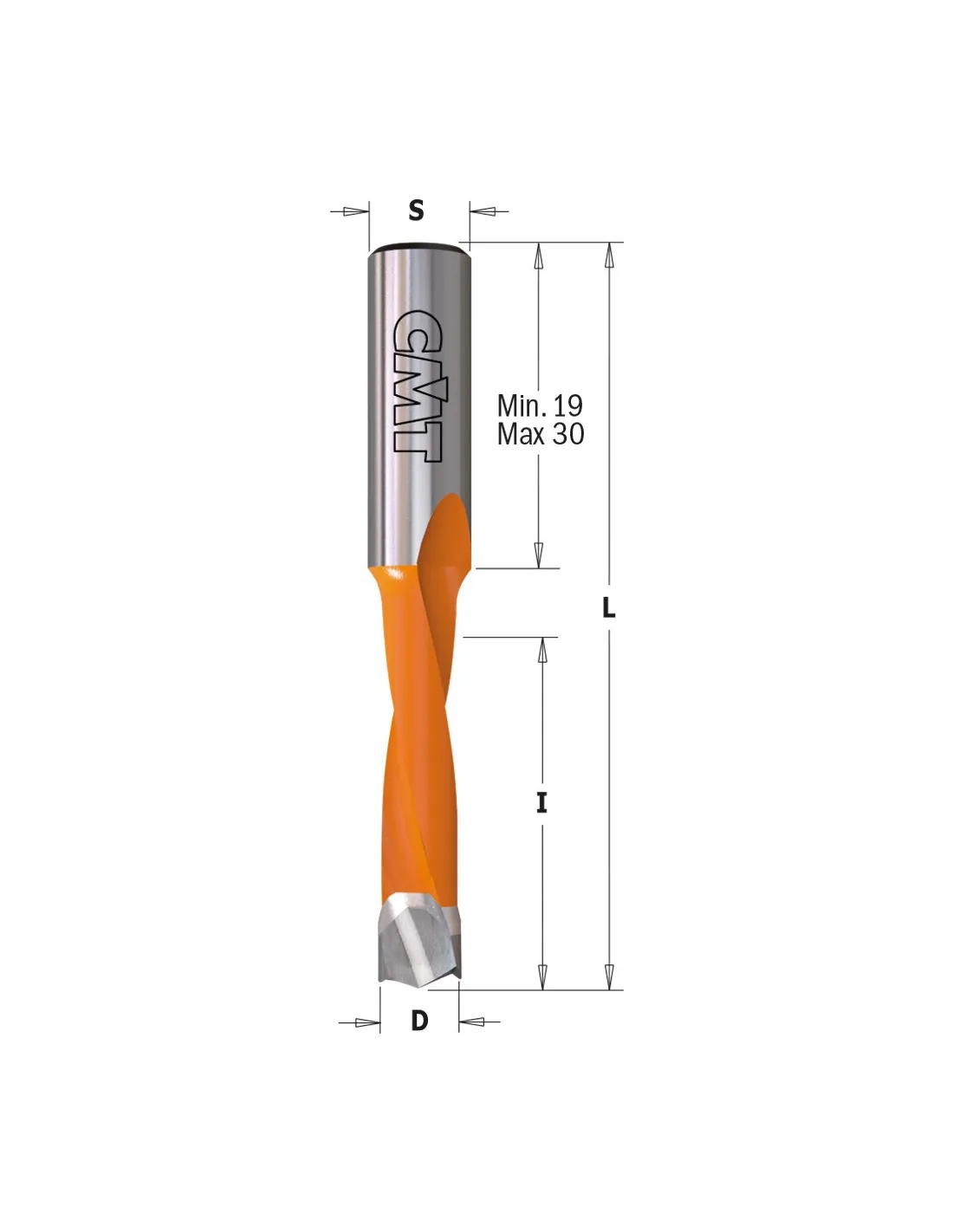

Diameter
Cutting height
Totale length
Shank diameter
Number of cutting edges
Material

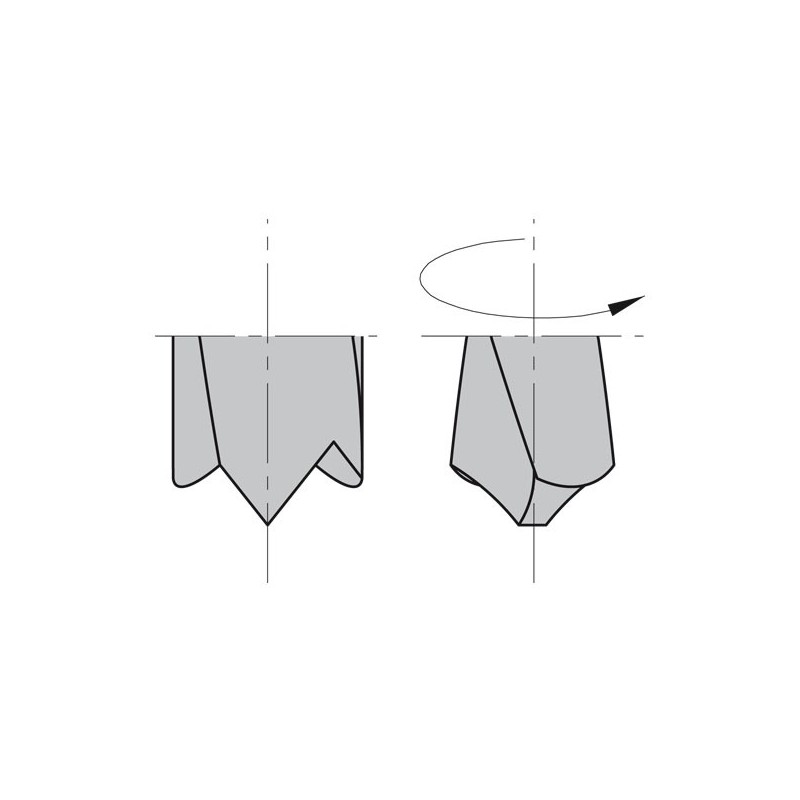

Right-hand or left-hand rotation
b
V

Payments and Security

security

payment methods

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via paypal

carrier

Delivery time: 3 working days

Attachments

35 45
HW
5 6 8 10 12 9 7
70
RH LH
10x30 10x19
2
Extreme
2

Filters

35 45
HW
5 6 8 10 12 9 7
70
RH LH
10x30 10x19
2
Extreme
2
Reference D I L S Z MAT RHLH b V Quantity Availability Price Add to cart
