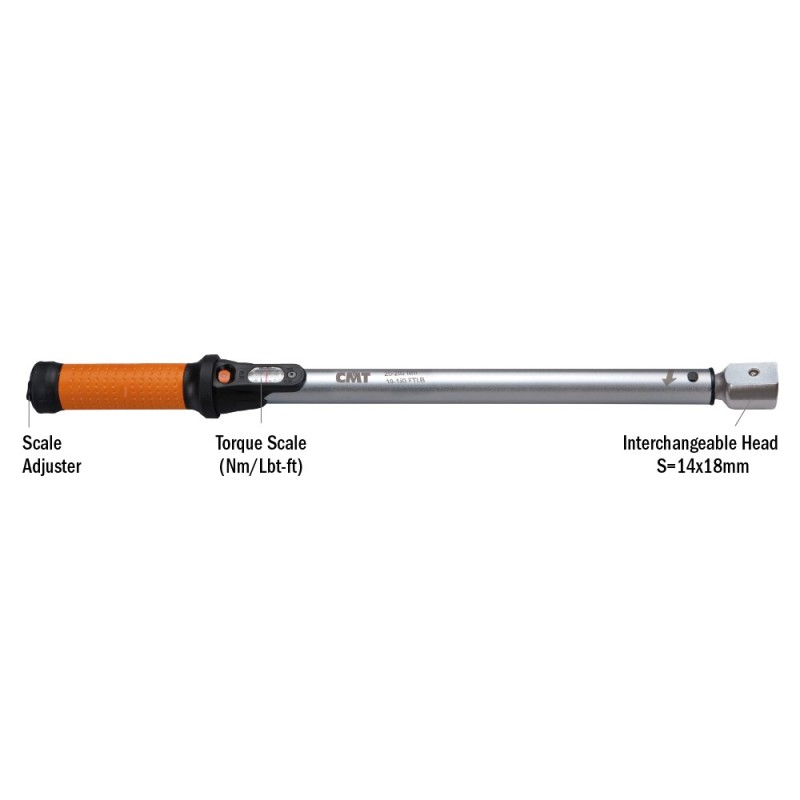

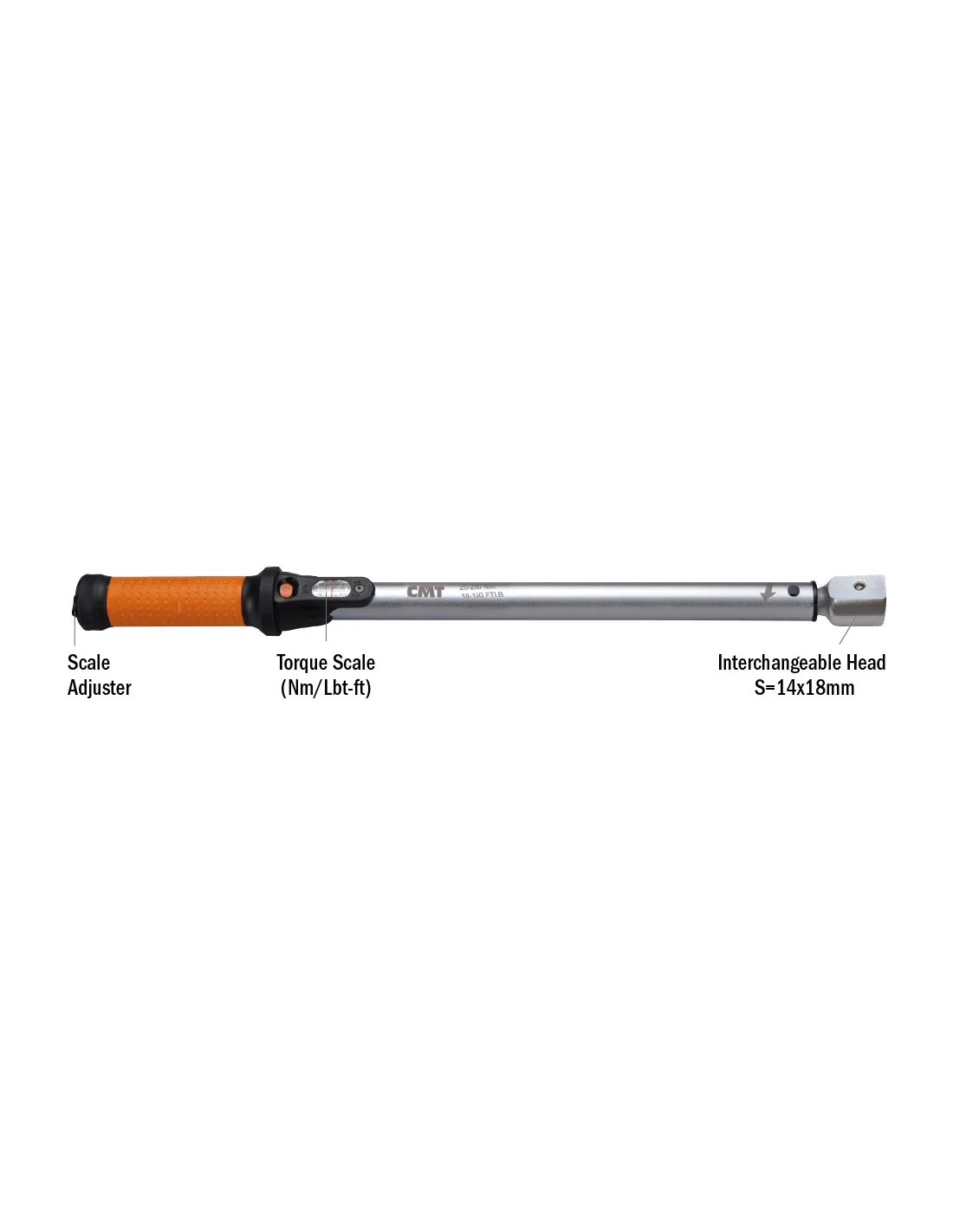

Interchangeable Torque Wrench 20~200 Nm
Interchangeable Torque Wrench 20~200 Nm
Interchangeable Torque Wrench 20~200 Nm
Interchangeable Torque Wrench 20~200 Nm
Interchangeable Torque Wrench 20~200 Nm
Interchangeable Torque Wrench 20~200 Nm
Interchangeable Torque Wrench 20~200 Nm
Interchangeable Torque Wrench 20~200 Nm

Interchangeable Torque Wrench 20~200 Nm

€61.33
Tax included

The interchangeable torque wrench is supplied inside a protective case. Inside, in addition to the instruction manual, you’ll find the calibration certificate (unique for each instrument) according to DIN ISO 6789 & ASME B107.300-2010.

TECHNICAL DETAILS:
• Range:.............. 20~200 Nm (10-150 lbf-ft)
• Resolution:.......... 1 Nm
• Tolerance:............±4%
• Length:........... 500mm (19.7”)
• Weight:.................... 1,15Kg. (40.6oz)
• Automatic quick-release, audible and palpable click, when selected torque is reached.
• Right-handed (CW).

TORQUE SUGGESTED*

TYPE OF CHUCK/COLLET Nm Lbf-ft
ER16 57 42
ER20 80 59
ER25 104 77
ER32 135 100
ER40 176 130
EOC25 122 90

* Suggested tightening torque for CMT Chuck/Collet.





The interchangeable torque wrench is versatile and can used in a wide variety of applications.
Ideal for fastening CMT collets.

Diameter
Shank diameter
