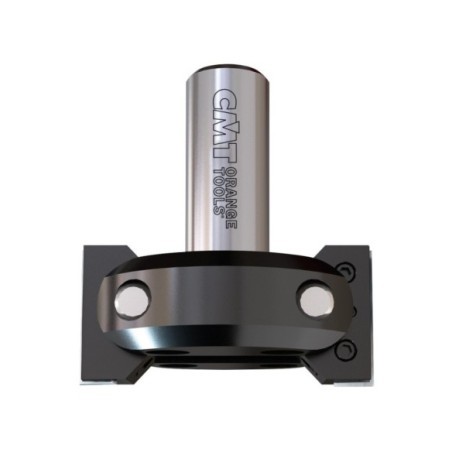

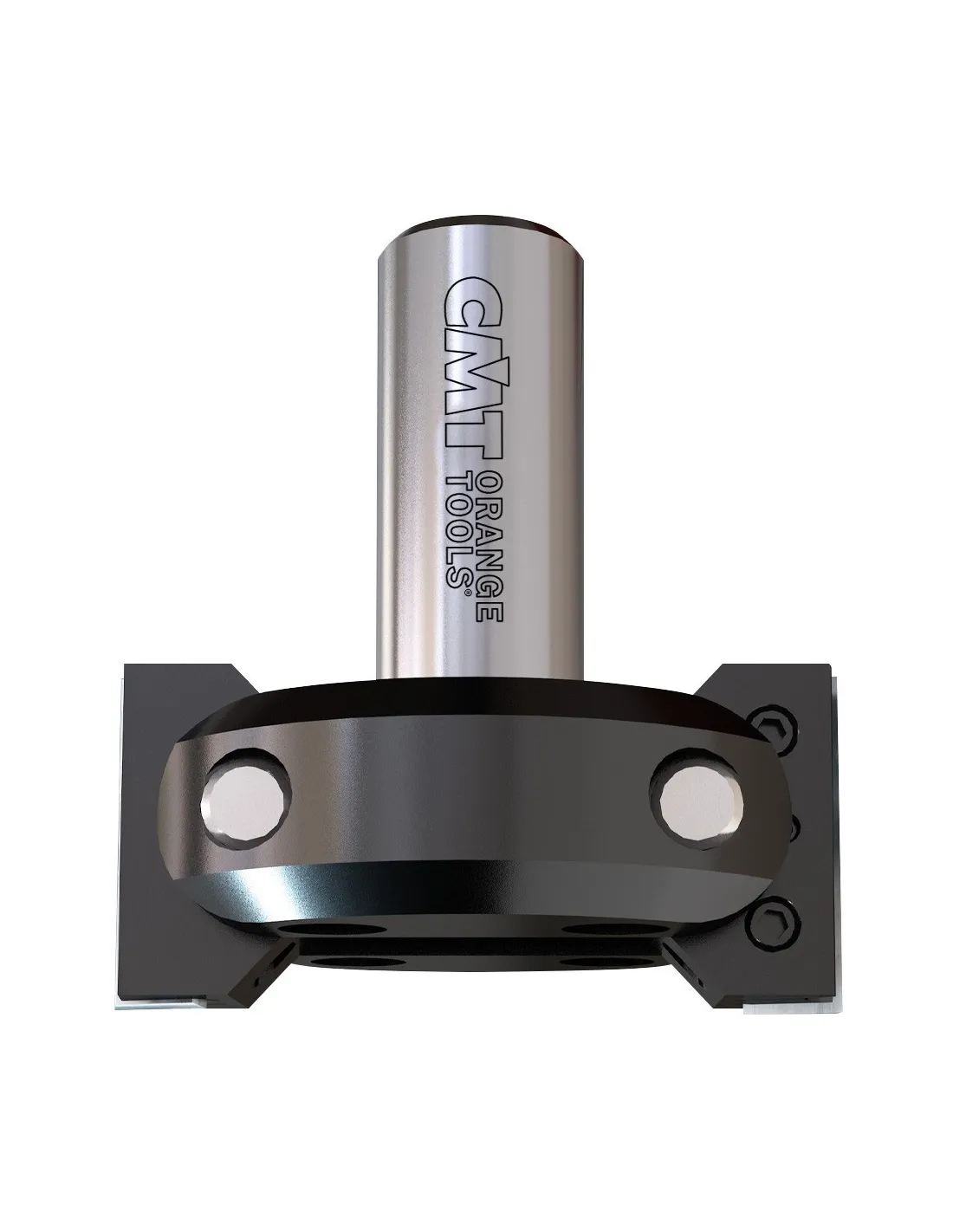

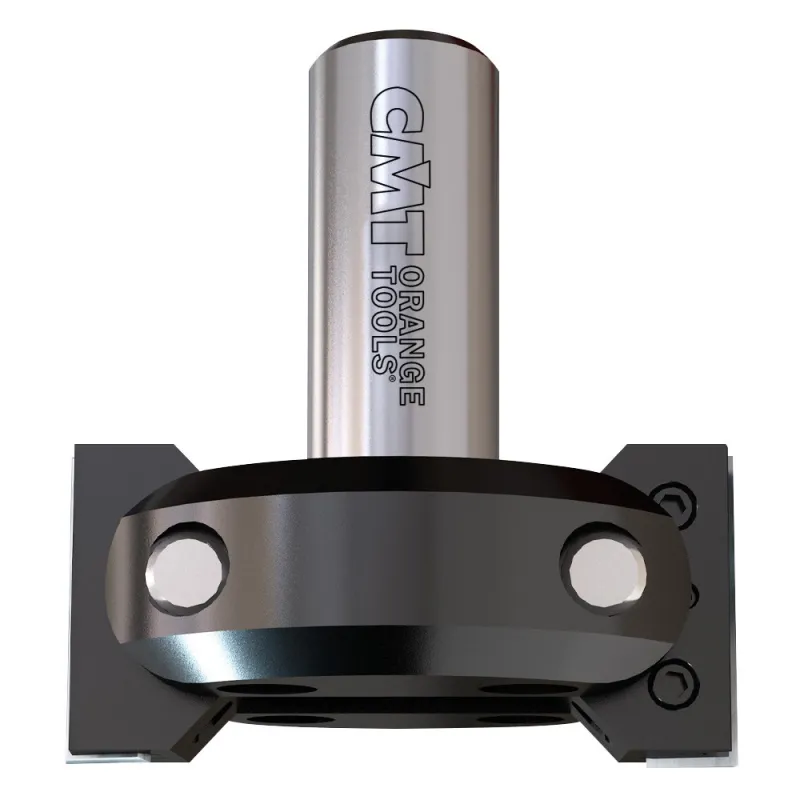

Adjustable chamfering CNC cutter
Adjustable chamfering CNC cutter
Adjustable chamfering CNC cutter
Adjustable chamfering CNC cutter
Adjustable chamfering CNC cutter
Adjustable chamfering CNC cutter
Adjustable chamfering CNC cutter
Adjustable chamfering CNC cutter

Adjustable chamfering CNC cutter

€776.99
Tax included
Technical details:
  • Tool body in steel;
  • 2 reversible HWM knives 39,5x12x1,5mm [Z2];
  • Peripheral cutting on both sides;

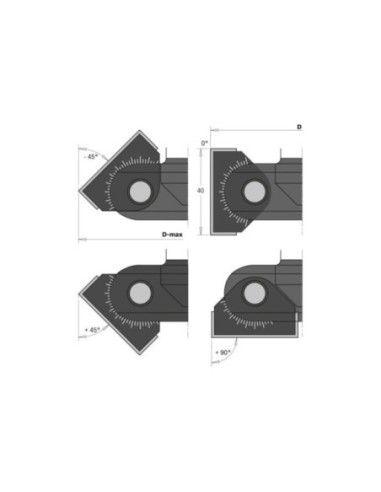

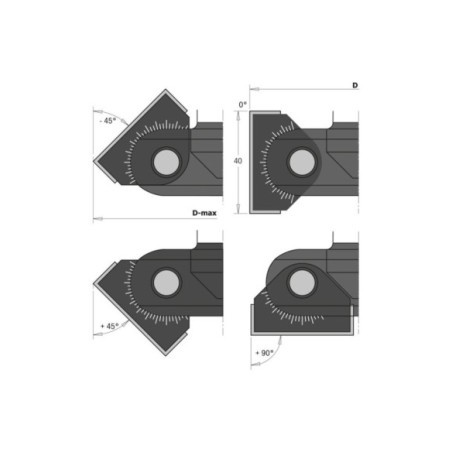

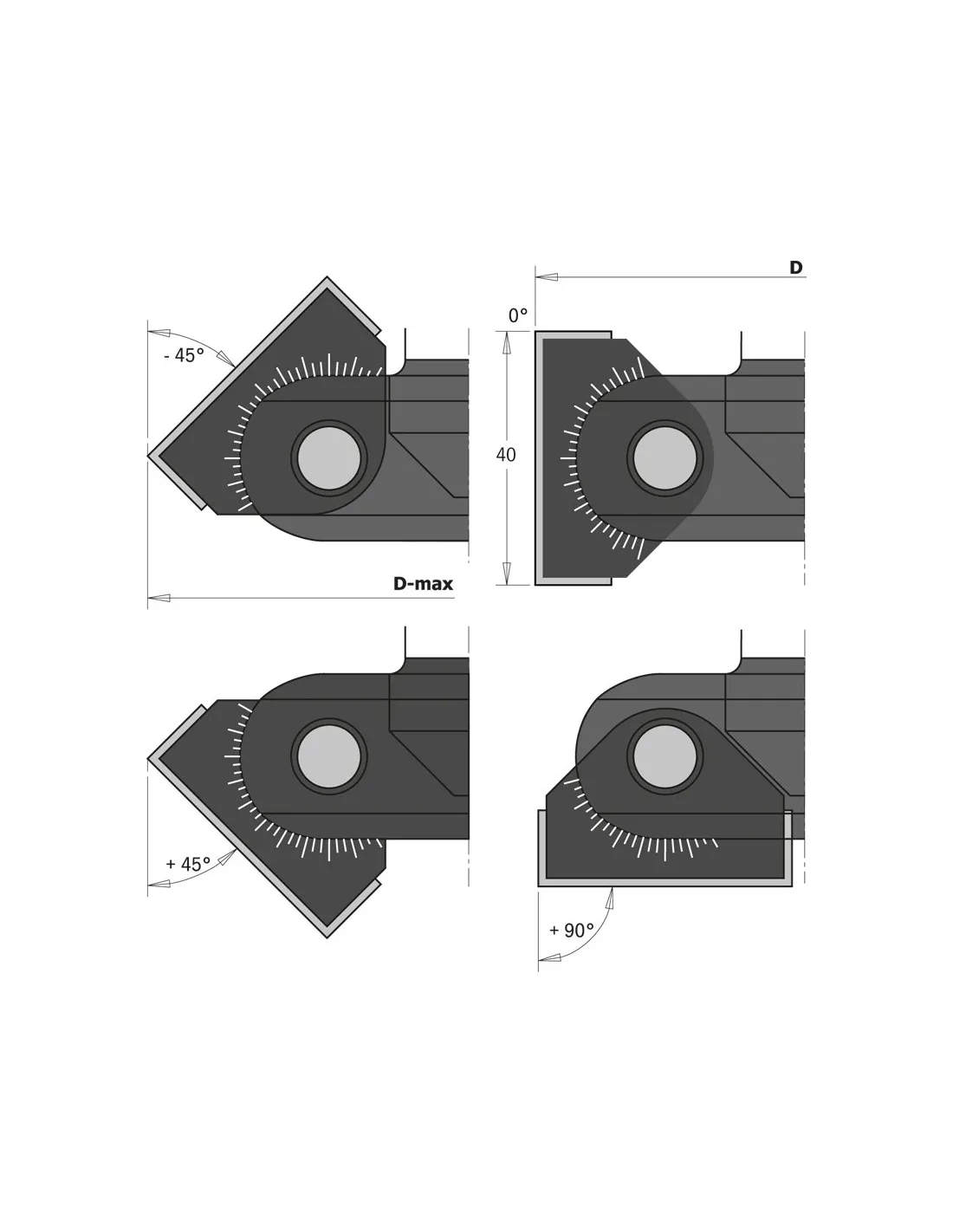

  • Adjustable swivelling blade (Rotates at 7,5° intervals; Precision = 7,5°);
  • Swivelling range 0-45° towards top, and 0-90° towards bottom.

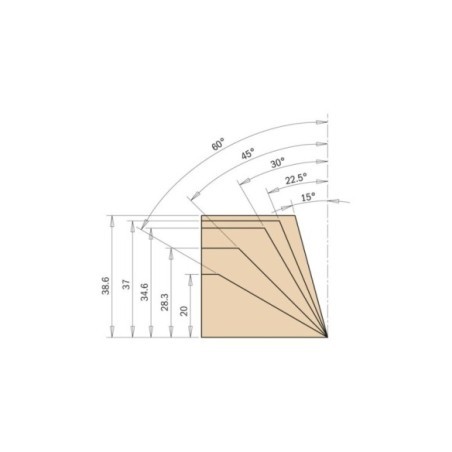

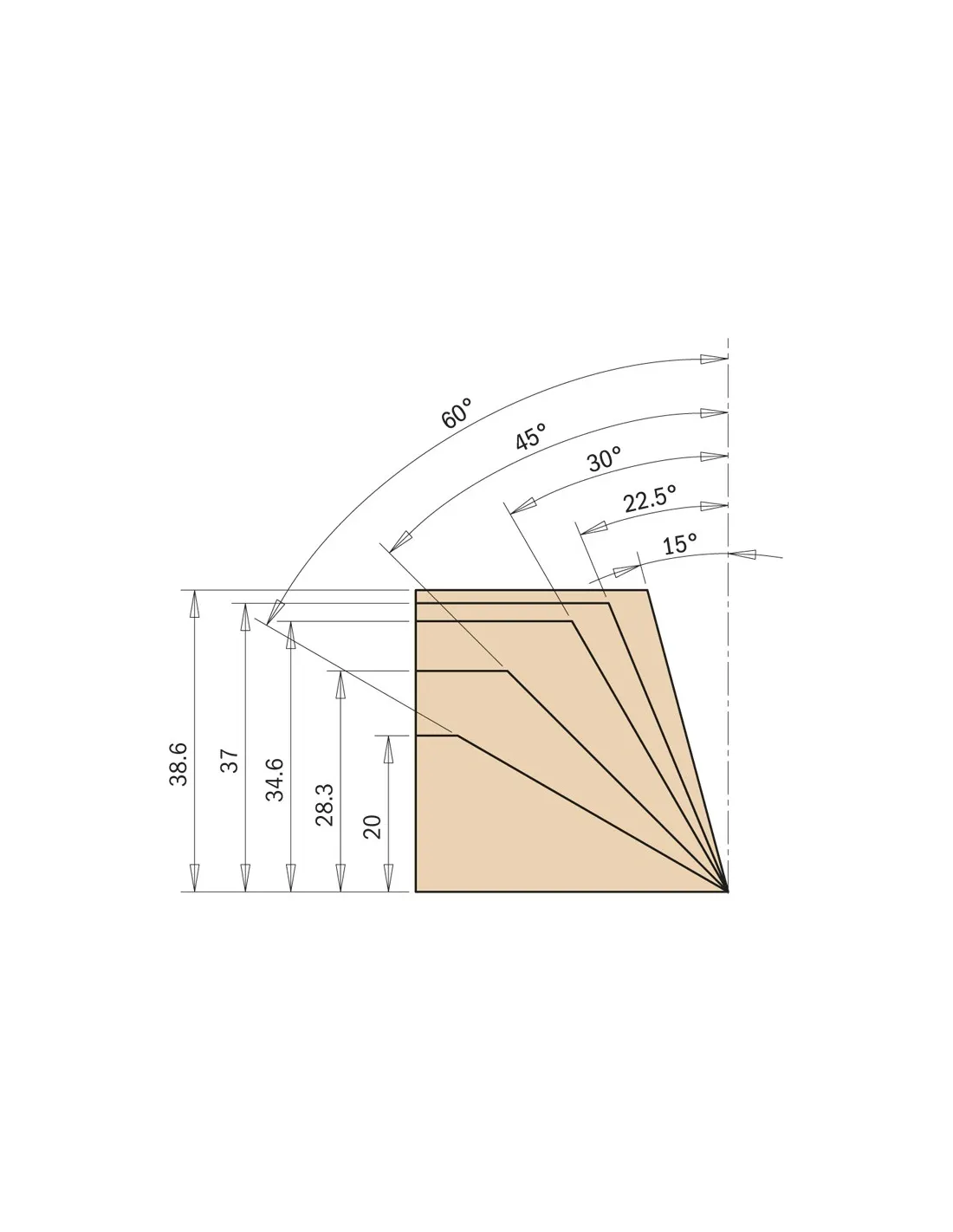

Inclination:
Min. Max
-45° +90°







For jointing, rebating and chamfering of solid wood and wooden boards. Suitable for CNC router machines and stationary router machine with manual or mechanical feed.


Safety Tips:

The TW-006 Torque Screwdriver is recommended for the proper fastening of screws.



Diameter
Cutting height
Totale length
Shank diameter
Number of cutting edges
Material
Right-hand or left-hand rotation
A
RPM

Payments and Security

security

payment methods

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via paypal

carrier

Delivery time: 3 working days

39.5
HW
85
92
RH
20
2
0°-45° - 0°+90°
7500~12000

Filters

39.5
HW
85
92
RH
20
2
0°-45° - 0°+90°
7500~12000
Reference D I L S Z MAT RHLH A RPM Quantity Availability Price Add to cart
