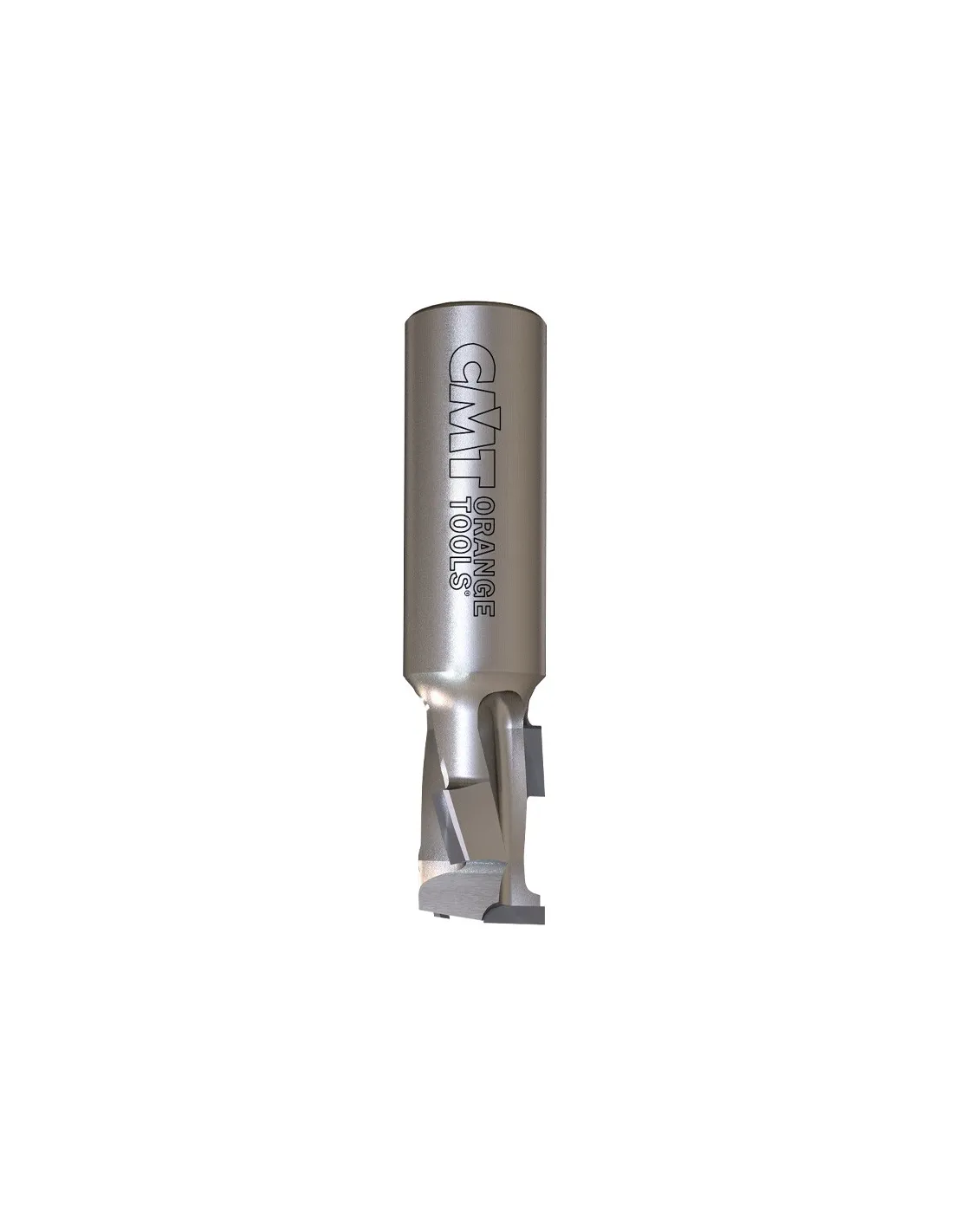

DP - Router Cutters with Shear Angle - LONG LIFE

DP - Router Cutters with Shear Angle - LONG LIFE

Name: DP - Router Cutters with Shear Angle - LONG LIFE
Brand: CMT Orange Tools
SKU: CMT140
Price: 83.94 EUR
Availability: InStock

€83.94

Tax included

TECHNICAL DETAILS:

- Strength steel.

- Shear angle. - DP cutting edge (H2,5).

- HW plunging tip for diagonal plunge-cutting.

- Resharpeable (max 3 times).

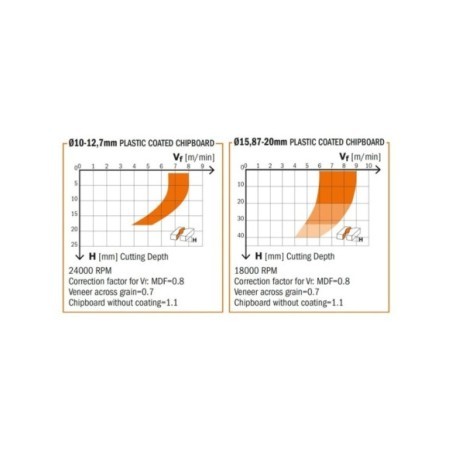

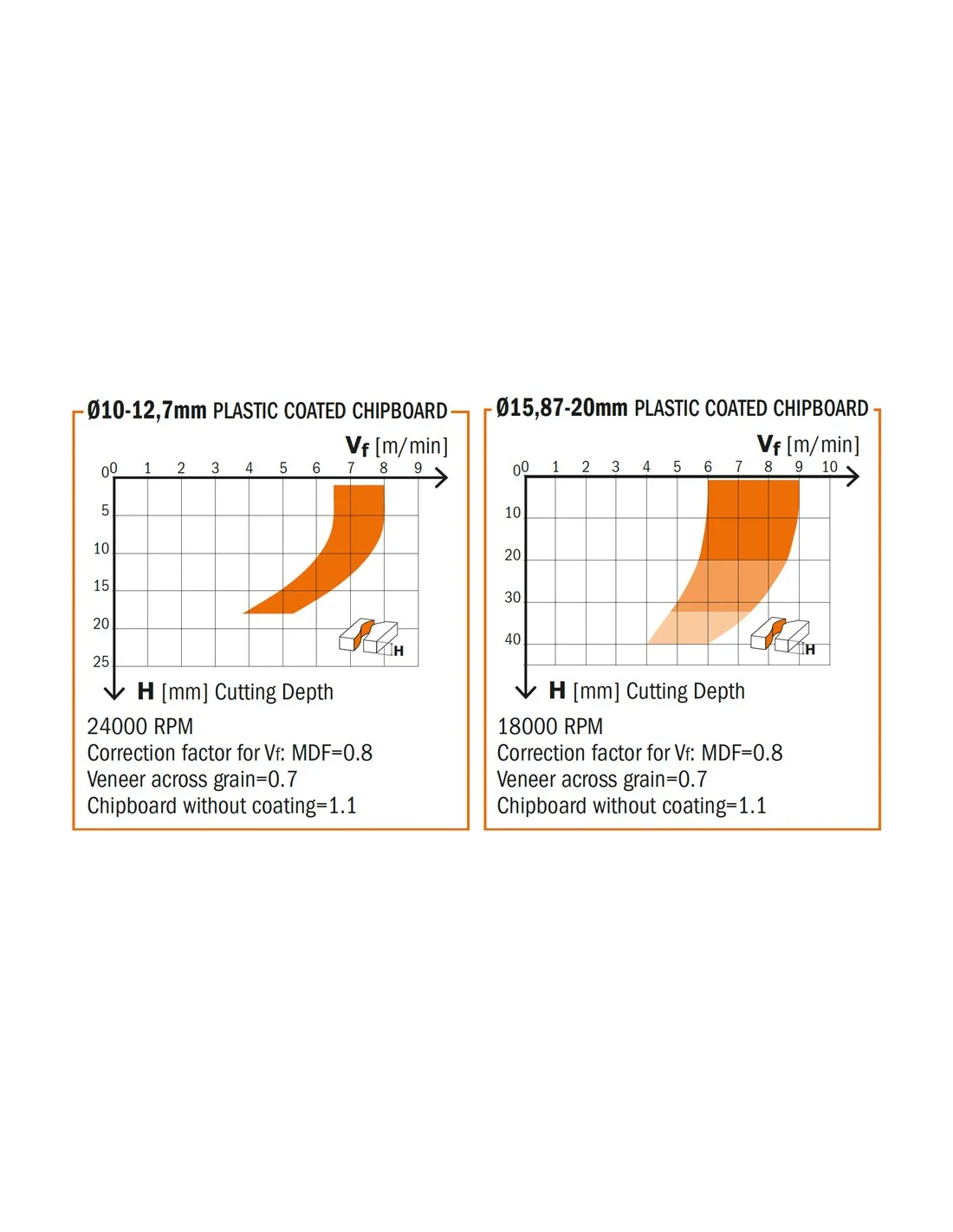

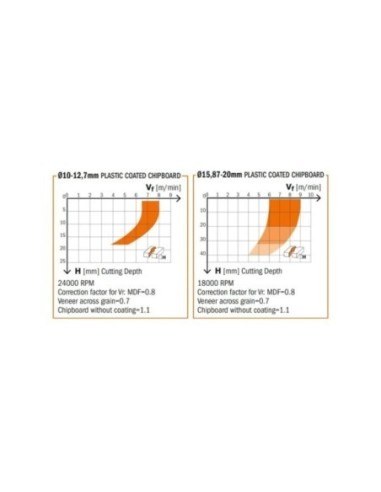

- Max feed speed 5 m/min.

For contour cutting and panel sizing on hard and abrasive materials such as laminates, MDF and melamine.

For use on machining centers, point to point boring machines and CNC pantographs equipped with adaptors and chucks.

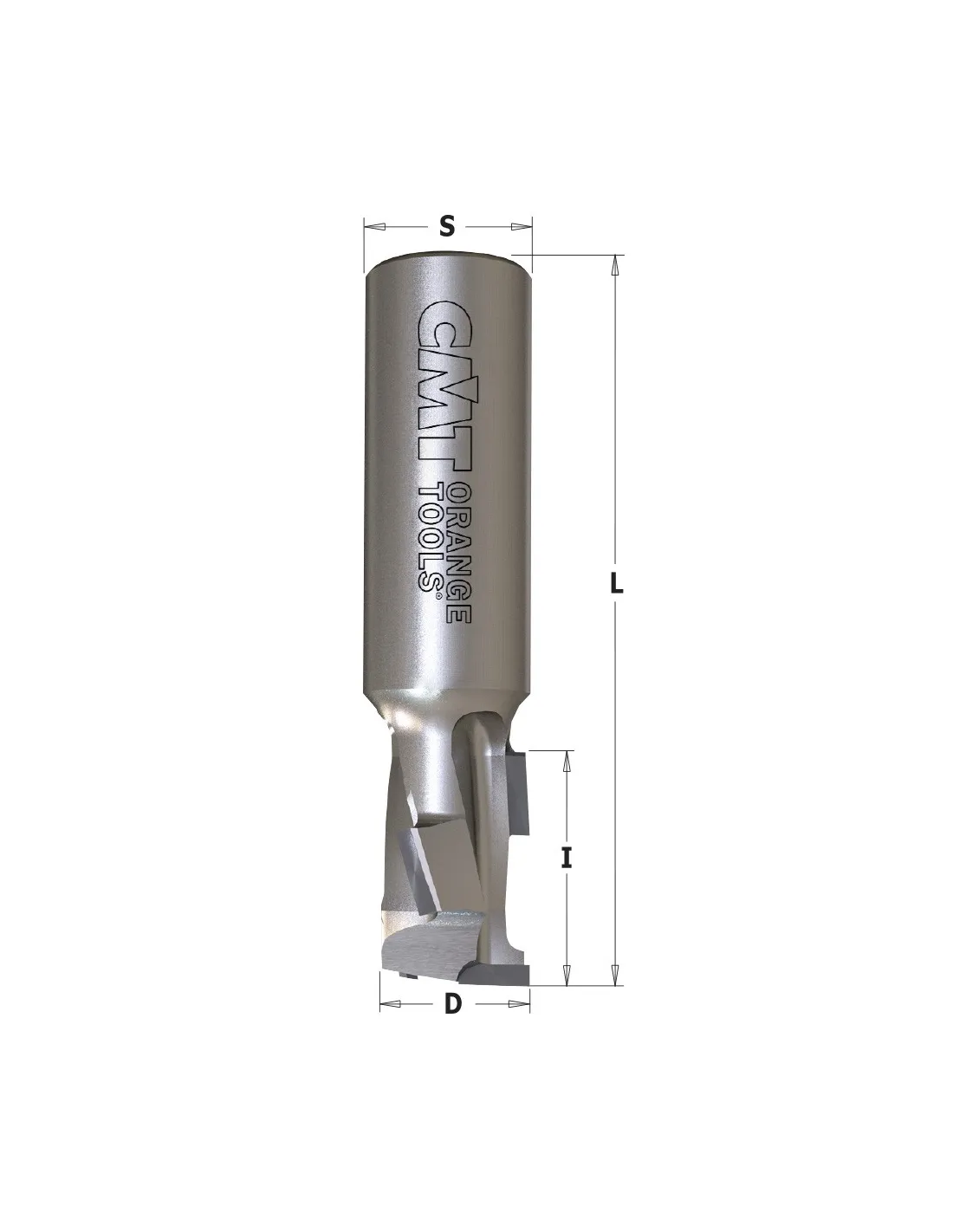

Diameter

Cutting height

Totale length

Shank diameter

Number of cutting edges

Material

Right-hand or left-hand rotation

Payments and Security

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via

Delivery time: 3 working days

Reference	D	I	L	S	Z	MAT	RHLH	Quantity	Price
140.03956 Details	10	25	72	12x40	1 + 1	DP	RH	220	€83.94
140.120.61 Details	12	27	75	12x40	1 + 1	DP	RH	354	€83.94
140.121.61 Details	12	35	85	12x40	1 + 1	DP	RH	184	€111.91
140.127.61 Details	12.7	27	75	12.7	1 + 1	DP	RH	26	€83.94
140.128.61 Details	12.7	35	85	12.7	1 + 1	DP	RH	77	€111.91
140.158.61 Details	15.88	27	85	15.87x50	1 + 1	DP	RH	11	€83.94
140.159.61 Details	15.88	45	103	15.87x50	1 + 1	DP	RH	4	€139.89
140.160.61 Details	16	27	85	16x50	1 + 1	DP	RH	60	€83.94
140.161.61 Details	16	35	93	16x50	1 + 1	DP	RH	93	€111.91
140.180.61 Details	18	27	85	20x50	1 + 1	DP	RH	18	€83.94
140.181.61 Details	18	35	95	20x50	1 + 1	DP	RH	0	€111.91
140.182.61 Details	18	45	105	20x50	1 + 1	DP	RH	9	€139.89
140.190.61 Details	19	27	85	19.05x50	1 + 1	DP	RH	6	€83.94
140.192.61 Details	19	45	105	19.05x50	1 + 1	DP	RH	6	€139.89
140.200.61 Details	20	27	85	20x50	1 + 1	DP	RH	18	€83.94
140.201.61 Details	20	35	95	20x50	1 + 1	DP	RH	21	€111.91
140.202.61 Details	20	45	105	20x50	1 + 1	DP	RH	35	€139.89
140.203.61 Details	20	55	115	20x50	1 + 1	DP	RH	79	€167.87
