Lock miter router bits
Lock miter router bits
Lock miter router bits
Lock miter router bits
Lock miter router bits
Lock miter router bits
Lock miter router bits
Lock miter router bits
Lock miter router bits
Lock miter router bits
Lock miter router bits
Lock miter router bits
Lock miter router bits
Lock miter router bits
Lock miter router bits
Lock miter router bits

Lock miter router bits

€121.56
Tax included

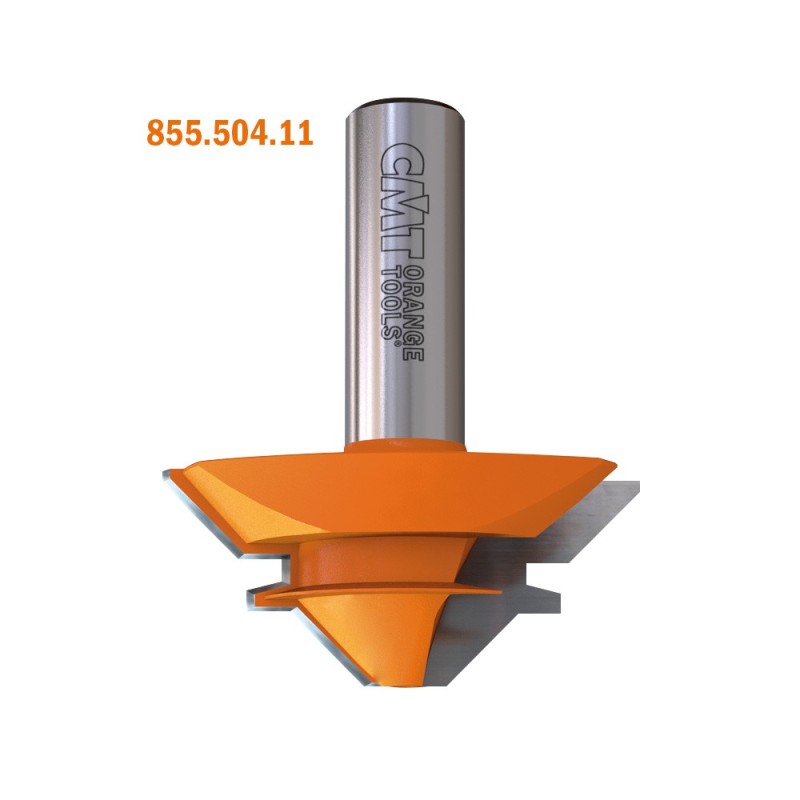

These are the ultimate bits to craft sturdy miter joints thanks to anti-kickback design and tough tungsten carbide cutting edges.

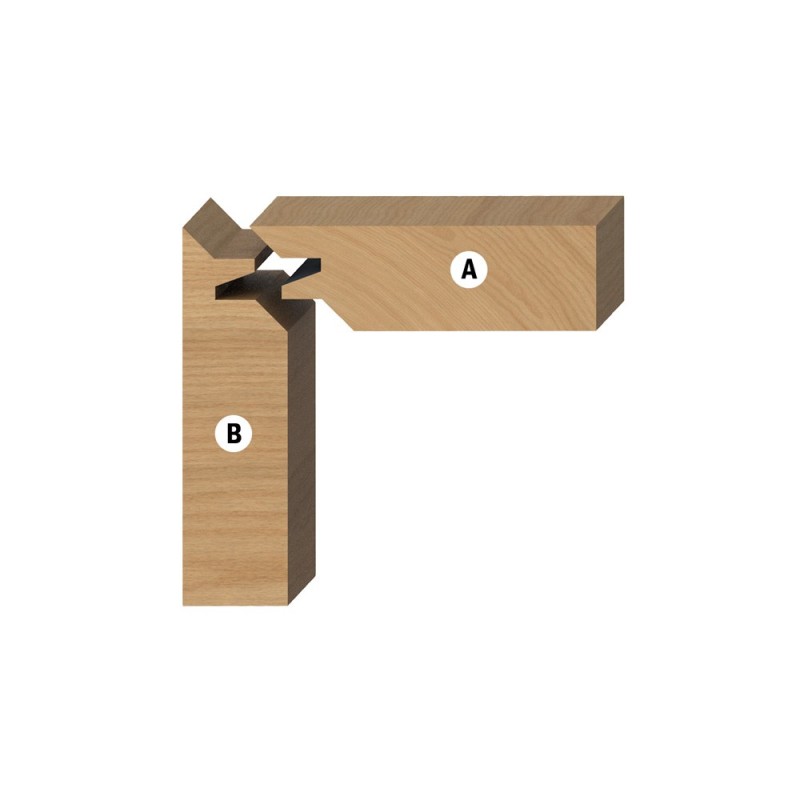

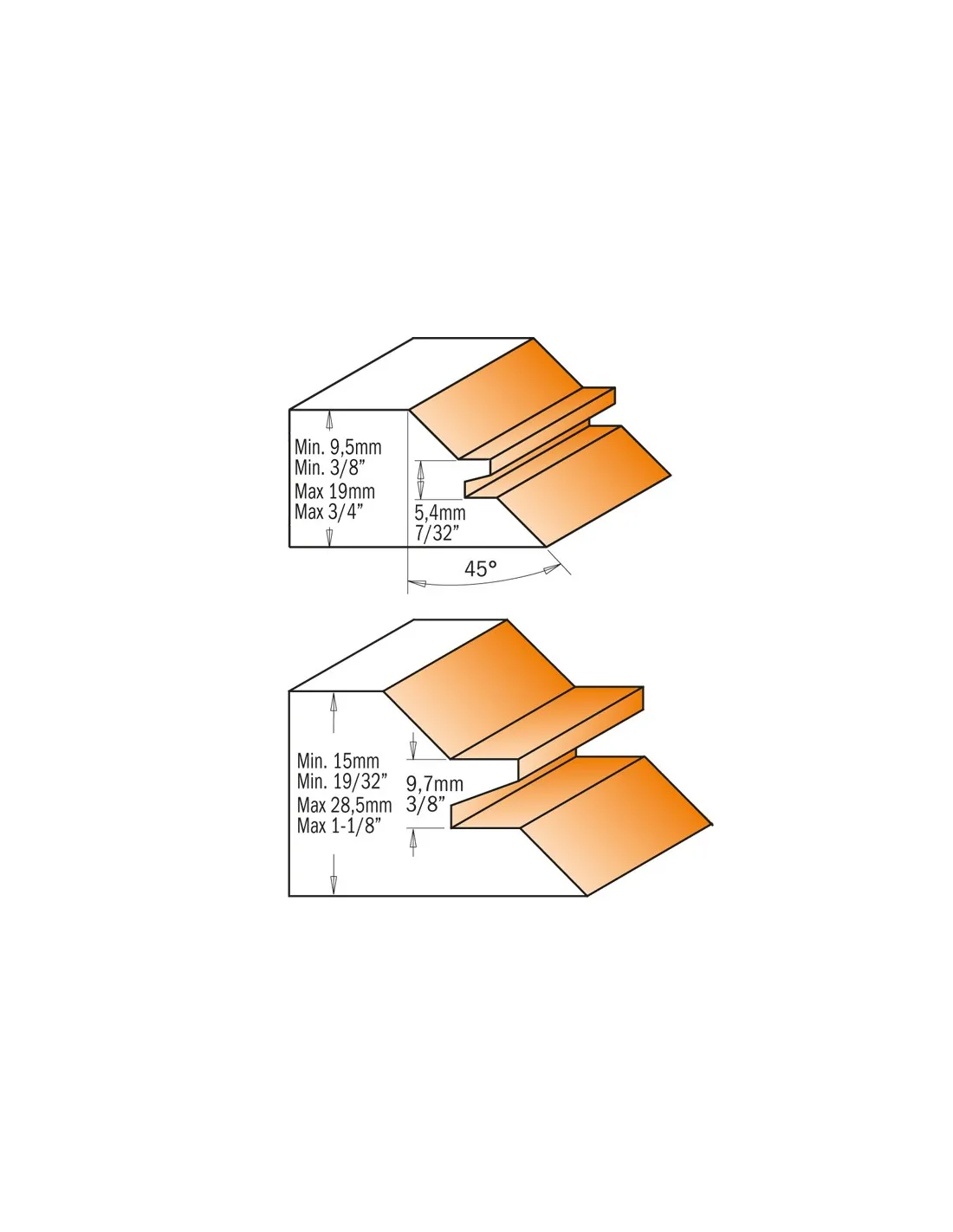

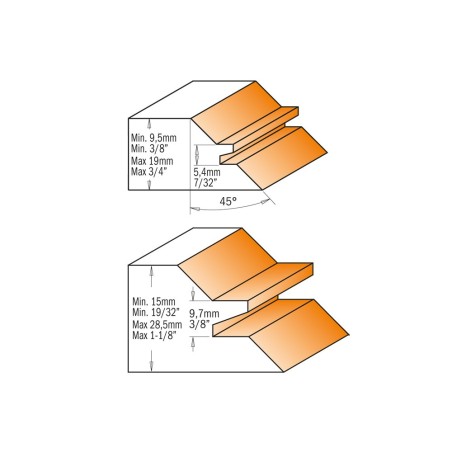

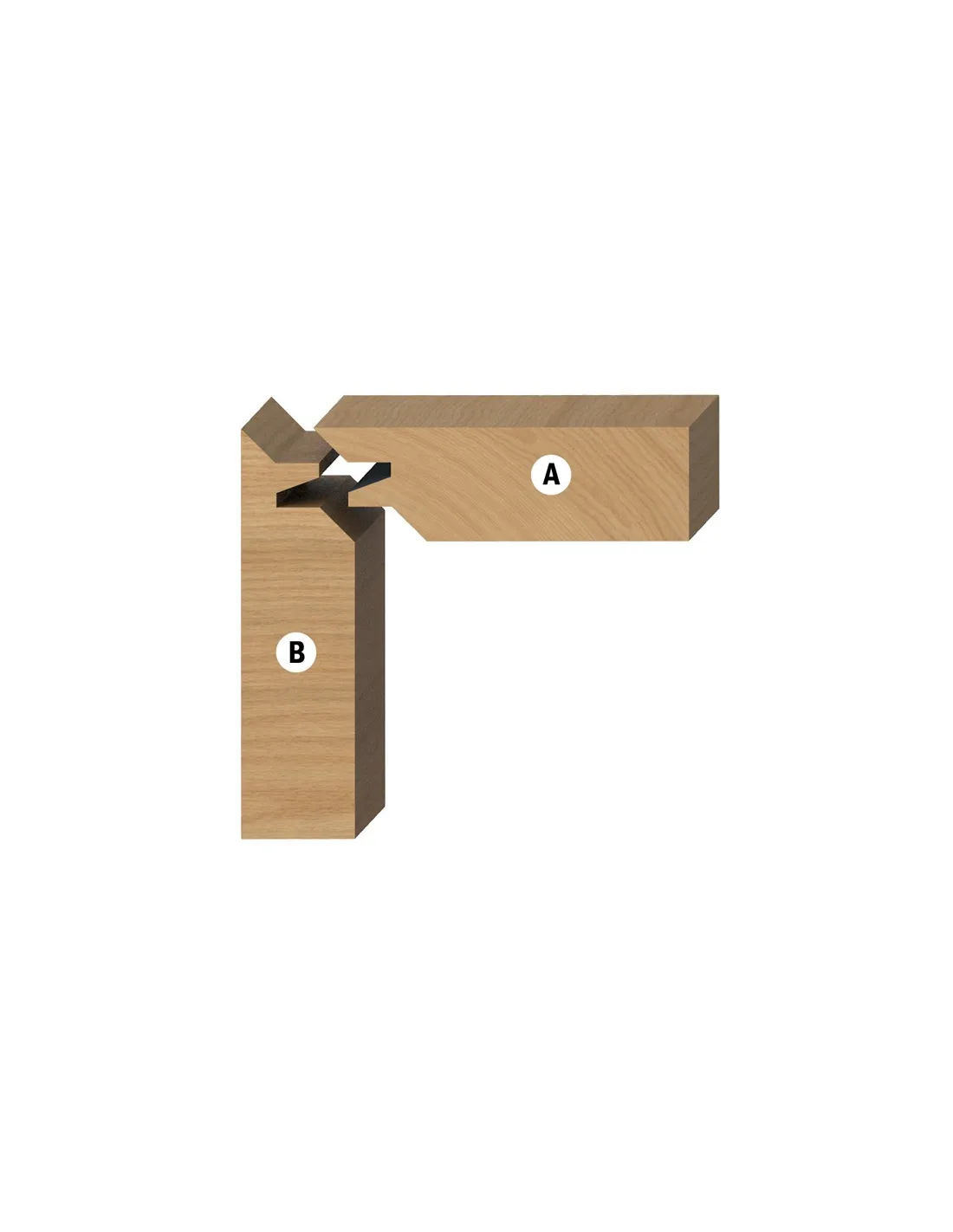

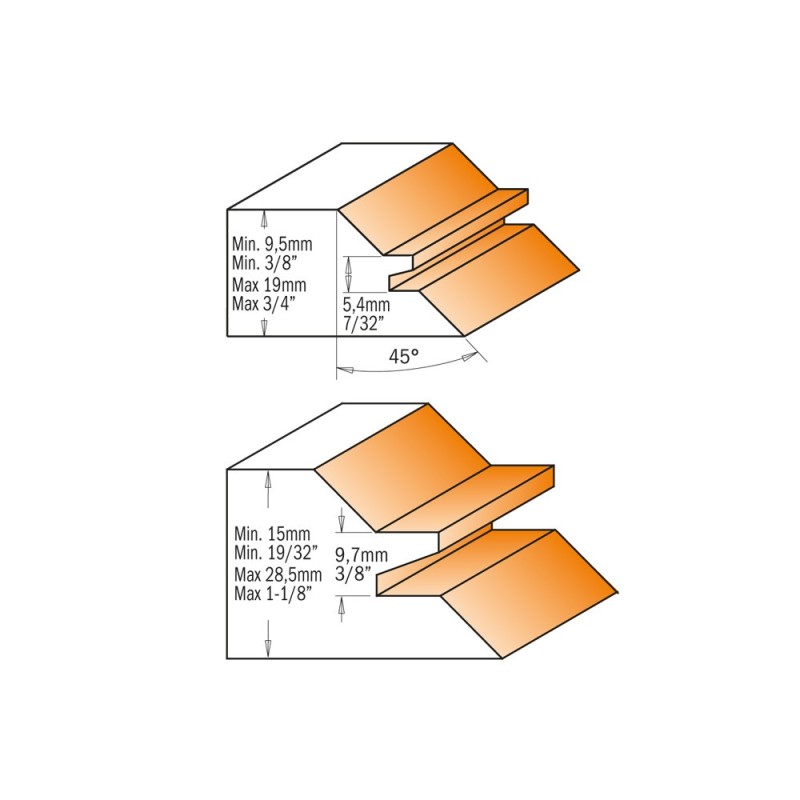

By adding a second smaller bit, you can mill anywhere from 9,5mm to 28,5mm in thickness. A quick and easy way to accurately create boxes, stretcher bars, frames and any assortment of right angle or parallel joint projects.

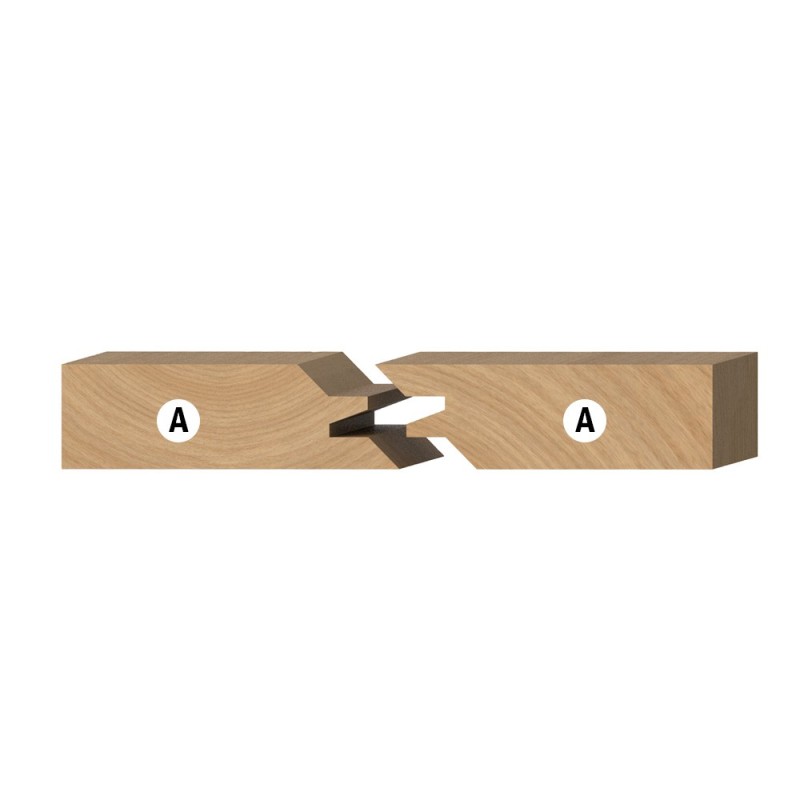

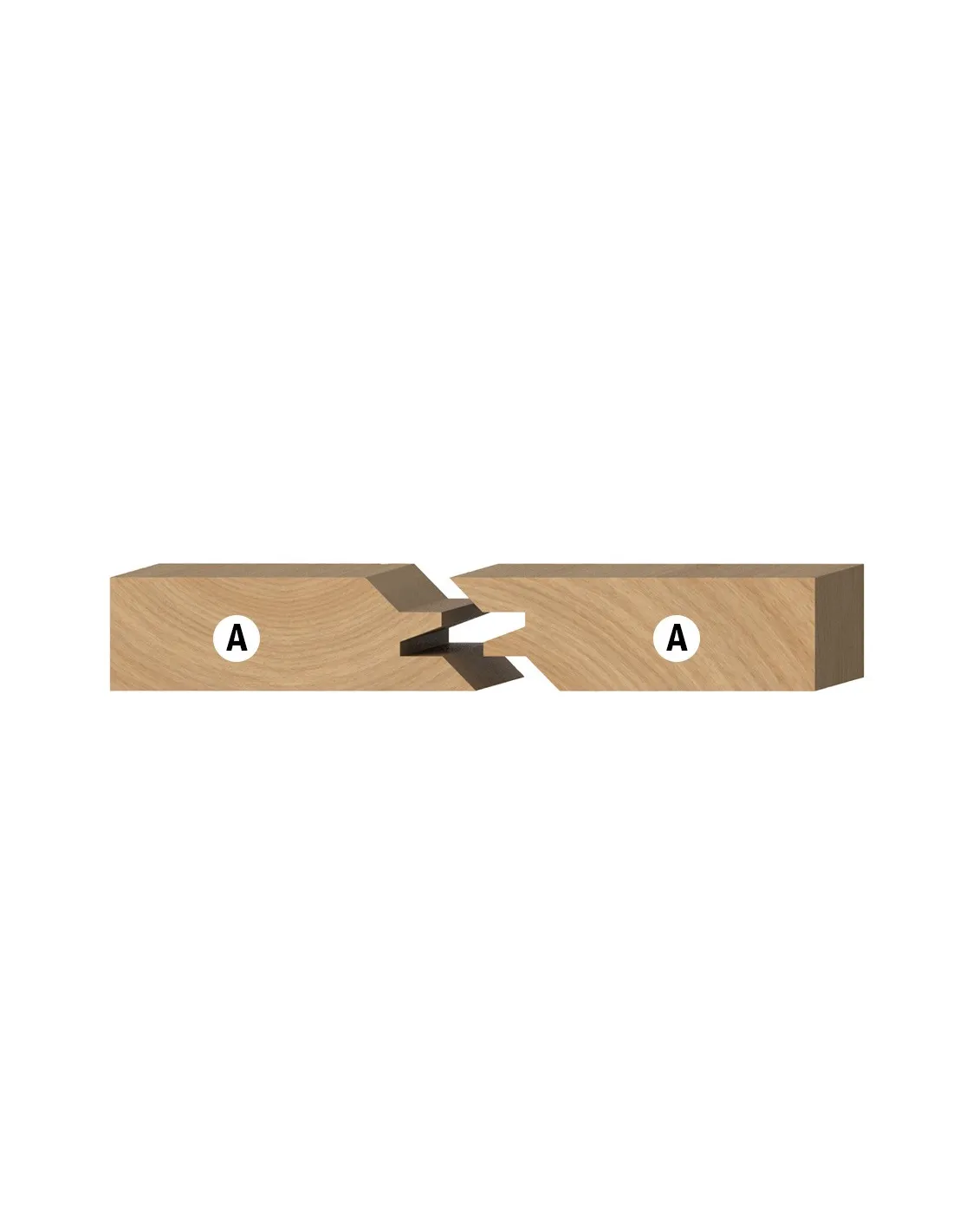

You also have the advantage of using the same bit for parallel joinery projects.

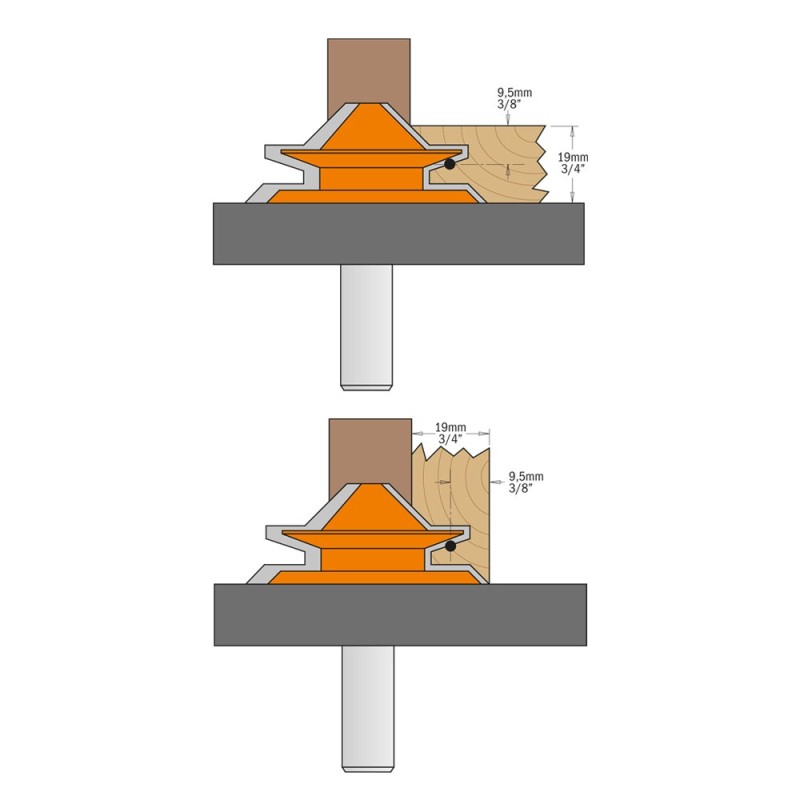

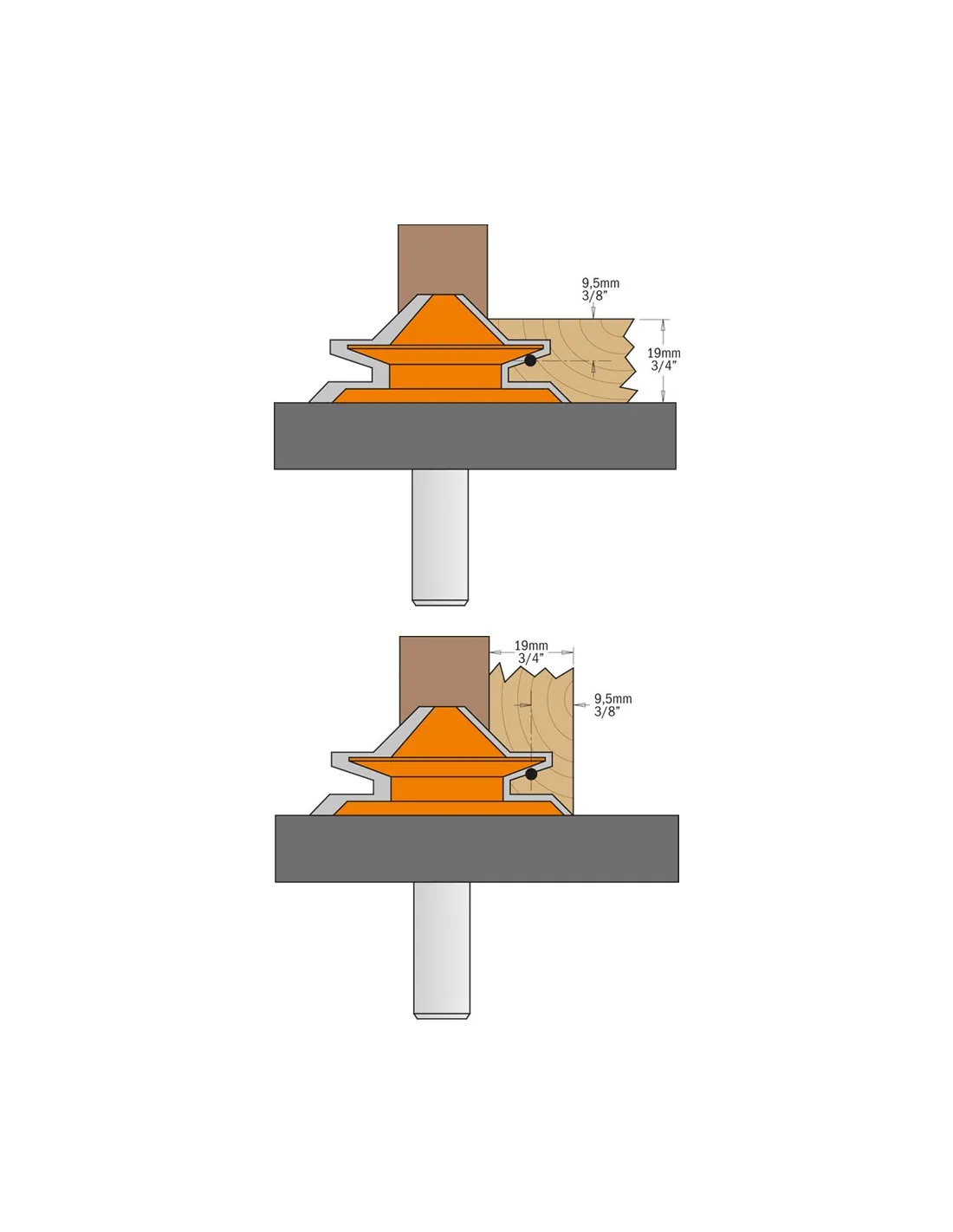

To mill sturdy parallel glue joints follow step 1 shown in the illustration with the inside face of the workpiece laid flat on the table and centred to the bit.
To make the second part, lay the workpiece flat on the table and centred to the bit.
Mill with the inside face-up.

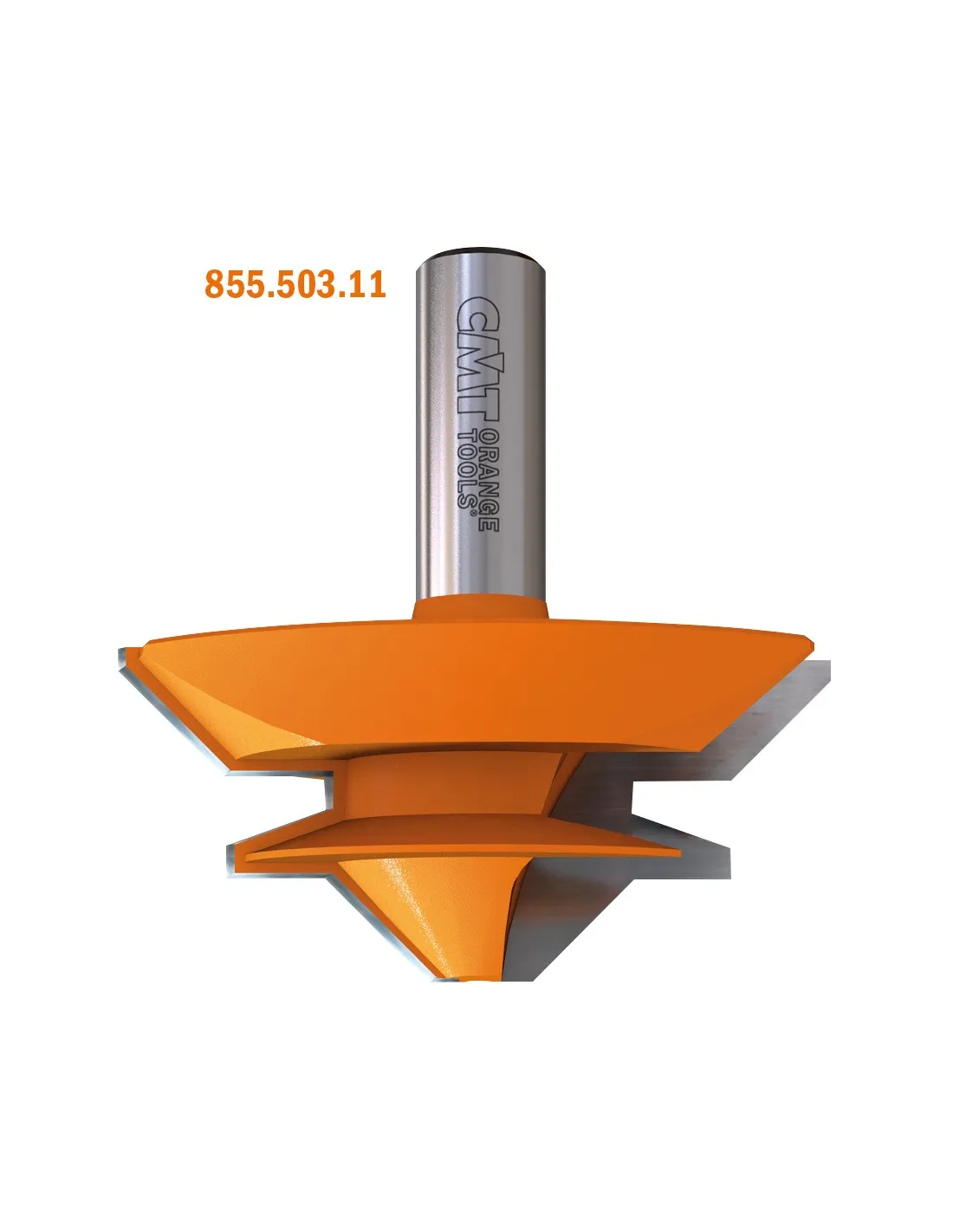

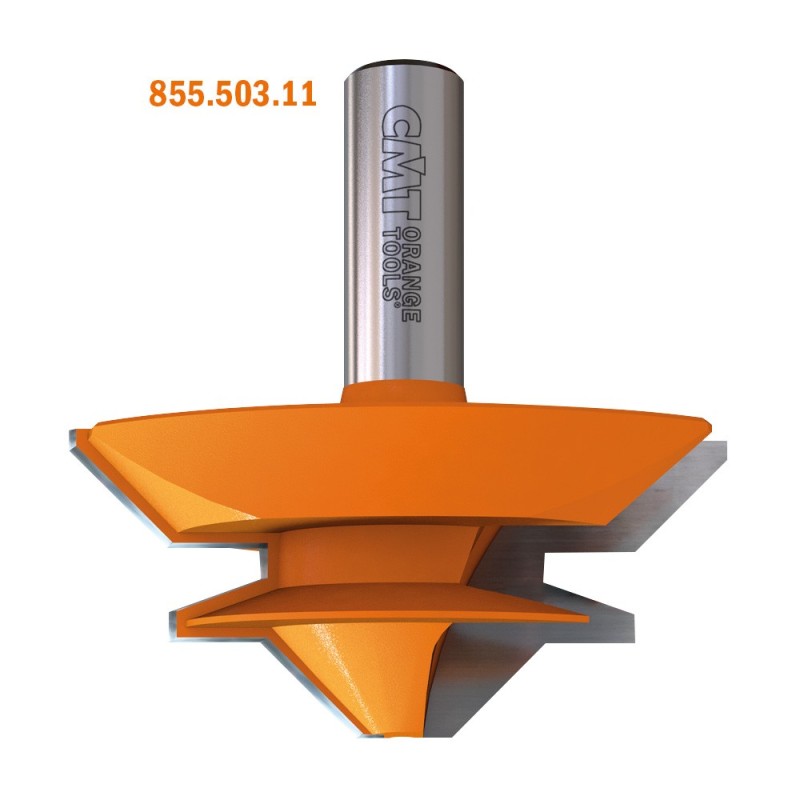

Watch the V-LOG video 855.503.11

0

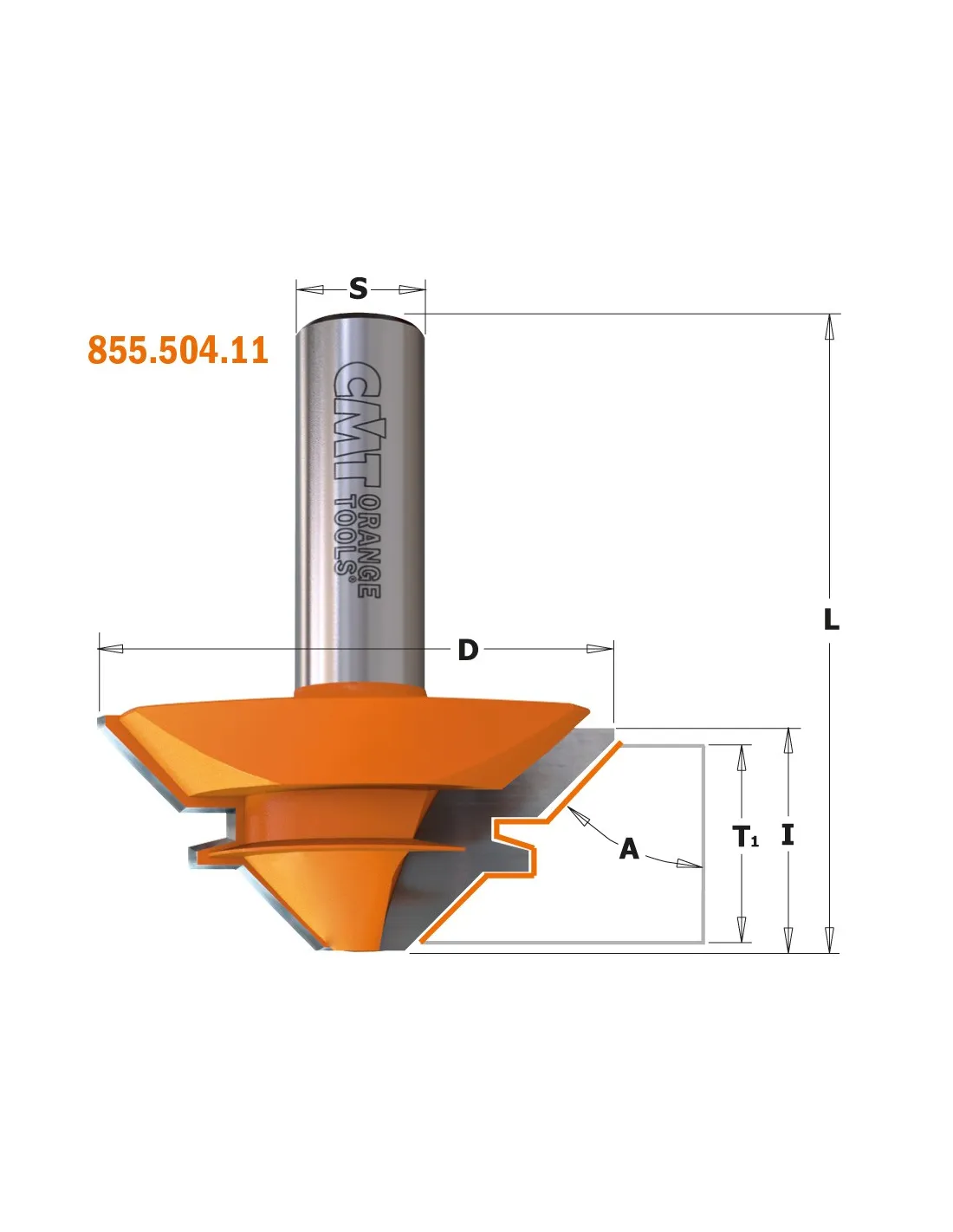

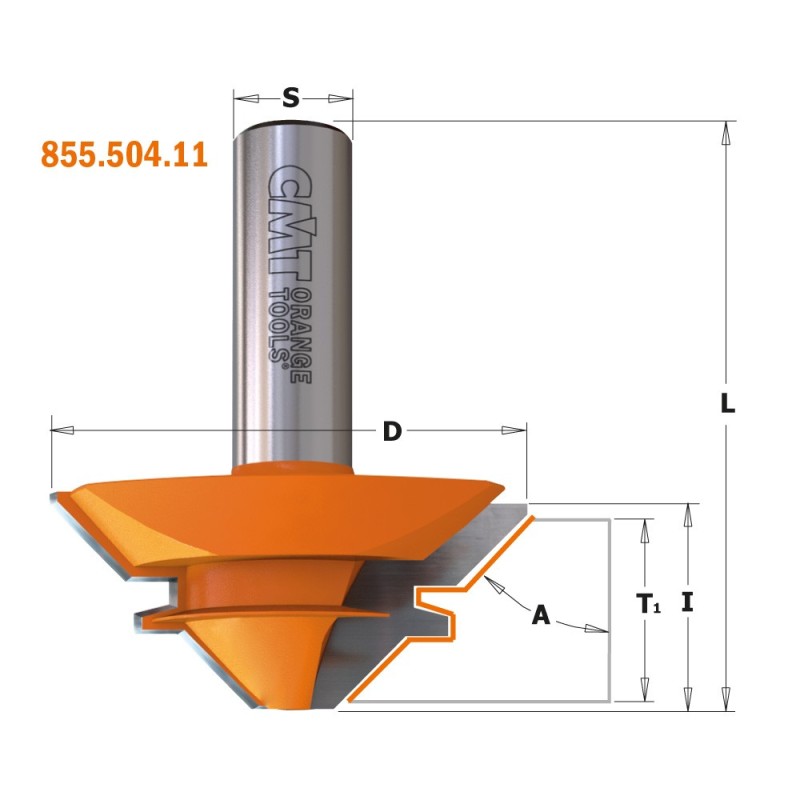

Diameter
Cutting height
Totale length
Shank diameter
Number of cutting edges
Maximum stock thickne
Material
Right-hand or left-hand rotation
A

Payments and Security

security

payment methods

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via paypal

carrier

Delivery time: 3 working days

Attachments

18 31.7 22.2
15 ~ 28.5 9.5 ~ 19 9 ~ 18
HW
50.8 70 44.5
56 60.3 69.9
RH
12.7 8 12
2
45°

Filters

18 31.7 22.2
15 ~ 28.5 9.5 ~ 19 9 ~ 18
HW
50.8 70 44.5
56 60.3 69.9
RH
12.7 8 12
2
45°
Reference D I L S Z T MAT RHLH A Quantity Availability Price Add to cart
