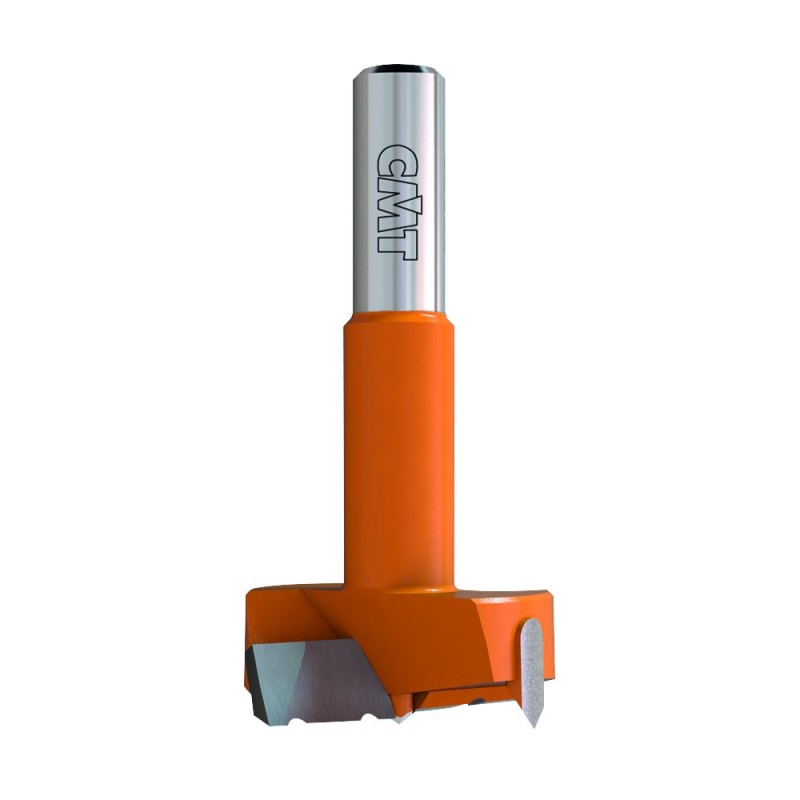

Hinge Boring Bits with Chipbreaker, S10mm - L70mm

Hinge Boring Bits with Chipbreaker, S10mm - L70mm

Name: Hinge Boring Bits with Chipbreaker, S10mm - L70mm
Brand: CMT Orange Tools
SKU: CMT369C
Price: 70.72 EUR
Availability: InStock

€70.72

Tax included

TECHNICAL DETAILS:

• Super-strength steel.

• Cutter portion coated with orange or black P.T.F.E.

• HW head with precision balanced centre point.

• 2 HW precision ground cutting edges with chipbreaker (Z2R).

• 2 negatively ground spurs (V2).

• Parallel shank with driving flat and length adjusting screw.

Ideal for hinges.
Used on boring machines equipped with adaptors or chucks.
For drilling accurate and clean-cut blind holes in solid wood.

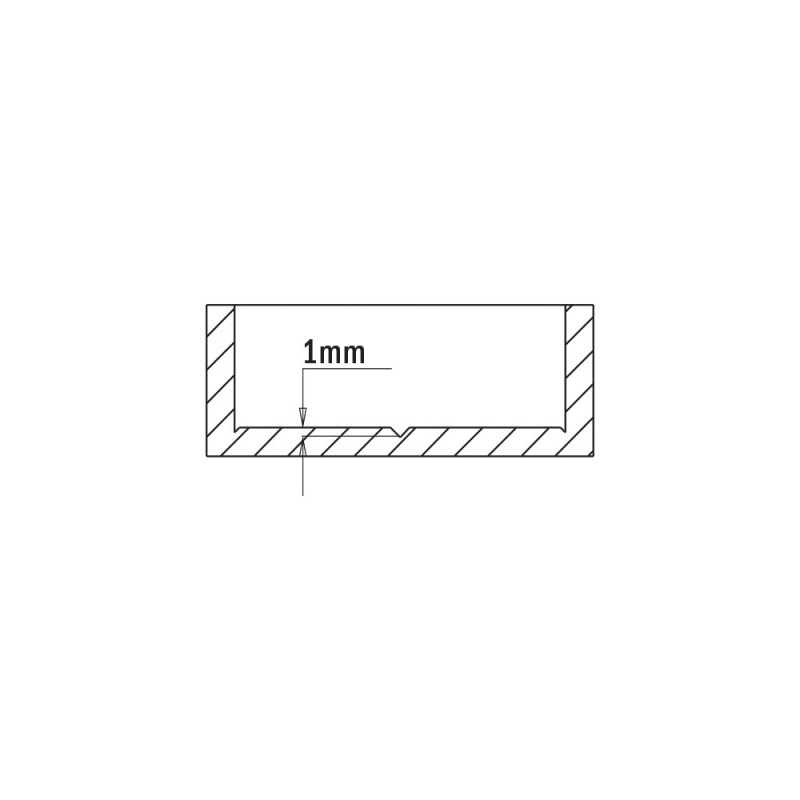

New construction with 1mm centre point.

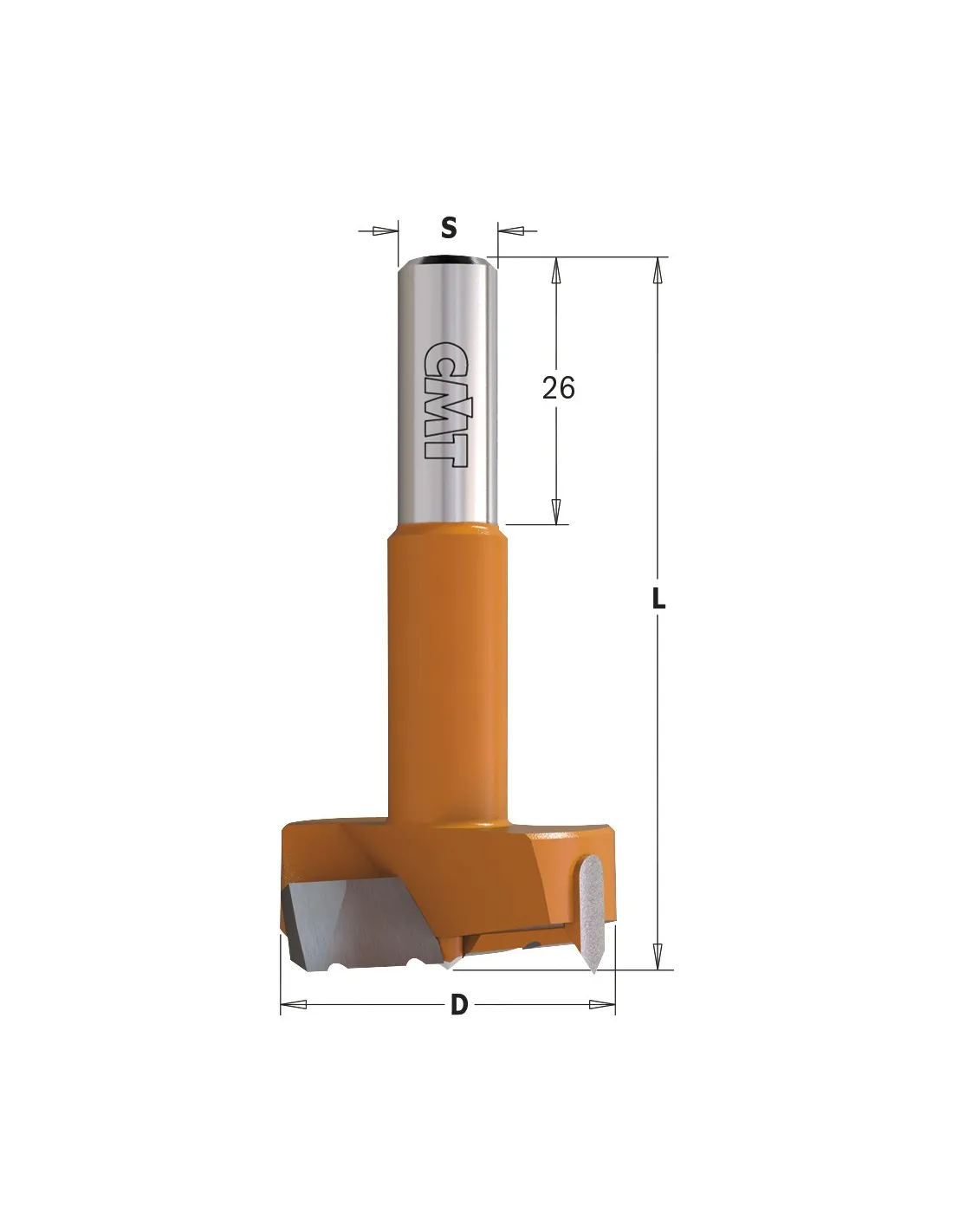

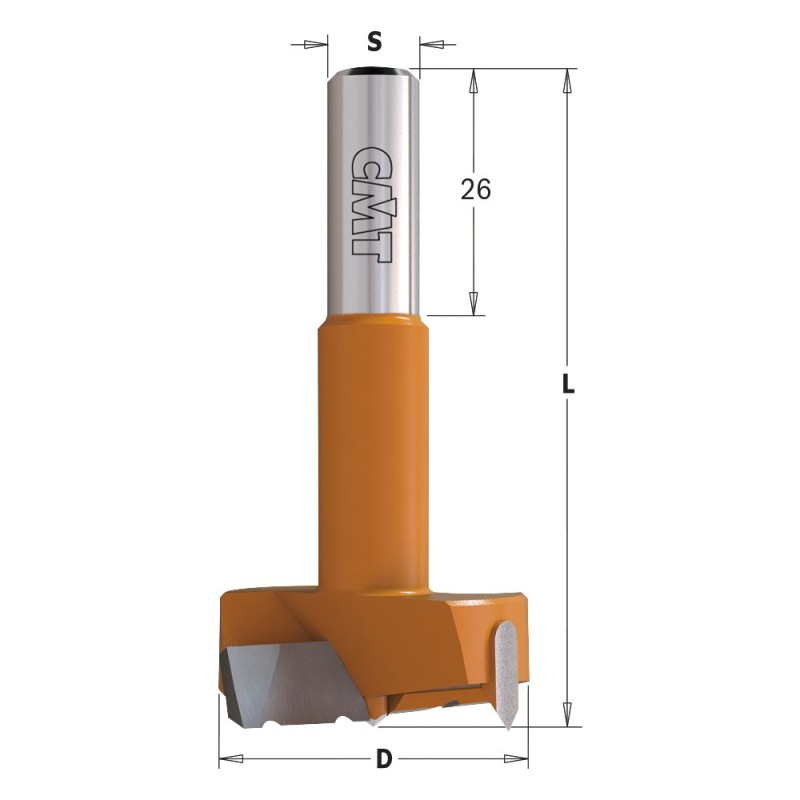

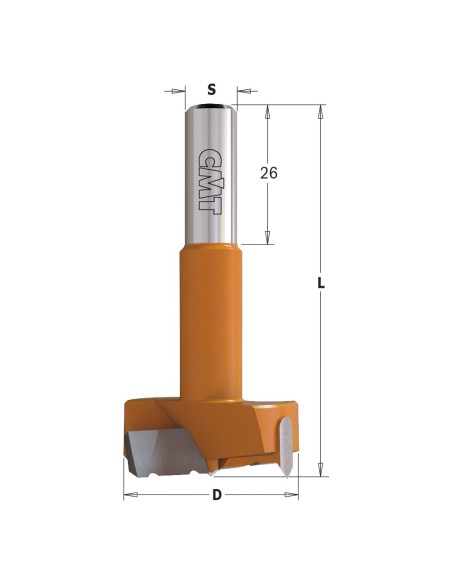

Diameter

Totale length

Shank diameter

Number of cutting edges

Material

Right-hand or left-hand rotation

Payments and Security

Your payment details are processed securely.
Pay for purchases between €30 and €2,000 in 3 interest-free instalments via

Delivery time: 3 working days

Reference	D	L	S	Z	MAT	RHLH	b	V	Quantity	Price
369.350.11C Details	35	70	10x26	2R	HW	RH	Negatively ground spurs	2	195	€70.72
369.350.12C Details	35	70	10x26	2R	HW	LH	Negatively ground spurs	2	84	€70.72
369.400.11C Details	40	70	10x26	2R	HW	RH	Negatively ground spurs	2	8	€82.07
369.400.12C Details	40	70	10x26	2R	HW	LH	Negatively ground spurs	2	17	€82.07
369.450.11C Details	45	70	10x26	2R	HW	RH	Negatively ground spurs	2	27	€98.94
369.450.12C Details	45	70	10x26	2R	HW	LH	Negatively ground spurs	2	38	€98.94
